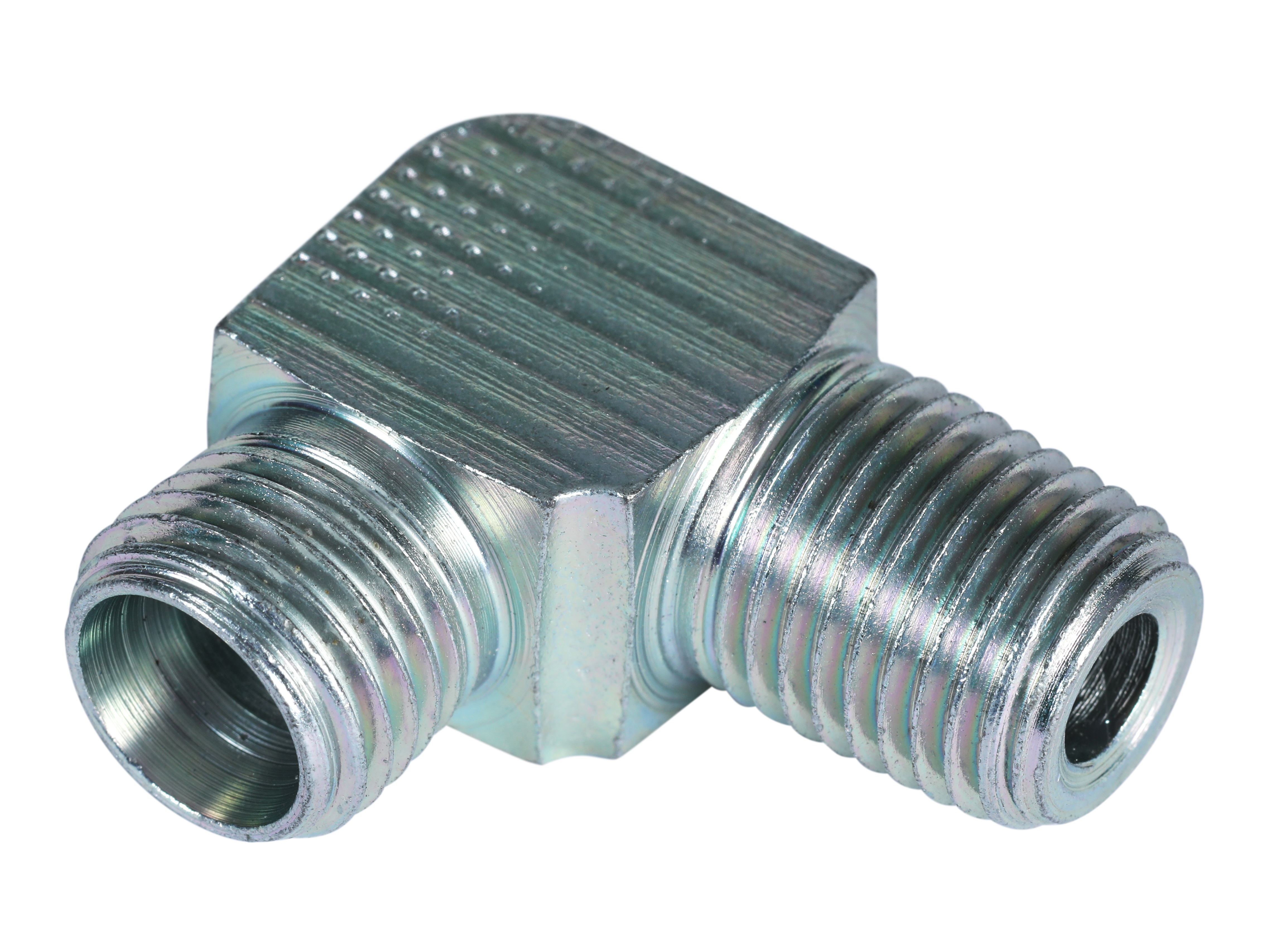

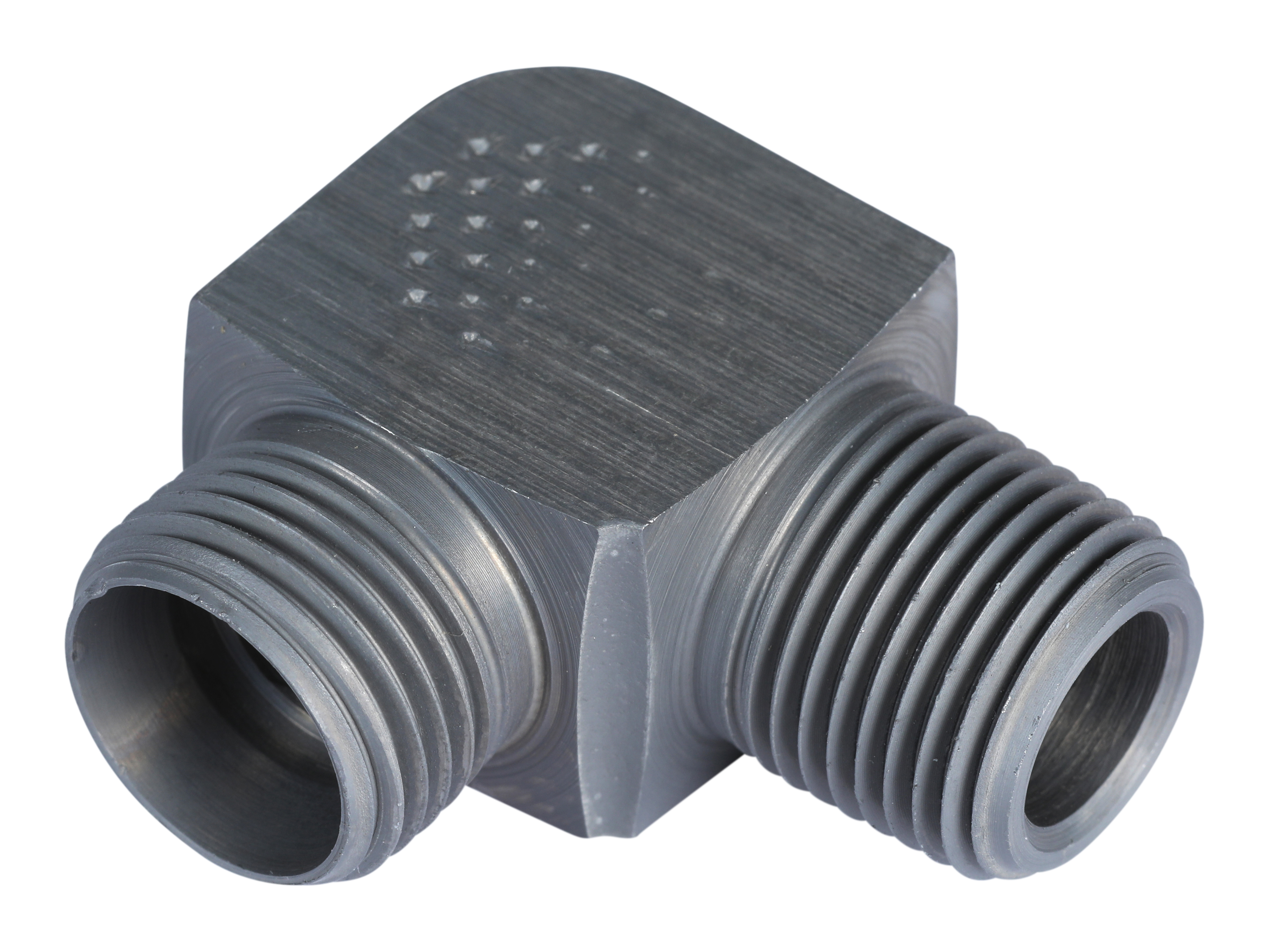

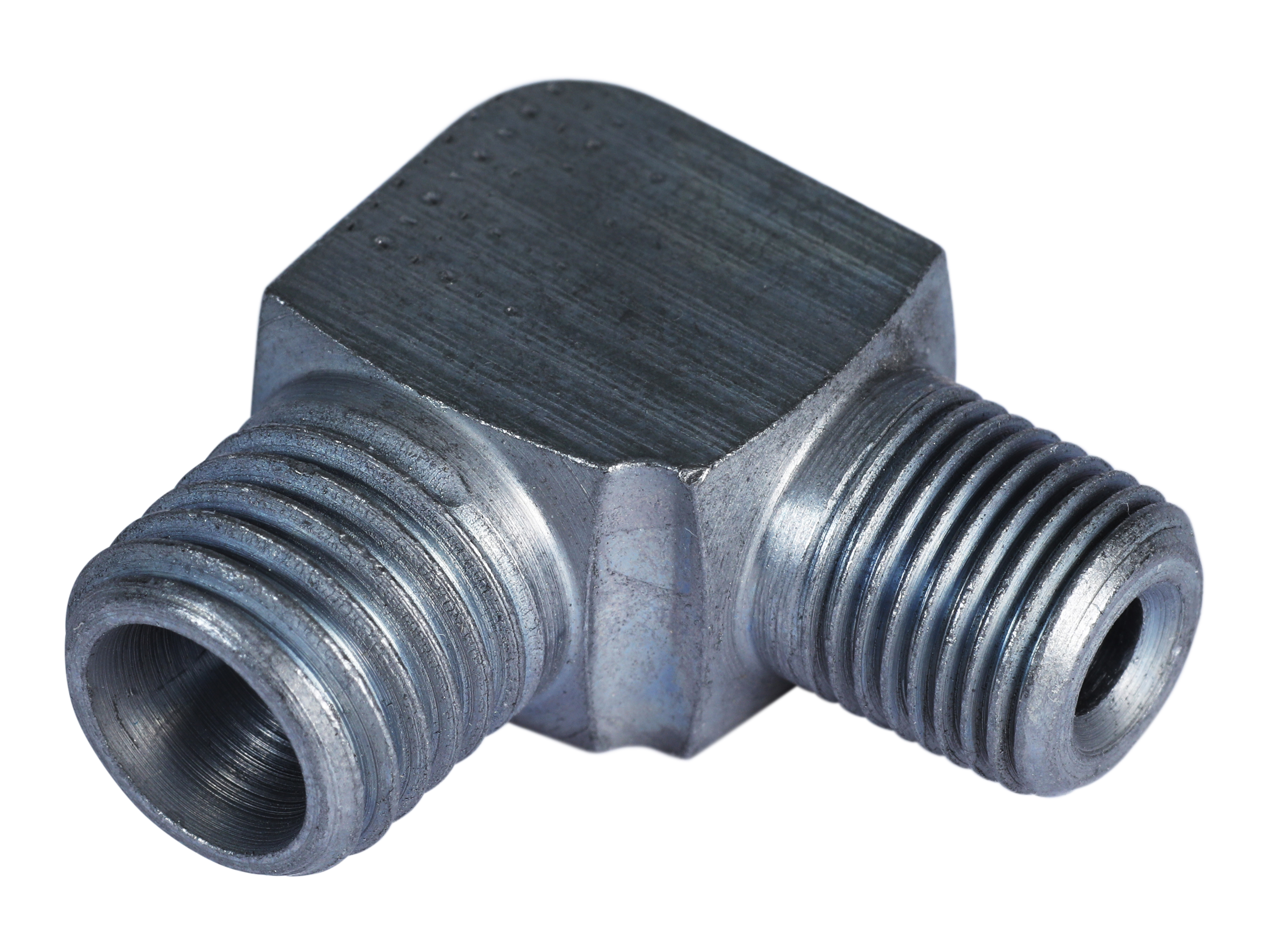

Armbågsbeslag 90° - L-serien - MM hane 24° x NPT hantapp - B-LNPTX / XWE-LN

SELECT VARIANT

Partnumber	Description	Series	Pressure max.	Thread outer metric	Thread outer
XWE06LN	Adapter 90° 06L, Utv-NPT 1/8''	L	315 bar	M12x1,5	1/8 NPT
XWE08LN	Adapter 90° 08L, Utv-NPT 1/4''	L	315 bar	M14x1,5	1/4 NPT
XWE10LN	Adapter 90° 10L, Utv-NPT 1/4''	L	315 bar	M16x1,5	1/4 NPT
XWE12LN	Adapter 90° 12L, Utv-NPT 3/8''	L	315 bar	M18x1,5	3/8 NPT
XWE12LN14	Adapter 90° 12L, Utv-NPT 1/4''	L	315 bar	M18x1,5	1/4 NPT
XWE15LN	Adapter 90° 15L, Utv-NPT 1/2''	L	315 bar	M22x1,5	1/2 NPT
XWE18LN	Adapter 90° 18L, Utv-NPT 1/2''	L	160 bar	M26x1,5	1/2 NPT
XWE22LN	Adapter 90° 22L, Utv-NPT 3/4''	L	160 bar	M30x2	3/4 NPT
XWE28LN	Adapter 90° 28L, Utv-NPT 1''	L	160 bar	M36x2	1 NPT

Angle

Brand Name

Stauff

Corrosion resistance

1200 hours salt spray DIN EN ISO 9227

Material

Stål

REACH compliant

RoHs compliant

Safety factor

Series

Surface treatment

Zink-Nickel

Temperature max.

+120

Temperature min.

-40
