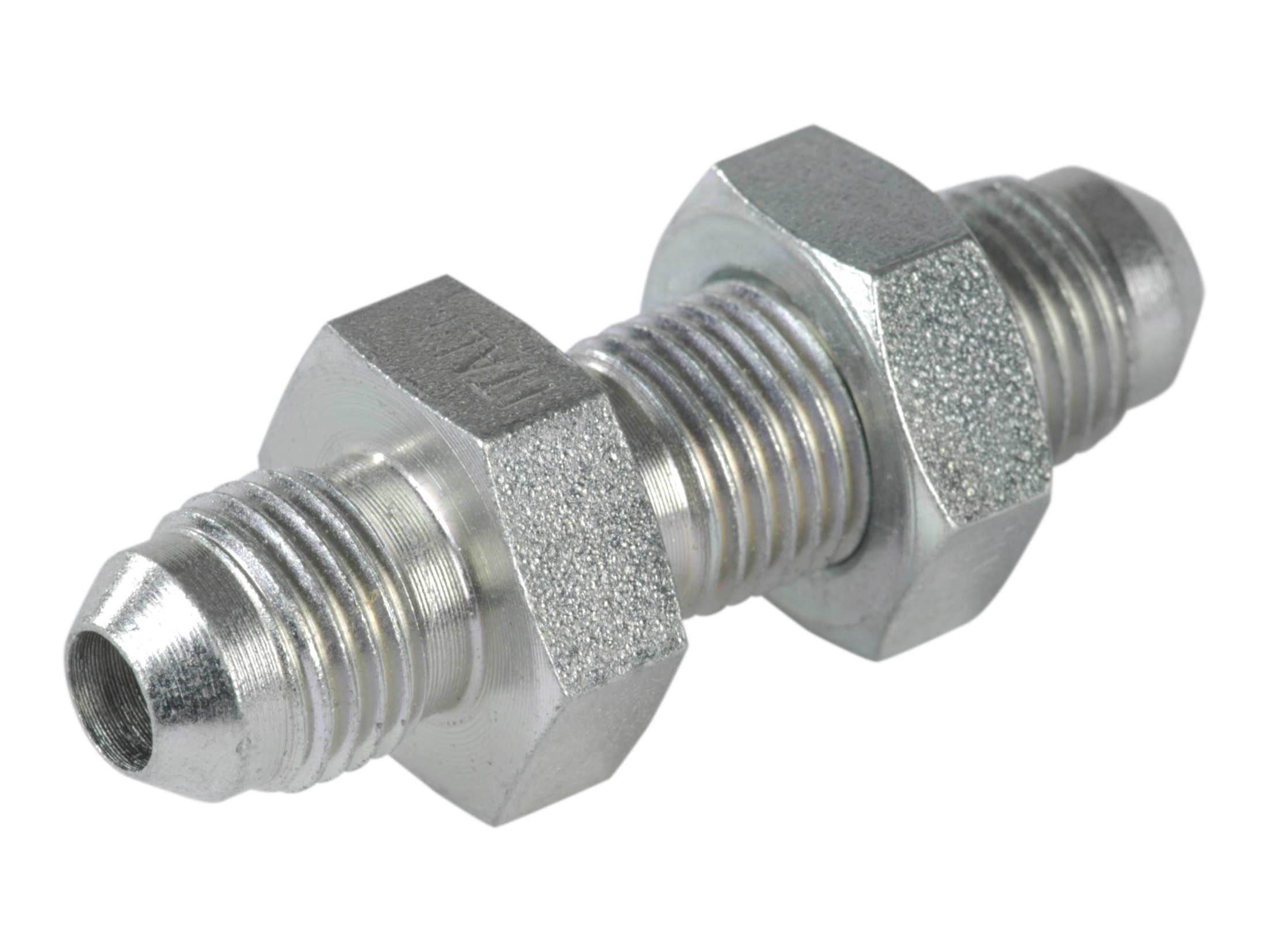

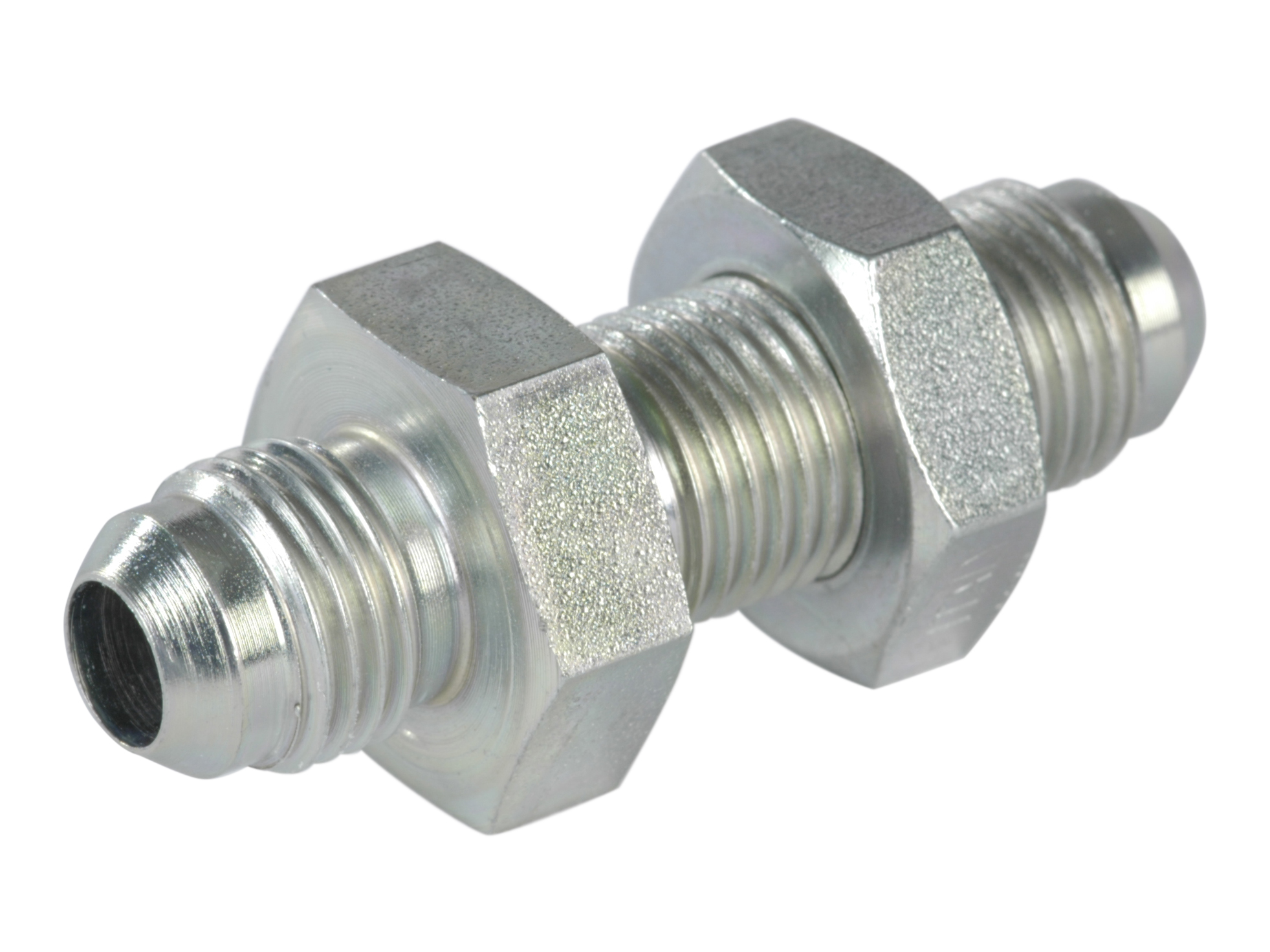

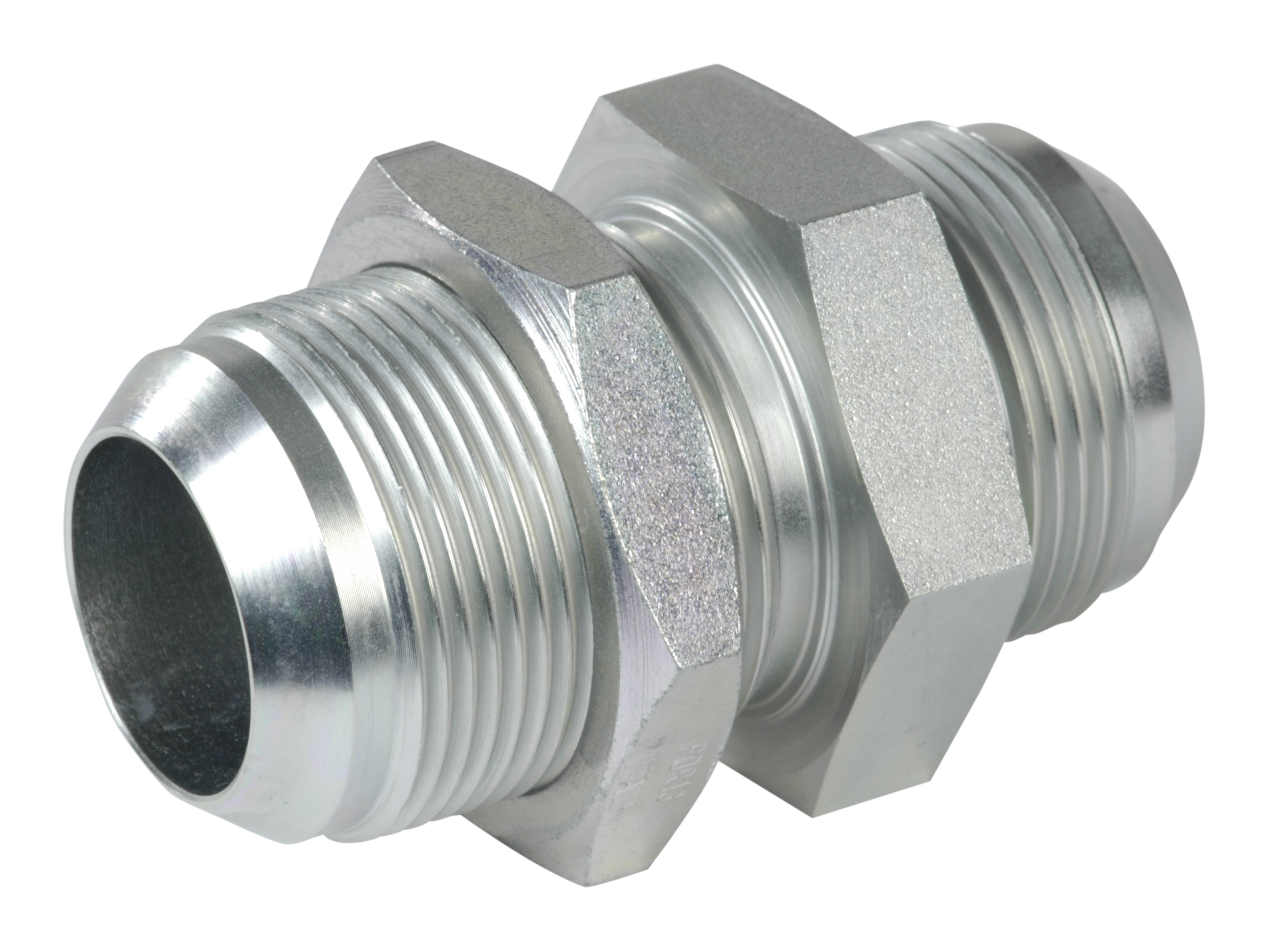

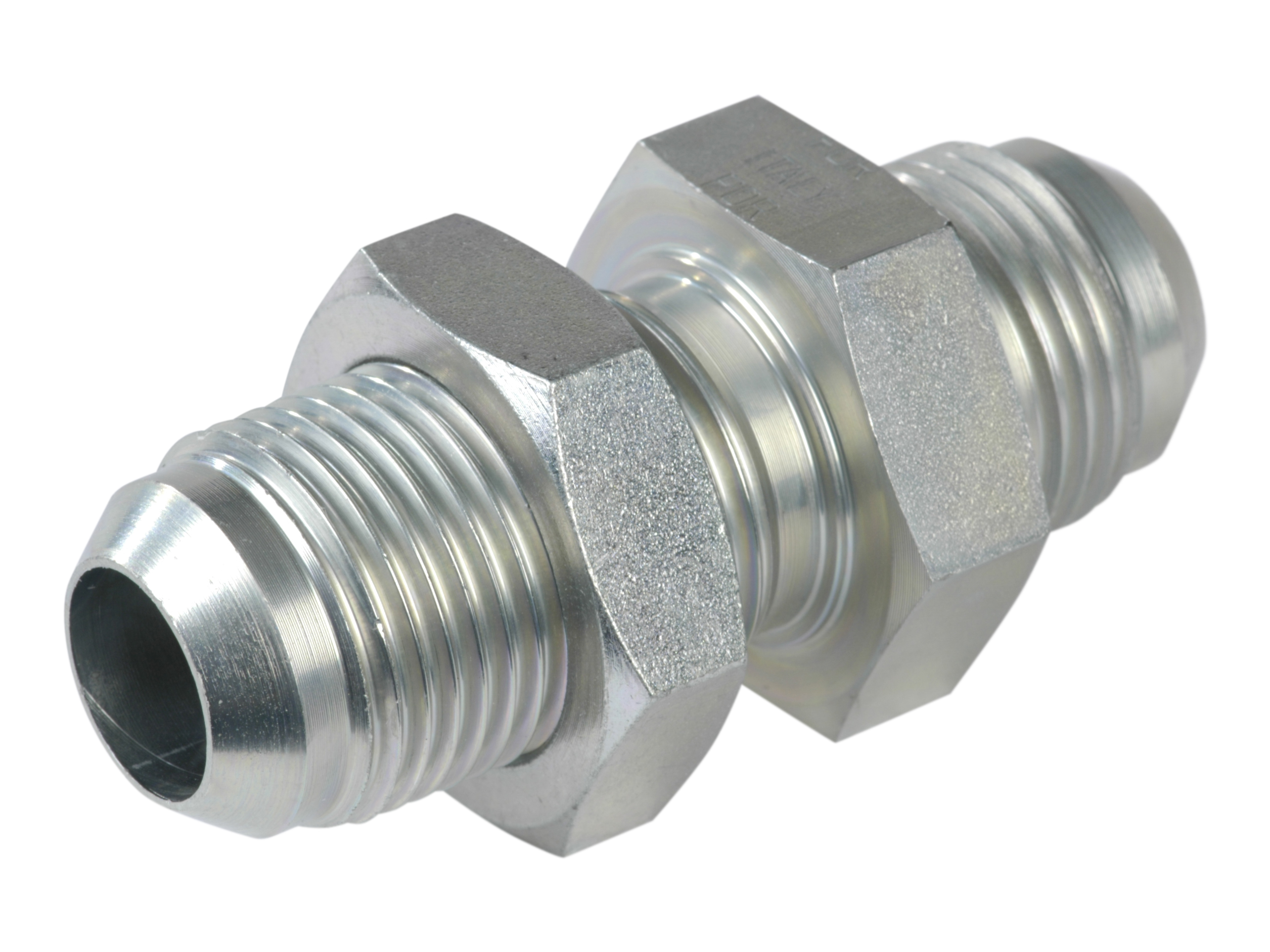

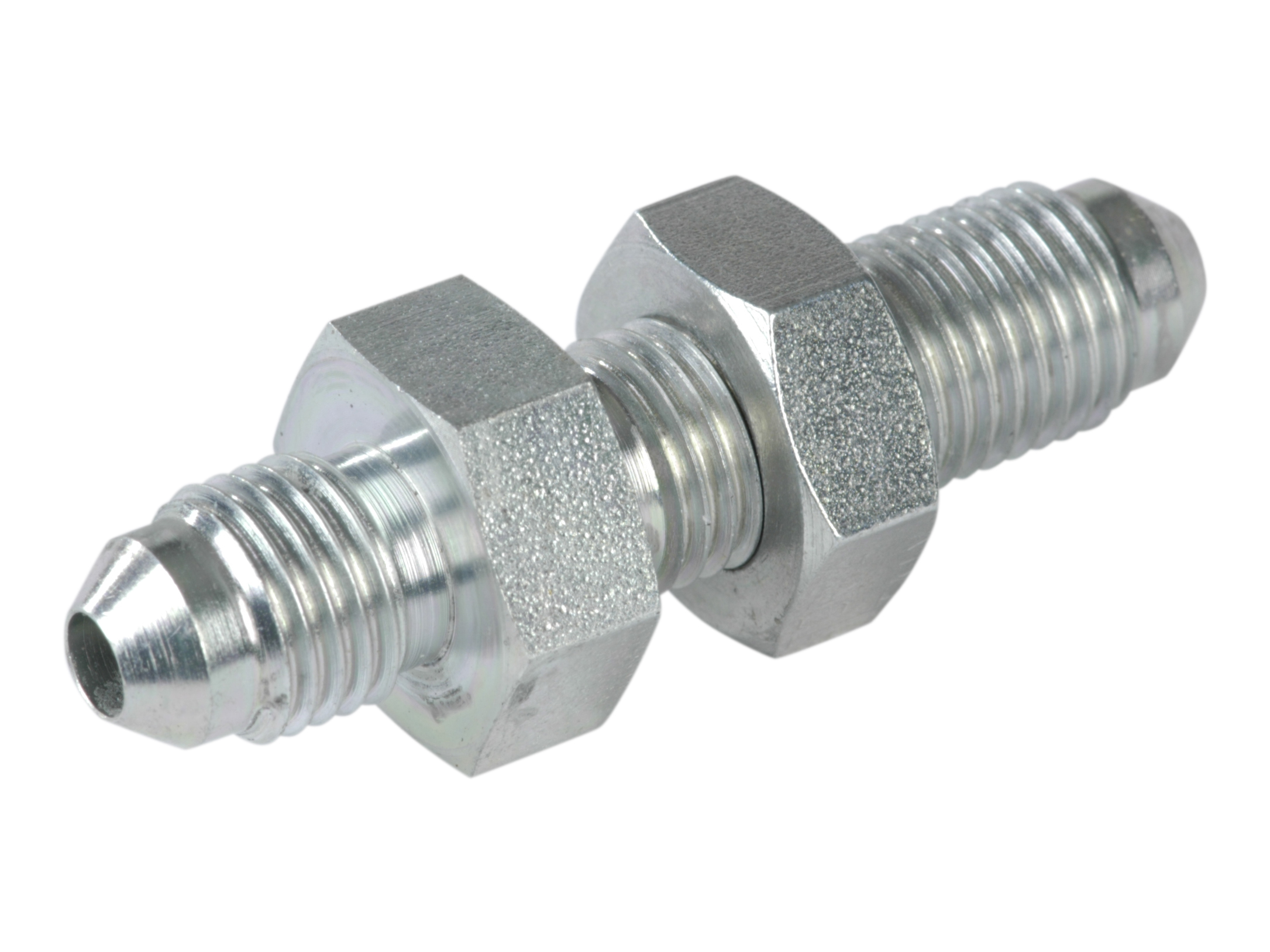

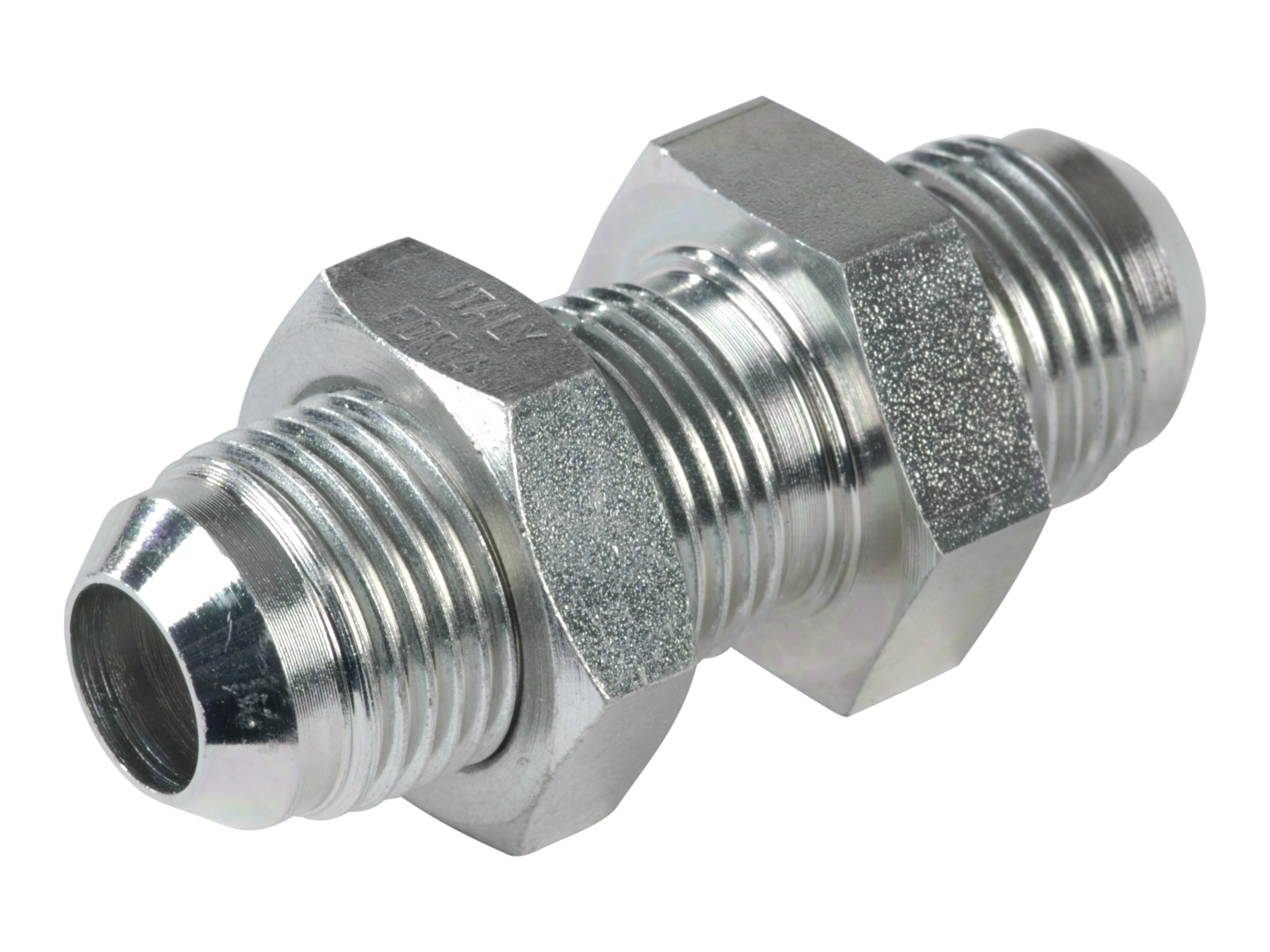

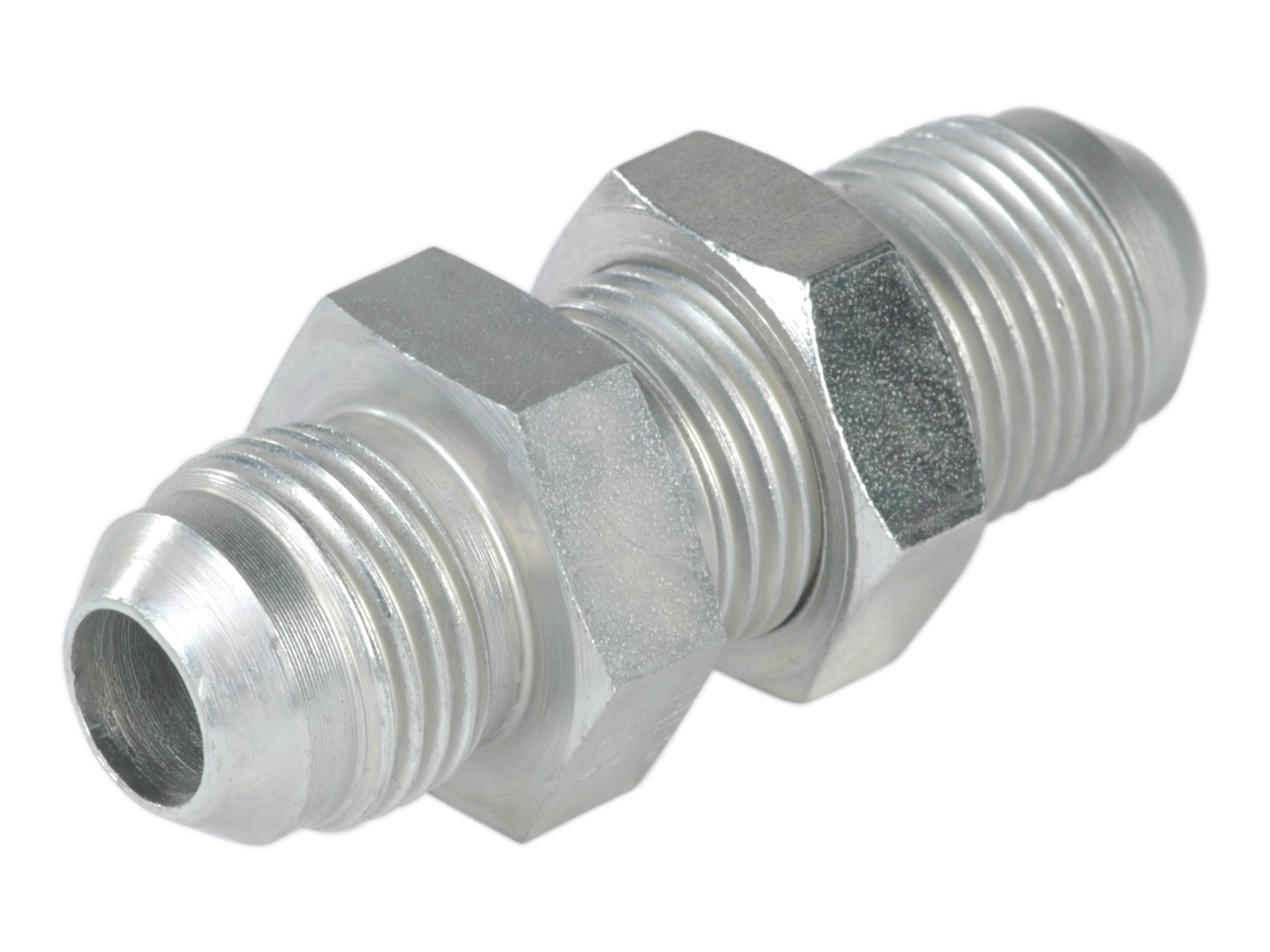

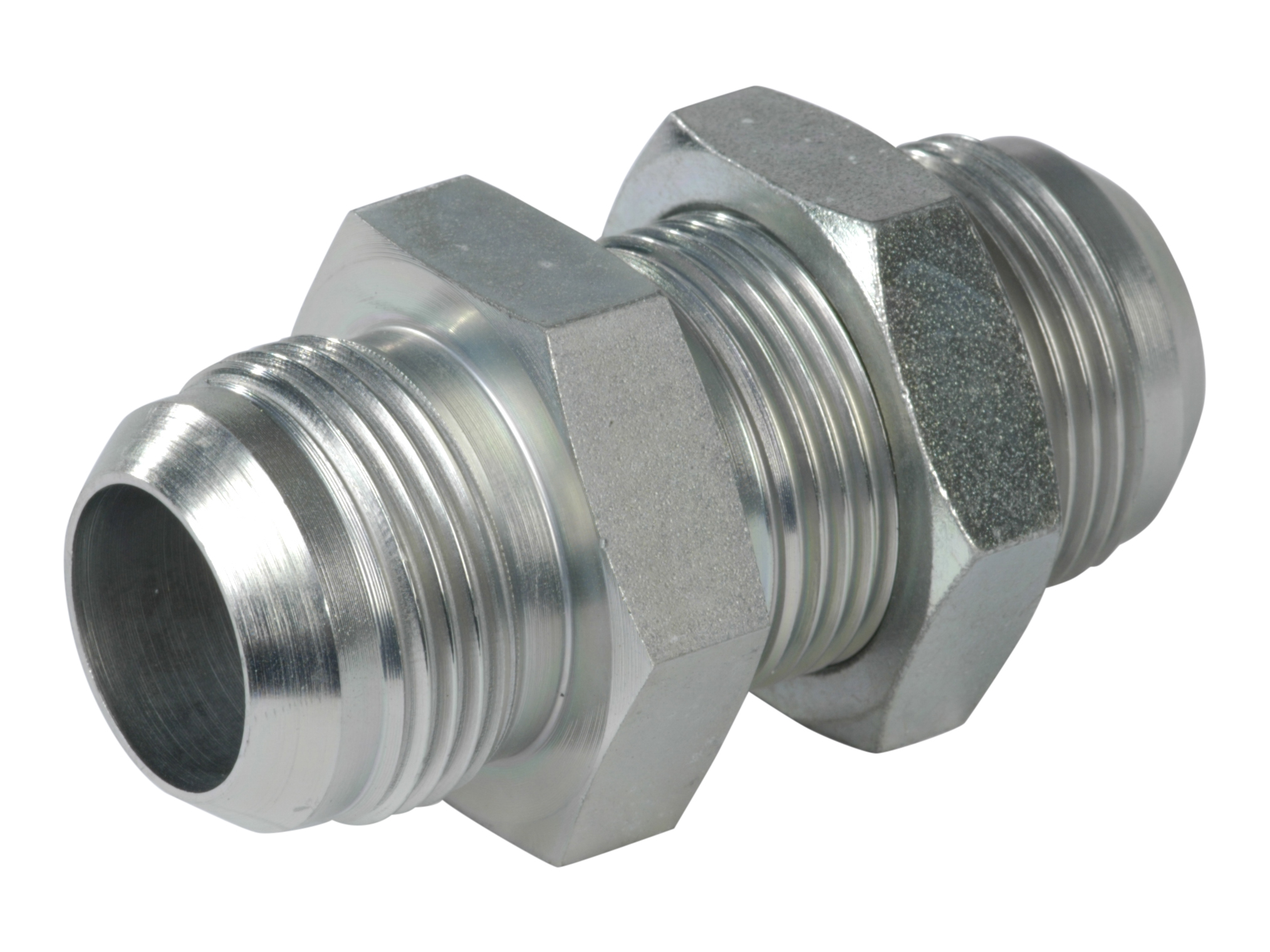

Bulkhead adapter 0° straight JIC x JIC - MUP / JSV

SELECT VARIANT

Partnumber	Description	Diameter pipe	Thread outer	Pressure max.	Brand Name
JSV-03	JSV-03 - Skottadapter Rak, Utv-JIC 3/8		3/8-24 JIC		Hydraspecma
JSV-04	JSV-04 - Skottadapter Rak, Utv-JIC 7/16-2	6 mm	7/16-20 JIC	350 bar	FOR
JSV-05	JSV-05 - Skottadapter Rak, Utv-JIC 1/2-20	8 mm	1/2-20 JIC	416 bar	FOR
JSV-06	JSV-06 - Skottadapter Rak, Utv-JIC 9/16-1	10 mm	9/16-18 JIC	350 bar	FOR
JSV-07	JSV-07 - Skottadapter Rak, Utv-SAE 45				Hydraspecma
JSV-08	JSV-08 - Skottadapter Rak, Utv-JIC 3/4-16	12 mm	3/4-16 JIC	350 bar
JSV-10	JSV-10 - Skottadapter Rak, Utv-JIC 7/8-14	16 mm	7/8-14 JIC	350 bar	FOR
JSV-12	JSV-12 - Skottadapter Rak, Utv-JIC 1.1/16	20 mm	1.1/16-12 JIC	300 bar	FOR
JSV-14	JSV-14 - Skottadapter Rak, Utv-JIC 1.3/16	22 mm	1.3/16-12 JIC
JSV-16	JSV-16 - Skottadapter Rak, Utv-JIC 1.5/16	25 mm	1.5/16-12 JIC	290 bar	FOR
JSV-20	JSV-20 - Skottadapter Rak, Utv-JIC 1.5/8	32 mm	1.5/8-12 JIC	210 bar	FOR
JSV-24	JSV-24 - Skottadapter Rak, Utv-JIC 1.7/8	38 mm	1.7/8-12 JIC	140 bar	FOR
JSV-32	JSV-32 - Skottadapter Rak, Utv-JIC 2.1/2		2.1/2-12 JIC		Hydraspecma
