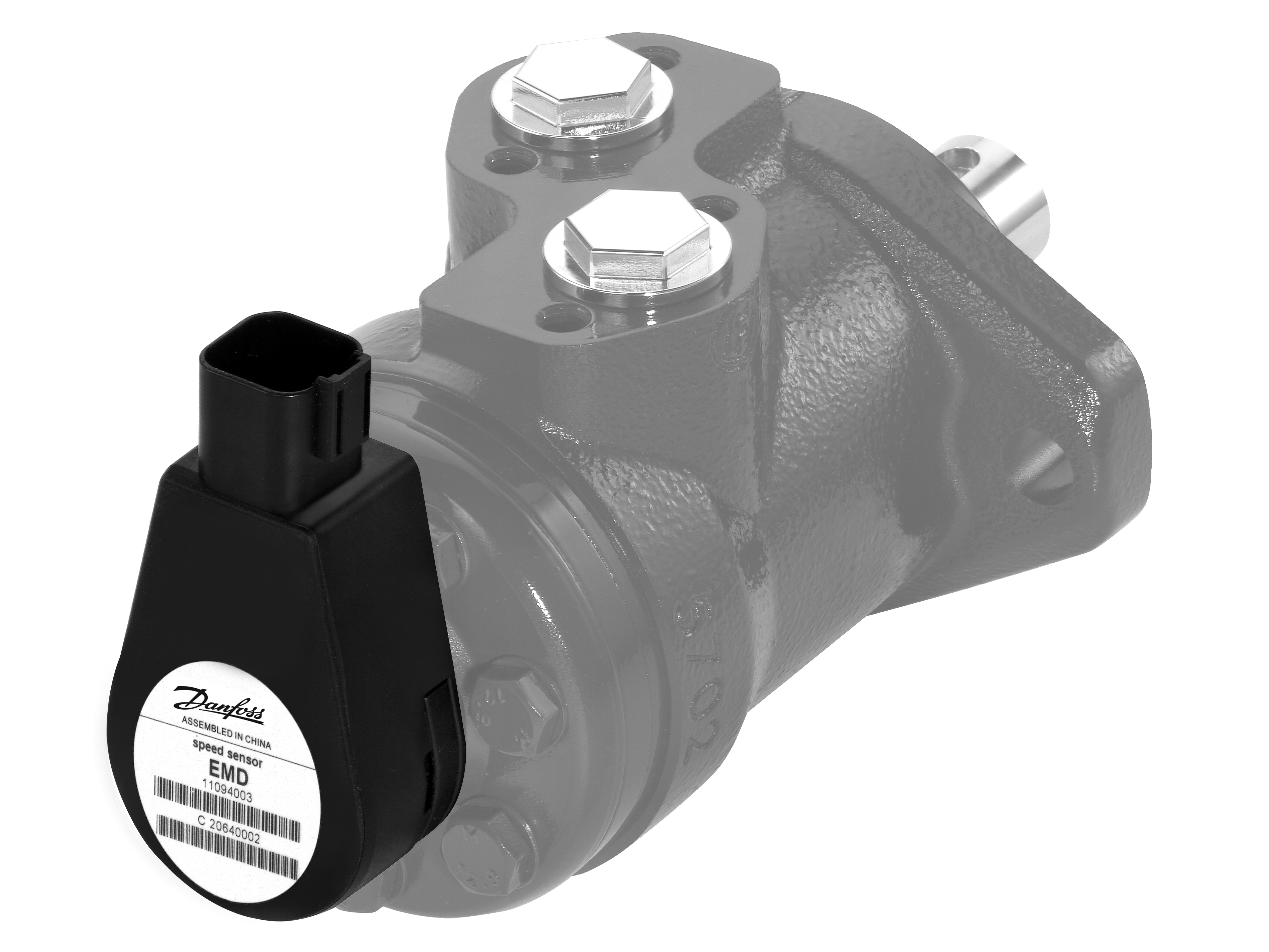

OMS 100 EMD Orbitmotor 32mm W.O.sensor
100 cm³/r SAE A-4 32mm akseli
Partnumber:
11105153
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
White
C
G 1/4 BSP
Continuous power max.
18 kW
Continuous rotation max.
750 rpm
D
M10
Displacement
100 cm3
Drainport
G 1/4 BSP
E
G 1/2 BSP
Holes circle
106.4 mm
Intermittent Effect Max.
22.5 kW
Intermittent Rotation speed Max.
900 rpm
Intermittent Torque Max.
390 Nm
L
170 mm
L1
17,4 mm
L2
127 mm
L3
65-67 mm
Mounting flange
Square 82,5
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Sida
Power max.
18 kW
Pressure continous max.
140 bar
Pressure drop continuous max.
210 bar
Pressure intermittent max.
175 bar
Pressure peak max.
210 bar
Recess
82,5 mm
Rotational speed max.
750 rpm
Shaft diameter
32 mm
Shaft keyway
10,0 mm
Shaft type
Cylindrisk
Torque continuous max.
305 Nm
Torque output max.
390 Nm
Working ports
G 1/2 BSP
Package size
1 st
Barcode
334003
Gross weight
10,70 Kg
Net weight
10,70 Kg
Country of origin
Intrastat code
84122981
100 cm³/r SAE A-4 32mm akseli
