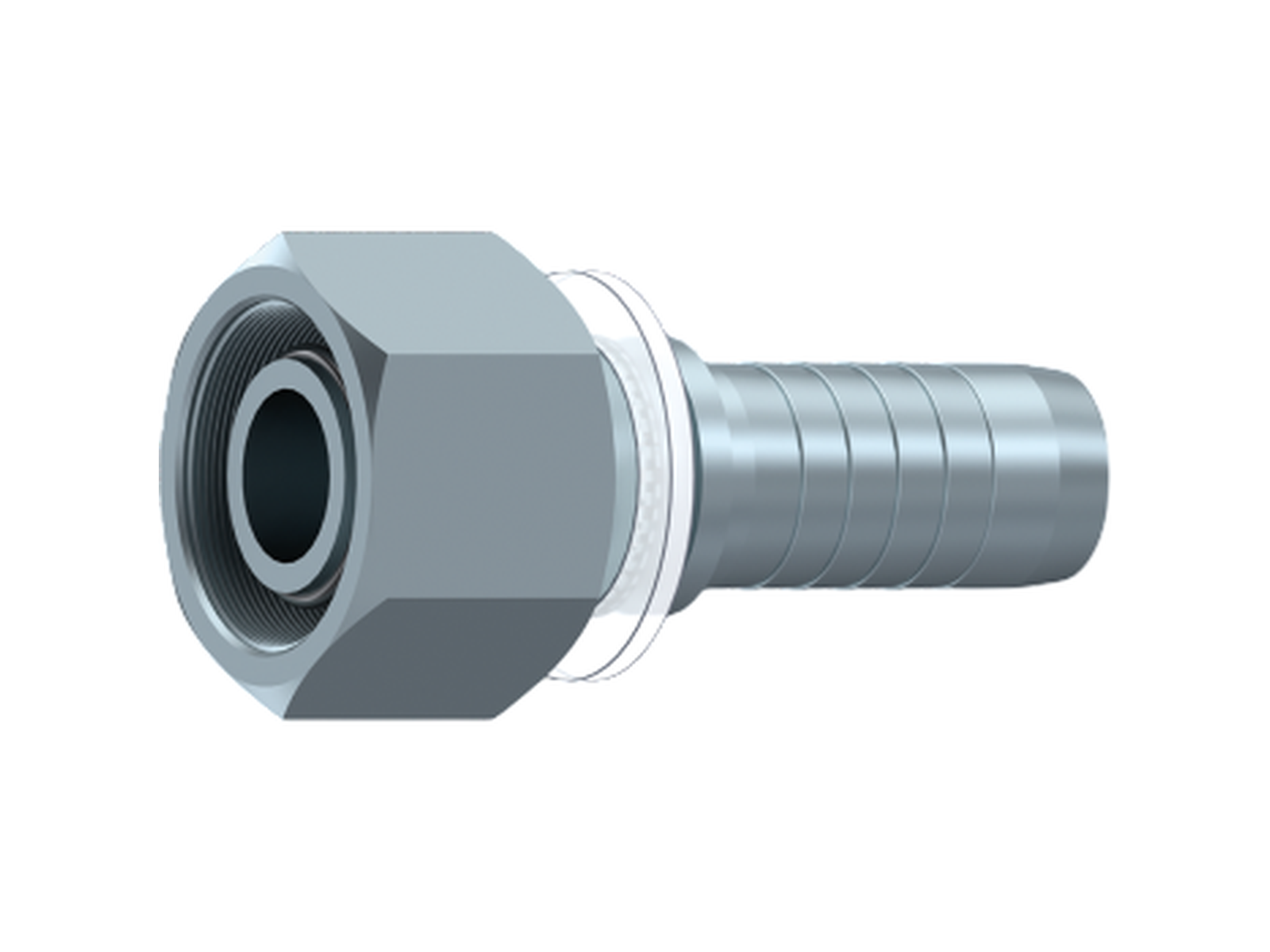

Metric union nut, 24° cone face, LIGHT series, "RO"

SELECT VARIANT
Partnumber Description Hose size Angle Hose coupling type Material
4722-04-03 PRESSNIPPEL 4722 IM10 SL3/16 3/16 " 0 ° For separate ferrule Steel
4722-06-03 Insert 3/16" - M12x1.5 nut 06L 3/16 " 0 ° For separate ferrule Steel
4722-06-04 Insert 1/4" - M12x1.5 nut 06L 1/4 " 0 ° For separate ferrule Steel
4722-08-03 Insert 3/16" - M14x1.5 nut 08L 3/16 " 0 ° For separate ferrule Steel
4722-08-04 Insert 1/4" - M14x1.5 nut 08L 1/4 " 0 ° For separate ferrule Steel
4722-08-05 Insert 5/16" - M14x1.5 nut 08L 5/16 " 0 ° For separate ferrule Steel
4722-08-06 PRESSNIPPEL 4722 IM14 SL3/8 3/8 " 0 ° For separate ferrule Steel
4722-10-03 Hose coupling straight DKOL M16x1.5 SL3/16'' 0 ° For separate ferrule Steel
4722-10-04 Insert 1/4" - M16x1.5 nut 10L 1/4 " 0 ° For separate ferrule Steel
4722-10-05 Insert 5/16" - M16x1.5 nut 10L 5/16 " 0 ° For separate ferrule Steel
4722-10-06 Insert 3/8" - M16x1.5 nut 10L 3/8 " 0 ° For separate ferrule Steel
4722-12-04 Insert 1/4" - M18x1.5 nut 12L 1/4 " 0 ° For separate ferrule Steel
4722-12-05 Insert 5/16" - M18x1.5 nut 12L 5/16 " 0 ° For separate ferrule Steel
4722-12-06 Insert 3/8" - M18x1.5 nut 12L 3/8 " 0 ° For separate ferrule Steel
4722-12-08 Insert 1/2" - M18x1.5 nut 12L 1/2 " 0 ° For separate ferrule Steel
4722-15-04 PRESSNIPPEL 4722 IM22 SL1/4 1/4 " 0 ° For separate ferrule Steel
4722-15-06 Insert 3/8" - M22x1.5 nut 15L 3/8 " 0 ° For separate ferrule Steel
4722-15-08 Insert 1/2" - M22x1.5 nut 15L 1/2 " 0 ° For separate ferrule Steel
4722-15-10 Insert 5/8" - M22x1.5 nut 15L 5/8 " 0 ° For separate ferrule Steel
4722-18-06 PRESSNIPPEL 4722 IM26 SL3/8 3/8 " 0 ° For separate ferrule Steel
4722-18-08 Insert 1/2" - M26x1.5 nut 18L 1/2 " 0 ° For separate ferrule Steel
4722-18-10 Insert 5/8" - M26x1.5 nut 18L 5/8 " 0 ° For separate ferrule Steel
4722-18-12 Insert 3/4" - M26x1.5 nut 18L 3/4 " 0 ° For separate ferrule Steel
4722-22-08 PRESSNIPPEL 4722 IM30 SL1/2 1/2 " 0 ° For separate ferrule Steel
4722-22-10 Insert 5/8" - M30x2 nut 22L 5/8 " 0 ° For separate ferrule Steel
4722-22-12 Insert 3/4" - M30x2 nut 22L 3/4 " 0 ° For separate ferrule Steel
4722-22-16 Hose fitting straight female 22L to 1" 1 " 0 ° For separate ferrule Steel
4722-28-12 Insert 3/4" - M36x2 nut 28L 3/4 " 0 ° For separate ferrule Steel
4722-28-16 Insert 1" - M36x2 nut 28L 1 " 0 ° For separate ferrule Steel
4722-28-20 PRESSNIPPEL 4722 IM36 SL11/4 1.1/4 " 0 ° For separate ferrule Steel
4722-35-16 PRESSNIPPEL 4722 IM42 SL 1 1 " 0 ° For separate ferrule Steel
4722-35-20 Insert 1.1/4" - M45x2 nut 35L 1.1/4 " 0 ° For separate ferrule Steel
4722-35-24 Hose fitting M45 35L to hose 1.1/2 1.1/2 " 0 ° For separate ferrule Steel
4722-42-20 PRESSNIPPEL 4722 IM52 SL11/4 1.1/4 " 0 ° For separate ferrule Steel
4722-42-24 Insert 1.1/2" - M52x2 nut 42L 1.1/2 " 0 ° For separate ferrule Steel
4722-42-32 PRESSNIPPEL 4722 IM52 SL2 tum 2 " 0 ° For separate ferrule Steel
Angle
0

Hose coupling type
For separate ferrule

Material
Steel

Series
L

Temperature max.
+100

Temperature min.
-30
