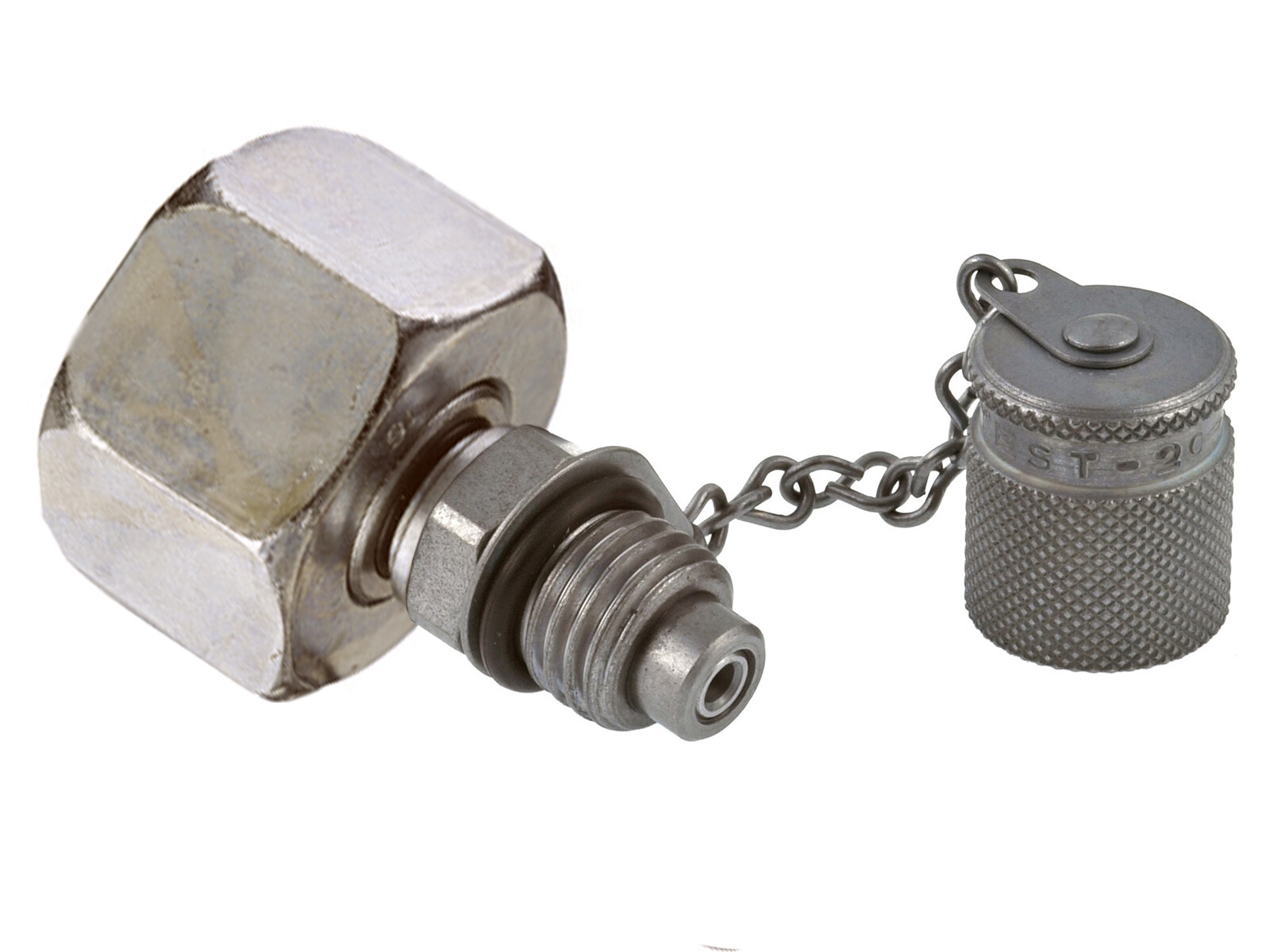

Test adaptor, ø20 s (DKO-M10)
Testadaptors DKO-type cutting ring fitting for pressure monitoring and venting. Well suited for hydraulic fluids and and other fluids based on mineral oil. Metal protection cap included. Can be connected under pressure without oil spillage.
Partnumber:
M01-20S-DKOS
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Stauff
Diameter pipe
20 mm
Hexagon
36 mm
Material
Steel
Model code
SMK-20-20S-B-K-GS-W3
Pressure max.
400 bar
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread inner metric
M30x2
Thread outer metric
M16x2
Förpackningsstorlek
1 st
Streckkod
212424
Bruttovikt
0,22 Kg
Nettovikt
0,22 Kg
Ursprungsland
DEU
Intrastat artikelkod
84812010
Testadaptors DKO-type cutting ring fitting for pressure monitoring and venting. Well suited for hydraulic fluids and and other fluids based on mineral oil. Metal protection cap included. Can be connected under pressure without oil spillage.
