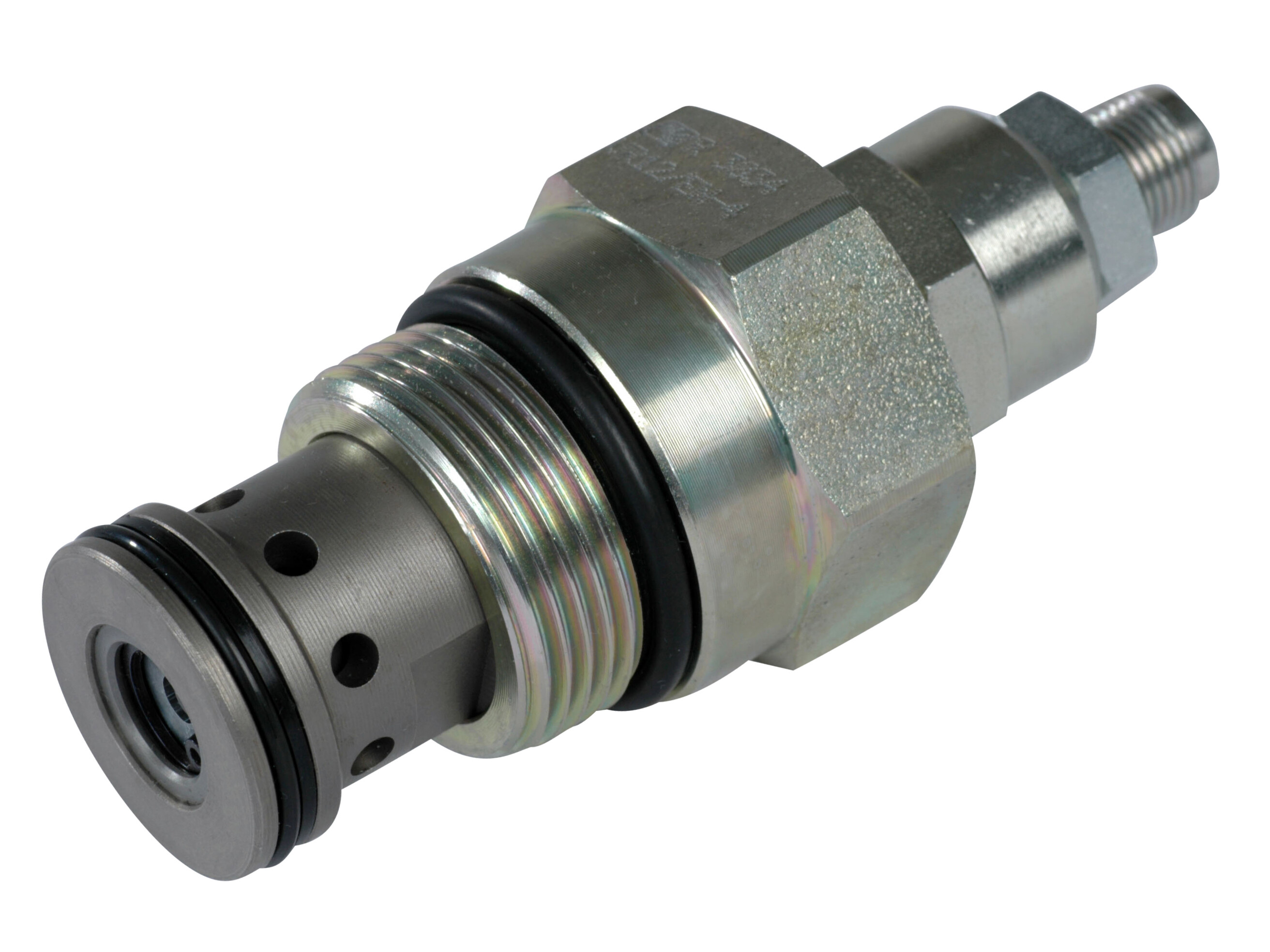

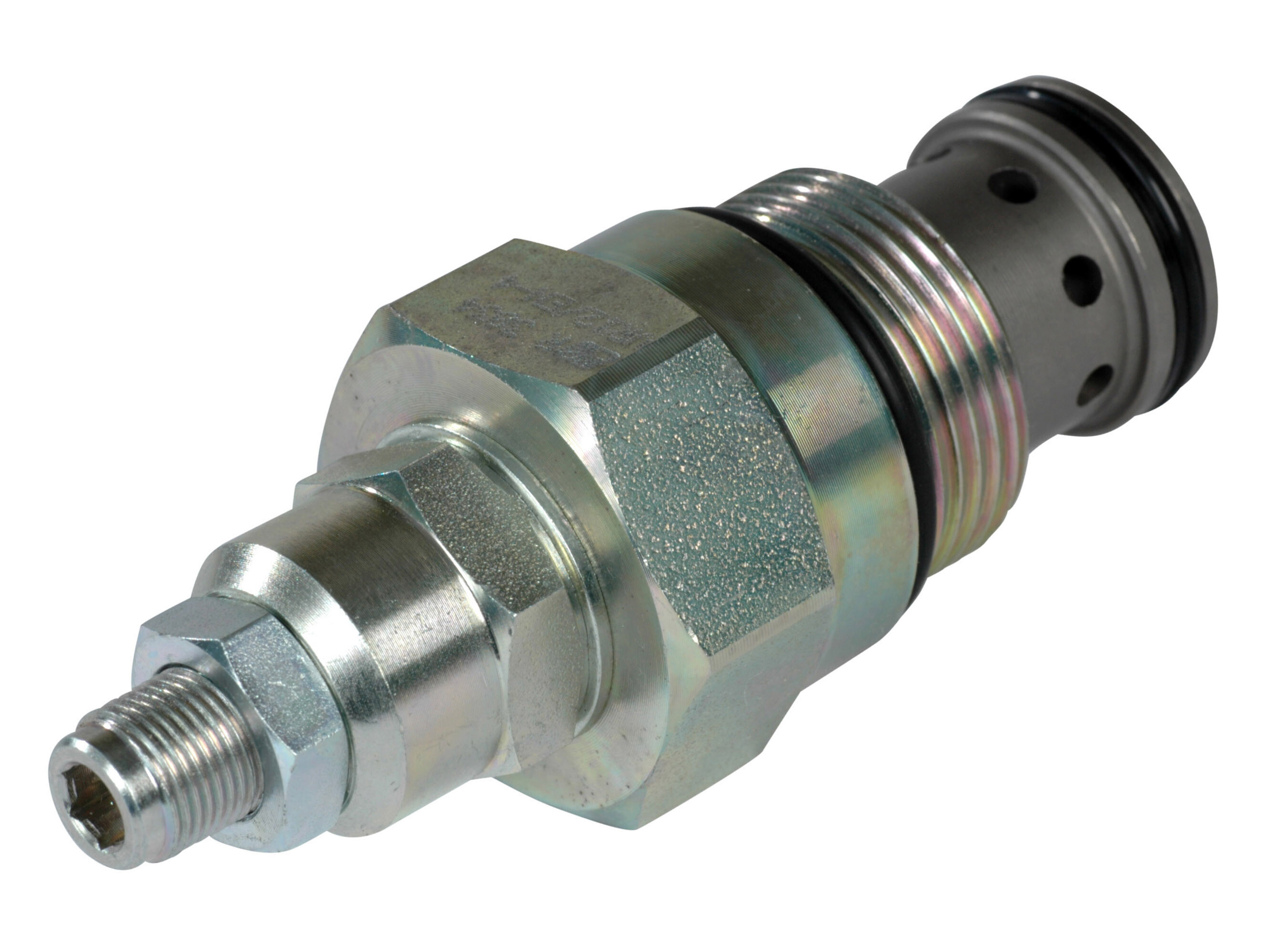

Press.comp Flow Cont. valve 60l/m (16-40l/m) VR 12-EN-4.00-0
This valve is a limited adjustment, pressure compensated, restrictive-type flow control valve. To increase the flow, turn the adjustment screw clockwise. To decrease the flow, turn the adjustment screw counter-clockwise.
Partnumber:
820164919
Package size:
1 st
Min. order quantity is:
1 st
Flow min. reglerat
16 lpm
Flöde max. reglerat
40 l/min
Flödeshastighet nominell LMin
60 lpm
Föroreningsgrad max.
20/18/14 - ISO 4406
Kavitet
NCS12/2
Modell kod
VR12-EN-4.00-00
Märke namn
Danfoss
Oljeviskositet rekommanderad
12 - 54 cSt
Temperatur max.
+100 °C
Temperatur min.
-40 °C
Tryck max.
315 bar
Tryckkompenserad
Yes
Åtdragning moment
65 - 70 Nm
Package size
1 st
Barcode
374720
Gross weight
0,43 Kg
Net weight
0,43 Kg
Country of origin
ITA
Intrastat code
84812010
This valve is a limited adjustment, pressure compensated, restrictive-type flow control valve. To increase the flow, turn the adjustment screw clockwise. To decrease the flow, turn the adjustment screw counter-clockwise.
