FLÄNS 90GR SAE6000 1.1/4 SVETS UTV 42.8MM
FLÄNS 90GR SAE6000 1.1/4 SVETS UTV 42.8MM
Partnumber:
0569-20
Package size:
1 st
Min. order quantity is:
1 st
Angle
90 °
Brand Name
Hydraspecma
Diameter Weld butt
42 mm
Diameter flange
54 mm

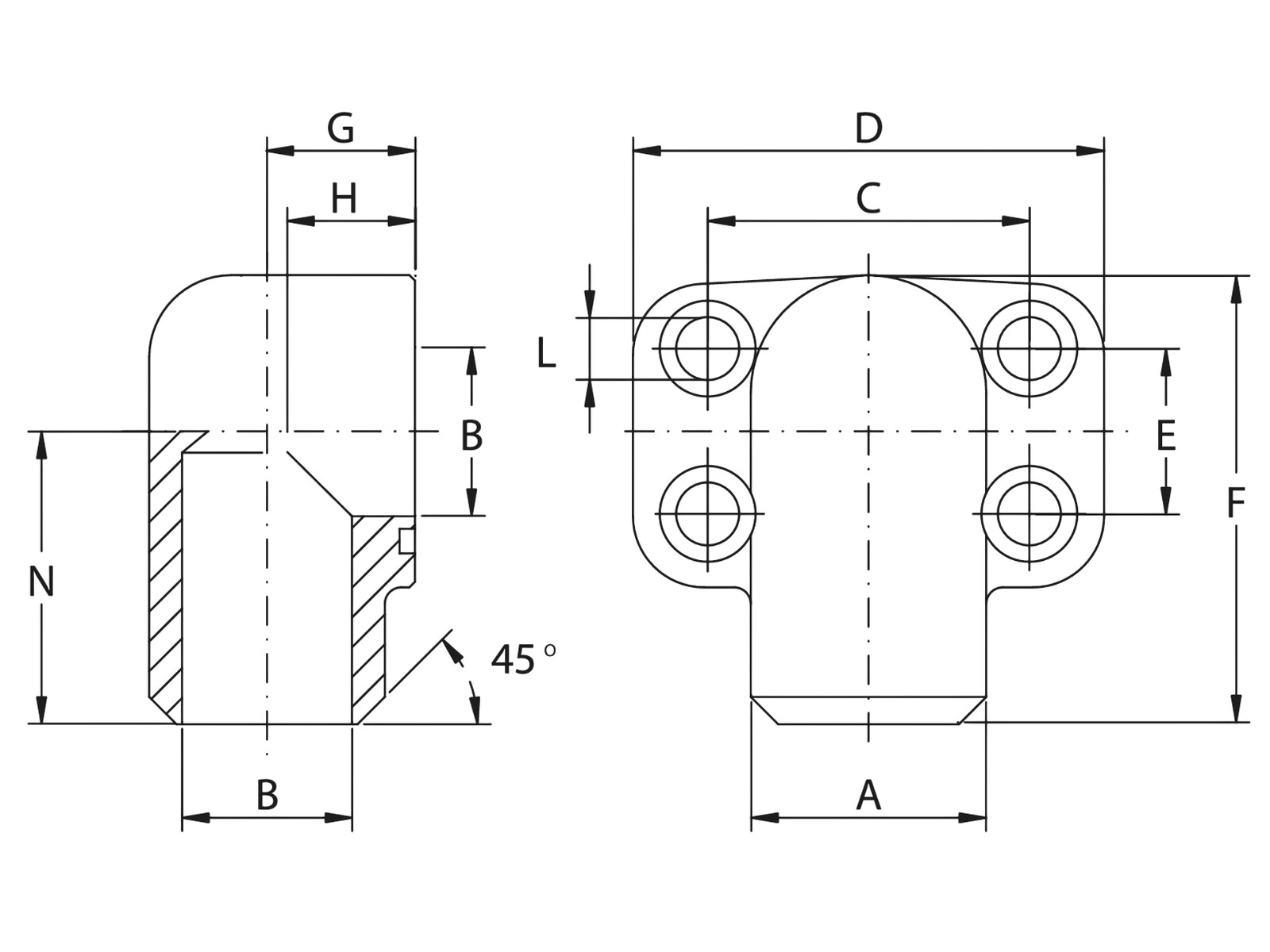

Dimension C
66.7 mm
Dimension E
31.8 mm
Flange
1.1/4 "
Flange SAE/DIN
6000 PSI
Material
Stainless steel
O-ring
37.69X3.53 mm
Pressure max.
375 bar
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Temperature max.
+100 °C
Temperature min.
-30 °C
Package size
1 st
Barcode
256215
Gross weight
1,20 Kg
Net weight
1,20 Kg
Country of origin
ita
FLÄNS 90GR SAE6000 1.1/4 SVETS UTV 42.8MM
