Logic element 40l/m NO Spool type CP700-4-B-0-080

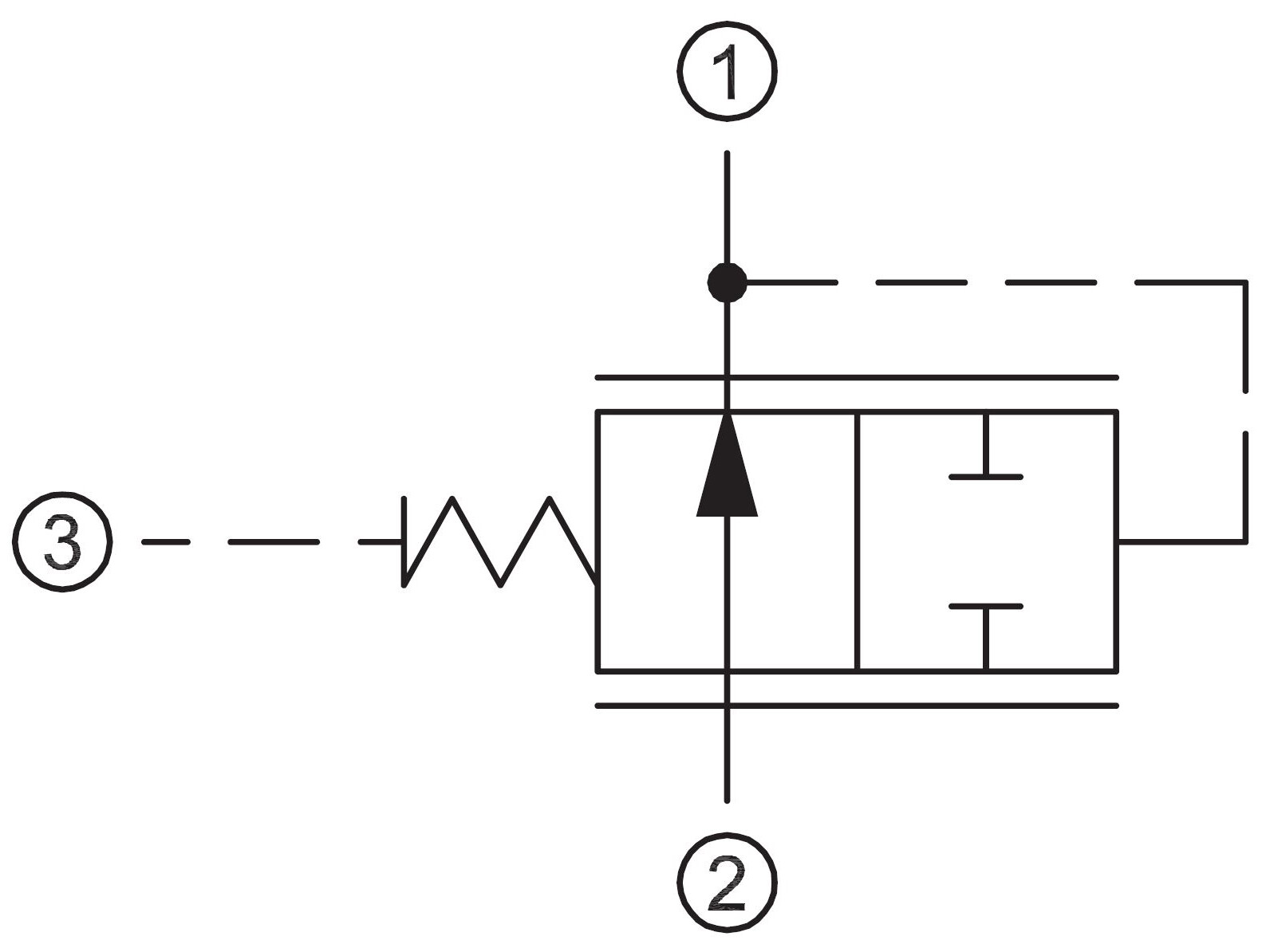

This is a 3-ported, normally open, pilot to open, spool type logic element. Flow is open from port 2 to port 1, until pressure in port 1 is sufficient to overcome the spring set pressure plus any pressure in port 3.

The pressure in port 3 can be controlled remotely making the valve ideal for use as a normally open on/off element in a pressure reducing function. This valve is most commonly used as a pressure compensator in conjunction with a proportional directional valve.

Partnumber:
134240

Package size:
0 pcs

Min. order quantity is:
1 pcs
HOUSING, SDC10-3-SE3B (3/8) SDC10-3-SE3B (3/8)
Partnumber: 922514310
HOUSING, SDC10-3-SE4B (1/2) SDC10-3-SE4B (1/2)
Partnumber: 922514410
Ventilhus Comatrol SDC10-3--SI3B (3/8)
Partnumber: 922514510
Housing SDC10-3--SI4B (1/2)
Partnumber: 922514610
KIT SEAL - BUNA-N #
Partnumber: 120009
Brand Name
Danfoss

Cavity
SDC10-3

Contamination level max.
20/18/14 - ISO 4406

Flow rate nominal LMin
40 lpm

Model code
CP700-4-B-0-080

Oil viscocity recommended
12 - 54 cSt

Pressure max.
210 bar

Temperature max.
+100 °C

Temperature min.
-40 °C

Torque tightening
41 - 47 Nm
Package size
0 pcs

Barcode
5704334768593

Gross weight
0,10 Kg

Net weight
0,10 Kg

Country of origin

Intrastat code
84812010

This is a 3-ported, normally open, pilot to open, spool type logic element. Flow is open from port 2 to port 1, until pressure in port 1 is sufficient to overcome the spring set pressure plus any pressure in port 3.

The pressure in port 3 can be controlled remotely making the valve ideal for use as a normally open on/off element in a pressure reducing function. This valve is most commonly used as a pressure compensator in conjunction with a proportional directional valve.
