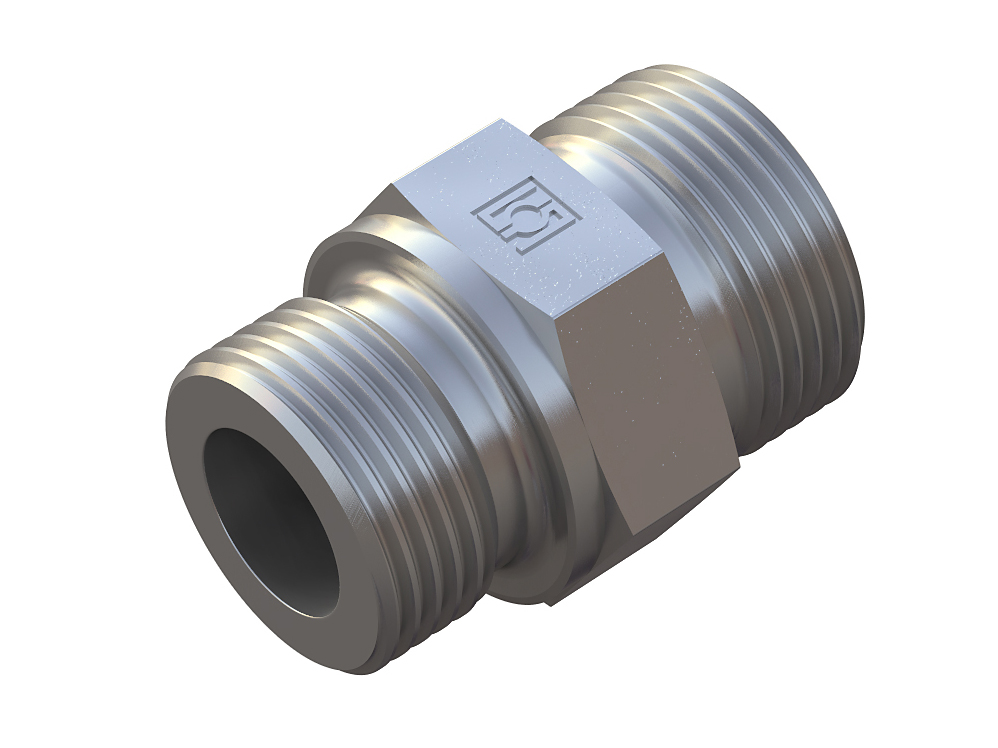

Rak passform 0° - L-serien - DIN hane x NPT hane stud - A-LNPTX / XGE-LN

VÄLJ VARIANT

Artikelnummer	Beskrivning	Diameter rör	Gänga utv.	Tryck max.
XGE06LN	Adapter 06L, NPT1/8''	6 mm	1/8 NPT	315 bar
XGE06LN14	Adapter 06L, NPT1/4''	6 mm	1/4 NPT	315 bar
XGE06LN38	Adapter 06L, NPT3/8''	6 mm	3/8 NPT	315 bar
XGE08LN	Adapter 08L, NPT1/4''	8 mm	1/4 NPT	315 bar
XGE08LN38	Adapter 08L NPT3/8''	8 mm	3/8 NPT	315 bar
XGE10LN	Adapter 10L, NPT1/4''	10 mm	1/4 NPT	315 bar
XGE10LN12	Adapter 10L, NPT1/2''	10 mm	1/2 NPT	315 bar
XGE10LN18	Adapter 10L NPT1/8''	10 mm	1/8 NPT	315 bar
XGE10LN38	Adapter 10L, NPT3/8''	10 mm	3/8 NPT	315 bar
XGE12LN	Adapter 12L, NPT3/8''	12 mm	3/8 NPT	315 bar
XGE12LN12	Adapter 12L, NPT1/2''	12 mm	1/2 NPT	315 bar
XGE12LN14	Adapter 12L Utv-NPT1/4''	12 mm	1/4 NPT	315 bar
XGE15LN	Adapter 15L Utv-NPT1/2''	15 mm	1/2 NPT	315 bar
XGE15LN38	Adapter 15L Utv-NPT3/8''	15 mm	3/8 NPT	315 bar
XGE18LN	Adapter 18L, NPT 1/2''	18 mm	1/2 NPT	315 bar
XGE22LN	Adapter 22L Utv-3/4NPT	28 mm	3/4 NPT	160 bar
XGE22LN38	Adapter 22L Utv-NPT 3/8''
XGE28LN	Adapter 28L NPT1''	28 mm	1 NPT	160 bar
XGE35LN	Adapter 35L NPT1.1/4''	35 mm	1.1/4 NPT	160 bar
XGE42LN	Adapter 42L NPT1.1/2''	42 mm	1.1/2 NPT	160 bar

Märke namn

Stauff

Serie

Temperatur max.

+120

Temperatur min.

-40

Tillverkningsmaterial

Stål

Vinkel
