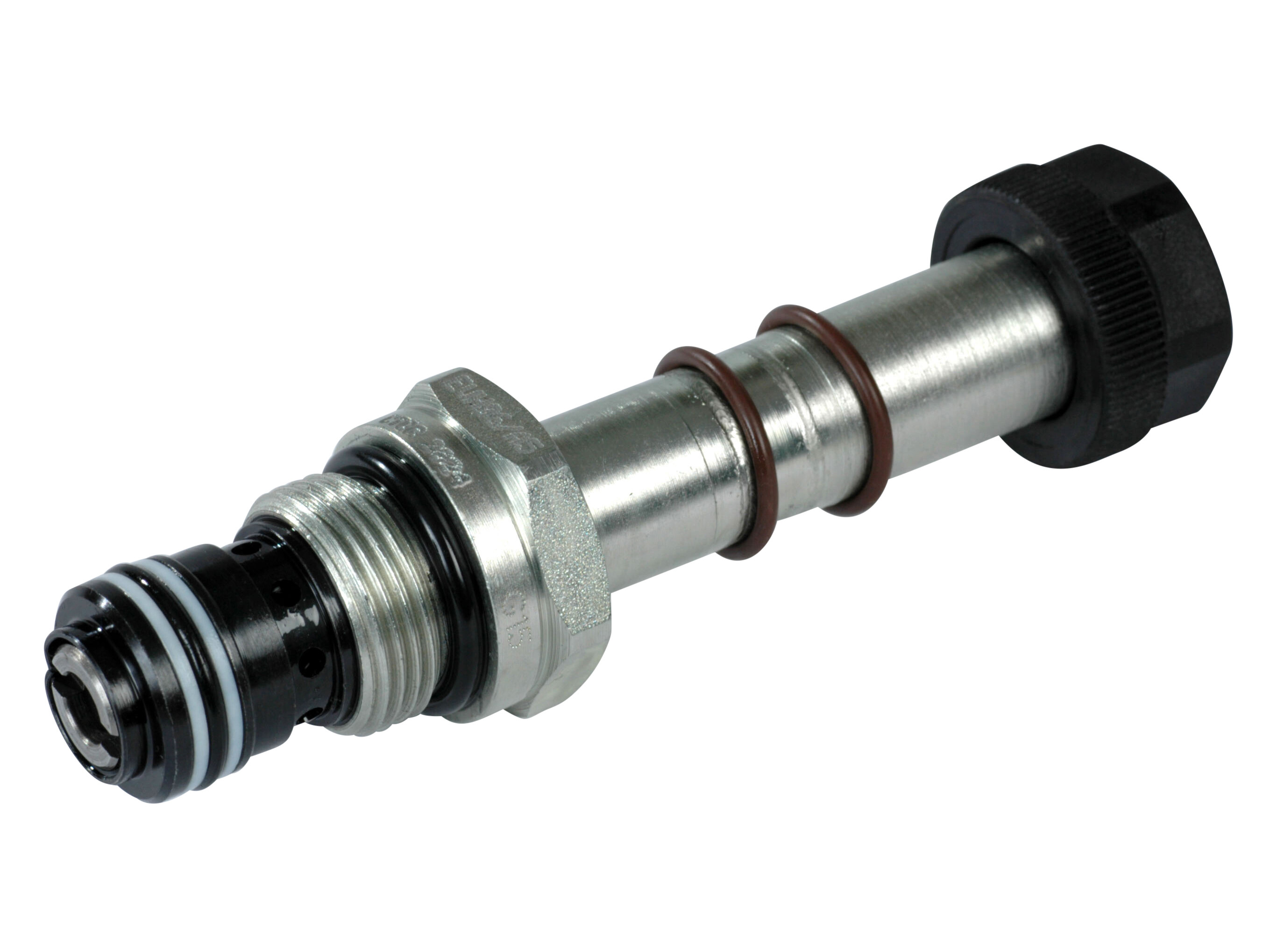

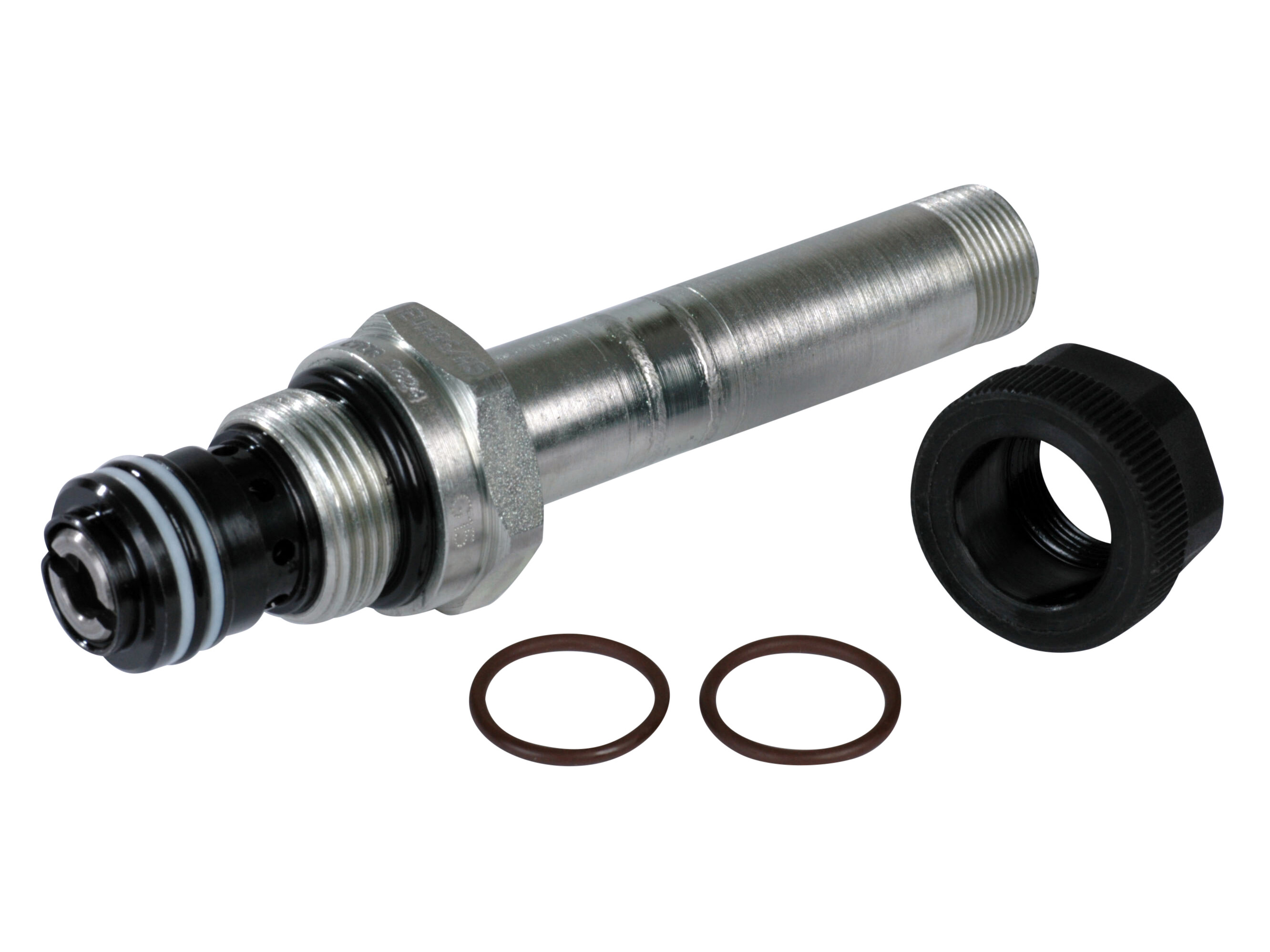

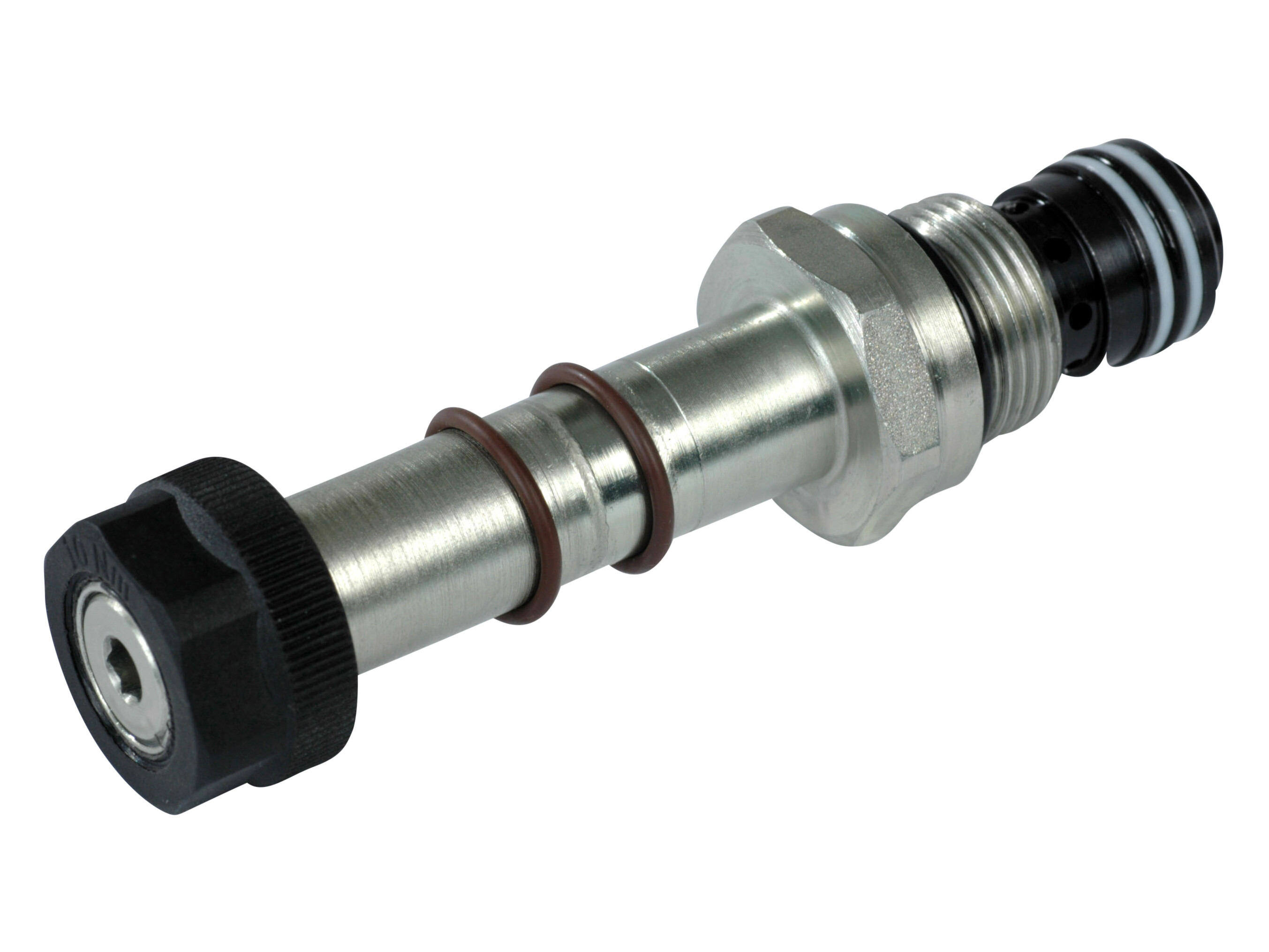

Riktn.ventil 2/2 EVH 06/A5-00-00-00
40l/min 250bar norm.auki
Varenummer:
800550719
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Activation
Magnetstyrd
Brand Name
Danfoss
Cavity
A881
Contamination level max.
20/18/14 - ISO 4406
Filter built-in
Nej
Flow rate nominal LMin
40 lpm
Manualoperated
Nej
Model code
EVH06/A5-00-00-00

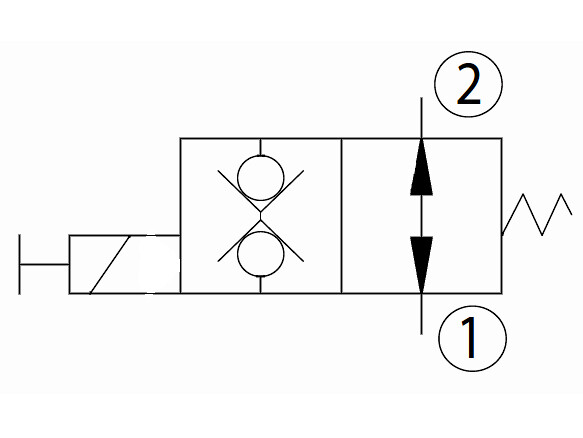

Number of ways/positions
2/2
Oil viscocity recommended
12 - 54 cSt
Pressure max.
250 bar
Sealing material
NBR
Solenoidtype
M16
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
50 Nm
Valve type
NO - Normalt öppen
Förpackningsstorlek
1 st
Streckkod
382346
Bruttovikt
0,43 Kg
Nettovikt
0,43 Kg
Ursprungsland
Intrastat artikelkod
84812010
40l/min 250bar norm.auki
