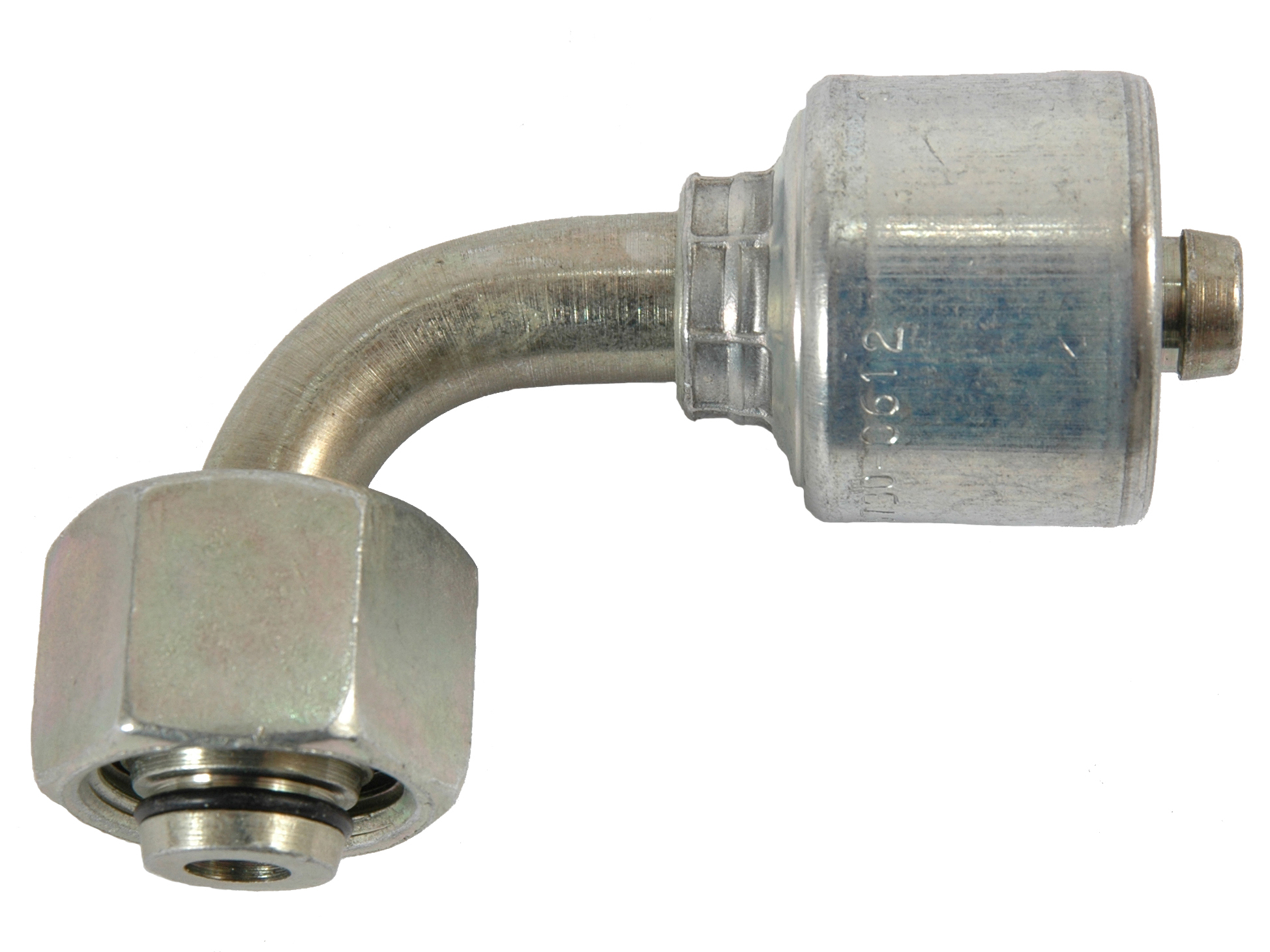

Metric union nut, 24° cone face, 90°, HEAVY (FDHORX90 - RO90)

SELECT VARIANT
Partnumber Description Hose size Angle Hose coupling type
04G06FDHORX90 Coupling 1/4, M14x1,5 fem. 06S 4G-6FDHORX90 Gates MegaCrimp 1/4 " 90 ° With fixed ferrule
04G08FDHORX90 Coupling 1/4, M16x1,5 fem. 08S 4G-8FDHORX90 Gates MegaCrimp 1/4 " 90 ° With fixed ferrule
04G10FDHORX90 Coupling 1/4, M18x1,5 fem. 10S 4G-10FDHORX90 Gates MegaCrimp 1/4 " 90 ° With fixed ferrule
04G12FDHORX90 Coupling 1/4, M20x1,5 fem. 12S 4G-12FDHORX90 Gates MegaCrimp 1/4 " 90 ° With fixed ferrule
06G10FDHORX90 Coupling 3/8, M18x1,5 fem. 10S 6G-10FDHORX90 Gates MegaCrimp 3/8 " 90 ° With fixed ferrule
06G12FDHORX90 Coupling 3/8, M20x1,5 fem. 12S 6G-12FDHORX90 Gates MegaCrimp 3/8 " 90 ° With fixed ferrule
06G14FDHORX90 Coupling 3/8, M22x1,5 fem. 14S 6G-14FDHORX90 Gates MegaCrimp 3/8 " 90 ° With fixed ferrule
08G16FDHORX90 Coupling 1/2, M24x1,5 fem. 16S 8G-16FDHORX90 Gates MegaCrimp 1/2 " 90 ° With fixed ferrule
10G20FDHORX90 Coupling 5/8, M30x2 female 20S 10G-20FDHORX90 Gates MegaCrim 5/8 " 90 ° With fixed ferrule
12G20FDHORX90 Coupling 3/4, M30x2 fem. 20S 12G-20FDHORX90 Gates MegaCrim 3/4 " 90 ° With fixed ferrule
12G25FDHORX90 Coupling 3/4, M36x2 fem. 25S 12G-25FDHORX90 Gates MegaCrim 3/4 " 90 ° With fixed ferrule
16G25FDHORX90 Coupling 1 , M36x2 fem. 25S 90 16G-25FDHORX90 Gates MegaCrim 1 " 90 ° With fixed ferrule
16G30FDHORX90 Coupling 1 , M42x2 fem. 30S 90 16G-30FDHORX90 Gates MegaCrim 1 " 90 ° With fixed ferrule
20G38FDHORX90 Coupling 1.1/4, M52x2 fem. 38S 20G-38FDHORX90 Gates MegaCrim 1.1/4 " 90 ° With fixed ferrule
Angle
90

Brand Name
Gates

Corrosion resistance
500 hours salt spray ASTM B-117

Hose coupling type
With fixed ferrule

REACH compliant
Yes

RoHs compliant
Yes

Sealing material
NBR

Surface treatment
TuffCoat™

Temperature max.
+100

Temperature min.
-35
