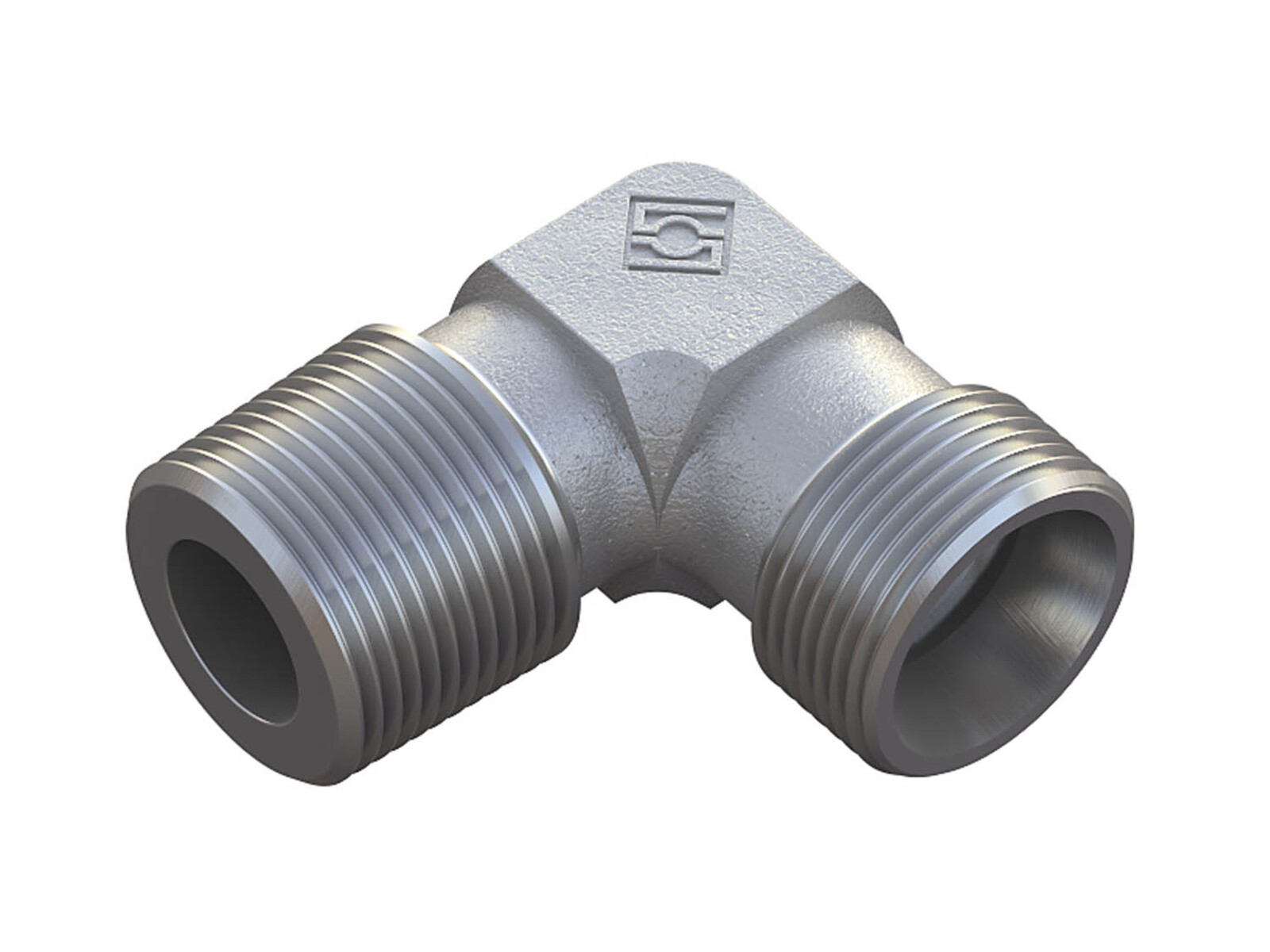

Elbow fitting 90° - S-series - MM male 24° x BSPT male

Stud elbow 90° - ø6S x 1/4" BSPT

Stud elbow 90° - ø8S x 1/4" BSPT

Adaptor 90° 10S Male-KR 1/4''

Stud elbow 90° - ø12S x 3/8" BSPT

Stud elbow 90° - ø14S x 1/2" BSPT

Stud elbow 90° - ø16S x 1/2" BSPT

SELECT VARIANT

Partnumber	Description	Diameter pipe	Pressure max.
XWE06SKR	Stud elbow 90° - ø6S x 1/4" BSPT	6 mm	400 bar
XWE08SKR	Stud elbow 90° - ø8S x 1/4" BSPT	8 mm	400 bar
XWE10SR14	Adaptor 90° 10S Male-KR 1/4''	10 mm	315 bar
XWE12SKR	Stud elbow 90° - ø12S x 3/8" BSPT	12 mm	400 bar
XWE14SKR	Stud elbow 90° - ø14S x 1/2" BSPT	14 mm	400 bar
XWE16SKR	Stud elbow 90° - ø16S x 1/2" BSPT	16 mm	400 bar

Angle

Corrosion resistance

1200 hours salt spray DIN EN ISO 9227

Material

Steel

Safety factor

Series

Surface treatment

Zinc-Nickel plated

Temperature max.

+120

Temperature min.

-40
