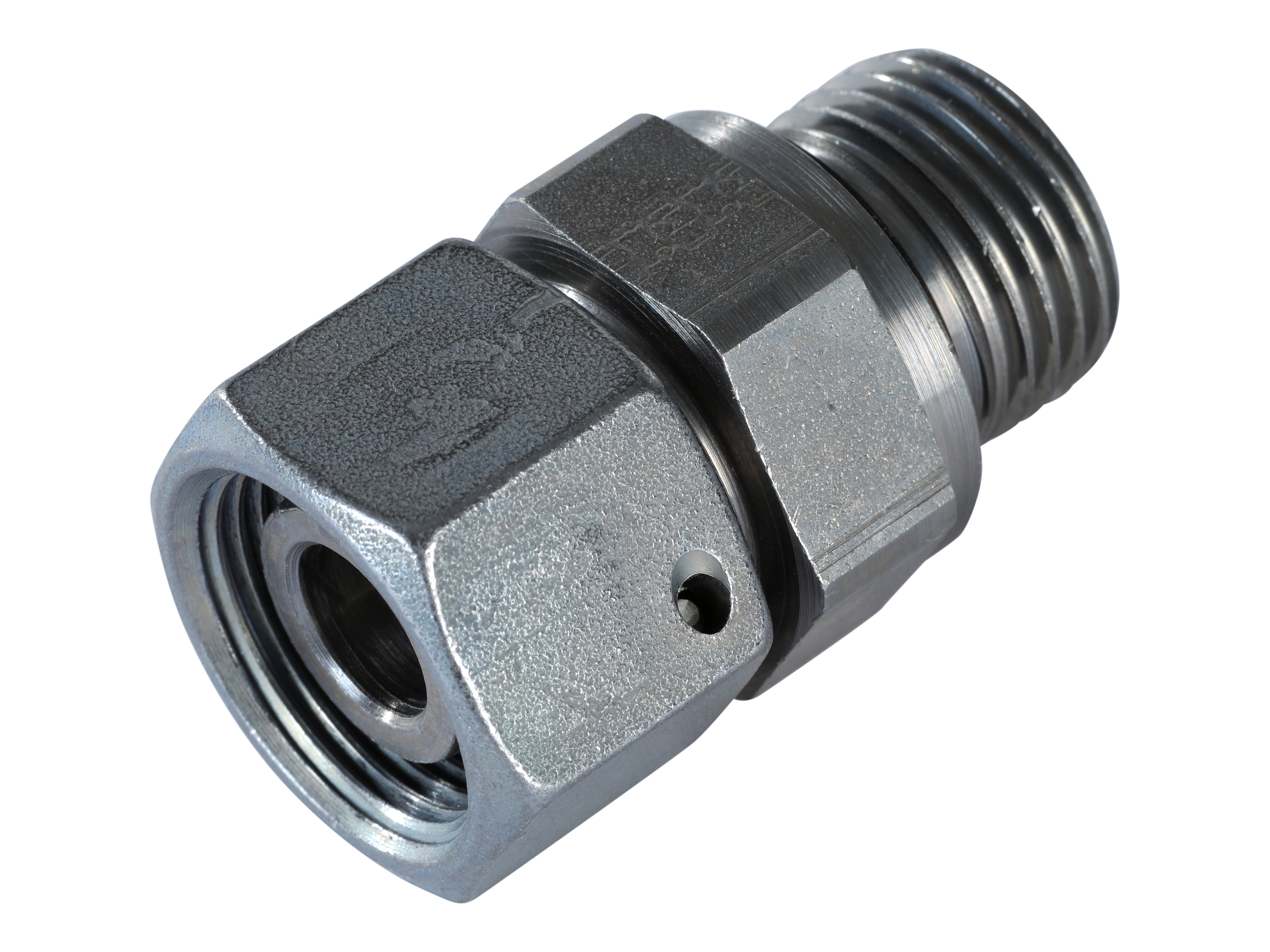

Straight fitting 0° - S-series - DIN union nut O-ring seal x MM male WD seal - VA-MSDKO / EGE-SMED

Straight fitting 0° - S-series - DIN union nut O-ring seal x MM male WD seal - VA-MSDKO / EGE-SMED

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer metric Pressure max. Thread inner metric
EGE06SMED Adapter Rak 06S 12x1.5 ED, O-ringstätad 6 mm M12x1,5 800 bar M12x1,5
EGE08SMED Adapter Rak 08S 14x1.5 ED, O-ringstätad 8 mm M14x1,5 800 bar M14x1,5
EGE10SMED Adapter Rak 10S 16x1.5 ED, O-ringstätad 10 mm M16x1,5 800 bar M18x1,5
EGE12SMED Adapter Rak 12S 18x1.5 ED, O-ringstätad 12 mm M18x1,5 630 bar M36x2
EGE14SMED Adapter Rak 14S 20x1.5 ED, O-ringstätad 14 mm M36x2 630 bar M22x1,5
EGE16SMED Adapter Rak 16S 22x1.5 ED, O-ringstätad 16 mm M22x1,5 630 bar M24x1,5
EGE20SMED Adapter Rak 20S 27x2 ED, O-ringstätad 20 mm M27x2 400 bar M30x2
EGE25SMED Adapter Rak 25S 33x2 ED, O-ringstätad 25 mm M33x2 400 bar M36x2
EGE30SMED Adapter Rak 30S 42x2 ED, O-ringstätad 30 mm M42x2 400 bar M42x2
EGE38SMED Adapter Rak 38S 48x2 ED, O-ringstätad 38 mm M48x2 400 bar M52x2
Angle
0
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Material
Stål
REACH compliant
Ja
RoHs compliant
Ja
Safety factor
4
Series
S
Surface treatment
Zink-Nickel
