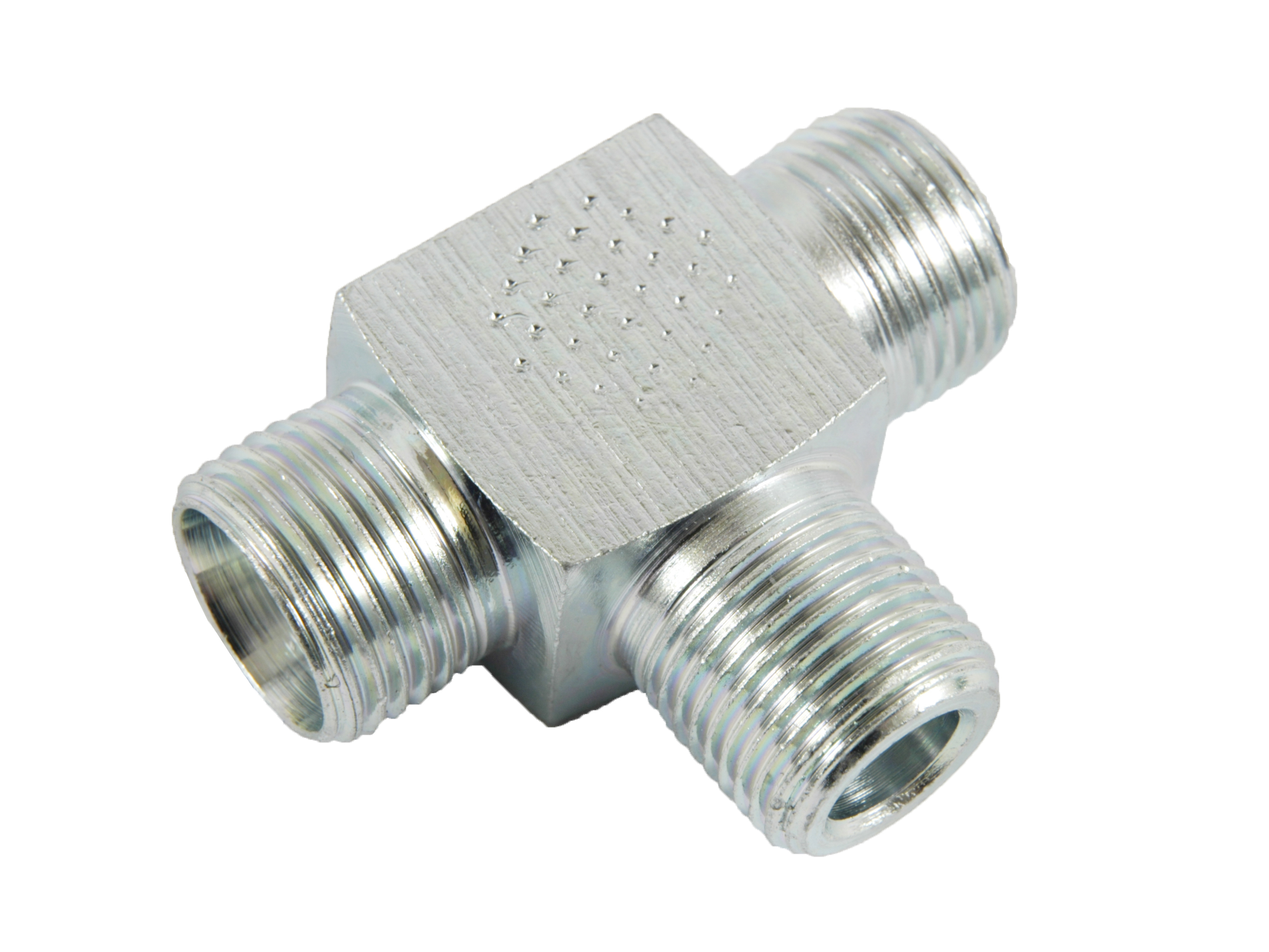

T-koppling - S-serien - Hane x BSPT hane x Hane - C-RSX / XTE-SKR

XTE06SKR - Adapter T 06S-R 1/4''

XTE08SKR - Adapter T 08S-R 1/4''

XTE10SKR - Adapter T 10S-R 3/8''

XTE12SKR - Adapter T 12S-R 3/8''

XTE14SKR - Stud branch tee - ø14S x 1/2" BSPT

XTE16SKR - Adapter T 16S-R 1/2''

SELECT VARIANT

Partnumber	Description	Gänga utv. metrisk	Diameter rör	Tryck max.	Gänga utv.
XTE06SKR	XTE06SKR - Adapter T 06S-R 1/4''	M14x1,5	6 mm	630 bar	R 1/4 BSPT
XTE08SKR	XTE08SKR - Adapter T 08S-R 1/4''	M16x1,5	8 mm	630 bar	R 1/4 BSPT
XTE10SKR	XTE10SKR - Adapter T 10S-R 3/8''	M18x1,5	10 mm	630 bar	R 3/8 BSPT
XTE12SKR	XTE12SKR - Adapter T 12S-R 3/8''	M20x1,5	12 mm	630 bar	R 3/8 BSPT
XTE14SKR	XTE14SKR - Stud branch tee - ø14S x 1/2" BSPT		14 mm	400 bar	R 1/2 BSPT
XTE16SKR	XTE16SKR - Adapter T 16S-R 1/2''	M24x1,5	16 mm	630 bar	R 1/2 BSPT

Märke namn

Stauff

REACH compliant

RoHs compliant

Rostbeständighet

1200 hours salt spray DIN EN ISO 9227

Serie

Säkerhetsfaktor

Temperatur max.

+120

Temperatur min.

-40

Tillverkningsmaterial

Stål

Ytskiktbehandling

Zink-Nickel
