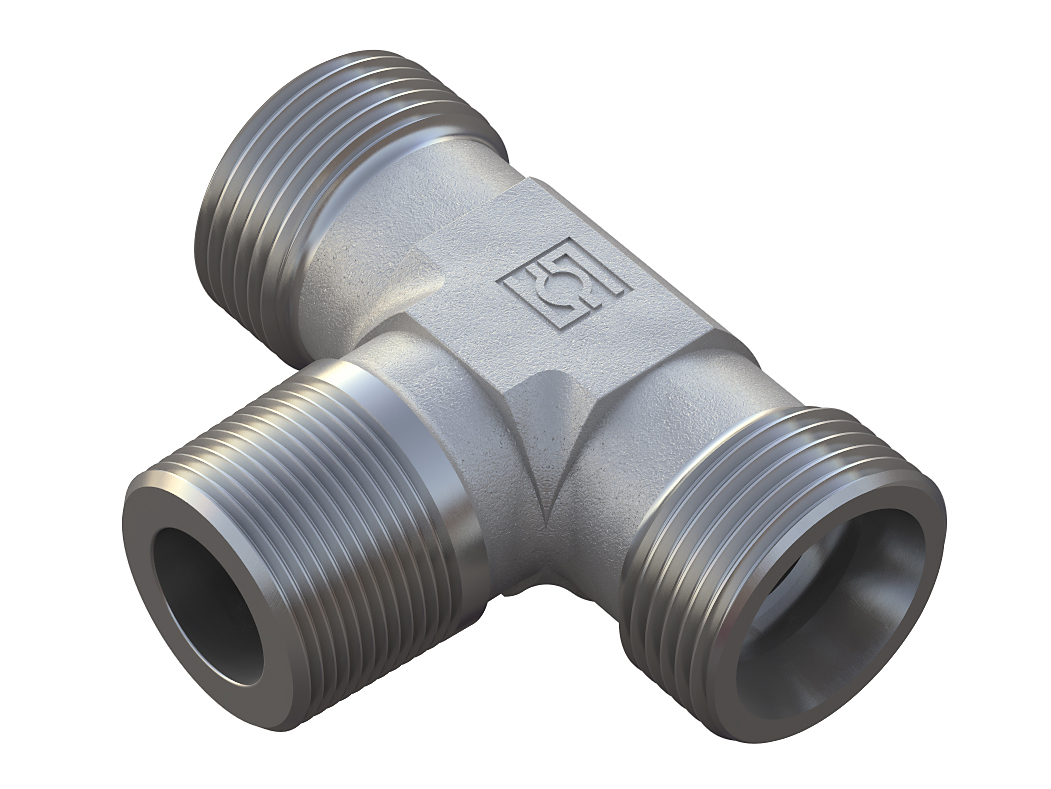

T-koppling - L-serien - Hane x BSPT hane x Hane - C-RLX / XTE-LKR

Adapter T 06L-R 1/8''

Adapter T 08L, Utv-R 1/4''

Adapter T 10L-R 1/4''

Adapter T 12L-R 3/8''

Adapter T 15L-R 1/2''

Adapter T 18L-R 1/2''

VÆLG VARIANT

Varenummer	Beskrivelse	Thread outer metric	Diameter pipe	Pressure max.	Thread outer
XTE06LKR	Adapter T 06L-R 1/8''	M12x1,5	6 mm	315 bar	R 1/8 BSPT
XTE08LKR	Adapter T 08L, Utv-R 1/4''	M14x1,5	8 mm	315 bar	R 1/4 BSPT
XTE10LKR	Adapter T 10L-R 1/4''	M16x1,5	10 mm	315 bar	R 1/4 BSPT
XTE12LKR	Adapter T 12L-R 3/8''	M18x1,5	12 mm	315 bar	R 3/8 BSPT
XTE15LKR	Adapter T 15L-R 1/2''	M22x1,5	15 mm	315 bar	R 1/2 BSPT
XTE18LKR	Adapter T 18L-R 1/2''	M26x1,5	18 mm	315 bar	R 1/2 BSPT

Brand Name

Stauff

Corrosion resistance

1200 hours salt spray DIN EN ISO 9227

Material

Stål

Pressure max.

315

REACH compliant

RoHs compliant

Safety factor

Series

Surface treatment

Zink-Nickel

Temperature max.

+120

Temperature min.

-40
