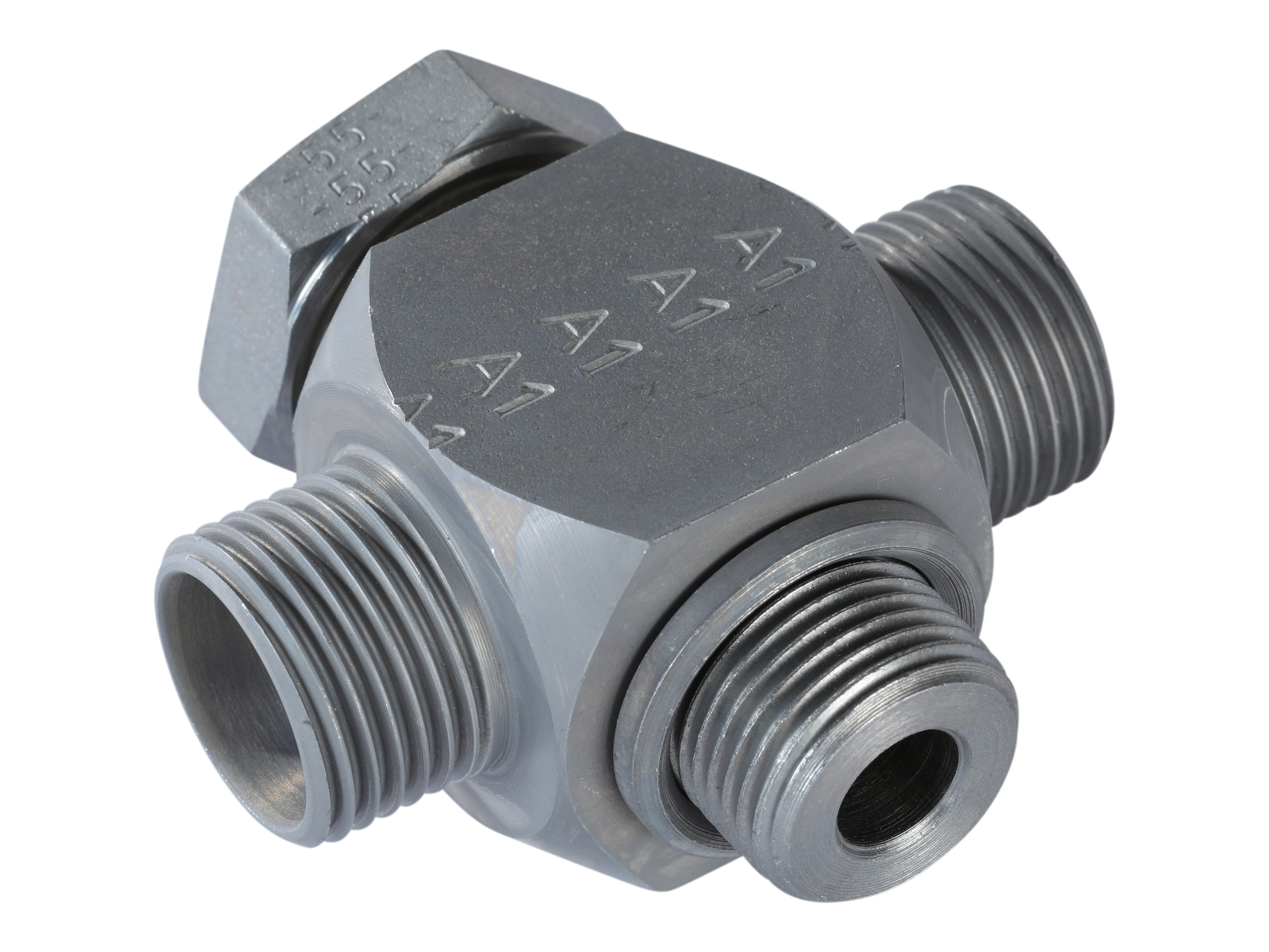

Adapter T Banjo 08S, Utv-G 1/4'' ED
BSP 1/4" 8mm putkelle
Varenummer:
XTH08SRED
Pakke str.:
10 st
Min. bestillingsenhed er:
1 st
Angle
90 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227

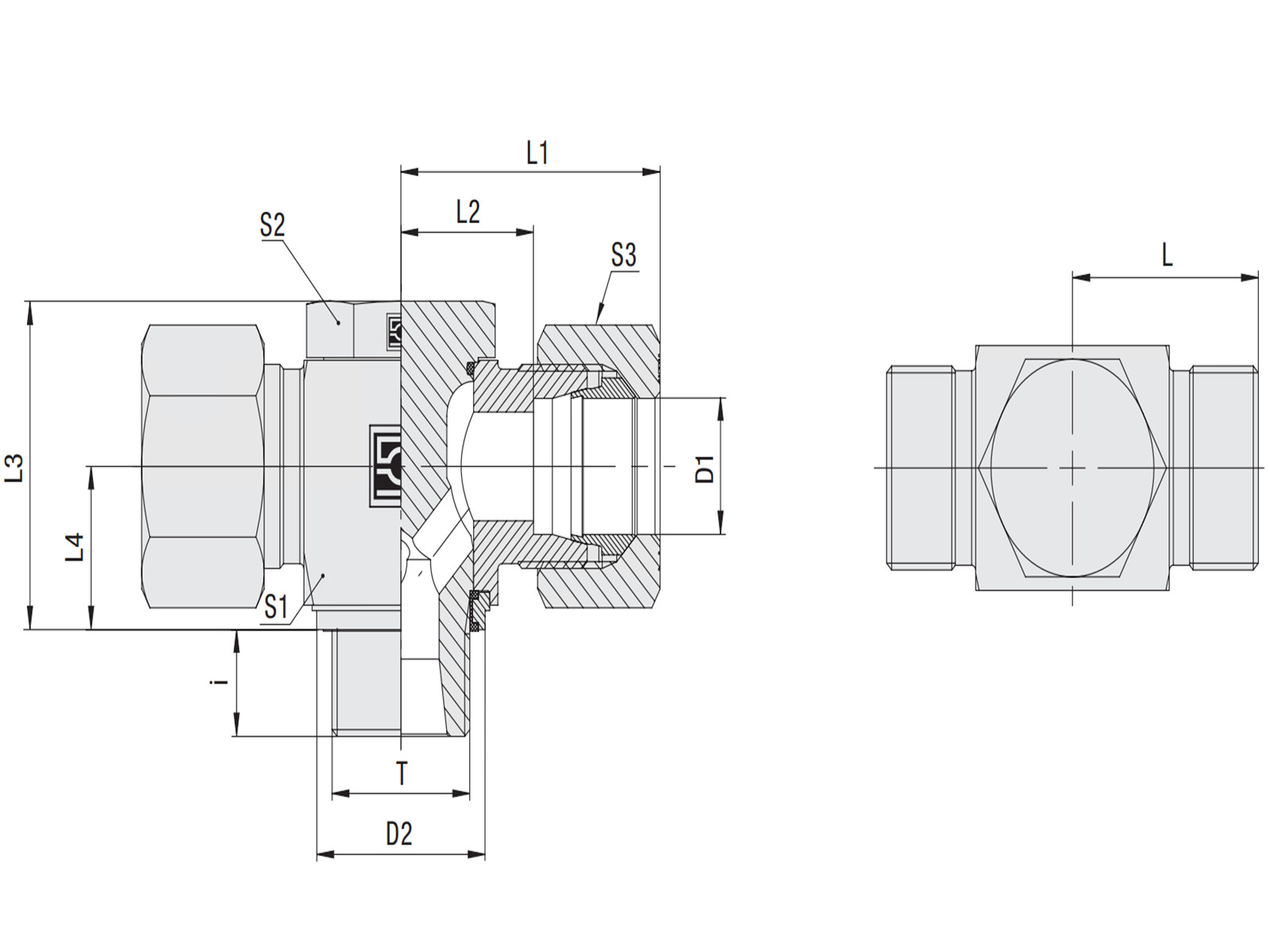

D1
8 mm
Diameter pipe
8 mm
Dimension i
10 mm
L
23 mm
L1
31 mm
L2
16 mm
L3
27 mm
L4
13,5 mm
Material
Stål
Model code
XSGE8RSEDZN
Pressure max.
500 bar
REACH compliant
Ja
RoHs compliant
Ja
S1
19 mm
S2
19 mm
S3
19 mm
Safety factor
4
Sealing material
PTFE (Teflon®)
Series
S
Series 1
N/A
Surface treatment
Zink-Nickel
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread T
G 1/4 BSP
Thread outer
G 1/4 BSP
Thread outer metric
M16x1,5
Type
Profilerad
d2
18,8 mm
i
10 mm
Förpackningsstorlek
10 st
Streckkod
311140
Bruttovikt
0,08 Kg
Nettovikt
0,08 Kg
Ursprungsland
DEU
BSP 1/4" 8mm putkelle
