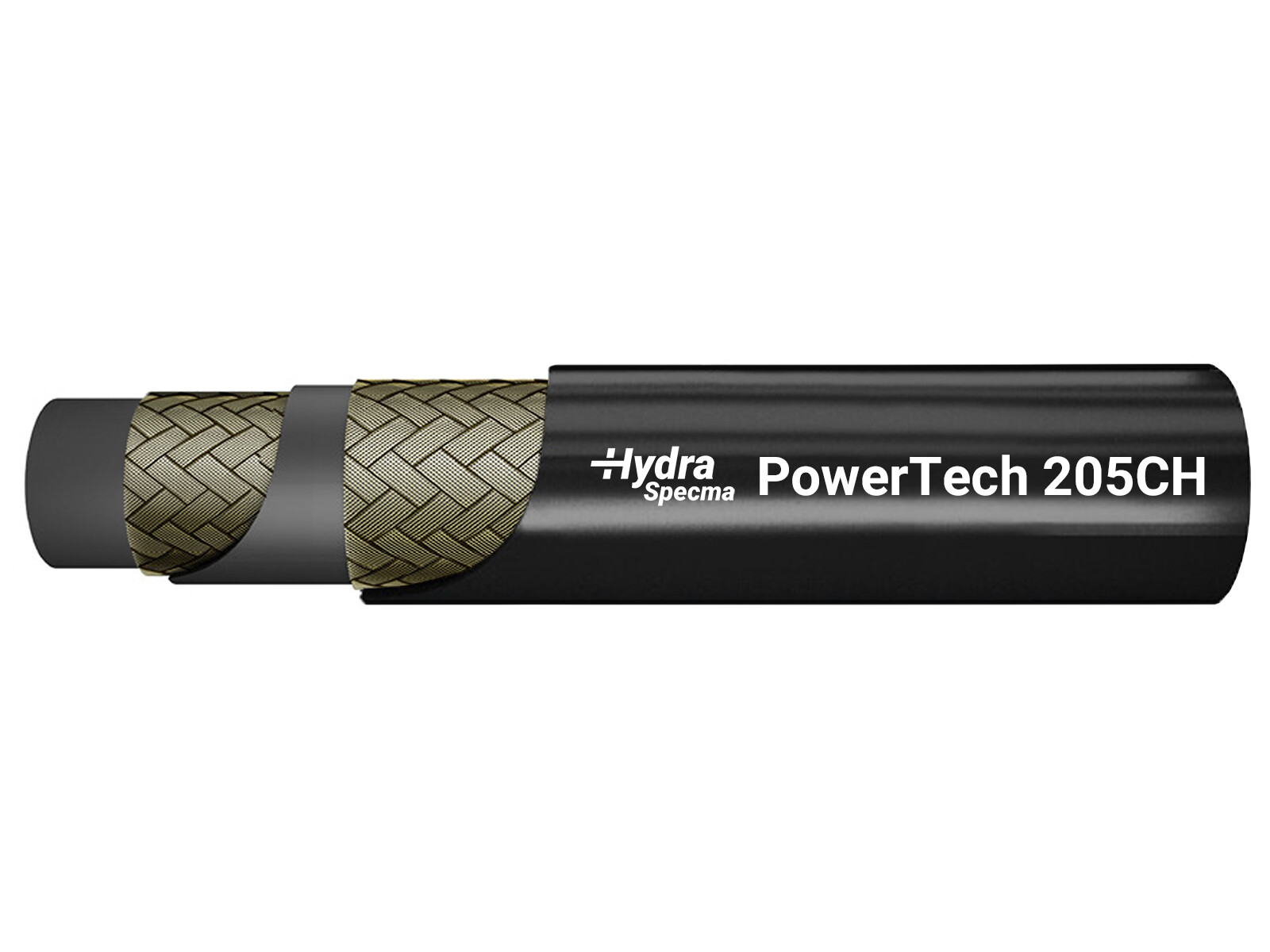

Hydraulslang HydraSpecmaPowerTech SPT205CH 5/16'' 2SC 400bar

Partnumber:

SPT205CH

Package size:

1 m

Min. order quantity is:

1 m

Accessories (2)

RFerrule 5/16 2-piece for 1SC/2SC/1SN REPLACED BY B040 P0520

Partnumber: 001C-05

Presshylsa 0022 5/16'', Skalfri

Partnumber: 0022-05

Specifications
Dimensions and shipping

Area of use

Diesel, Olja, Smörjfett

Bend radius

60 mm

Brand Name

Hydraspecma

Cover

Syntetisk gummi

Diameter inner

8 mm

Diameter outer

14.9 mm

Hose size

5/16 "

Hose type

2SC

Hoseapprovals

ABS, BV, CCS, DNV, KR, LLOYD, MED, NKK, RINA

Model code

SPT2-05-C-H

Pressure burst min.

1600 bar

Pressure max.

400 bar

Reinforcement

2 lager höghållfast ståltrådsfläta

Temperature intermittent max.

+100 °C

Temperature max.

+100 °C

Temperature min.

-40 °C

Tube

NBR (Nitril)

Package size

1 m

Barcode

421656

Gross weight

Net weight

Country of origin

ita

Intrastat code

40092100

Product information
Go to crimp dimensions

Crimp dimensions for SPT205CH

Hose type	Diamter - inch	Hose coupling type	Ferrule	Crimp dimension - mm	Skiving - int.	Skiving - ext.	Operating pressure
SPT205CH	5/16	P05	P0520	17.7 mm ±0.1	No	No	400

The crimp measures above are indicative. HydraSpecma cannot be held responsible for any errors and omissions.
