Namurventil 1/4" 5/2 24VDC Bistabil

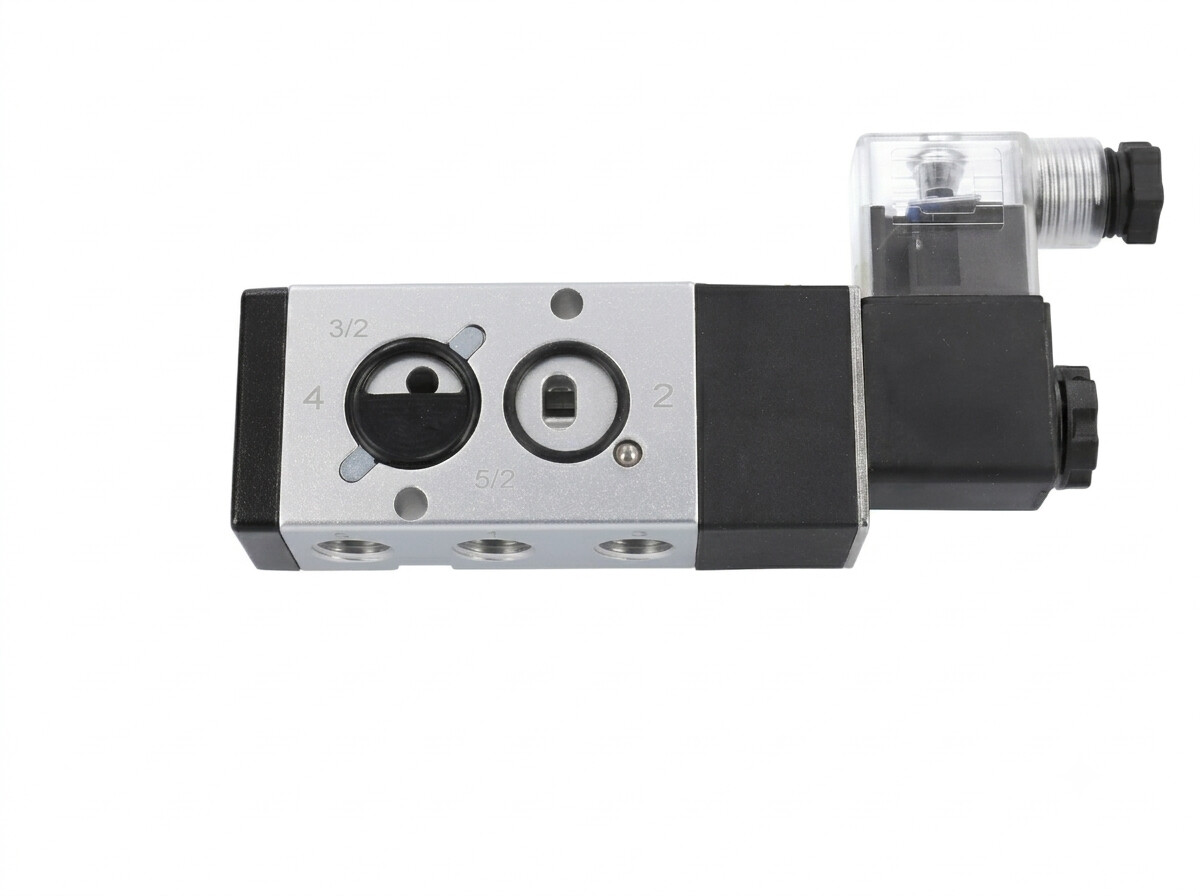

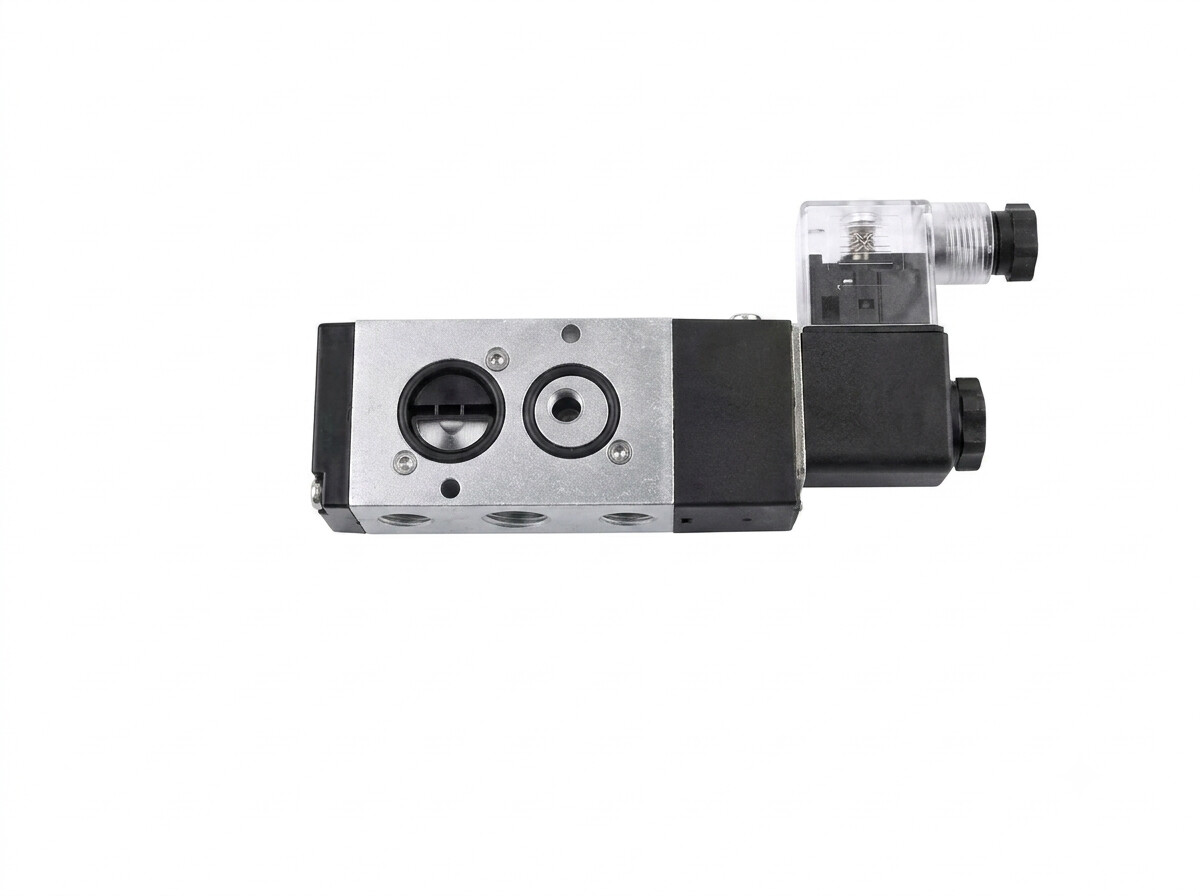

3/2 - 5/2 way solenoid valve, Namur, 24V DC 1/4 ", 1.5-8bar, with manual override, Aluminum
Design
Indirectly controlled soft seal spool valve with manual override for single- and double operated actuators.
Feature
Reversible seal allows 3/2 or 5/2 way function
Safety function in the event of power failure provided by mechanical return spring (monostable design)
Connector with reverse voltage safe LED-indicator
Crossover-free switching
Simple design of soft seal spool system
Easily interchangeable solenoid
Artikelnummer:
S2732
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Aktivering
Manuell nödöverstyrning
Användingområde
Luft
Flödeshastighet nominell LMin
1680 lpm
Gänga
G 1/4 BSP
Modell kod
TM621207
Märke namn
Hydraspecma
Packningsmaterial
NBR
REACH compliant
Ja
RoHs compliant
Ja
Skyddsklass
IP 65
Spänning
24 V
Temperatur max.
+60 °C
Temperatur min.
-10 °C
Tillverkningsmaterial
Aluminium
Tryck max.
8 bar
Tryckinställning min.
1.5 bar
Förpackningsstorlek
1 st
Streckkod
320042
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
ita
3/2 - 5/2 way solenoid valve, Namur, 24V DC 1/4 ", 1.5-8bar, with manual override, Aluminum
Design
Indirectly controlled soft seal spool valve with manual override for single- and double operated actuators.
Feature
Reversible seal allows 3/2 or 5/2 way function
Safety function in the event of power failure provided by mechanical return spring (monostable design)
Connector with reverse voltage safe LED-indicator
Crossover-free switching
Simple design of soft seal spool system
Easily interchangeable solenoid
Obs: För att öppna 3D-filer krävs ett program som stöder filformatet
