Riktningsventil SD5/1-P(JG3-120)/28ES1-12VDC- BSP1

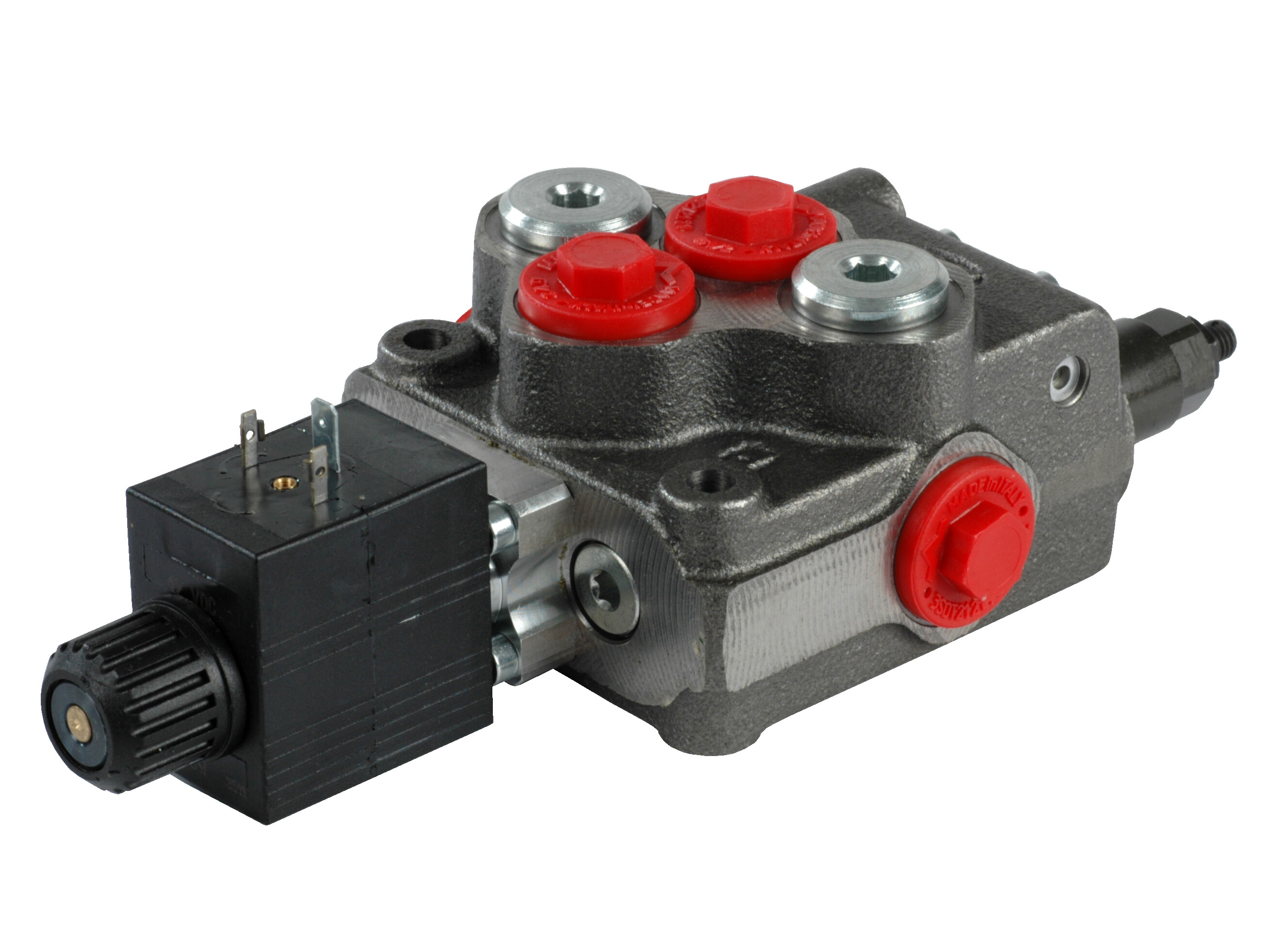

1-section SD5 monoblock directional valve with buit-in pressure relief valve and one spool, solenoid (12 Vdc) activated.
Spool function: Double acting, 3 position, A and B closed in neutral position. Spring centrered.
Open center port P to T in neutral position.
Artikelnummer:
102130399
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Antal sektioner
1
Arbejdsporte
G 1/2 BSP
Flow Nominel
45 lpm
Forureningsgrad maks.
-/19/16 - ISO 4406
Håndtag
Exksklusiv
Materiale
Gjutjärn
Model kode
SD5/1-P(JG3-120)/28ES1-12VDC-BSP12(PABT)
Mærke navn
Walvoil
Olieviskositet anbefalet
12 - 400 cSt
Port P
G 1/2 BSP
Port T
G 1/2 BSP
Spænding
12 V
Strømtype
DC
Tryk T maks.
25 bar
Tryk maks.
315 bar
Trykbegrænsningsventil
Ja
Trykindstilling maks.
200 bar
Trykindstilling min.
50 bar
Trykvidereføring
Nej
Pakke str.
1 st
Stregkode
467884
Brutto vægt
3,90 Kg
Netto vægt
3,90 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
1-section SD5 monoblock directional valve with buit-in pressure relief valve and one spool, solenoid (12 Vdc) activated.
Spool function: Double acting, 3 position, A and B closed in neutral position. Spring centrered.
Open center port P to T in neutral position.
