Riktningsventil SD5/2-P(JG3-120)18ES3LH/18ES3L H//

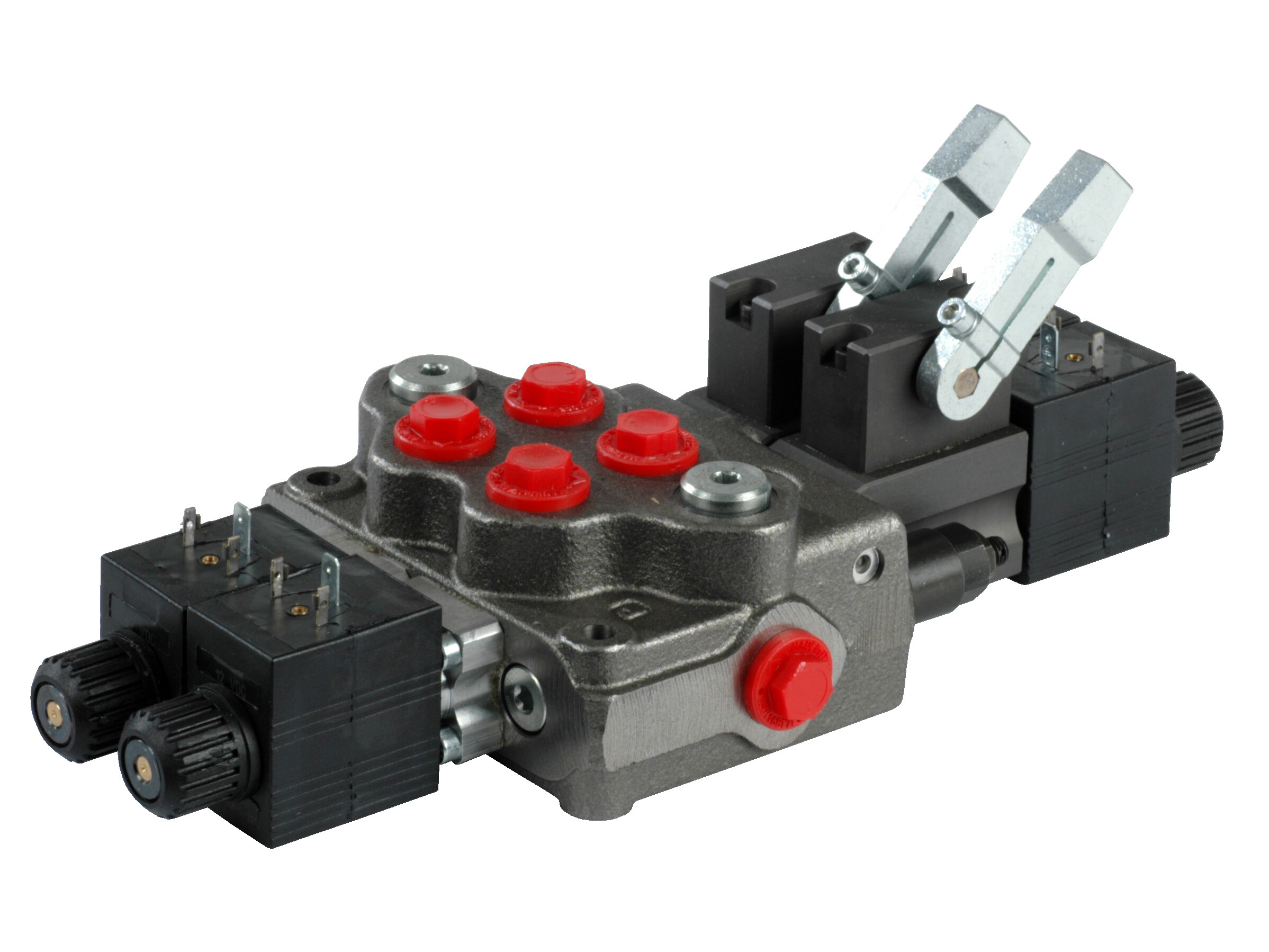

2-section SD5 monoblock directional valve with built-in pressure relief valve and 2 spools in parallel. Solenoid (12 Vdc) and manually activated with handlevers.
Spool functions: 2 x double acting with port A and B closed in neutral position. Spring centered.
Solenoid activation: On/Off.
Open center P to T in neutral position.
Artikelnummer:
102200730
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Brand Name
Walvoil
Contamination level max.
-/19/16 - ISO 4406
Current type
DC
Flow rate nominal LMin
45 lpm
Lever
Exksklusiv
Material
Gjutjärn
Model code
SD5/2-P(JG3-120)18ES3LH/18ES3LH//AET-12VDC
Number of sections
2
Oil viscocity recommended
12 - 400 cSt
Port P
G 3/8 BSP
Port T
G 3/8 BSP
Pressure T max.
25 bar
Pressure carry-over
Nej
Pressure max.
315 bar
Pressure relief valve
Ja
Pressure setting max.
200 bar
Pressure setting min.
50 bar
Voltage
12 V
Working ports
G 3/8 BSP
Package size
1 st
Barcode
467881
Gross weight
8,44 Kg
Net weight
8,44 Kg
Country of origin
ITA
Intrastat code
84812010
2-section SD5 monoblock directional valve with built-in pressure relief valve and 2 spools in parallel. Solenoid (12 Vdc) and manually activated with handlevers.
Spool functions: 2 x double acting with port A and B closed in neutral position. Spring centered.
Solenoid activation: On/Off.
Open center P to T in neutral position.
