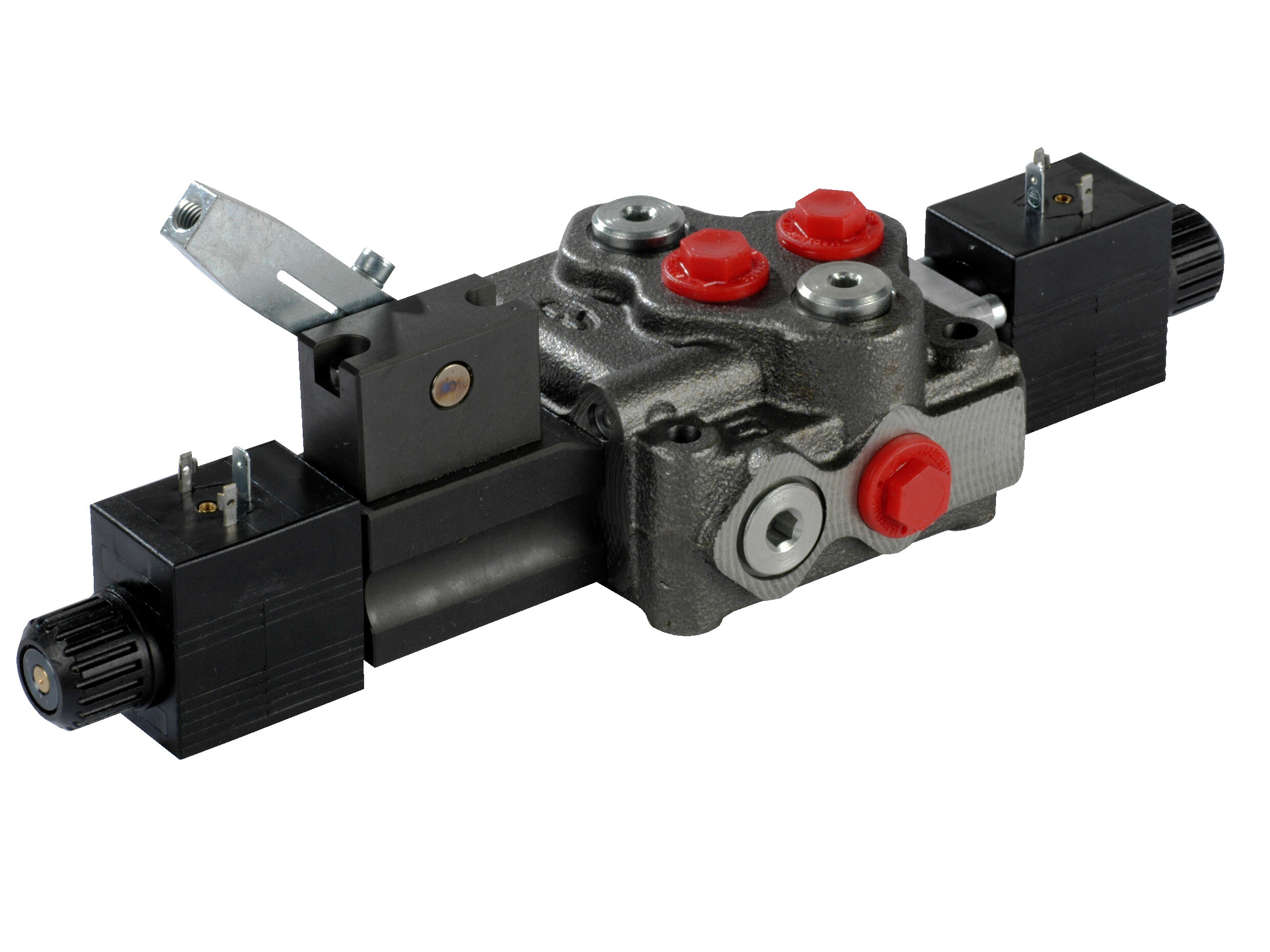

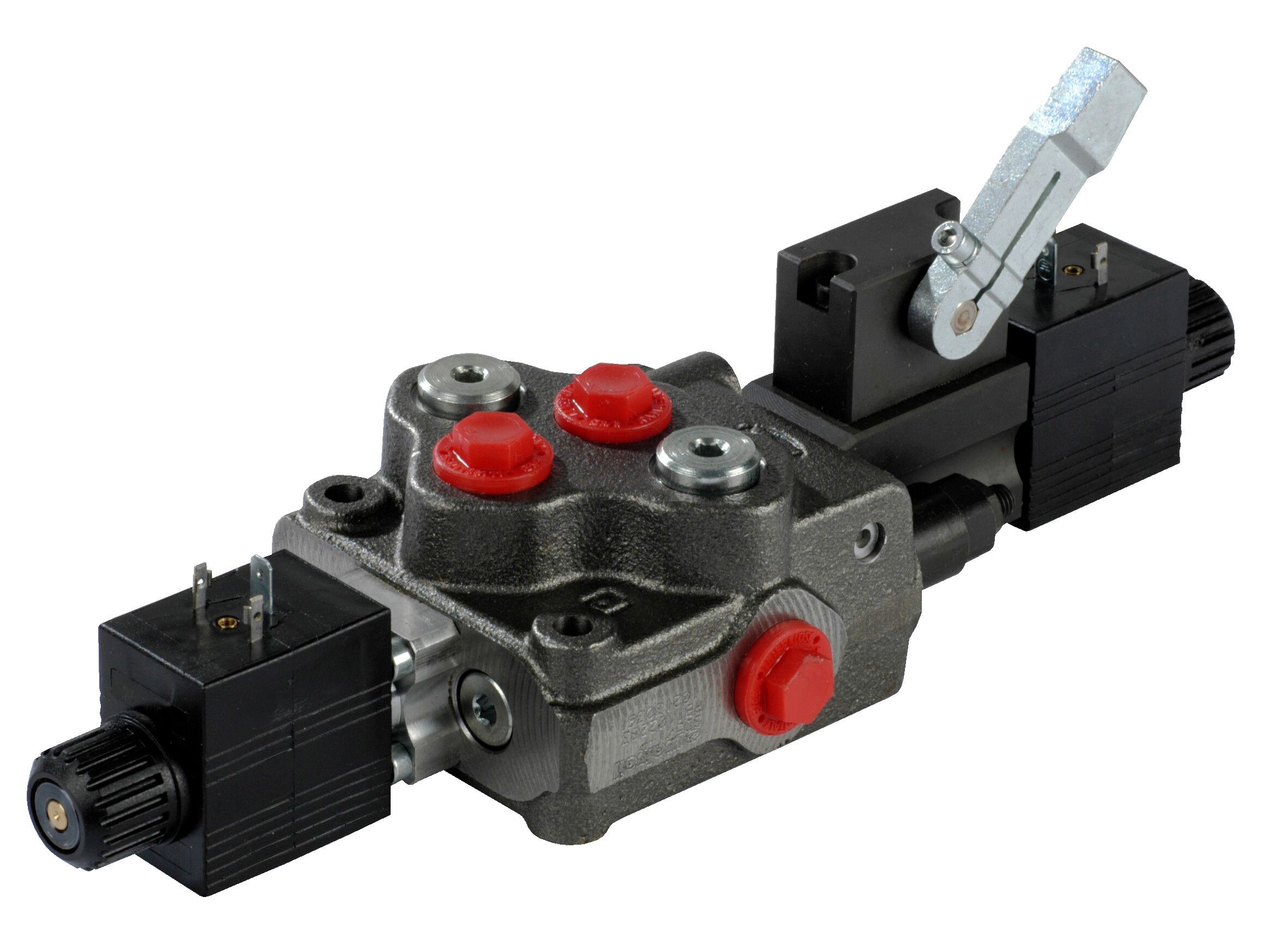

102130361 - Riktningsventil SD5/1-P(JG3-120)/18ES3LH/AET 24VDC
1-section SD5 monoblock directional valve with buit-in pressure relief valve and one spool, solenoid (24 Vdc) + manual activated with handlever.
Spool function: Double acting with port A and B closed in neutral position. Spring centrered.
Open center port P to T in neutral position.
AET = prepared for pressure carry-over (port plugged).
Partnumber:
102130361
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Walvoil
Contamination level max.
-/19/16 - ISO 4406
Flow rate nominal LMin
45 lpm
Lever
Exksklusiv
Material
Gjutjärn
Model code
SD5/1-P(JG3-120)/18ES3LH/AET-24VDC
Number of sections
1
Oil viscocity recommended
12 - 400 cSt
Port P
G 3/8 BSP
Port T
G 3/8 BSP
Pressure T max.
25 bar
Pressure carry-over
Nej
Pressure max.
315 bar
Pressure relief valve
Ja
Pressure setting max.
200 bar
Pressure setting min.
50 bar
Working ports
G 3/8 BSP
Package size
1 st
Barcode
467886
Gross weight
5,24 Kg
Net weight
5,24 Kg
Country of origin
ITA
Intrastat code
84812010
1-section SD5 monoblock directional valve with buit-in pressure relief valve and one spool, solenoid (24 Vdc) + manual activated with handlever.
Spool function: Double acting with port A and B closed in neutral position. Spring centrered.
Open center port P to T in neutral position.
AET = prepared for pressure carry-over (port plugged).
