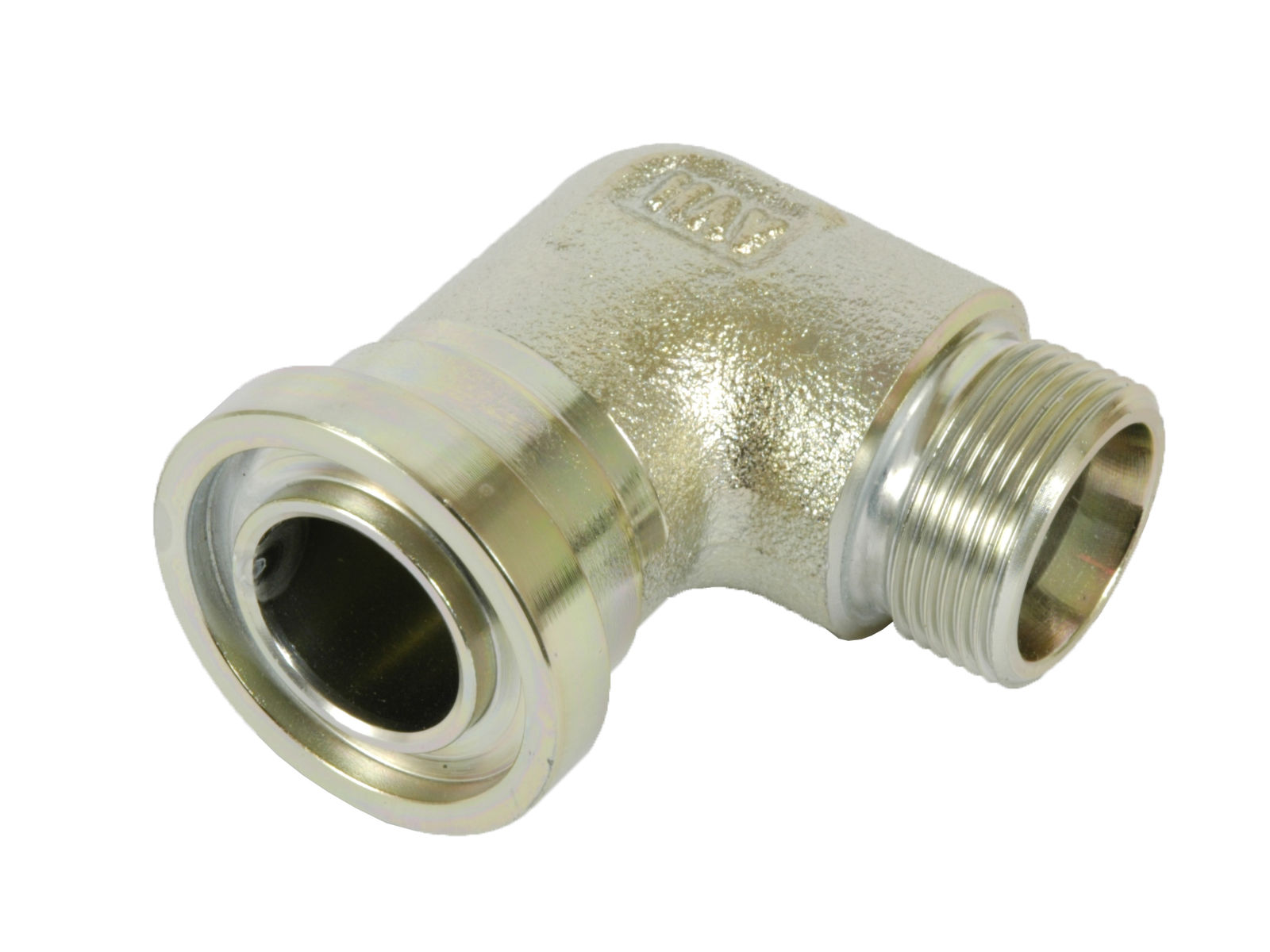

Partnumber Description Flange SAE/DIN Flange Diameter pipe Thread outer metric
8369-08-15L Fläns 90gr SAE3000 DIN 3000 PSI 1/2 " 15 mm M22x1,5
8369-12-18L Fläns 90gr SAE3000 DIN 3000 PSI 3/4 " 18 mm M26x1,5
8369-12-22L Fläns 90gr SAE3000 DIN 3000 PSI 3/4 " 22 mm M30x2
8369-16-28L Fläns 90gr SAE3000 DIN 3000 PSI 1 " 28 mm M36x2
8369-20-35L Fläns 90gr SAE3000 DIN 35L 3000 PSI 1.1/4 " 35 mm M45x2
8369-24-42L Fläns 90gr SAE3000 DIN 3000 PSI 1.1/2 " 42 mm M52x2
Angle
90
Brand Name
Stauff
Corrosion resistance
800 hours salt spray DIN EN 9227
Flange SAE/DIN
3000 PSI
Material
Steel
Series
L
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
