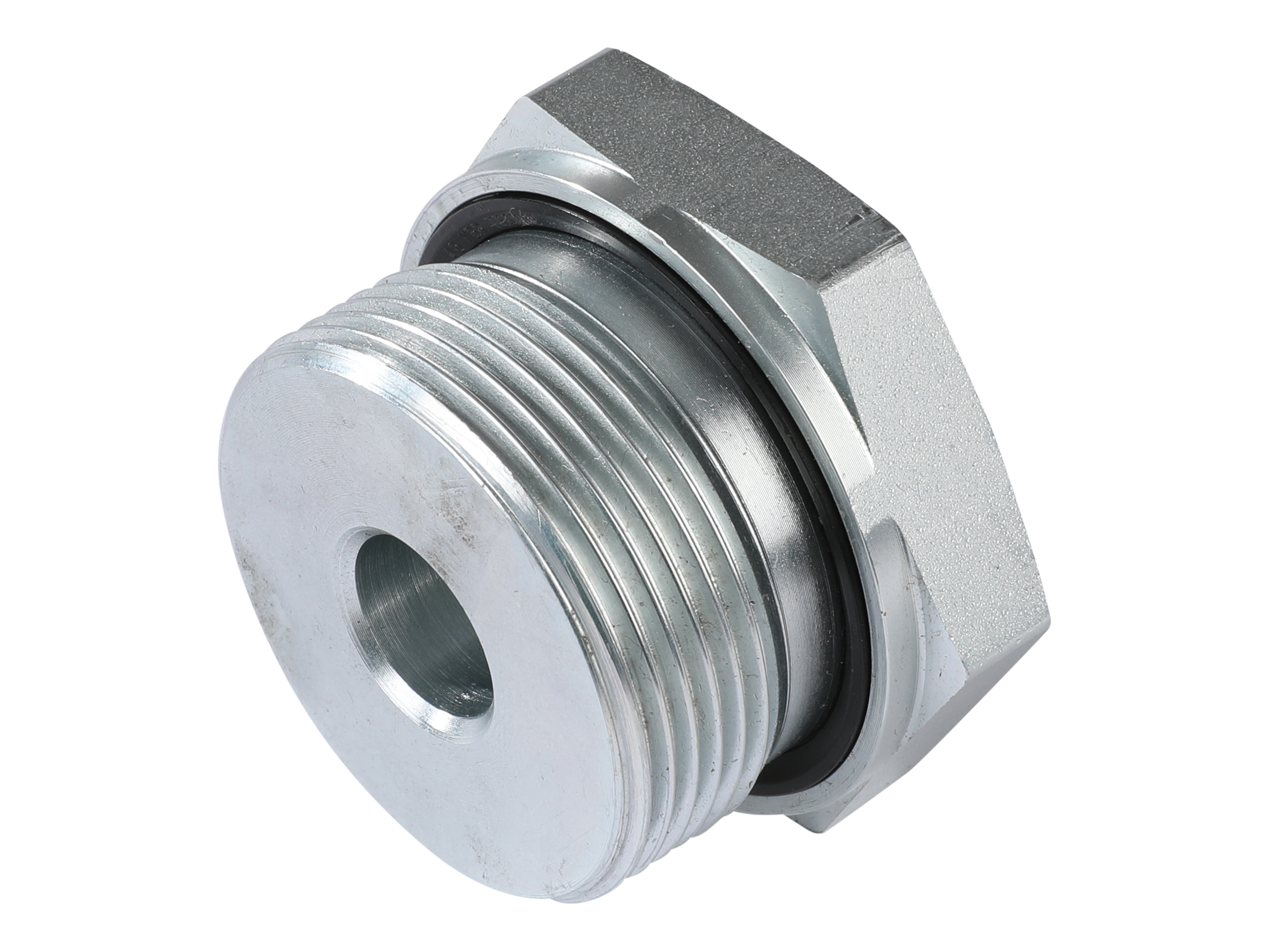

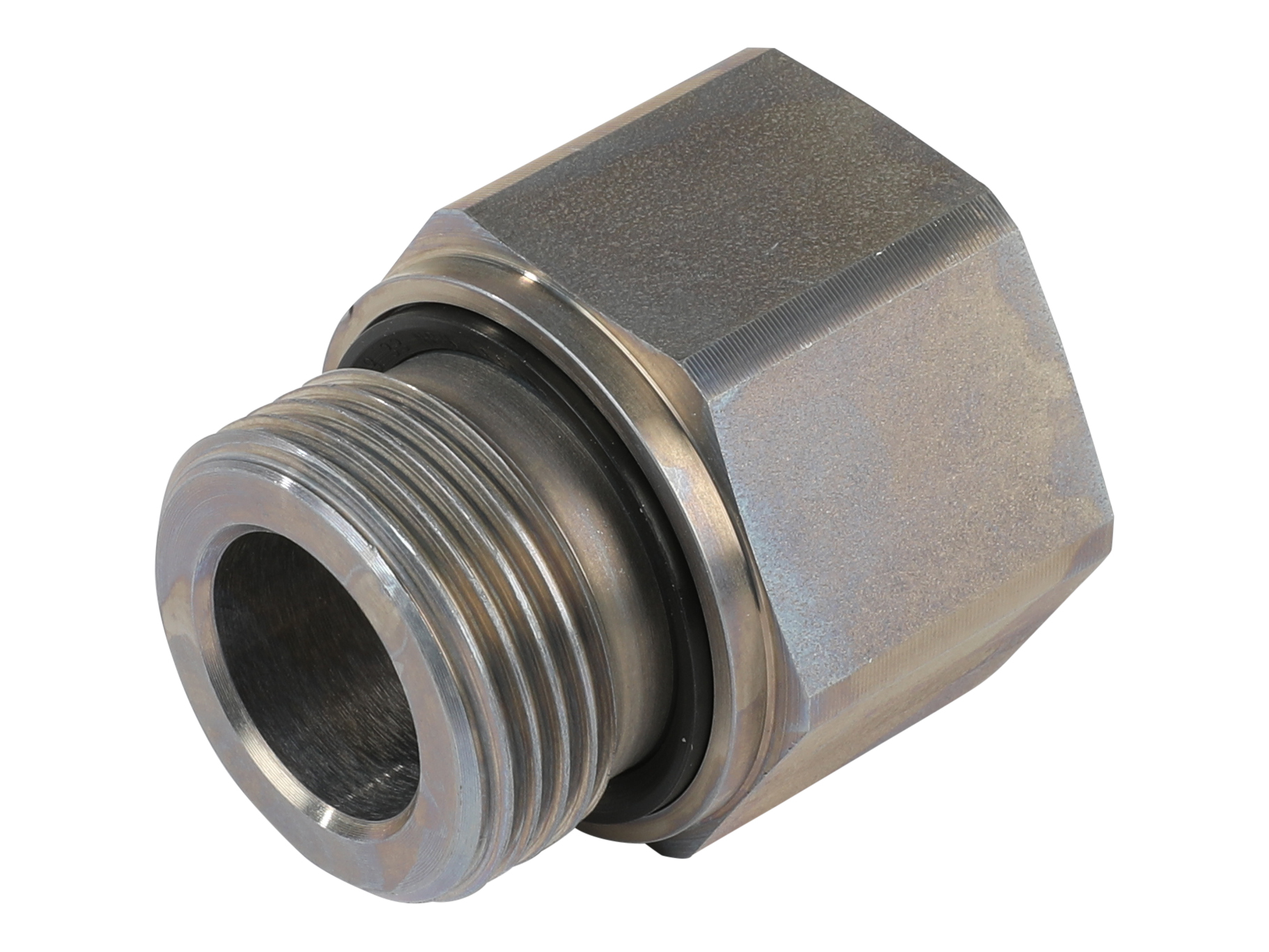

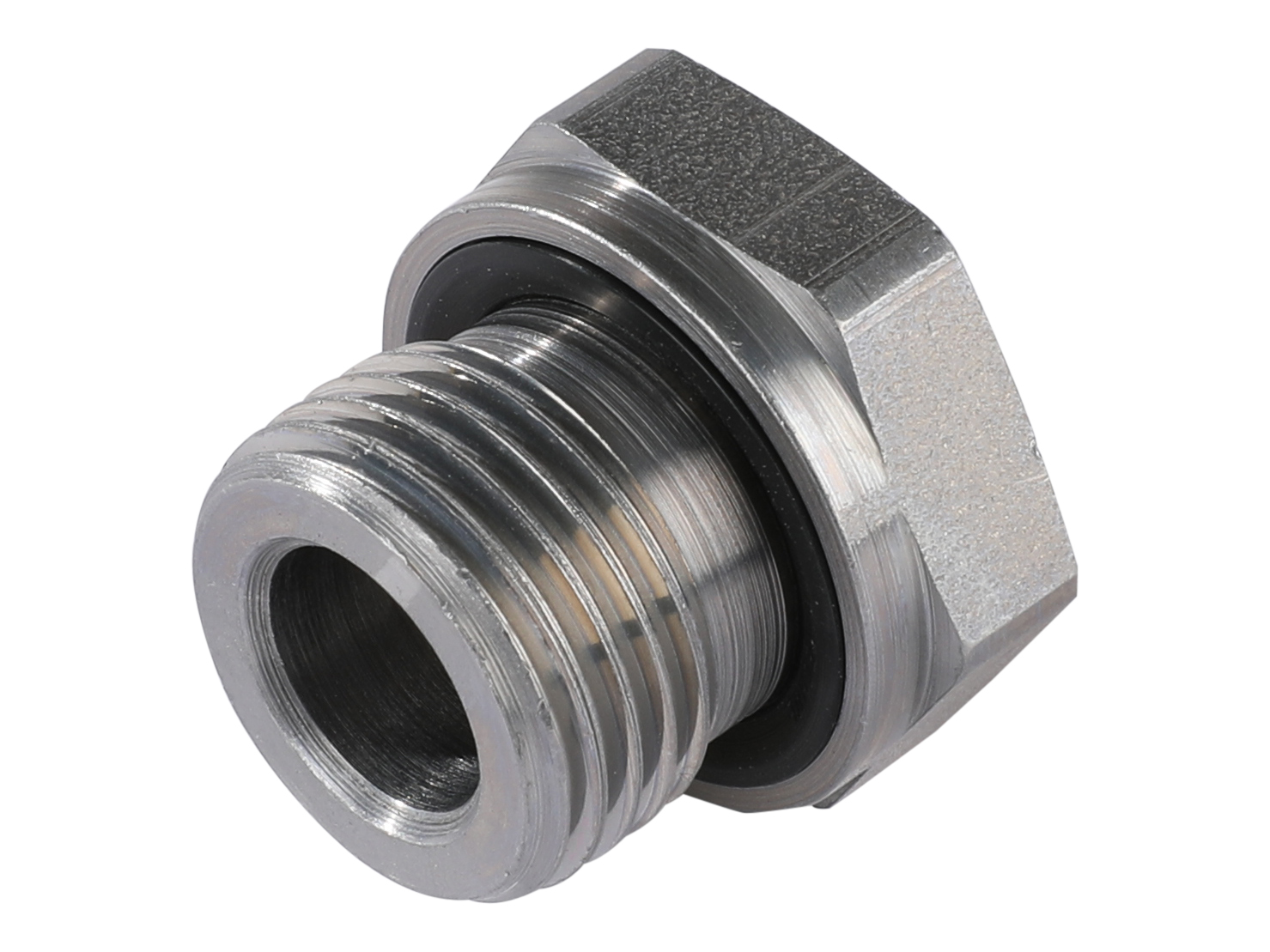

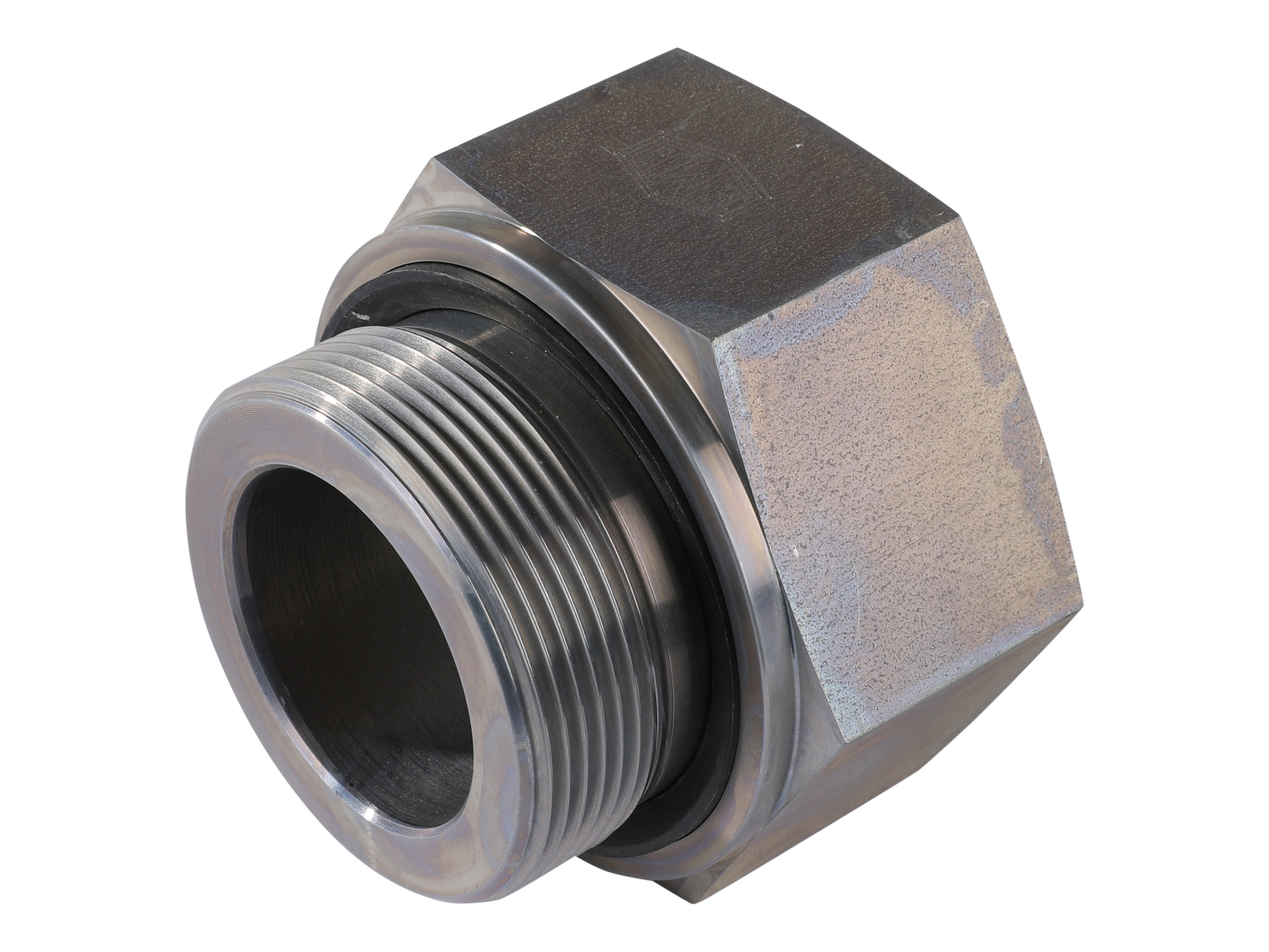

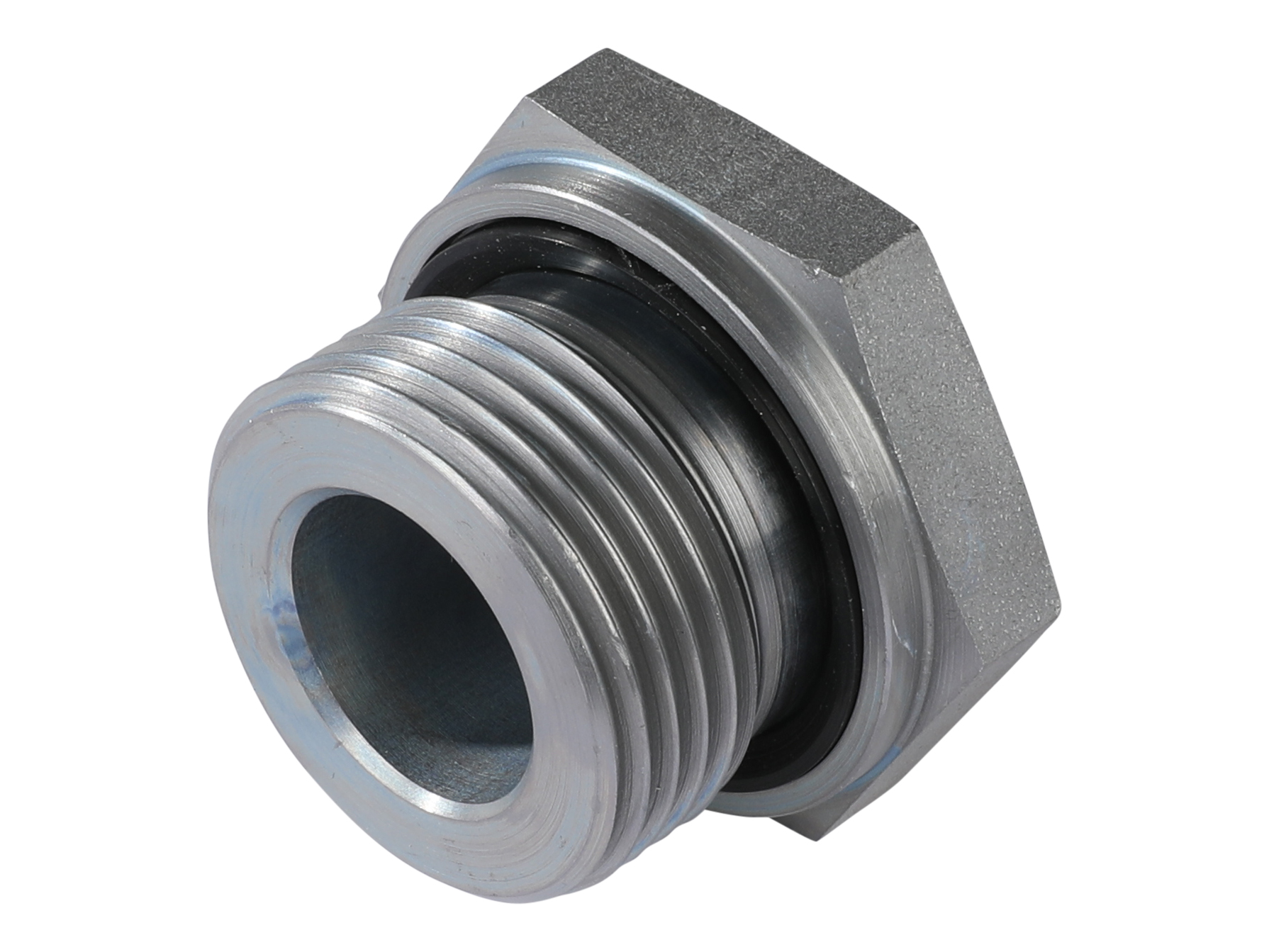

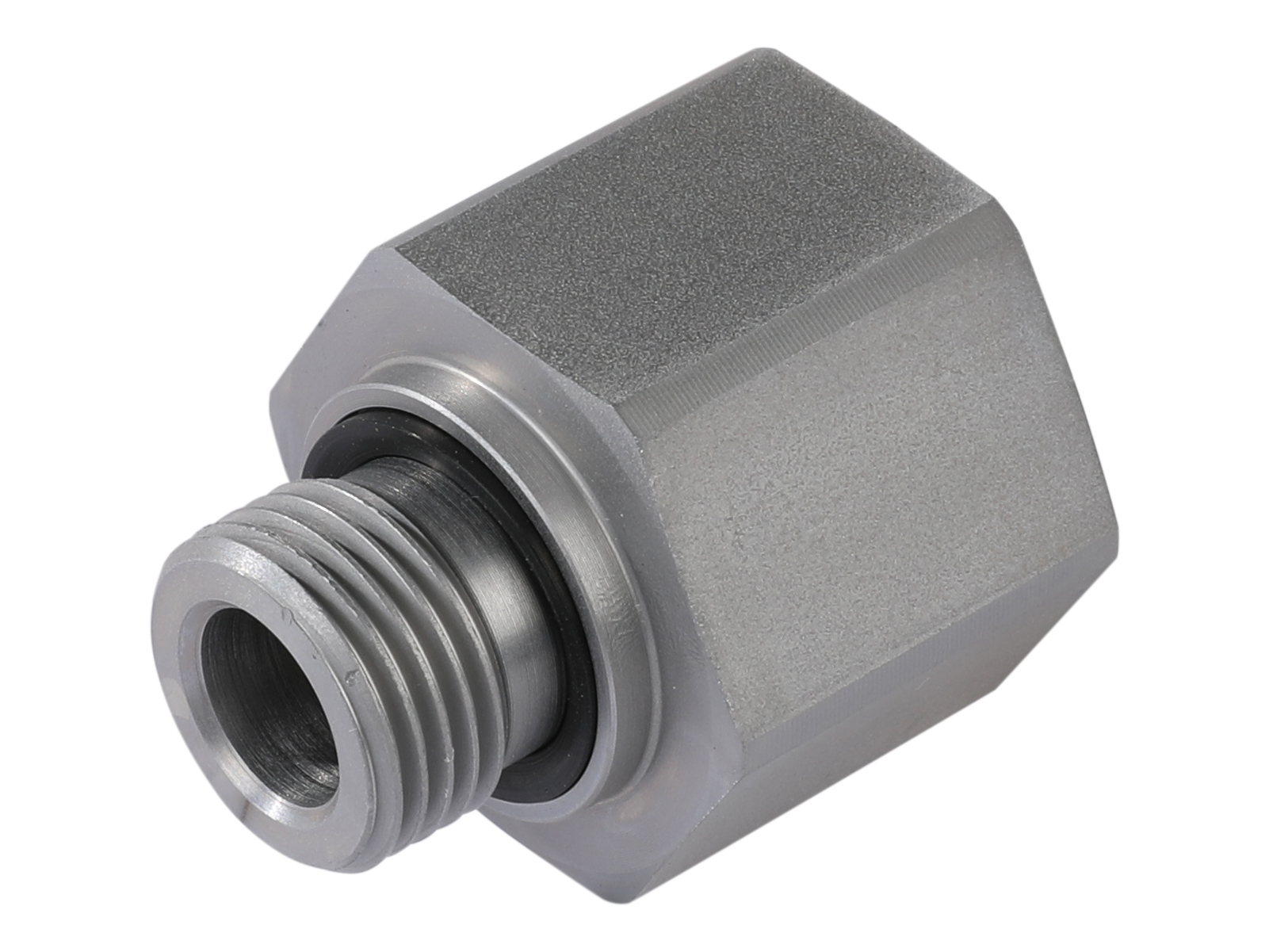

Adapter BSP male x BSP female - with seal - RI-WD / RI-ED

VÆLG VARIANT
Varenummer Beskrivelse Thread outer Thread inner Pressure max. Type
RI-1-112ED Reduction - 1" BSP x 11/2" BSP female - WD seal G 1 BSP G 1.1/2 BSP 315 bar Long
RI-1-114ED Reduction - 1" BSP x 1.1/4" BSP female - WD seal G 1 BSP G 1.1/4 BSP 400 bar Long
RI-1-12ED Reduction - 1"BSP x 1/2"BSP female - WD seal G 1 BSP G 1/2 BSP 400 bar Short
RI-1-14ED Reduction - 1" BSP x 1/4" BSP female - WD seal G 1 BSP G 1/4 BSP 400 bar Short
RI-1-1ED Thread Reducer Thread1: R1 Thread2: R1 Steel ZnNi G 1 BSP 400 bar Long
RI-1-34ED Reduction - 1"BSP x 3/4"BSP female - WD seal G 1 BSP G 3/4 BSP 400 bar Long
RI-1-38ED Reduction - 1" BSP x 3/8" BSP female - WD seal G 1 BSP G 3/8 BSP 400 bar Short
RI-112-114ED Reduction - 1.1/2" BSP x 1.1/4" BSP female - WD seal G 1.1/2 BSP G 1.1/4 BSP 315 bar Long
RI-112-12ED Reduction - 1.1/2" BSP x 1/2" BSP female - WD seal G 1.1/2 BSP G 1/2 BSP 315 bar Short
RI-112-1ED Reduction - 1.1/2" BSP x 1" BSP female - WD seal G 1.1/2 BSP G 1 BSP 315 bar Short
RI-112-34ED Reduction - 1.1/2" BSP x 3/4" BSP female - WD seal G 1.1/2 BSP G 3/4 BSP 315 bar Short
RI-112-38ED Reduction - 1.1/2" BSP x 3/8" BSP female - WD seal G 1.1/2 BSP G 3/8 BSP 630 bar Short
RI-114-112ED Reduction - 1.1/4" BSP x 1.1/2" BSP female - WD seal G 1.1/4 BSP G 1.1/2 BSP 315 bar Long
RI-114-12ED Reduction - 1.1/4" BSP x 1/2" BSP female - WD seal G 1.1/4 BSP G 1/2 BSP 400 bar Short
RI-114-1ED Reduction - 1.1/4" BSP x 1 BSP female - WD seal G 1.1/4 BSP G 1 BSP 400 bar Long
RI-114-34ED Reduction - 1.1/4" BSP x 3/4" BSP female - WD seal G 1.1/4 BSP G 3/4 BSP 400 bar Short
RI-12-114ED Reduction - 1/2" BSP x 1.1/4" BSP female - WD seal G 1/2 BSP G 1.1/4 BSP 400 bar Long
RI-12-12ED Reduction - 1/2" BSP x 1/2" BSP female - WD seal G 1/2 BSP 630 bar Long
RI-12-14ED Reduction - 1/2" BSP x 1/4" BSP female - WD seal G 1/2 BSP G 1/4 BSP 630 bar Short
RI-12-18ED Reduction - 1/2" BSP x 1/8" BSP female - WD seal G 1/2 BSP G 1/8 BSP 630 bar Short
RI-12-1ED Reduction - 1/2" BSP x 1 BSP female - WD seal G 1/2 BSP G 1 BSP 400 bar Long
RI-12-34ED Reduction - 1/2" BSP x 3/4" BSP female - WD seal G 1/2 BSP G 3/4 BSP 400 bar Long
RI-12-38ED Reduction - 1/2" BSP x 3/8" BSP female - WD seal G 1/2 BSP G 3/8 BSP 630 bar Long
RI-14-12ED Reduction - 1/4" BSP x 1/2" BSP female - WD seal G 1/4 BSP G 1/2 BSP 630 bar Long
RI-14-14ED Thread Reducer Thread1: R1/4 Thread2: R1/4 Steel ZnNi G 1/4 BSP 630 bar Long
RI-14-18ED Reduction - 1/4" BSP x 1/8" BSP female - WD seal G 1/4 BSP G 1/8 BSP 630 bar Long
RI-14-34ED Reduction - 1/4" BSP x 3/4" BSP female - WD seal G 1/4 BSP G 3/4 BSP 630 bar Long
RI-14-38ED Reduction - 1/4" BSP x 1/8" BSP female - WD seal G 1/4 BSP G 3/8 BSP 630 bar Long
RI-18-14ED Reduction - 1/8" BSP x 1/4" BSP female - WD seal G 1/8 BSP G 1/4 BSP 630 bar Long
RI-18-38ED Reduction - 1/8" BSP x 3/8" BSP female - WD seal G 1/8 BSP G 3/8 BSP 630 bar Long
RI-2-112ED Reduction - 2" BSP x 1.1/2" BSP female - WD seal G 2 BSP G 1.1/2 BSP 250 bar Long
RI-2-114ED Reduction - 2" BSP x 1.1/4" BSP female - WD seal G 2 BSP G 1.1/4 BSP 160 bar Short
RI-2-1ED Reduction - 2" BSP x 1" BSP female - WD seal G 2 BSP G 1 BSP 160 bar Short
RI-2-34ED Adapter, Utv-G 2''-ED, Inv-G 3/4'' G 2 BSP G 3/4 BSP 160 bar Long
RI-34-112ED Reduction - 3/4"SP x 11/2"BSP female - WD seal G 3/4 BSP G 1.1/2 BSP 315 bar Long
RI-34-114ED Reduction - 3/4" BSP x 1.1/4" BSP female - WD seal G 3/4 BSP G 1.1/4 BSP 400 bar Long
RI-34-12ED Reduction - 3/4"BSP x 1/2"BSP female - WD seal G 3/4 BSP G 1/2 BSP 400 bar Long
RI-34-14ED Reduction - 3/4"BSP x 1/4"BSP female - WD seal G 3/4 BSP G 1/4 BSP 400 bar Short
RI-34-1ED Reduction - 3/4"BSP x 1" BSP female - WD seal G 3/4 BSP G 1 BSP 400 bar Long
RI-34-34ED Reduction - 3/4" BSP x 3/4" BSP female - WD seal G 3/4 BSP 400 bar Long
RI-34-38ED Reduction - 3/4"BSP x 3/8"BSP female - WD seal G 3/4 BSP G 3/8 BSP 400 bar Short
RI-38-12ED Reduction - 3/8" BSP x 1/2" BSP female - WD seal G 3/8 BSP G 1/2 BSP 630 bar Long
RI-38-14ED Reduction - 3/8" BSP x 1/4" BSP female - WD seal G 3/8 BSP G 1/4 BSP 630 bar Long
RI-38-18ED Reduction - 3/8" BSP x 1/8" BSP female - WD seal G 3/8 BSP G 1/8 BSP 630 bar Short
RI-38-34ED Reduction - 3/8" BSP x 3/4" BSP female - WD seal G 3/8 BSP G 3/4 BSP 400 bar Long
RI-38-38ED Thread Reducer Thread1: R3/8 Thread2: R3/8 Steel ZnNi G 3/8 BSP 630 bar Long
Angle
0

Material
Steel

REACH compliant
Yes

RoHs compliant
Yes

Sealing material
NBR

Temperature max.
+100

Temperature min.
-35
