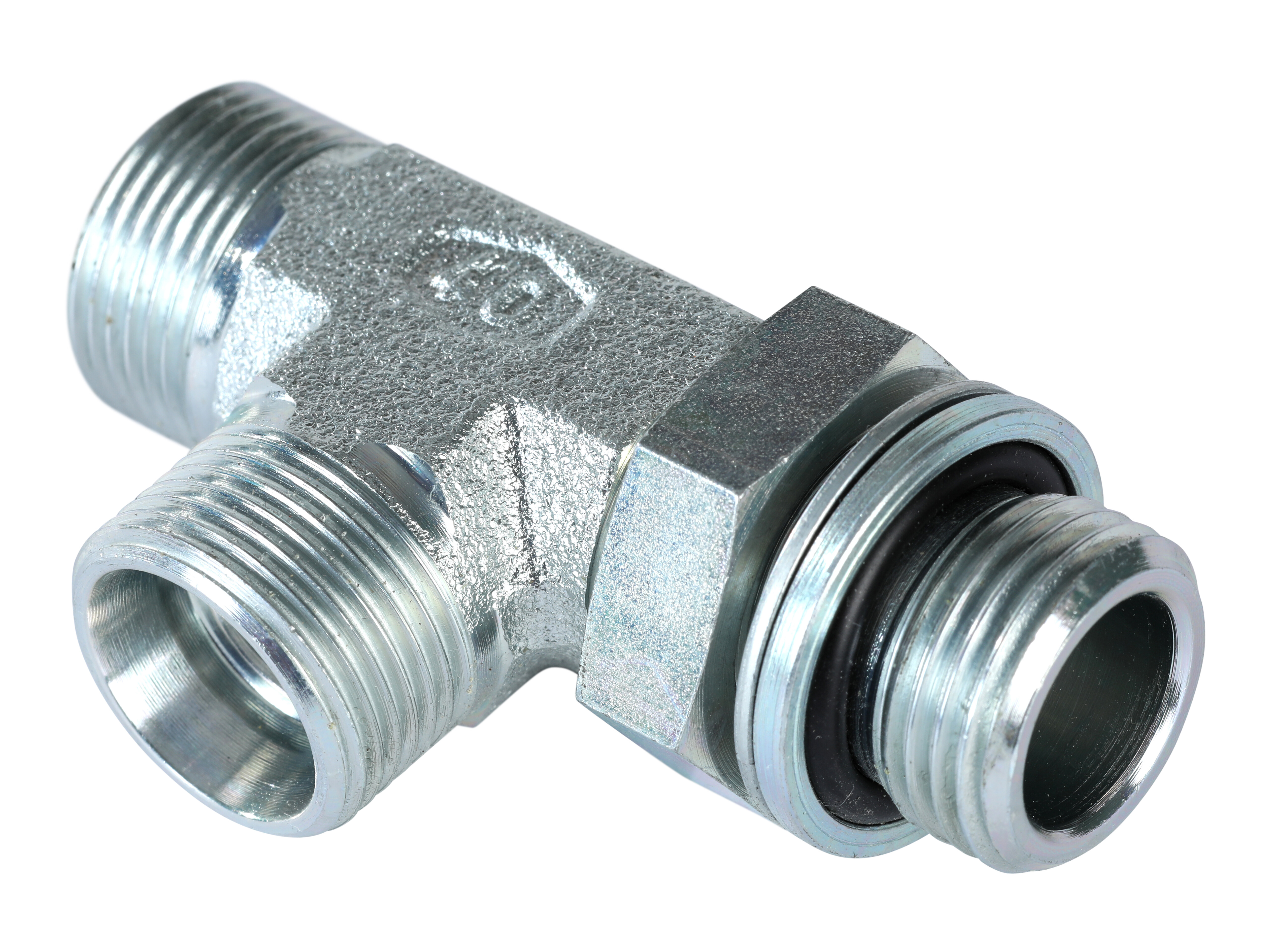

Adapter L 08S, Utv-G 1/4'', Ställbar
Adapter L 08S, Utv-G 1/4'', Ställbar
Partnumber:
XLEE08SR
Package size:
10 st
Min. order quantity is:
1 st
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
8 mm
Dimension D1
8 mm
Dimension D2
5 mm
Dimension D3
5 mm
Dimension D4
19.8 mm
Dimension L
24 mm
Dimension L1
32 mm
Dimension L2
17 mm
Dimension L3
27 mm
Dimension L4
9 mm
Dimension S1
19 mm
Dimension S2
19 mm
Dimension S3
19 mm
Material
Steel
Model code
XDE8RSOAZN
Pressure max.
315 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Sealing material
NBR
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread T
G 1/4 BSP
Thread outer
G 1/4 BSP
Thread outer metric
M16x1,5
Torque tightening
50 Nm
Type
Forged
Package size
10 st
Barcode
306831
Gross weight
0,116 Kg
Net weight
0,116 Kg
Country of origin
deu
Adapter L 08S, Utv-G 1/4'', Ställbar
