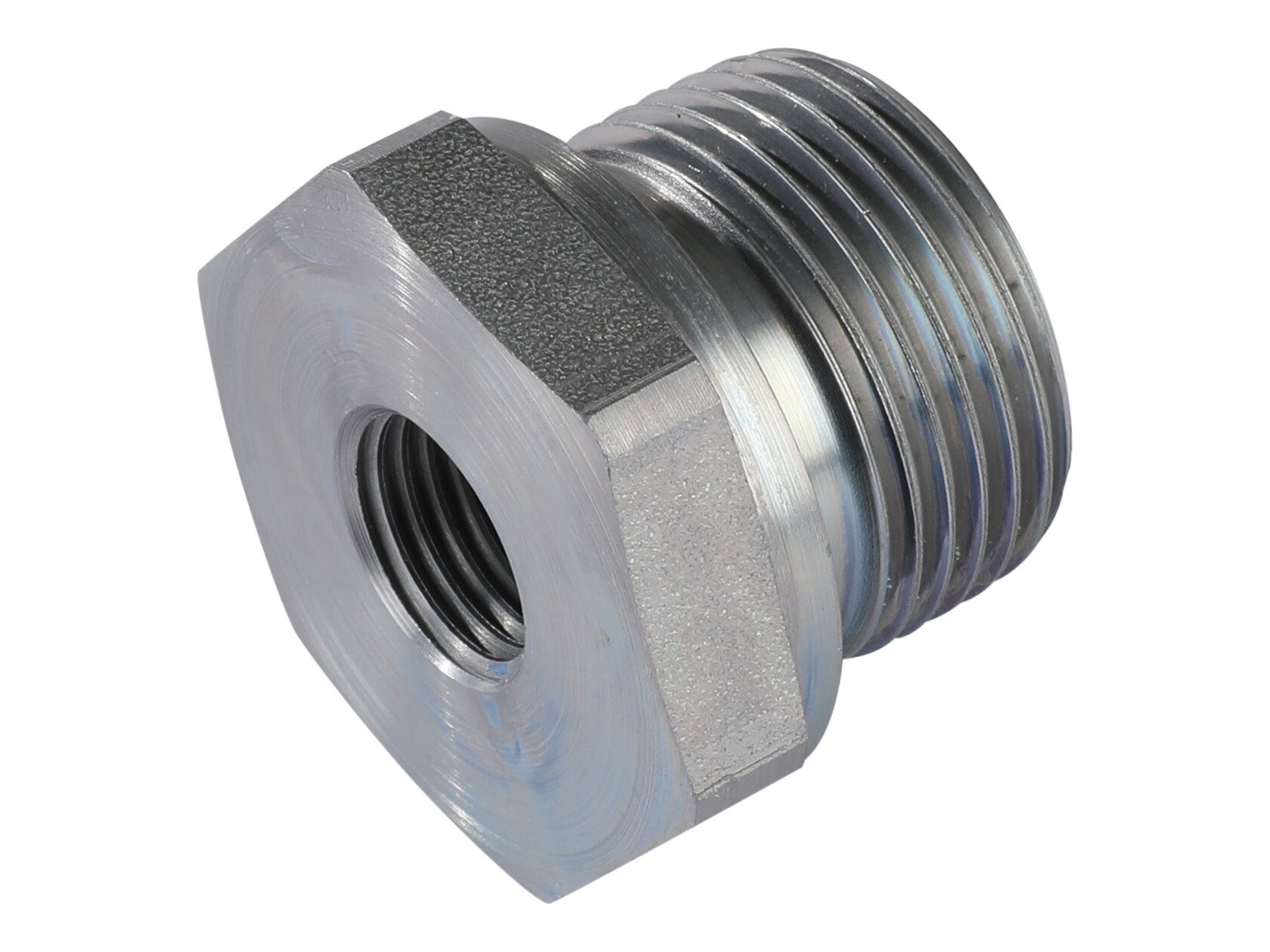

Reduction - 3/4"BSP x 1/4"BSP female - WD seal
Threaded hydraulic adapter for reducing from a larger BSPP male thread to a smaller BSPP female thread. The WD profile sealing ring provides the sealing interface, making the reducer suitable for compact hydraulic connections where a size change is required.
Designed with a zinc-nickel plated surface treatment and NBR sealing material. Key selection points are the BSPP thread sizes, the WD sealing concept, and the pressure and temperature limits for the hydraulic circuit.
Typical Applications
- Reducing BSPP thread size between hydraulic components and ports
- Hydraulic pipework and hose assemblies where a WD-sealed threaded reducer is required
Artikelnummer:
RI-34-14ED
Förpackningsstorlek:
25 pcs
Minsta beställningskvantitet:
1 pcs
Diameter rör
0 mm
Gänga inv.
G 1/4 BSP
Gänga utv.
G 3/4 BSP
L1
26 mm
L2
12,5 mm
Längd
26 mm
Modell kod
FI-RED-R3/4-WD-R1/4-B-W3
Märke namn
Stauff
Packningsmaterial
NBR
REACH compliant
Yes
RoHs compliant
Yes
Rostbeständighet
1200 hours salt spray DIN EN ISO 9227
S1
32 mm
Sexkant
32 mm
Säkerhetsfaktor
4
Temperatur max.
+100 °C
Temperatur min.
-35 °C
Thread T1
G 3/4 BSP
Thread T2
G 1/4 BSP
Tillverkningsmaterial
Steel
Totallängd
26 mm
Tryck max.
400 bar
Typ
Short
Vinkel
0 °
Ytskiktbehandling
Zinc-Nickel plated
i
16 mm
Package size
25 pcs
Barcode
130515
Gross weight
0,10 Kg
Net weight
0,10 Kg
Country of origin
DEU
Intrastat code
73071110
Threaded hydraulic adapter for reducing from a larger BSPP male thread to a smaller BSPP female thread. The WD profile sealing ring provides the sealing interface, making the reducer suitable for compact hydraulic connections where a size change is required.
Designed with a zinc-nickel plated surface treatment and NBR sealing material. Key selection points are the BSPP thread sizes, the WD sealing concept, and the pressure and temperature limits for the hydraulic circuit.
Typical Applications
- Reducing BSPP thread size between hydraulic components and ports
- Hydraulic pipework and hose assemblies where a WD-sealed threaded reducer is required
