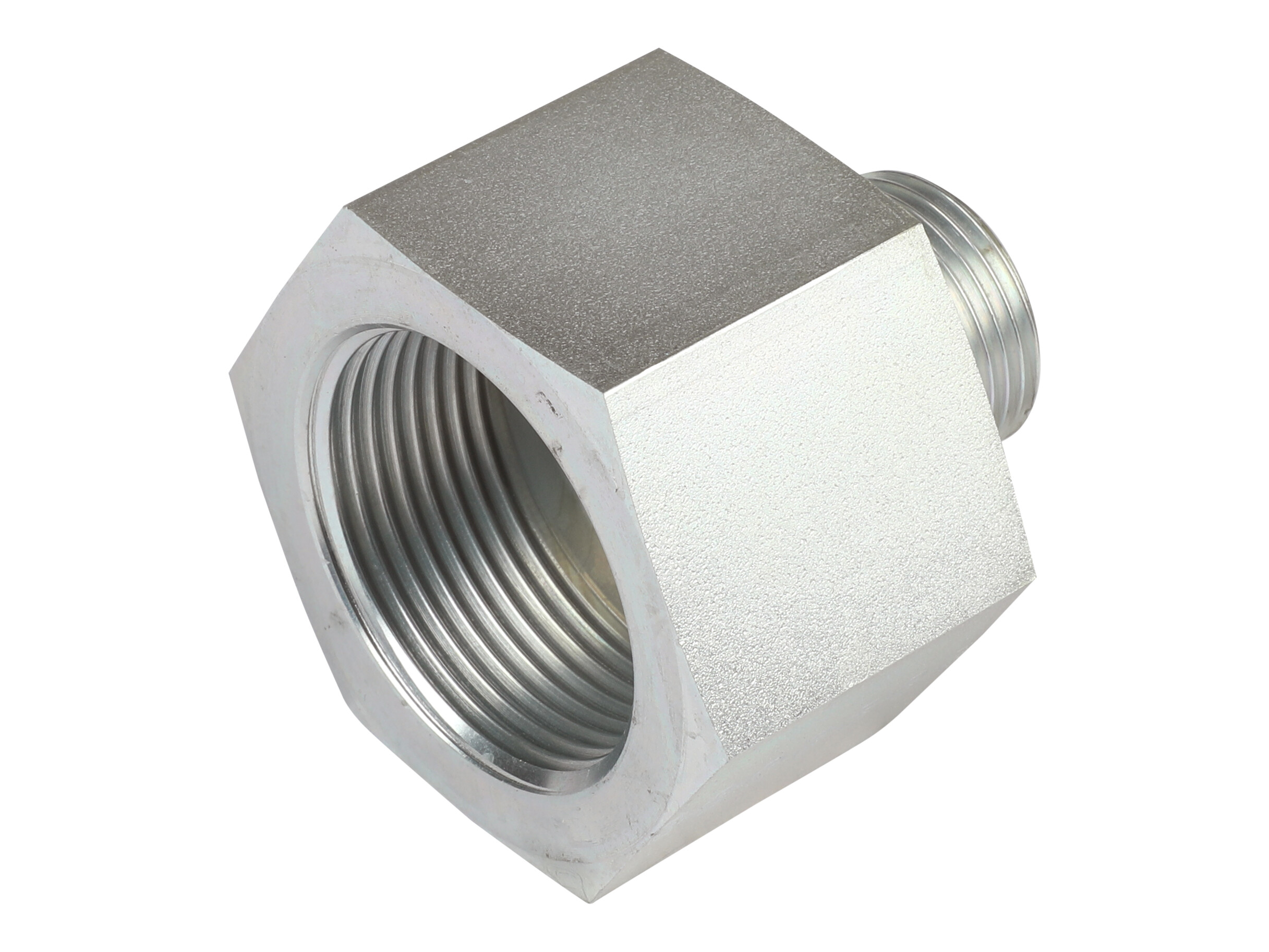

Reduction - 3/4"SP x 11/2"BSP female - WD seal
Reduction - 3/4"SP x 11/2"BSP female - WD seal
Artikelnummer:
RI-34-112ED
Förpackningsstorlek:
10 st
Minsta beställningskvantitet:
1 st
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
16 mm
Dimension i
16 mm
Hexagon
60 mm
L1
57 mm
L2
28,5 mm
Length
57 mm
Material
Steel
Model code
FI-RED-R3/4-WD-R1-1/2-B-W3
Pressure max.
315 bar
REACH compliant
Yes
RoHs compliant
Yes
S1
60 mm
Safety factor
4
Sealing material
NBR
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T1
G 3/4 BSP
Thread T2
G 1.1/2 BSP
Thread inner
G 1.1/2 BSP
Thread outer
G 3/4 BSP
Total length
57 mm
Type
Long
d2
16 mm
i
16 mm
Package size
10 st
Barcode
130508
Gross weight
0,53 Kg
Net weight
0,53 Kg
Country of origin
DEU
Intrastat code
73071110
Reduction - 3/4"SP x 11/2"BSP female - WD seal
Note: Opening 3D files requires a program that supports the file format
