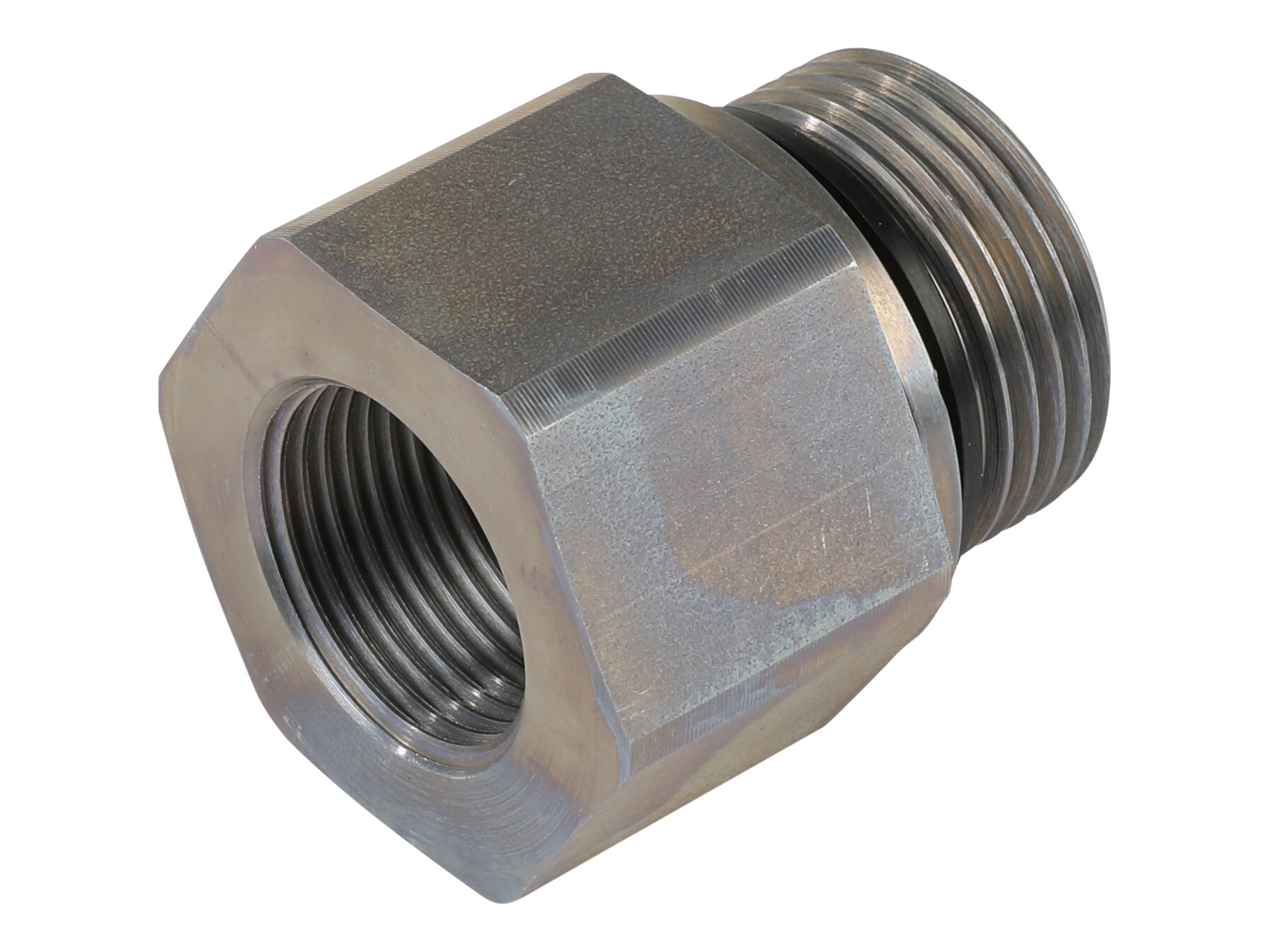

Reduction - 1"BSP x 3/4"BSP female - WD seal
Thread reducer for adapting between two different BSPP (Whitworth parallel) thread sizes in hydraulic and fluid power pipework. The reducer connects a G 1 male external thread to a G 3/4 female internal thread and uses a WD profile sealing ring for sealing.
Suitable for hydraulic applications up to 400 bar, with an NBR seal and zinc-nickel plated surface treatment. Compact body dimensions support installation where space is limited, and the 41 mm hex allows tightening with standard tools.
Typical Applications
- Reducing BSPP port size when connecting hydraulic components with different thread sizes
- Adaptation in hydraulic lines and manifolds where a profile sealing ring interface is required
Partnumber:
RI-1-34ED
Package size:
25 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
D2
20 mm
Diameter pipe
20 mm
Hexagon
41 mm
L1
49 mm
L2
22 mm
Length
49 mm
Material
Steel
Model code
FI-RED-R1-WD-R3/4-B-W3
Pressure max.
400 bar
REACH compliant
Yes
RoHs compliant
Yes
S1
41 mm
Safety factor
4
Sealing material
NBR
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T1
G 1 BSP
Thread T2
G 3/4 BSP
Thread inner
G 3/4 BSP
Thread outer
G 1 BSP
Total length
49 mm
Type
Long
i
18 mm
Package size
25 pcs
Barcode
130459
Gross weight
0,29 Kg
Net weight
0,29 Kg
Country of origin
DEU
Intrastat code
73071110
Thread reducer for adapting between two different BSPP (Whitworth parallel) thread sizes in hydraulic and fluid power pipework. The reducer connects a G 1 male external thread to a G 3/4 female internal thread and uses a WD profile sealing ring for sealing.
Suitable for hydraulic applications up to 400 bar, with an NBR seal and zinc-nickel plated surface treatment. Compact body dimensions support installation where space is limited, and the 41 mm hex allows tightening with standard tools.
Typical Applications
- Reducing BSPP port size when connecting hydraulic components with different thread sizes
- Adaptation in hydraulic lines and manifolds where a profile sealing ring interface is required
