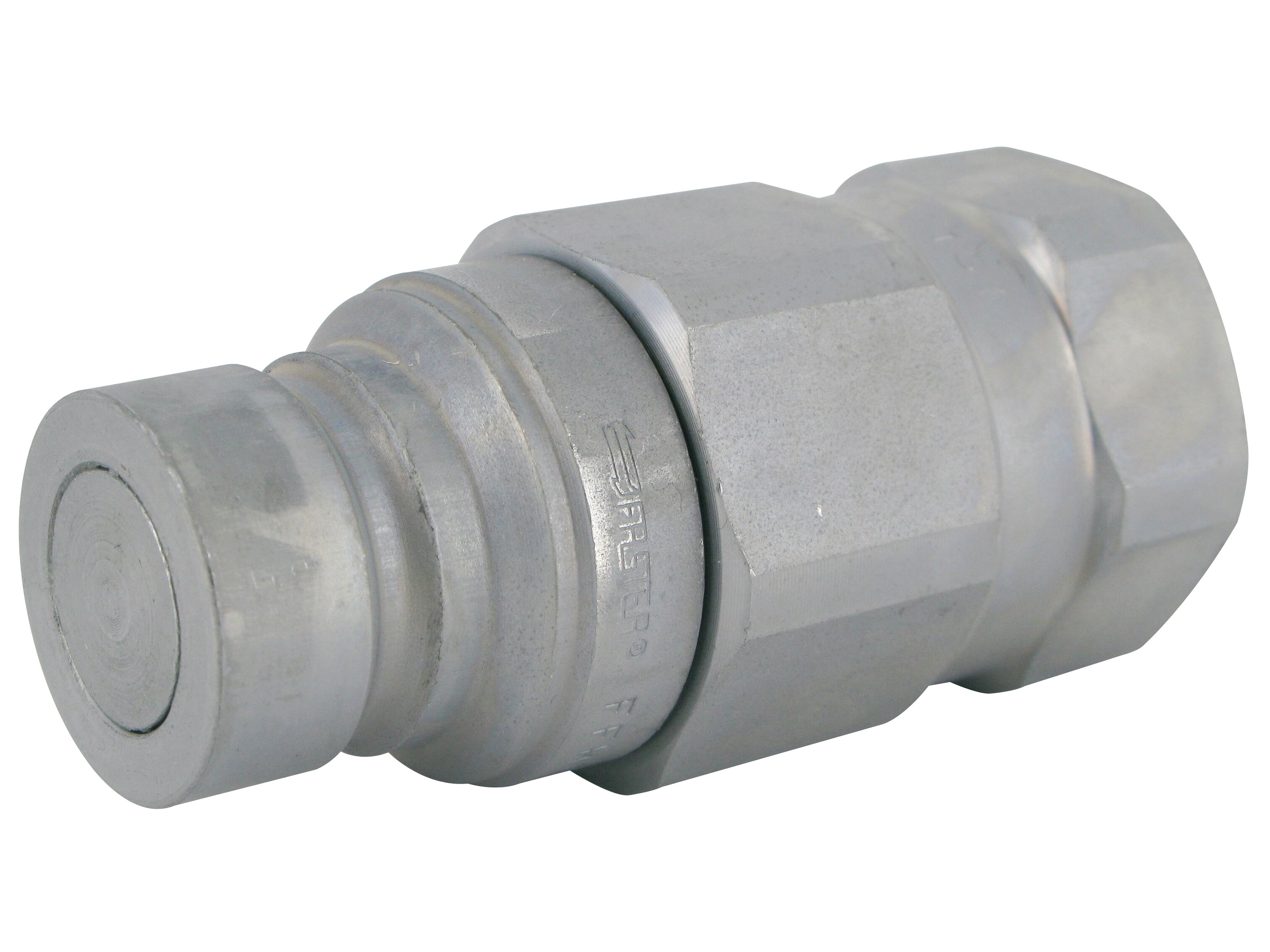

Snabbkoppling Hane ISO 12,5 Inv-G1/2'' Viton

Faster Flat-face quick coupler.

No spillage during connection and disconnection.

Seals replacement very easy.

Connection system: Pushing the male coupling.

Disconnection system: Pulling back the sleeve

Shut-off system: Flat valve (male coupling with double valve).

Connectability: Without pressure.

Disconnection under pressure: Not allowed.

Partnumber:
FFH0812GASMV

Package size:
1 st

Min. order quantity is:
1 st
Dustcap orange f/FFH08 male ISO 16028, FASTER
Partnumber: TFF08
Dammskydd FFH08 Hane, PVC Svart
Partnumber: TFF08N
SEAL KIT MALE Viton 1/2" FFH 10pcs/package
Partnumber: SKFFH08V
Area of use
Biodiesel, Diesel, Hydraulic oil, Liquids compatible with constituent materials

Brand Name
Faster

Corrosion resistance
1000 hours salt spray UNI ISO 9227

DN
12.5 mm

Dimension C
75 mm

Dimension E
G 1/2 BSP

Dimension H
24.5 mm

Dimension Y
34 mm

Flow rate nominal LMin
110 lpm

ISO size
12.5

Material
Steel

Model code
FFH08 12GAS MV

Pressure eliminator
No

Pressure max.
350 bar

Sealing material
FKM/FPM (Viton®)

Size
1/2 "

Standard ISO
ISO 16028

Surface treatment
Zinc-Nickel plated

Temperature max.
+200 °C

Temperature min.
-20 °C

Thread inner
G 1/2 BSP
Package size
1 st

Barcode
430987

Gross weight
0,333 Kg

Net weight
0,333 Kg

Country of origin
ita

Faster Flat-face quick coupler.

No spillage during connection and disconnection.

Seals replacement very easy.

Connection system: Pushing the male coupling.

Disconnection system: Pulling back the sleeve

Shut-off system: Flat valve (male coupling with double valve).

Connectability: Without pressure.

Disconnection under pressure: Not allowed.
