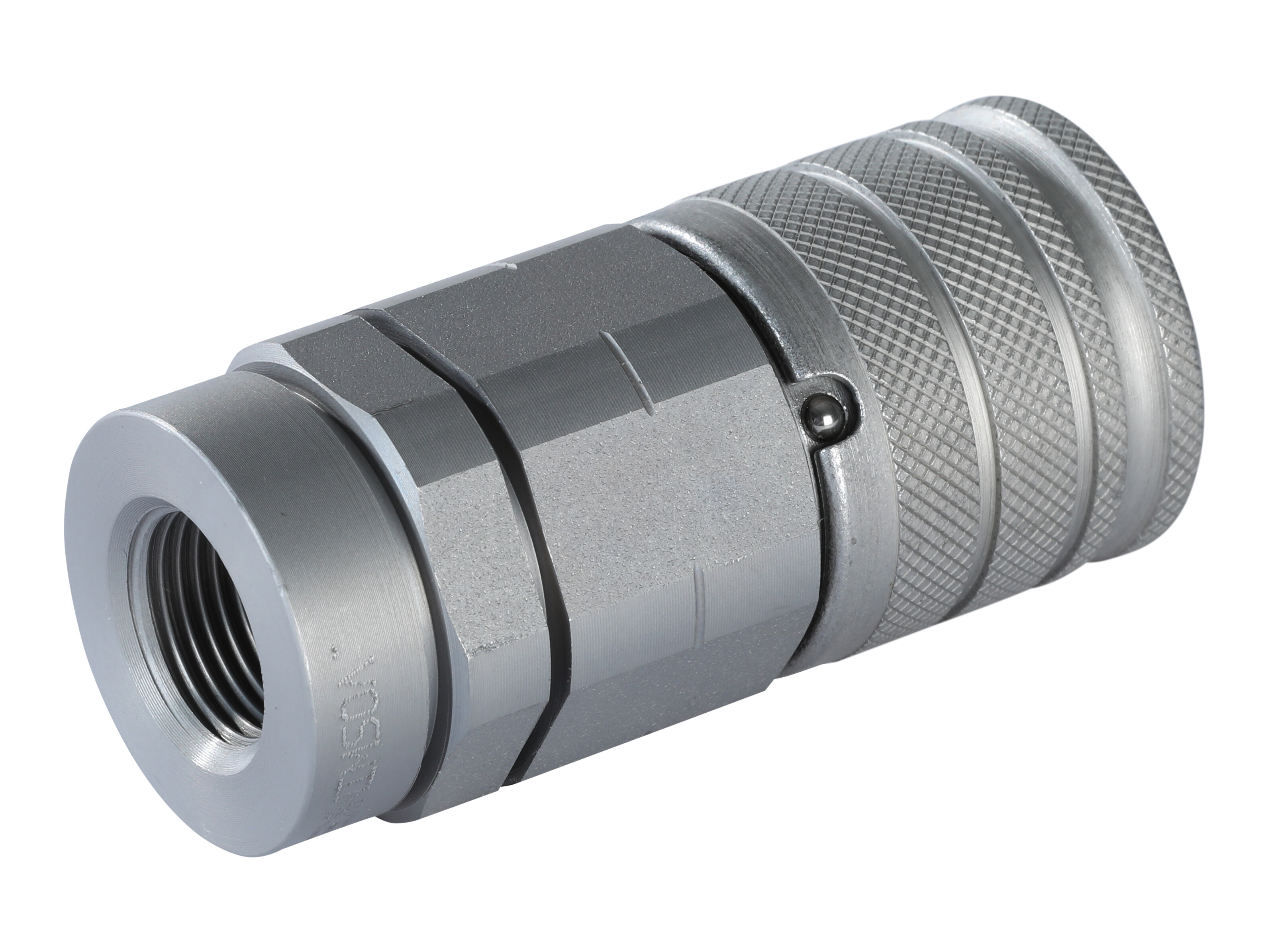

Snabbkoppling Hona Flatface FF -DN10- Inv- 3/8"BSP
Partnumber:
FF10-1-IGF06
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Stauff

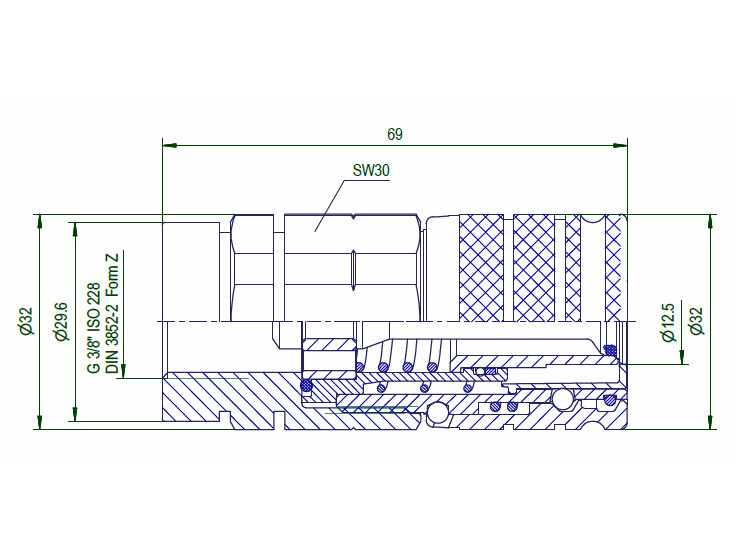

Dimension H
32 mm
Dimension L
69 mm
Dimension Y
30 mm
Flow rate nominal LMin
53 lpm
ISO size
10
Material
Stål
Model code
FF10-1-IGF06
Pressure burst min.
1100 bar
Pressure max.
350 bar
Sealing material
NBR
Size
3/8 "
Standard ISO
ISO 16028
Surface treatment
Zink-Nickel
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread inner
G 3/8 BSP
Package size
1 st
Barcode
380246
Gross weight
0,28 Kg
Net weight
0,28 Kg
Country of origin
DEU
Intrastat code
84812010
