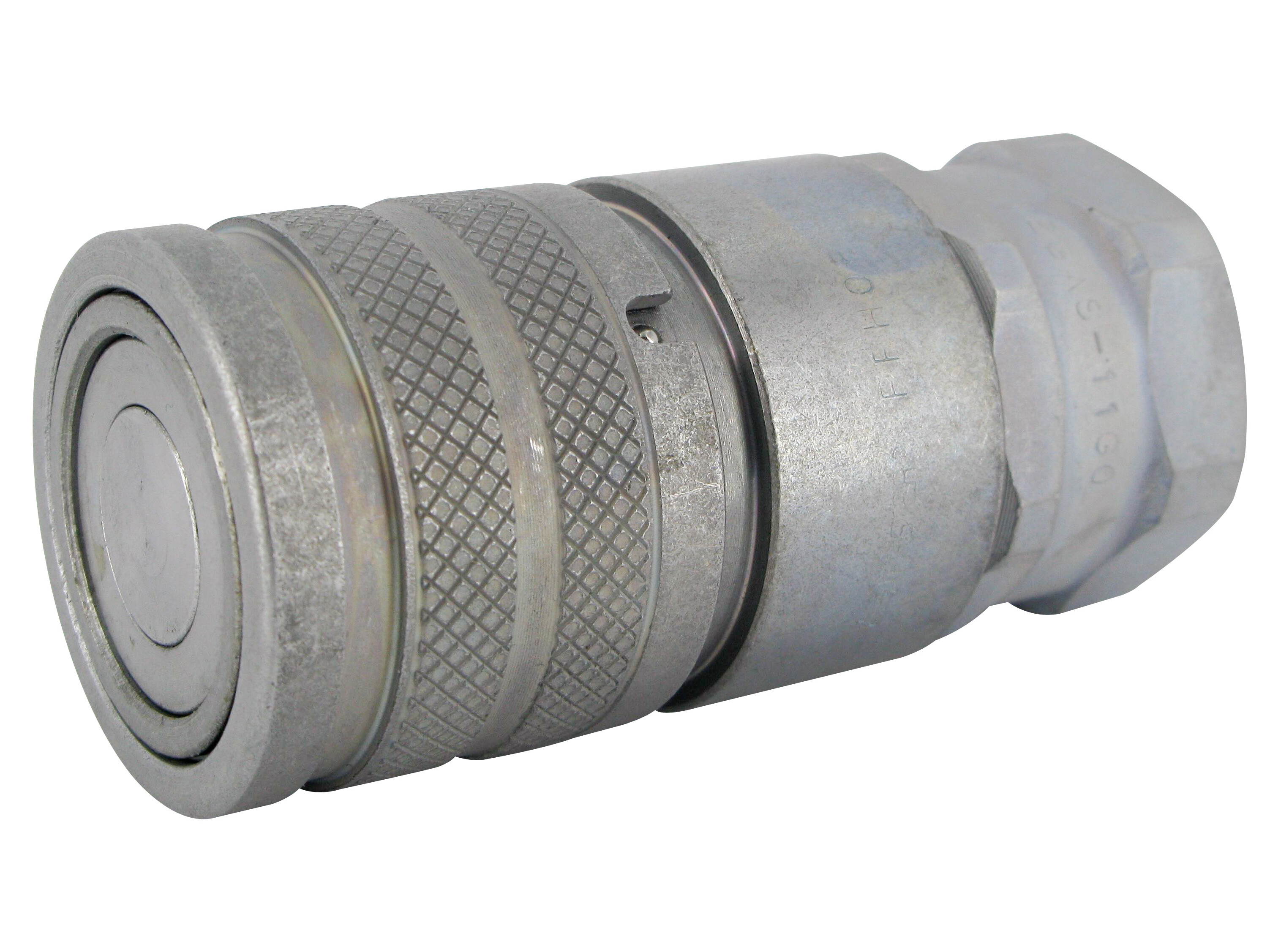

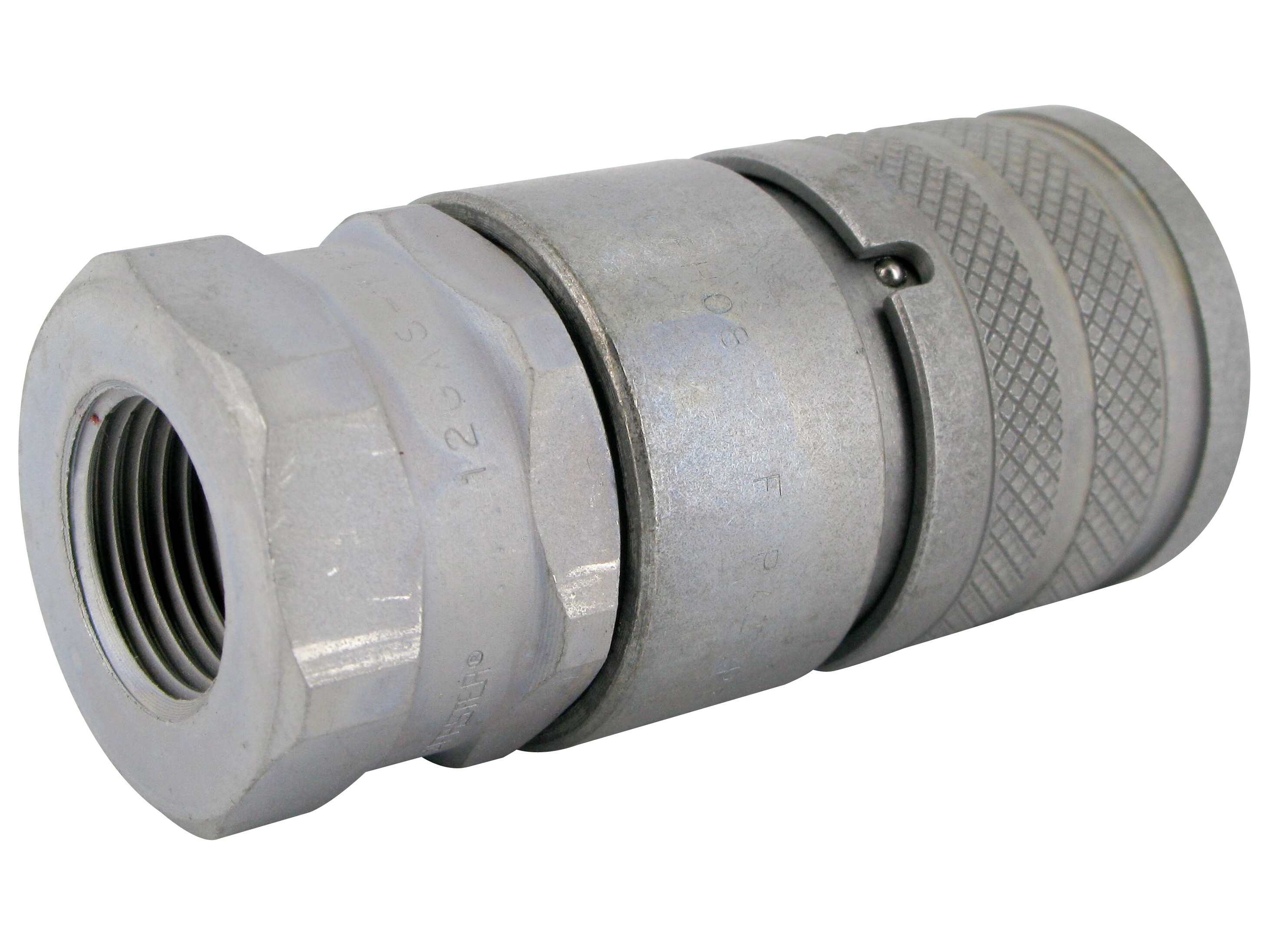

Snabbkoppling Hona ISO 12,5 Inv-G1/2'' Viton

Snabbkoppling Hona ISO 12,5 Inv-G1/2'' Viton

Faster Flat-face quick coupler.

No spillage during connection and disconnection.

Seals replacement very easy.

Connection system: Pushing the male coupling.

Disconnection system: Pulling back the sleeve

Shut-off system: Flat valve (male coupling with double valve).

Connectability: Without pressure.

Disconnection under pressure: Not allowed.

Partnumber:

FFH0812GASFV

Package size:

1 st

Min. order quantity is:

1 st

Tillbehör (2)

Nylon cap blue for 1/2 female push/pull

Partnumber: TA12B

TA12G - Dammskydd Självstängande 1/2'' Hona, Gul

Partnumber: TA12G

Specifications
Dimensions and shipping

Area of use

Biodiesel, Diesel, Hydraulic oil, Liquids compatible with constituent materials

Brand Name

Faster

Corrosion resistance

1000 hours salt spray UNI ISO 9227

12.5 mm

Dimension A

G 1/2 BSP

Dimension B

81 mm

Dimension D

38 mm

Dimension X

34 mm

Flow rate nominal LMin

110 lpm

ISO size

12.5

Material

Steel

Model code

FFH08 12GAS FV

Pressure eliminator

Pressure max.

350 bar

Sealing material

FKM/FPM (Viton®)

Size

1/2 "

Standard ISO

ISO 16028

Surface treatment

Zinc-Nickel plated

Temperature max.

+200 °C

Temperature min.

-20 °C

Thread inner

G 1/2 BSP

Package size

1 st

Barcode

430986

Gross weight

0,458 Kg

Net weight

0,458 Kg

Country of origin

ita

Product information
Measure sketch

Faster Flat-face quick coupler.

No spillage during connection and disconnection.

Seals replacement very easy.

Connection system: Pushing the male coupling.

Disconnection system: Pulling back the sleeve

Shut-off system: Flat valve (male coupling with double valve).

Connectability: Without pressure.

Disconnection under pressure: Not allowed.

Product datasheet Video
