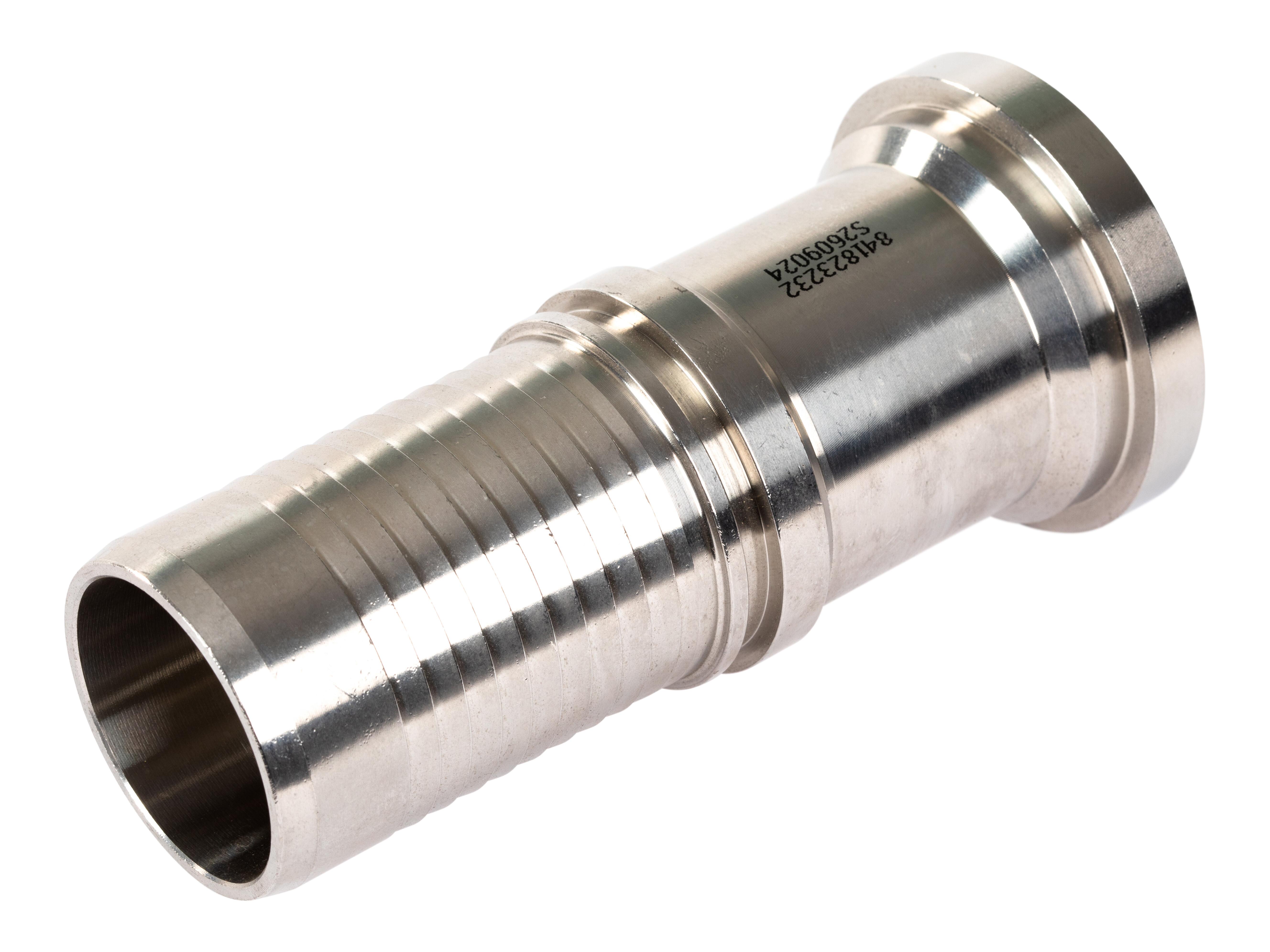

2" Insert - 2" SAE3000 flange - AISI316

2" Insert - 2" SAE3000 flange - AISI316

2" Insert - 2" SAE3000 flange - AISI316

2" Insert - 2" SAE3000 flange - AISI316

Insert to be used with split-flanges.

Sealing: Metal against o-ring (90shore).

Partnumber:

4301-32-32-SY

Package size:

1 st

Min. order quantity is:

1 st

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

Hydraspecma

Diameter flange

71.4 mm

Dimension L

151.6 mm

Dimension L1

72 mm

Flange

2 "

Flange SAE/DIN

3000 PSI

Hose coupling type

For separate ferrule

Hose size

2 "

Material

Stainless steel

Material quality

1.4571 / AISI316Ti

Model code

841823232

O-ring

56,75X3,53 mm

Pressure max.

210 bar

Shore

90

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Package size

1 st

Barcode

244470

Gross weight

0,97 Kg

Net weight

0,97 Kg

Country of origin

ESP

Intrastat code

73269098

Product information
Measure sketch

Insert to be used with split-flanges.

Sealing: Metal against o-ring (90shore).

2" Insert - 2" SAE3000 flange - AISI316

Product datasheet
