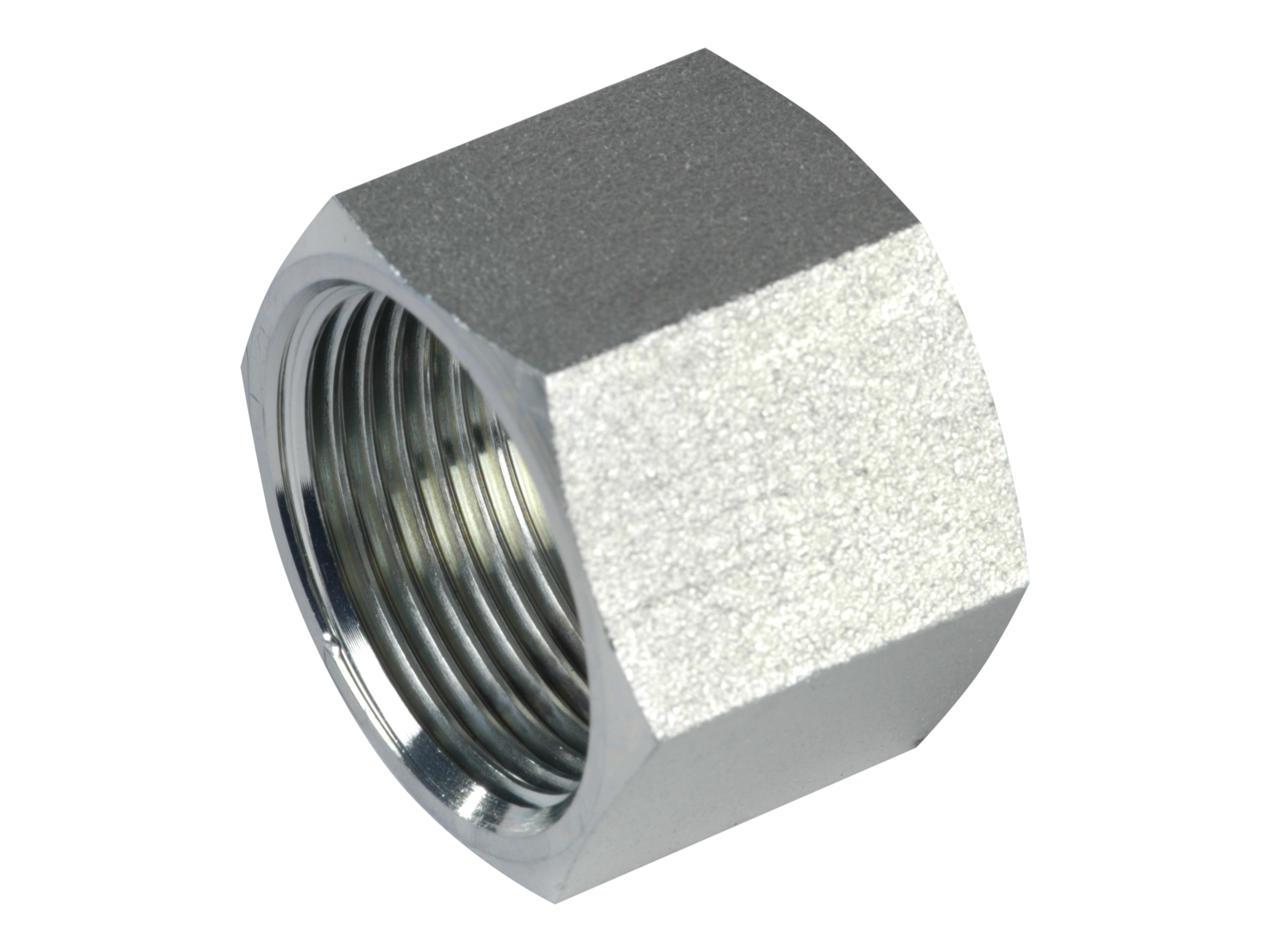

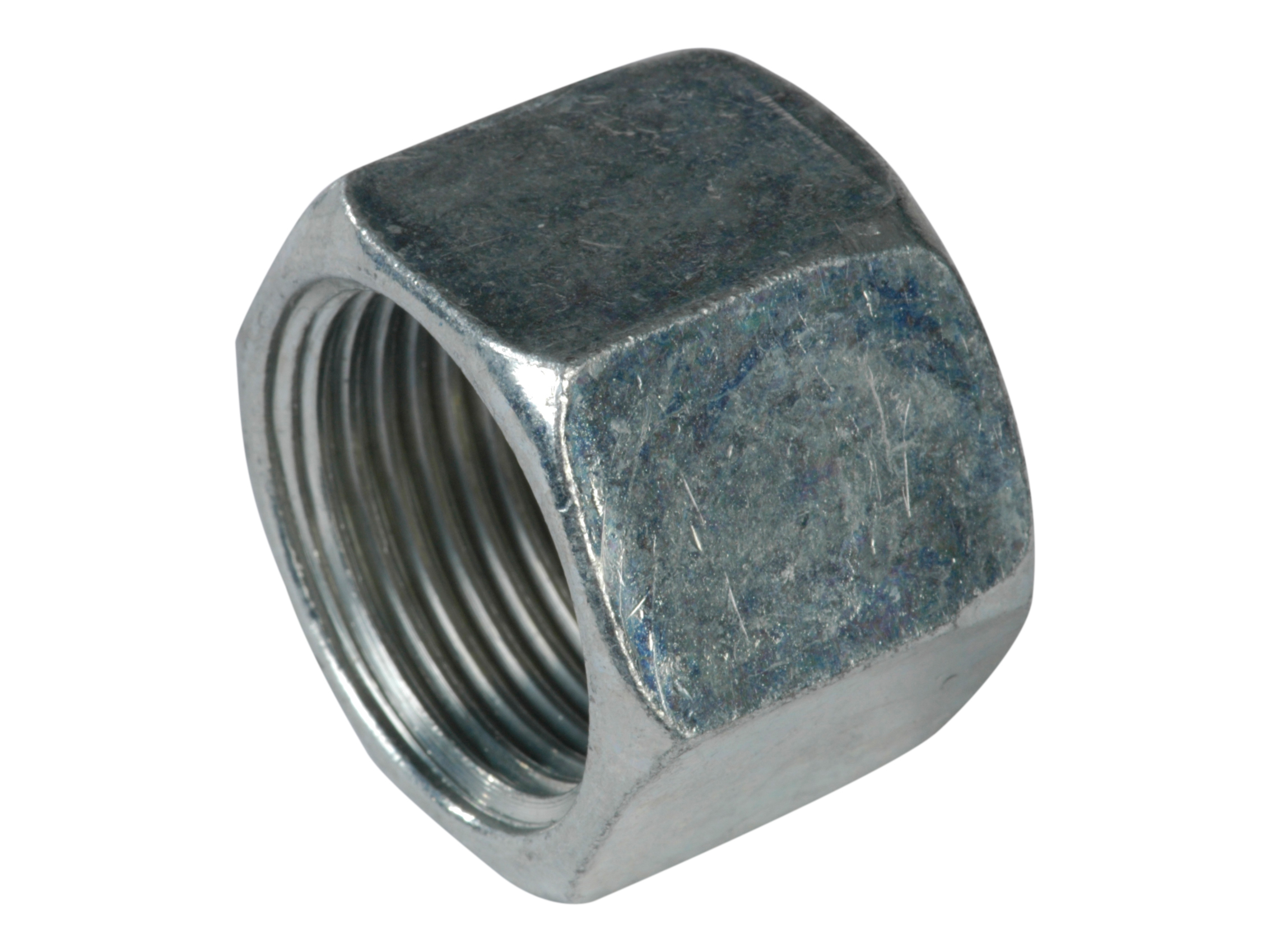

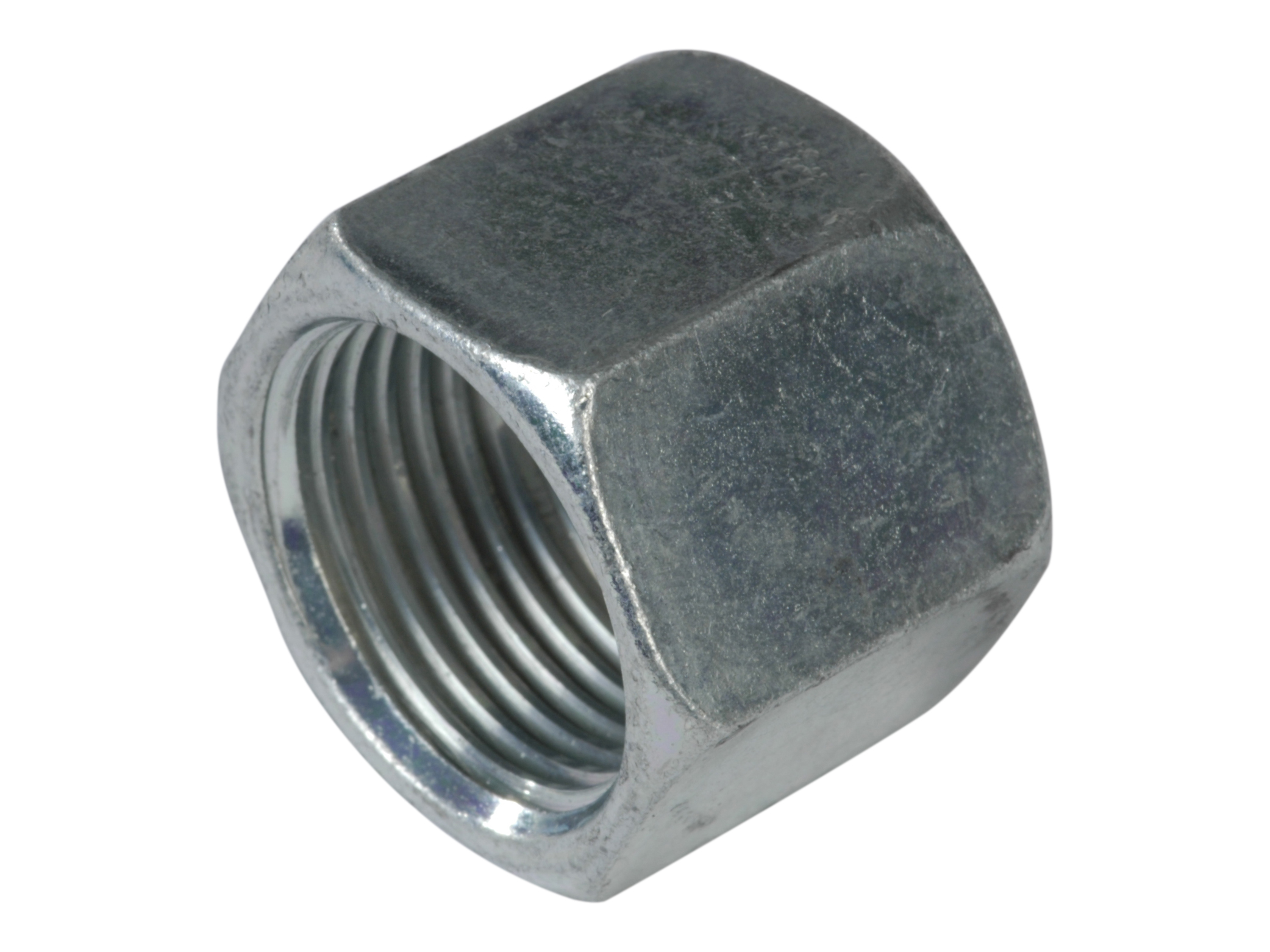

    Union nut JIC - J / JM

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Diameter rör Gänga inv. Tryck max.
    JM-04-6 Mutter, UNF-7/16''-20 6 mm 7/16-20 JIC 350 bar
    JM-05-8 Mutter, UNF-1/2''-20 8 mm 1/2-20 JIC 350 bar
    JM-06-10 Mutter, UNF-9/16''-18, NV=19 10 mm 9/16-18 JIC 350 bar
    JM-08-12 Mutter, UNF-3/4''-16 12 mm 3/4-16 JIC 350 bar
    JM-10-16 Mutter, UNF-7/8''-14 16 mm 7/8-14 JIC 350 bar
    JM-12-18 Mutter, UNF-1 1/16''-12, Rör 18MM 18 mm 1.1/16-12 JIC 350 bar
    JM-12-20 Mutter, UNF-1 1/16''-12, Rör 20MM 20 mm 1.1/16-12 JIC 300 bar
    JM-14-22-L10 Mutter, UNF-1 3/16''-12 22 mm 1.3/16-12 JIC 315 bar
    JM-16-25-38 Mutter, UNF-1 5/16''-12, NV=38 25 mm 1.5/16-12 JIC 290 bar
    JM-20-30 Mutter, UNF-1 5/8''-12 32 mm 1.5/8-12 JIC 210 bar
    JM-24-38 Mutter, UNF-1 7/8''-12 38 mm 1.7/8-12 JIC 100 bar
    JM-32-50 Mutter, UNF-2 1/2''-12 2.1/2-12 JIC
    Tillverkningsmaterial
    Stål
    Ytskiktbehandling
    El-förzinkad / vitkromaterad
