Adapter 12L M18x1.5 OR ISO6149 Port
Adapter 12L M18x1.5 OR ISO6149 Port
Partnumber:
XGE12LMO18
Package size:
1 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227

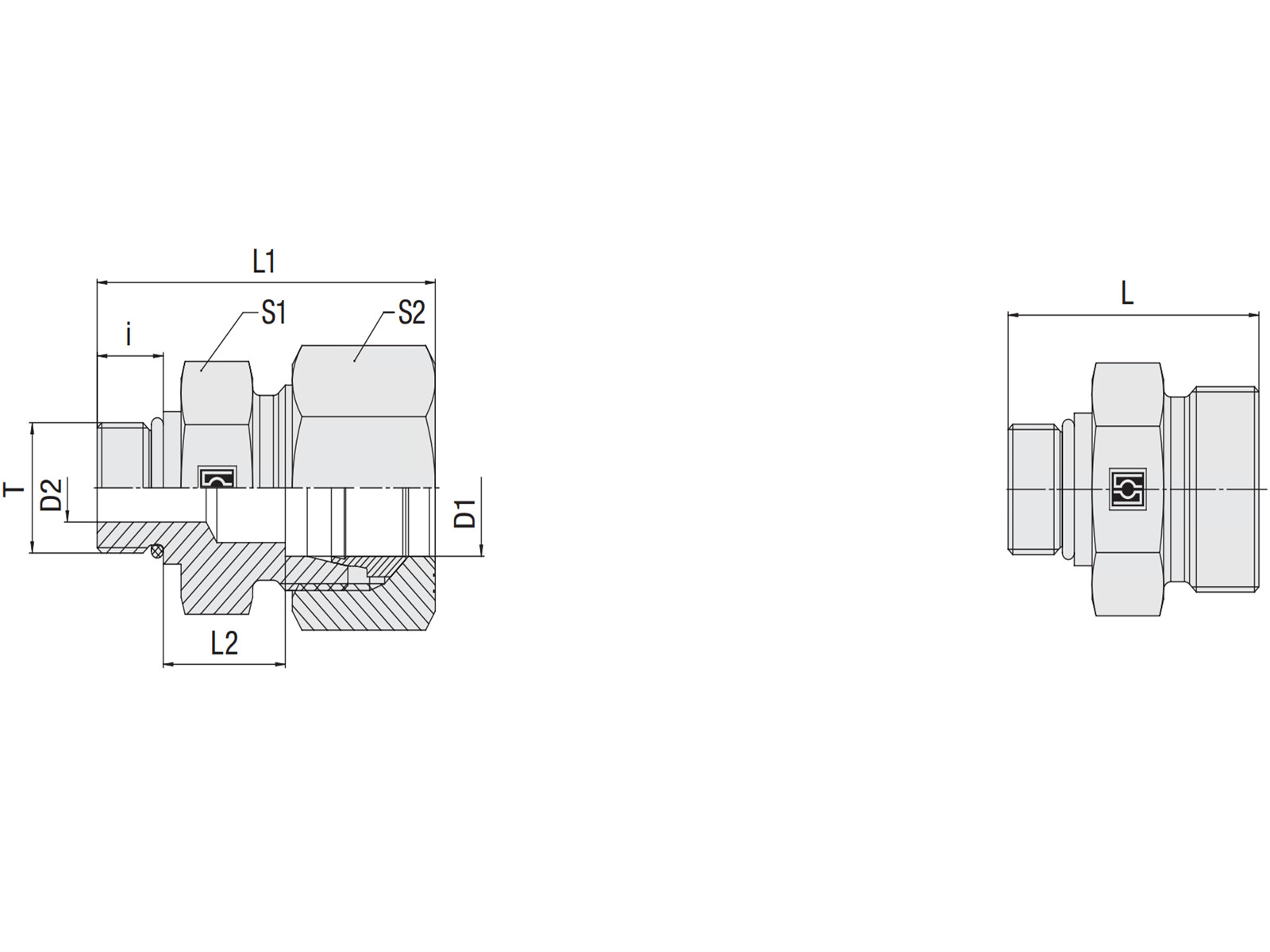

D1
12 mm
D2
10 mm
Diameter pipe
12 mm
L
32 mm
L1
40 mm
L2
12,5 mm
Material
Stål
Model code
FI-GE-12LM18x1.5-OR-B-W3
PN
400 bar
Pressure max.
400 bar
REACH compliant
Ja
RoHs compliant
Ja
S1
24 mm
S2
22 mm
Safety factor
4
Sealing material
NBR
Series
L
T
M18x1,5
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T
M18x1,5
Thread outer metric
M18x1,5
i
12,5 mm
Package size
1 st
Barcode
470504
Gross weight
0,052 Kg
Net weight
0,052 Kg
Country of origin
DE
