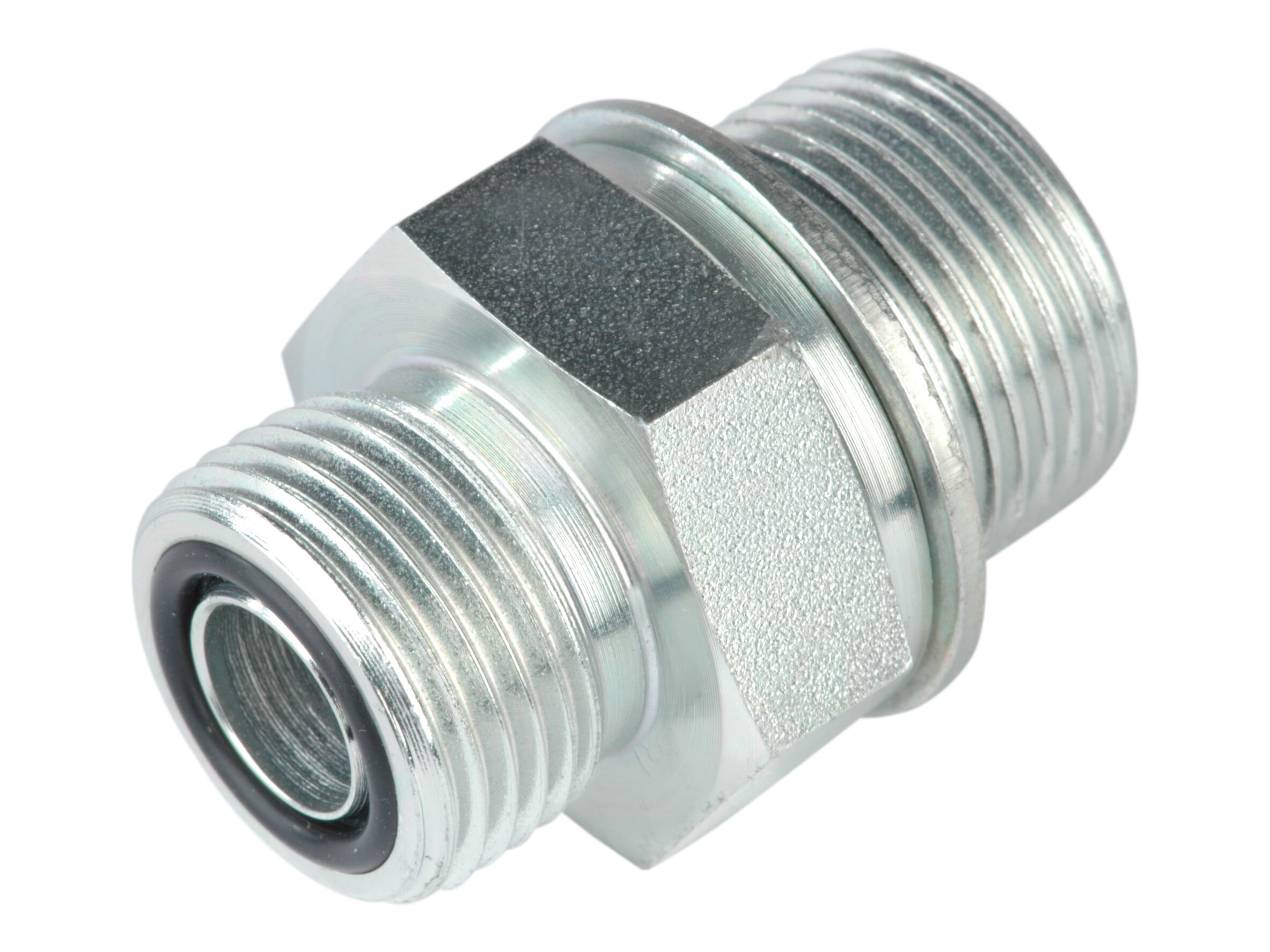

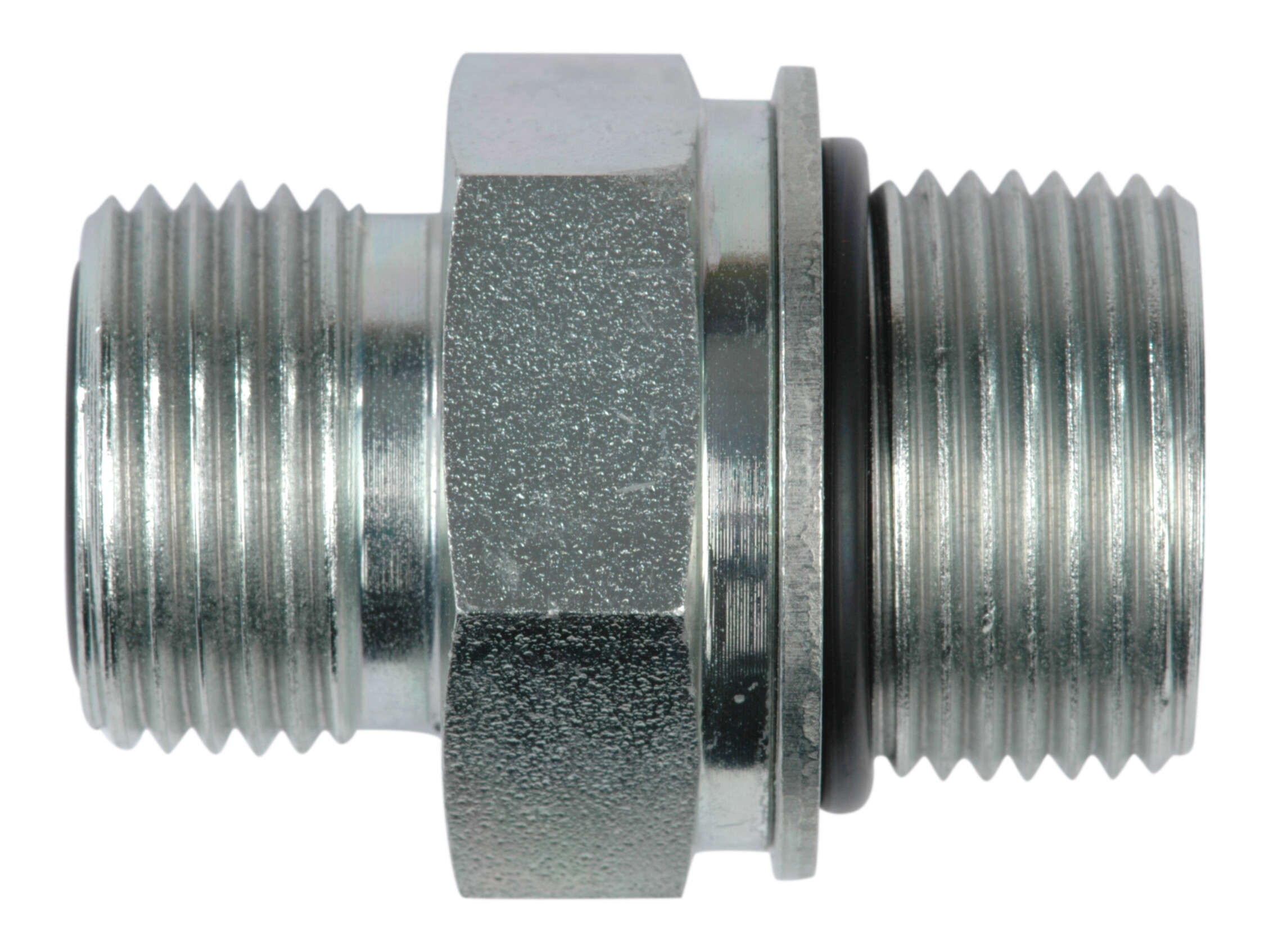

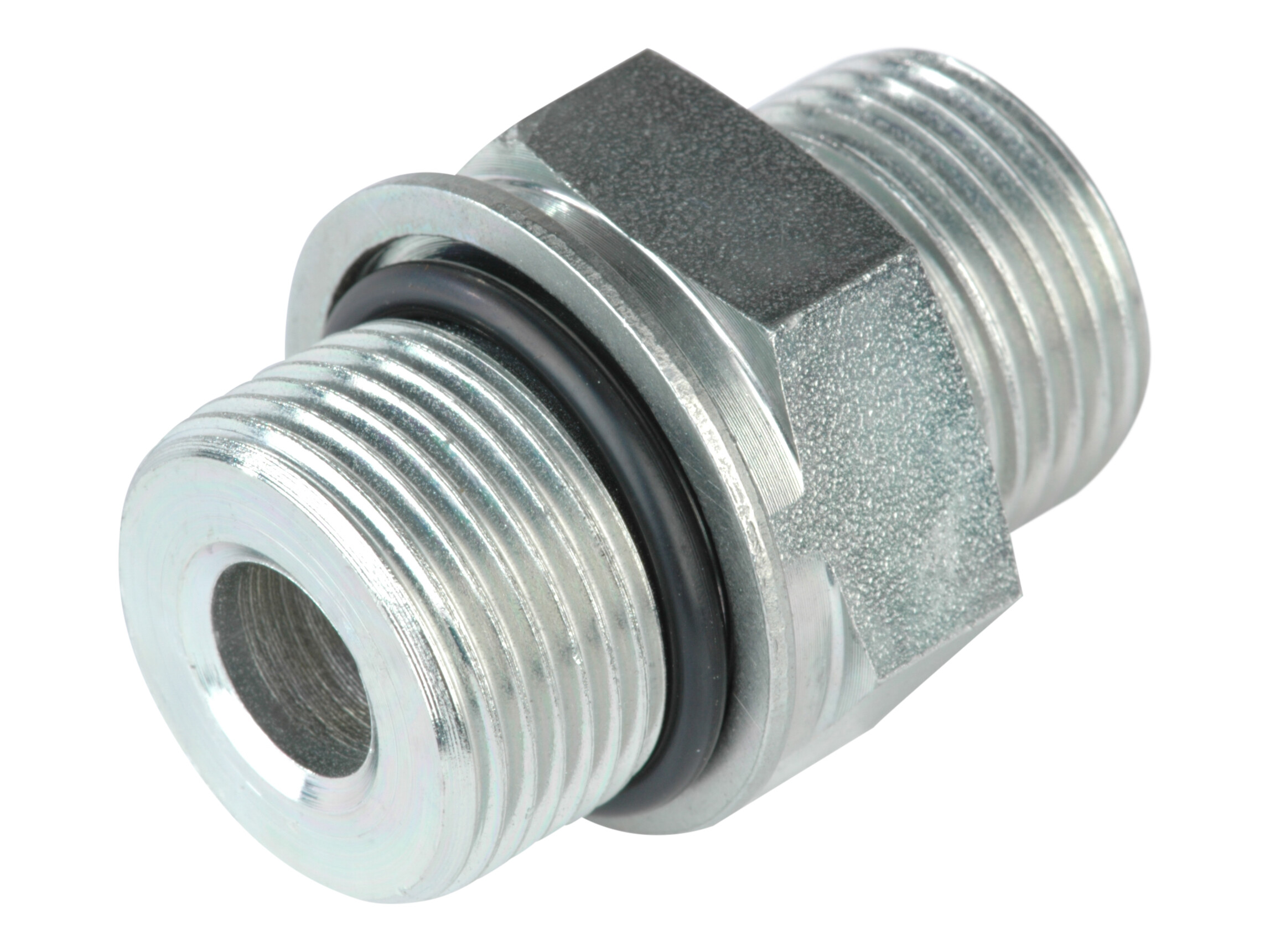

    Adapter Rak, Utv-ORFS, Utv-M

    Artikelnummer:
    OFGEM-08-22-L10
    Förpackningsstorlek:
    1 st
    Minsta beställningskvantitet:
    1 st
    Angle
    0 °
    Brand Name
    FOR
    Corrosion resistance
    1400 hours salt spray DIN EN ISO 9227
    Dimension A
    39.5 mm
    Dimension B
    13 mm
    Dimension CH
    27 mm
    Dimension D
    13.5 mm
    Material
    Stål
    Pressure max.
    300 bar
    Sealing material
    NBR
    Surface treatment
    El-förzinkad / vitkromaterad
    Temperature max.
    +100 °C
    Temperature min.
    -35 °C
    Thread outer
    13/16-16 ORFS
    Thread outer metric
    M22x1,5
    Package size
    1 st
    Barcode
    194463
    Gross weight
    0,10 Kg
    Net weight
    0,10 Kg
    Country of origin
    ITA
    Intrastat code
    73071110
    3D-file

    Note: Opening 3D files requires a program that supports the file format
