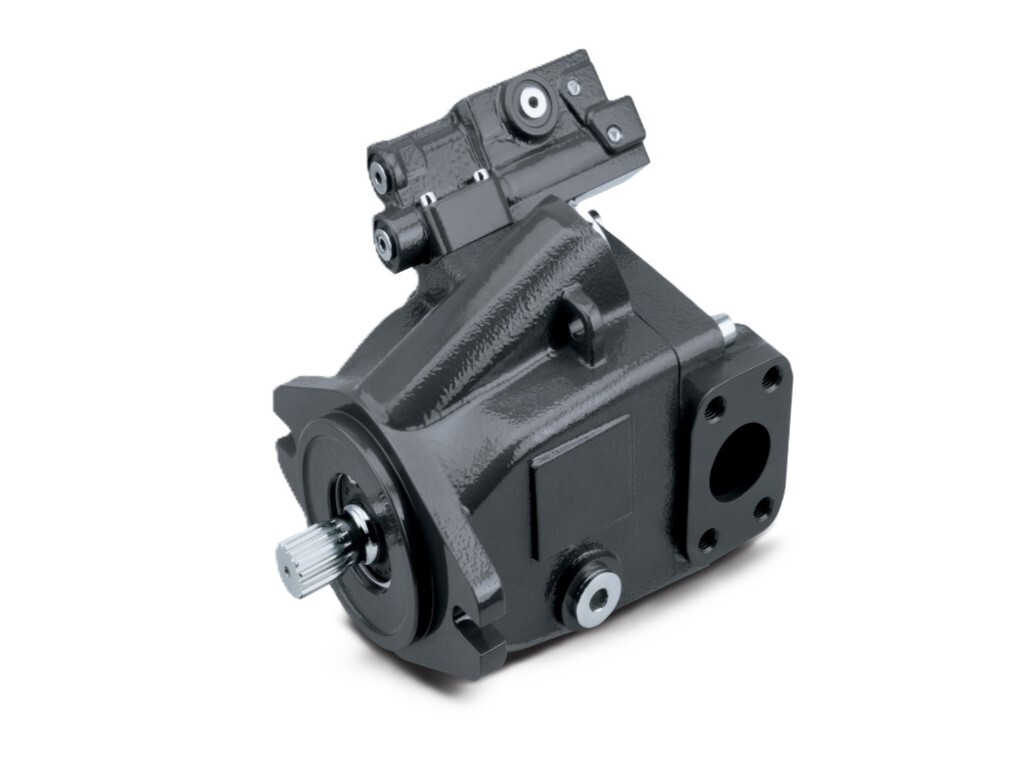

Pump S45 K2-R-045C-LS-26-20-NN-N-3-C2RR-A5AcBc 5 l

Partnumber:
83117986

Package size:
1 st

Min. order quantity is:
1 st
AuxMount/EndCap code
RR

Brand Name
Danfoss

Contamination level max.
22/18/13 - ISO 4406

Continuous rotation max.
2900 rpm

Control
Lastkännande

Control type
LS

Displacement
45 cm3

Displacement limiter
Justerbar

Flange SAE/DIN
3000 PSI

Flange inlet
1.1/2 "

Flange outlet
1 "

Holes circle
146 mm

Model
Frame K2

Mounting flange
SAE-B2

Number of mounting holes
2

Number of outer grooves
13

Oil viscocity recommended
9 - 110 cSt

Port position
Sida

Pressure continous max.
260 bar

Pressure max.
350 bar

Rear flange
Ingen

Recess
101,6 mm

Rotation direction
Höger (CW)

Rotation max. at max. pressure
2600 rpm

Rotational speed max.
3050 rpm

Rotational speed min.
500 rpm

Sensor type
Ingen

Shaft code
C2

Shaft diameter
21,8 mm

Shaft seal material
FKM/FPM (Viton®)

Shaft spline
13T 16/32 SAE-B

Shaft type
Spline

Temperature intermittent max.
+115 °C

Temperature max.
+104 °C

Temperature min.
-40 °C
Package size
1 st

Barcode
452185

Gross weight
Kg

Net weight
17,00 Kg

Country of origin
svk

Intrastat code
84135061
