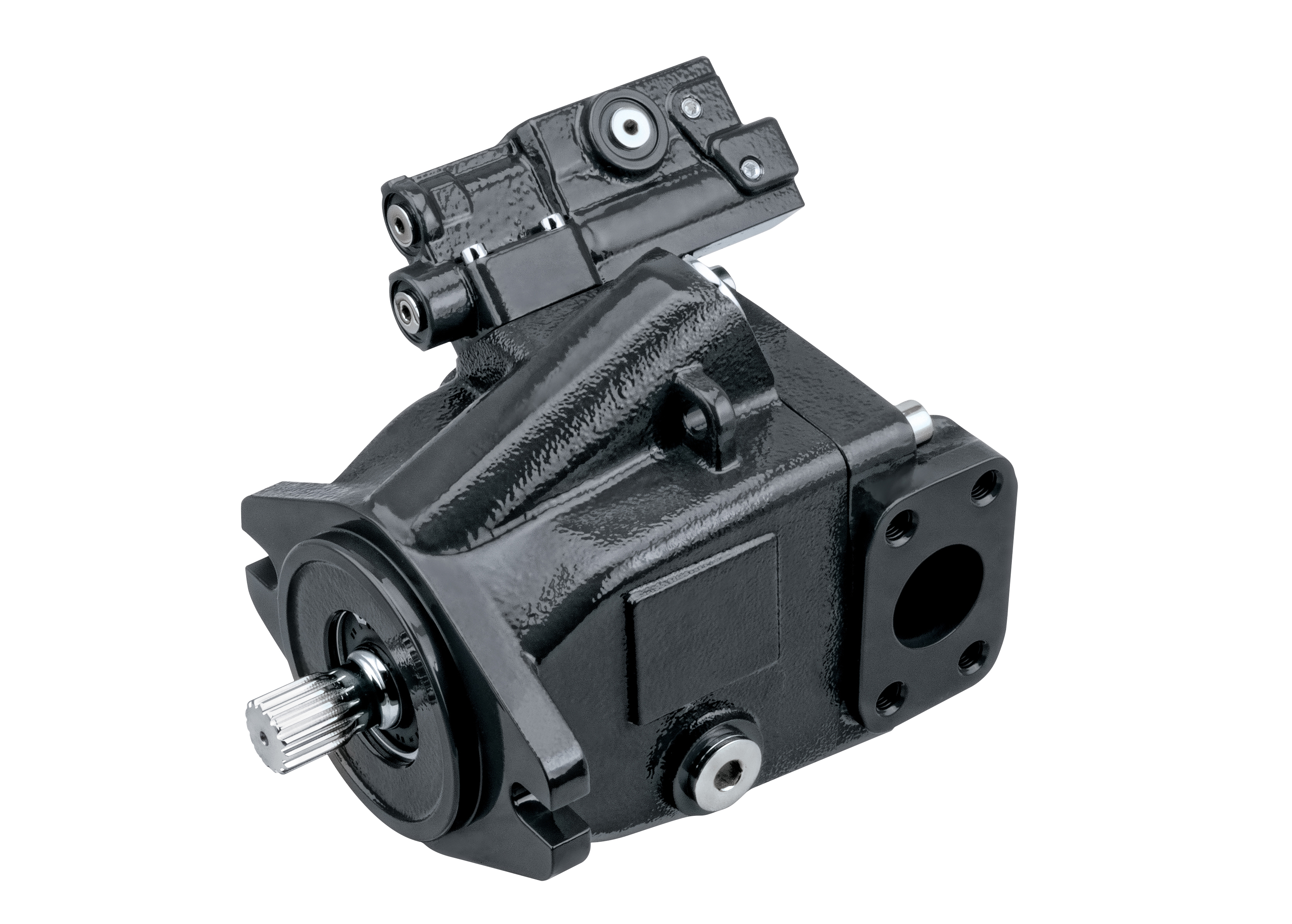

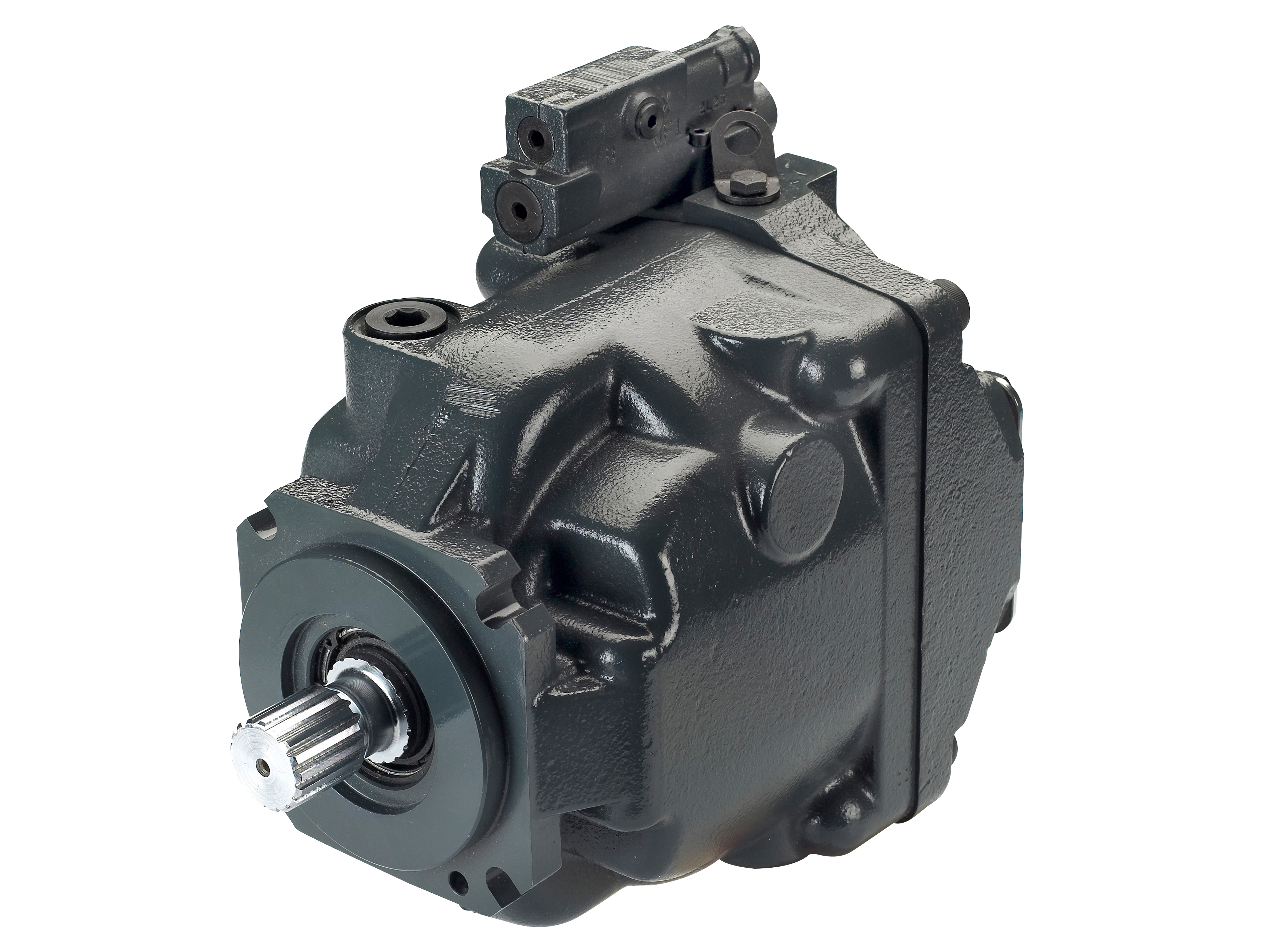

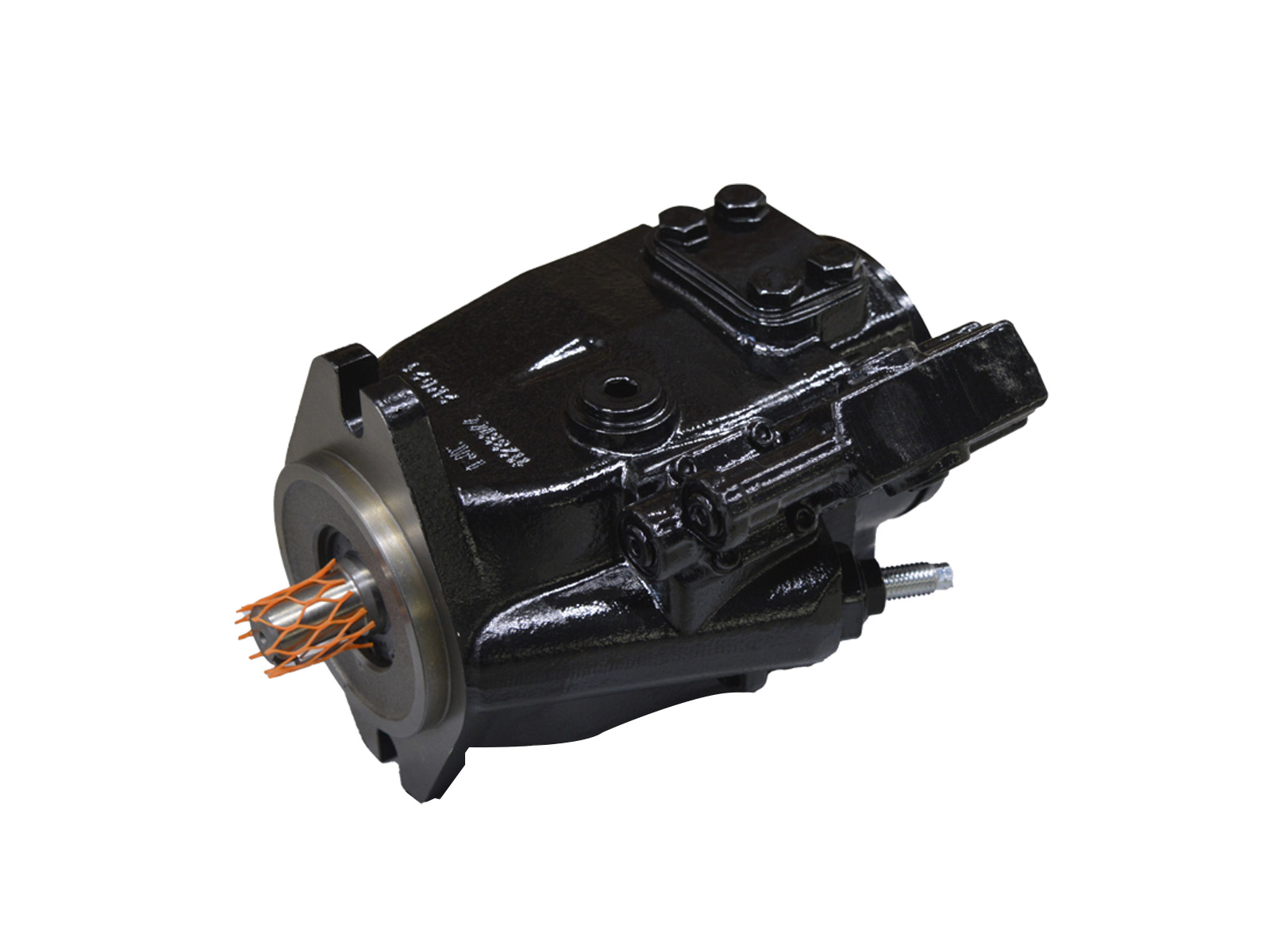

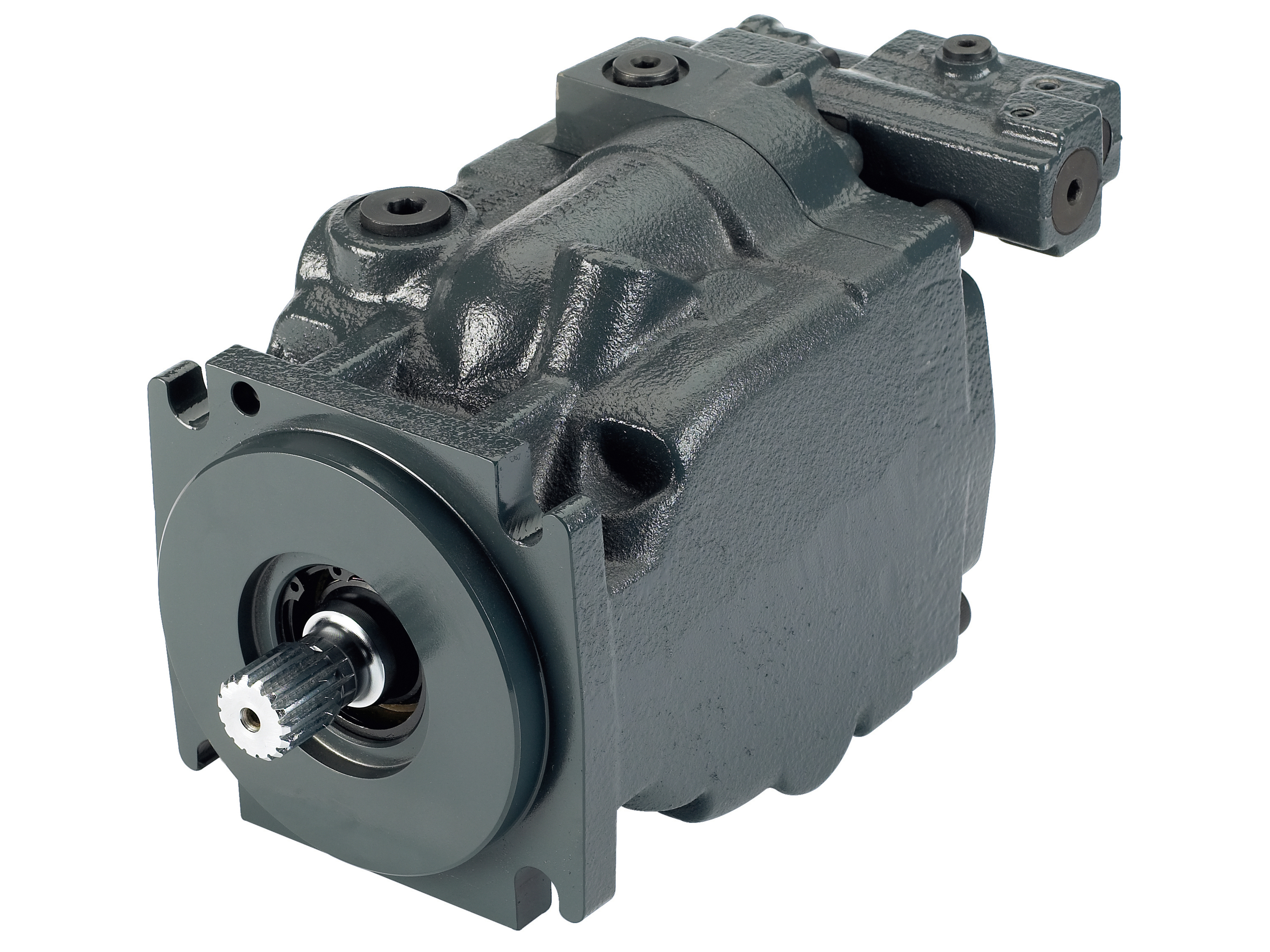

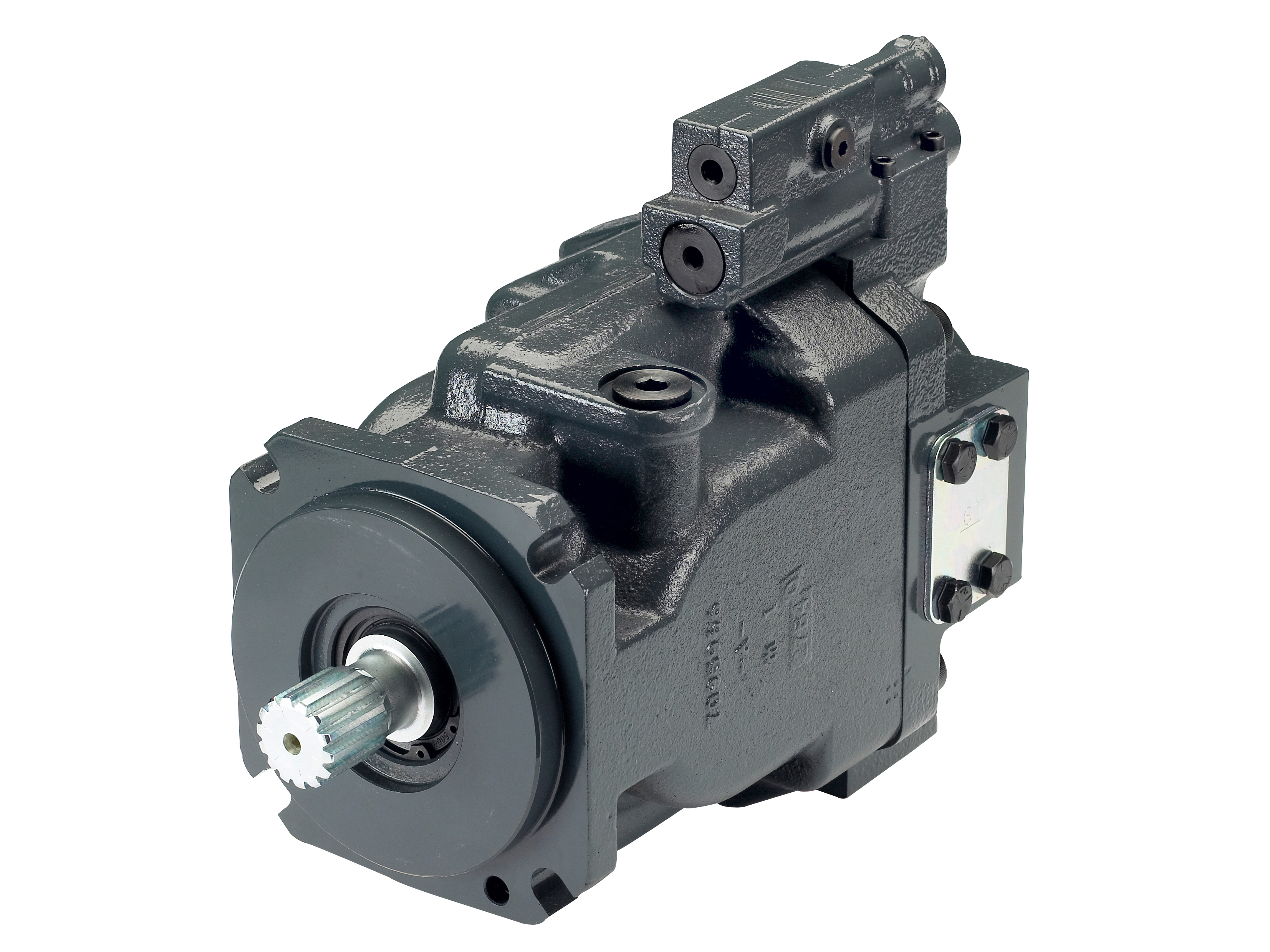

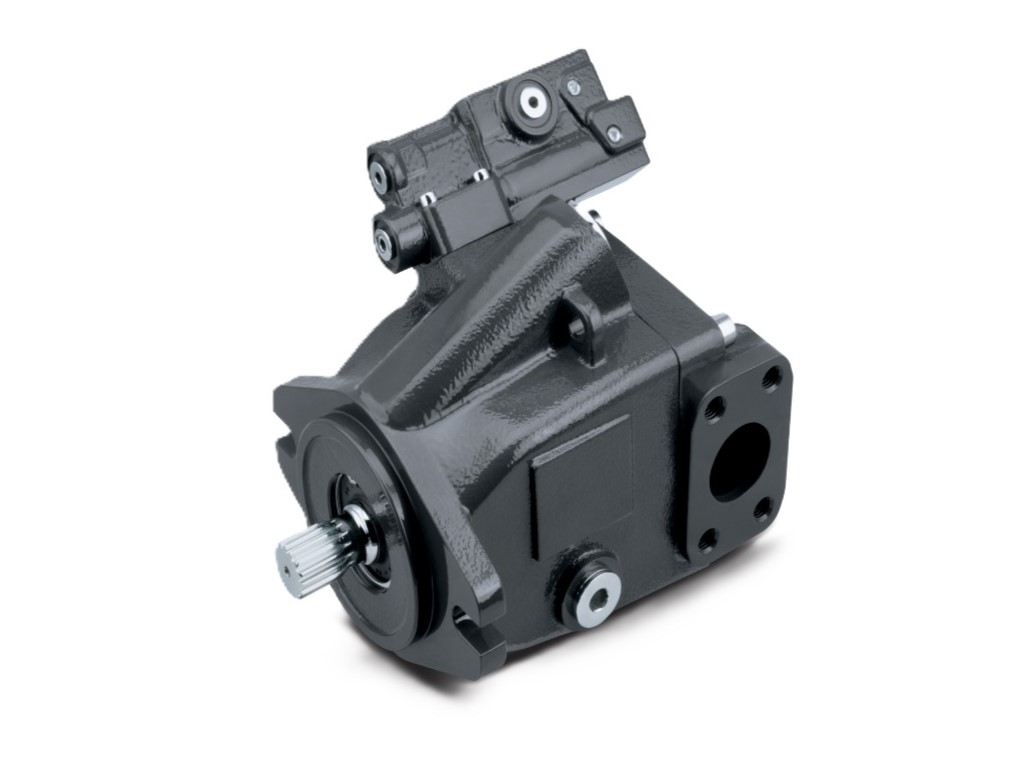

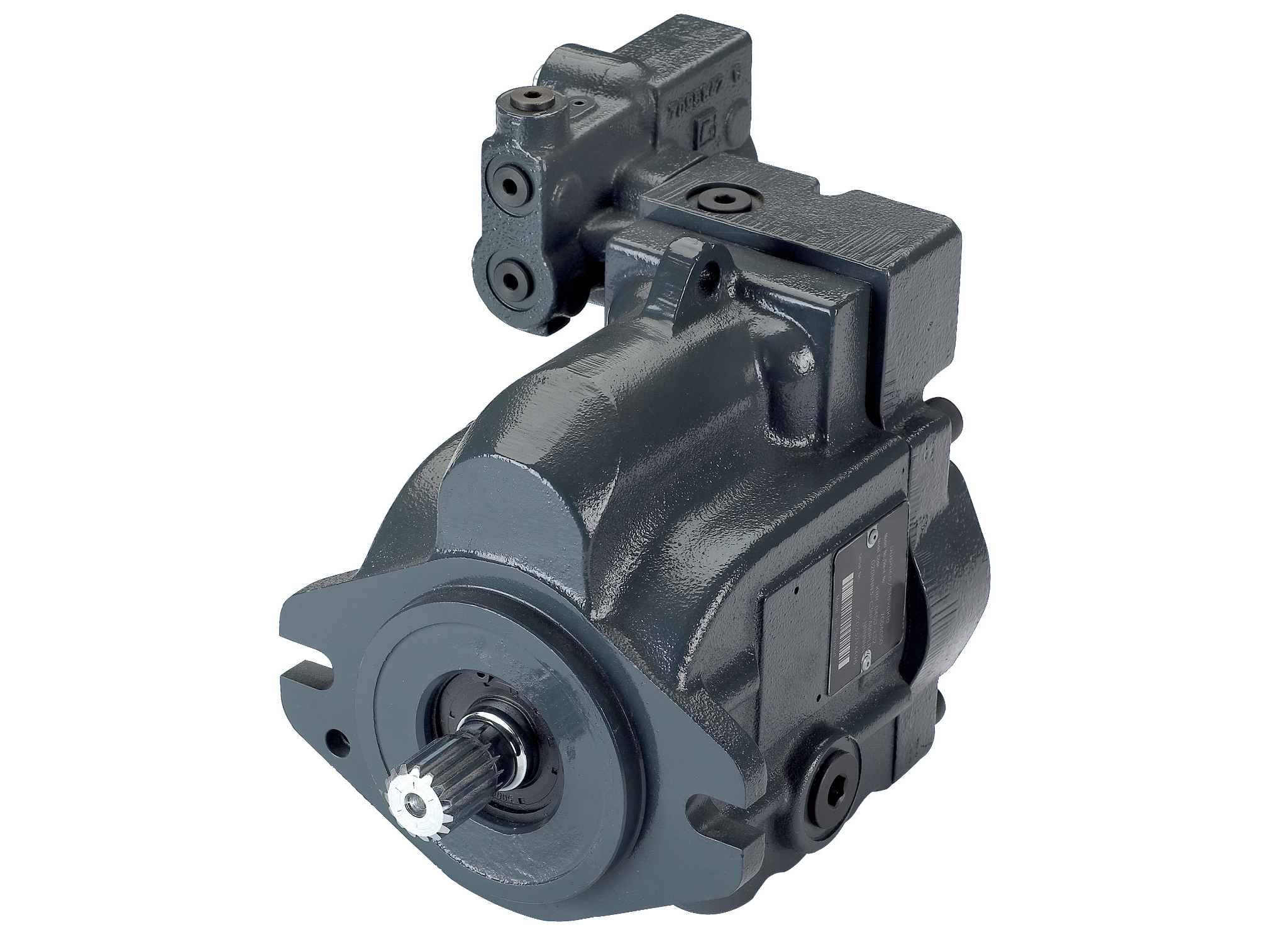

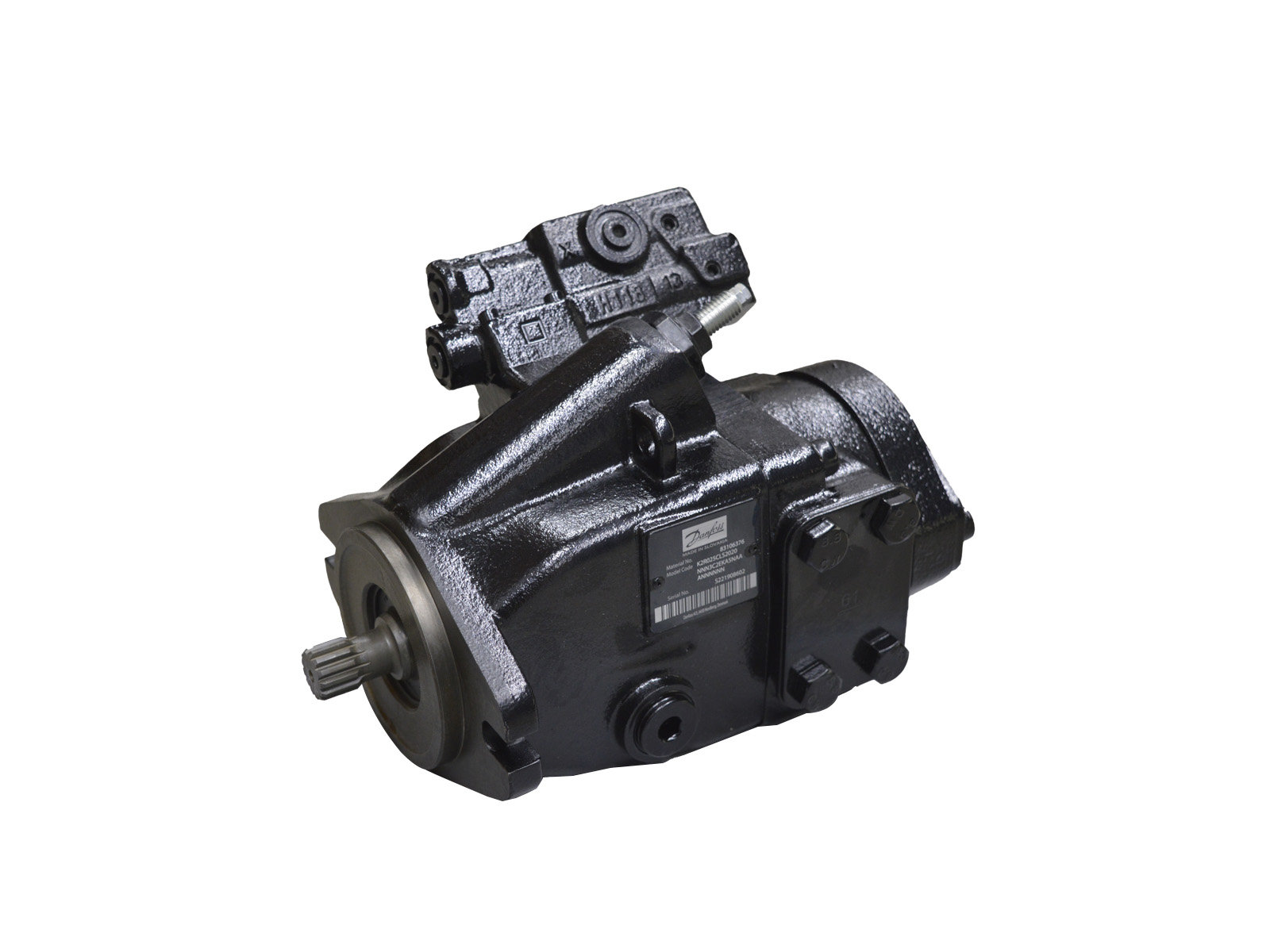

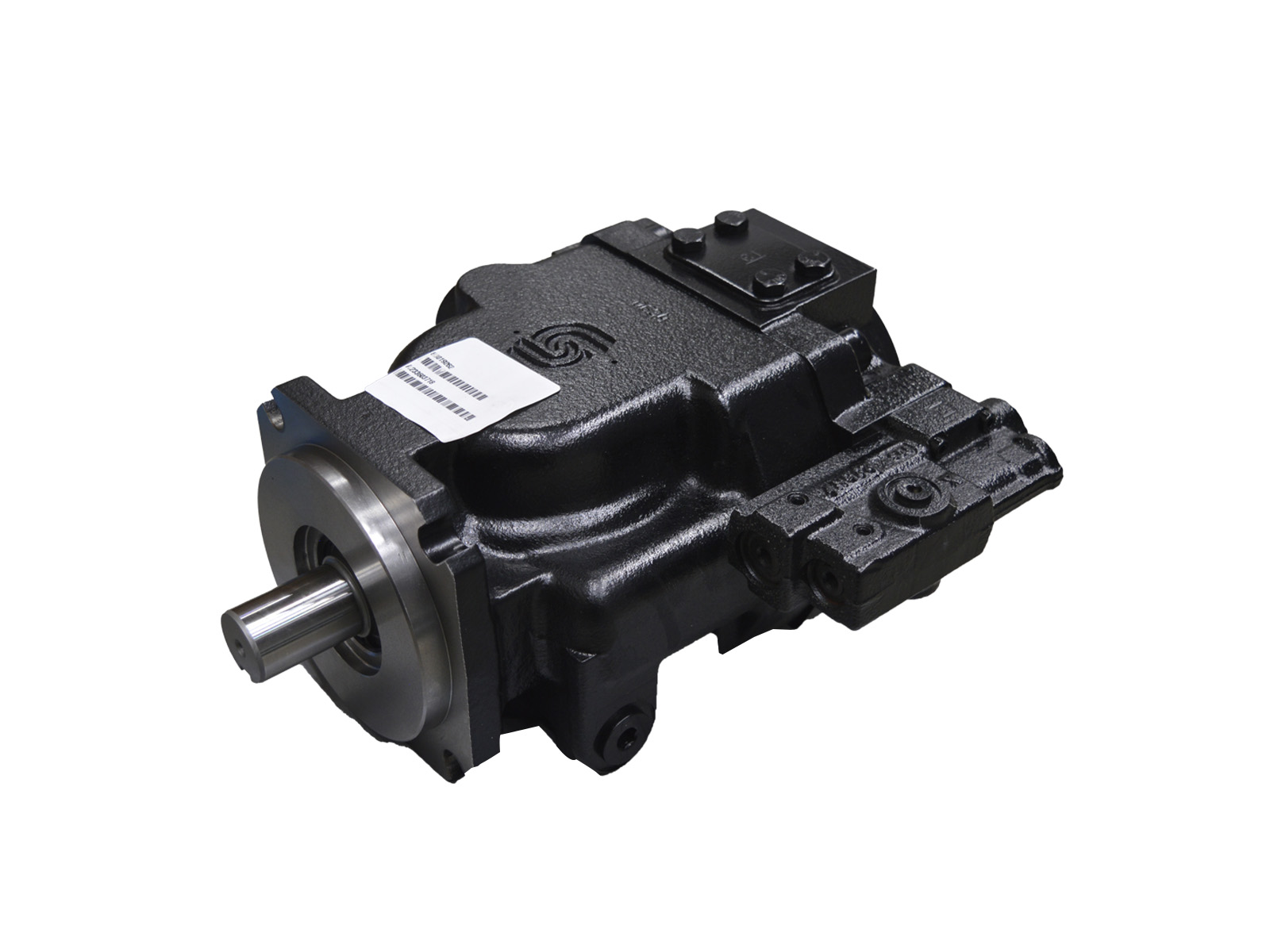

Piston pumps Danfoss S45

Piston pumps Danfoss S45

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Continuous rotation max. Pressure continous max. Rotation direction
11000835 Pump S45 KR-R-045D-LS-10-20-NN-N-3-C3AG-A6N-PLB-NNN 45 cm3 2650 rpm 210 bar Right (CW)
4747093 Pump S45 GR-R-090C-LS-25-20-NN-N-3-S1R2-A1N-CAA-NNN-NNN 90 cm3 310 bar Right (CW)
7000062 Pump S45 ER-R-130B-LS-21-25-NN-N-3-S1NL-A1N-NNN-NNN-NNN 130 cm3 2200 rpm 310 bar Right (CW)
7000064 Pump S45 ER-R-130B-LS-25-20-NN-N-3-S4NL-A1N-AAA-NNN-NNN 130 cm3 2200 rpm 310 bar Right (CW)
7000097 Pump S45 ER-R-100B-LS-25-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN 100 cm3 2450 rpm 310 bar Right (CW)
7000137 Pump S45 ER-R-100B-LS-28-20-NN-N-3-K5RP-A1N-AAA-NNN-NNN 100 cm3 2450 rpm 310 bar Right (CW)
7000224 Pump S45 ER-R-100B-LS-25-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN 100 cm3 2450 rpm 310 bar Right (CW)
7000233 ER-R-100B-LS-25-20-NN-N-3-K5RP-A1N-AAA-NNN-NNN 100 cm3 2450 rpm 310 bar Right (CW)
7000504 Pump S45 ER-L-100B-LS-25-20-NN-N-3-S2NL-A1N-AAA-NNN-NNN 100 cm3 2450 rpm 310 bar Left (CCW)
7000505 Pump S45 ER-L-100B-LS-25-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN 100 cm3 2450 rpm 310 bar Left (CCW)
7000506 Pump S45 ER-L-130B-LS-25-20-NN-N-3-S2NL-A1N-AAA-NNN-NNN 130 cm3 2200 rpm 310 bar Left (CCW)
7000507 Pump S45 ER-L-130B-LS-25-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN 130 cm3 2200 rpm 310 bar Left (CCW)
7000522 Pump S45 ER-L-130B-LS-25-20-NN-N-3-K5CP-A1N-NNN-NNN-NNN 130 cm3 2200 rpm 310 bar Left (CCW)
7000525 Pump S45 ER-L-100B-LS-25-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN 100 cm3 2450 rpm 310 bar Left (CCW)
7000669 Pump S45 ER-L-100B-LS-26-20-NN-N-3-S4NL-A1N-AAA-NNN-NNN 100 cm3 2450 rpm 310 bar Left (CCW)
7002507 Pump S45 FR-R-074B-LS-25-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN 74 cm3 2400 rpm 310 bar Right (CW)
7002511 Pump S45 FR-R-090C-LS-25-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN 90 cm3 2200 rpm 260 bar Right (CW)
7004063 Pump S45 KR-R-038C-LS-20-20-NN-N-3-C3RG-A6N-PLB-NNN-NNN 38 cm3 2650 rpm 260 bar Right (CW)
7004064 Pump S45 Pumpe S45 KR-R-038C-LS-20-20-NN-N-3-C2RG-A6N-PLB-NN 38 cm3 2650 rpm 260 bar Right (CW)
7004511 Pump S45 KR-L-038C-LS-20-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN 38 cm3 2650 rpm 260 bar Left (CCW)
7004547 Pump S45 KR-L-045D-LS-20-17-NN-N-3-C2BG-A6N-PLB-NNN-NNN 45 cm3 2650 rpm 210 bar Left (CCW)
7005022 Pump S45 LR-R-030D-LS-20-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN 30 cm3 3200 rpm 210 bar Right (CW)
7005023 Pump S45 LR-R-025C-LS-20-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN 25 cm3 3200 rpm 260 bar Right (CW)
7005030 Pump S45 LR-R-030D-LS-20-20-NN-N-3-C3RG-A6N-PLB-NNN-NNN 30 cm3 3200 rpm 210 bar Right (CW)
7005031 Pump S45 LR-R-025C-LS-20-20-NN-N-3-C2RG-A6N-PLB-NNN-NNN 25 cm3 3200 rpm 260 bar Right (CW)
7005032 Pump S45 LR-R-030D-LS-20-20-NN-N-3-C2RG-A6N-PLB-NNN-NNN 30 cm3 3200 rpm 210 bar Right (CW)
7005057 Pump S45 LR-R-025C-LS-26-20-NN-N-3-C3NG-A6N-KNB-NNN-NNN 25 cm3 3200 rpm 260 bar Right (CW)
7005233S Pump S45 LR-R-025C-LS-20-20-NN-N-3-K2NF-A6N-AAA-NNN-NNN 25 cm3 3200 rpm 260 bar Right (CW)
7005255 Pump S45 LR-R-025C-RP-21-20-NN-N-3-C2RG-A6N-AAA-NNN-NNN 25 cm3 3200 rpm 260 bar Right (CW)
7005503 Pump S45 LR-L-030D-LS-20-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN 30 cm3 3200 rpm 210 bar Left (CCW)
700978 Pump S45 LR-R-025C-LS-25-20-NN-N-3-K1NG-A6N-KNB-NNN 25 cm3 3200 rpm 260 bar Right (CW)
80006224 Pumpe S45 ER-R-130B-LS-25-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN 130 cm3 2200 rpm 310 bar Right (CW)
83001224 Pump S45 ER-R-147C-LS-25-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN 147 cm3 2100 rpm 260 bar Right (CW)
83001465 Pumpe S45 ER-R-130B-LS-25-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN 130 cm3 2200 rpm 310 bar Right (CW)
83002891 Pumpe ER-L-147C-LS-24-22-NN-N-3-S1NL-A1N-NNN-NNN-NNN 147 cm3 2100 rpm 260 bar Left (CCW)
83002970 Pump S45 FR-L-074B-BS-29-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN 74 cm3 2400 rpm 310 bar Left (CCW)
83002971 Pump S45 FR-L-090C-RP-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN 90 cm3 2200 rpm 260 bar Left (CCW)
83004349 Pump S45 ER-R-130B-LS-25-25-NN-N-3-S1BP-A1N-AAA-NNN-NNN 130 cm3 2200 rpm 310 bar Right (CW)
83005029 Pump FR-L-074B-LS-25-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN 74 cm3 2400 rpm 310 bar Left (CCW)
83010975 Pump S45 KR-R-038C-LS-23-20-NN-N-3-C2NK-A6N-KNB-NNN-NNN 38 cm3 2650 rpm 260 bar Right (CW)
83013229 Pump S45 ER-L-130B-LS-25-20-NN-N-3-K5CP-A1N-NNN-NNN-NNN 130 cm3 2200 rpm 310 bar Left (CCW)
83017456 Pump FR-L-074B-BS-31-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN 74 cm3 2400 rpm 310 bar Right (CW)
83018446 Pump S45 KR-R-038C-LS-21-20-NN-N-3-C2RG-A6N-AAA-NNN-NNN 38 cm3 2650 rpm 260 bar Right (CW)
83018895 Pump S45 FR-R-074B-LS-20-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN 74 cm3 2400 rpm 310 bar Right (CW)
83019262 FR-R-074B-LS-25-20-NN-N-3-K4R2-A1N-AAA-NNN-NNN 74 cm3 2400 rpm 310 bar Right (CW)
83021670 Pump S45 JR-L-S60B-LS-25-20-NN-N-3-S1RE-A2N-NNN-JJJ-NNN 60 cm3 2600 rpm 310 bar Left (CCW)
83022066 Pump S45 JR-R-S60B-LS-22-31-NN-N-3-S1N9-A2N-NNN-JJJ-NNN 60 cm3 2600 rpm 310 bar Right (CW)
83023413 Pump S45 ER-L-130B-LS-25-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN 130 cm3 2200 rpm 310 bar Left (CCW)
83024679 Pump S45 JR-L-S75C-LS-20-20-NN-N-3-S1RE-A2N-NNN-JJJ-NNN 75 cm3 2400 rpm 260 bar Left (CCW)
83024722 Pump S45 JR-R-S75C-LS-25-20-NN-N-3-C3RE-A8N-NNN-JJJ-NNN 75 cm3 2400 rpm 260 bar Right (CW)
83024725 Pump S45 JR-L-S75C-LS-25-20-NN-N-3-C3RE-A8N-NNN-JJJ-NNN 75 cm3 2400 rpm 260 bar Left (CCW)
83025068 ER-R-147C-LS-25-20-NN-N-3-K5RP-A1N-AAA-NNN-NNN 147 cm3 2100 rpm 260 bar Right (CW)
83025681 Pumpe S45 JR-L-S60B-LS-21-20-NN-N-3-C3NE-A8N-NNN-JJJ-NNN 60 cm3 2600 rpm 310 bar Left (CCW)
83025685 Pump S45 JR-L-S60B-LS-25-20-NN-N-3-C2RE-A8N-NNN-JJJ-NNN 60 cm3 2600 rpm 310 bar Left (CCW)
83025704 Pump S45 JR-R-S45B-LS-25-20-NN-N-3-C3RE-A8N-NNN-JJJ-NNN 45 cm3 2800 rpm 310 bar Right (CW)
83025844 Pump S45 JR-L-S75C-LS-25-20-NN-N-3-S1NE-A2N-NNN-JJJ-NNN 75 cm3 2400 rpm 260 bar Left (CCW)
83025859 Pump S45 JR-R-S51B-LS-25-20-NN-N-3-C2RE-A8N-NNN-JJJ-NNN 51 cm3 2700 rpm 310 bar Right (CW)
83025875 Pump S45 JR-R-S60B-LS-18-20-NN-N-3-S1N9-A2N-NNN-JJJ-NNN 60 cm3 2600 rpm 310 bar Right (CW)
83025895 Pump S45 JR-R-S60B-LS-25-20-NN-N-3-S1RE-A2N-NNN-JJJ-NNN 60 cm3 2600 rpm 310 bar Right (CW)
83025914 Pump S45 JR-R-S65C-LS-25-20-NN-N-3-C3RE-A8N-NNN-JJJ-NNN 65 cm3 2500 rpm 260 bar Right (CW)
83025919 Pump S45 JR-R-S75C-LS-20-20-NN-N-3-C2AE-A8N-NNN-JJJ-NNN 75 cm3 2400 rpm 260 bar Right (CW)
83025924 Pump S45 JR-R-S75C-LS-20-20-NN-N-3-S1RE-A2N-NNN-JJJ-NNN 75 cm3 2400 rpm 260 bar Right (CW)
83025961 Pump S45 JR-L-S60B-BS-29-20-NN-N-3-S1RE-A2N-NNN-JJJ-NNN 60 cm3 2600 rpm 310 bar Left (CCW)
83025987 Pump S45 JR-L-S45B-BS-30-20-NN-N-3-C2NE-A8N-NNN-JJJ-NNN 45 cm3 2800 rpm 310 bar Left (CCW)
83025989 Pump S45 JR-L-S51B-LS-25-20-NN-N-3-C2N9-A8N-NNN-JJJ-NNN 51 cm3 2700 rpm 310 bar Left (CCW)
83025990 Pump S45 JR-L-S51B-LS-25-20-NN-N-3-C2RE-A8N-NNN-JJJ-NNN 51 cm3 2700 rpm 310 bar Left (CCW)
83025991 Pump S45 JR-L-S51B-LS-25-20-NN-N-3-C3RE-A8N-NNN-JJJ-NNN 51 cm3 2700 rpm 310 bar Left (CCW)
83025992 Pump S45 JR-L-S60B-LS-21-18-NN-N-3-C2NH-A8N-NNN-JJJ-NNN 60 cm3 2600 rpm 310 bar Left (CCW)
83025995 Pump S45 JR-L-S65C-LS-25-20-NN-N-3-S1N9-A9N-NNN-JJJ-NNN 65 cm3 2500 rpm 260 bar Left (CCW)
83026000 Pump S45 JR-R-S45B-LS-25-20-NN-N-3-C3RF-A8N-FFF-JJJ-NNN 45 cm3 2800 rpm 310 bar Right (CW)
83026005 Pump S45 JR-R-S60B-RP-15-20-NN-N-3-S1NE-A9N-NNN-JJJ-NNN 60 cm3 2600 rpm 310 bar Right (CW)
83026290 Pump S45 JR-L-S60B-LS-25-20-NN-N-3-C2NE-A8N-NNN-JJJ-NNN 60 cm3 2600 rpm 310 bar Left (CCW)
83026314 Pump S45 JR-R-S60B-LS-25-20-NN-N-3-K4RE-A2N-NNN-JJJ-NNN 60 cm3 2600 rpm 310 bar Right (CW)
83026398 Pump S45 JR-R-S60B-LS-25-30-NN-N-3-C3NE-A8N-NNN-JJJ-NNN 60 cm3 2600 rpm 310 bar Right (CW)
83026573 Pump S45 JR-R-S75C-PC-15-NN-NN-N-3-S1RE-A9N-NNN-JJJ-NNN 75 cm3 2400 rpm 260 bar Right (CW)
83027575 Pump S45-JR-R-S60B-LS-25-20-NN-N-3-K4RF-A8N-FFF-JJJ-NNN 60 cm3 2600 rpm 310 bar Right (CW)
83028380 Pumpe S45 ER-L-130B-LS-25-20-NN-N-3-S4RP-A1N-AAA-NNN-NNN 130 cm3 2200 rpm 310 bar Left (CCW)
83028541 Pump S45JR-R-S45B-BS-31-20-NN-N-3-C2RE-A8N-NNN-JJJ-NNN 45 cm3 2800 rpm 310 bar Right (CW)
83028629 Pump S45 LR-R-030D-LS-20-20-NN-N-3-K2BG-A6N-PLB-NNN-NNN 30 cm3 3200 rpm 210 bar Right (CW)
83028810 Pump S45 FR-L-090C-LS-25-20-NN-N-3-S2V2-A1N-NNN-NNN-NNN 90 cm3 2200 rpm 260 bar Left (CCW)
83033009 Pump S45 FR-R-074B-LS-25-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN 74 cm3 2400 rpm 310 bar Right (CW)
83033689 Pump S45 JR-R-S60B-LS-22-20-NN-N-3-C2N9-A8N-NNN-JJJ-NNN 60 cm3 2600 rpm 310 bar Right (CW)
83035970 Pump S45 JR-R-S60B-LS-28-20-NN-N-3-C2NE-A8N-NNN-JJJ-NNN 60 cm3 2600 rpm 310 bar Right (CW)
83039553 Pump JR-R-S45B-BS-30-20-NN-N-3-C2RF-A8N-FFF-JJJ-NNN 45 cm3 2800 rpm 310 bar Right (CW)
83040011 Pump S45 ER-L-130B-LS-20-28-NN-N-3-K5RP-A1N-NNN-NNN-NNN 130 cm3 2200 rpm 310 bar Left (CCW)
83040012 Pump S45 JR-R-S65C-LS-21-20-NN-N-3-K4RF-A8N-FFF-JJJ-NNN 65 cm3 2500 rpm 260 bar Right (CW)
83041932 Pump S45 JR-R-S60B-LS-20-20-N-N-3-C2RF-A9N-FFF-JJJ-NNN 60 cm3 2600 rpm 310 bar Right (CW)
83042025 Pump S45 ER-R-147C-LS-21-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN 147 cm3 2100 rpm 260 bar Right (CW)
83042026 Pump S45 ER-R-130B-LS-21-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN 130 cm3 2200 rpm 310 bar Right (CW)
83042027 Pump S45 ER-R-100B-LS-21-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN 100 cm3 2450 rpm 310 bar Right (CW)
83042314 Pump S45 JR-R-S45B-LS-20-20-NN-N-3-C2RF-A9N-FFF-JJJ-NNN 45 cm3 2800 rpm 310 bar Right (CW)
83062971 Pump S45 K KR-R-038C-EL-23-25-NN-E-3-C2NP-A6N-KNB-NNN- 38 cm3 2650 rpm 260 bar Right (CW)
83067514 Pump S45 ER-L-100B-LS-20-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN 100 cm3 2450 rpm 310 bar Left (CCW)
83069363 S45 Pump K2-L-025C-LS-21-20-NN-N-3-C2RR-A6N-AAA-NNN-NNN 25 cm3 3450 rpm 260 bar Left (CCW)
83074841 Pump S45 K2-R-030C-FB-16-15-NN-N-3-C2BG-A6N-AAA-NNN-NNN 30 cm3 3200 rpm 260 bar Right (CW)
83096543 JR-R-S45B-LS-26-20-NN-N-3-C3RF-A8N-FFF-JJJ-NNN 45 cm3 2800 rpm 310 bar Right (CW)
83112558 K2-R-038C-LS-26-20-NN-N-3-K1RR-A5N-AAA-NNN-NNN 38 cm3 2900 rpm 260 bar Right (CW)
83112559 K2-R-045C-LS-26-20-NN-N-3-K1RR-A5N-AAA-NNN-NNN 45 cm3 2900 rpm 260 bar Right (CW)
83114195 K2-R-038C-LS-21-20-NN-N-3-C2RG-A6N-AAA-NNN-NNN 45 cm3 2900 rpm 260 bar Right (CW)
83117980 K2-R-025C-LS-26-20-NN-N-3-C2RR-A5N-AAA-NNN-NNN 25 cm3 3450 rpm 260 bar Right (CW)
83117985 K2-R-038C-LS-26-20-NN-N-3-C2RR-A5N-AAA-NNN-NNN 38 cm3 2900 rpm 260 bar Right (CW)
83117986 K2-R-045C-LS-26-20-NN-N-3-C2RR-A5N-AAA-NNN-NNN 45 cm3 2900 rpm 260 bar Right (CW)
83117995 JR-R-S60B-LS-26-20-NN-N-3-C3RF-A8N-FFF-JJJ-NNN 60 cm3 2600 rpm 310 bar Right (CW)
83118153 S45 Pump JR-R-S45B-LS-26-20-NN-N-3-S1RF-A2N-FFF-JJJ-NNN 45 cm3 2800 rpm 310 bar Right (CW)
83118232 JR-R-S60B-LS-26-20-NN-N-3-S1RF-A2N-FFF-JJJ-NNN 60 cm3 2600 rpm 310 bar Right (CW)
Brand Name
Danfoss
Contamination level max.
22/18/13 - ISO 4406
Oil viscocity recommended
9 - 110
Rotational speed min.
500
Shaft seal material
FKM/FPM (Viton®)
Temperature min.
-40
