Pump S45 FR-L-074B-BS-29-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN
Danfoss S45 variabel piston pump for open circuit.

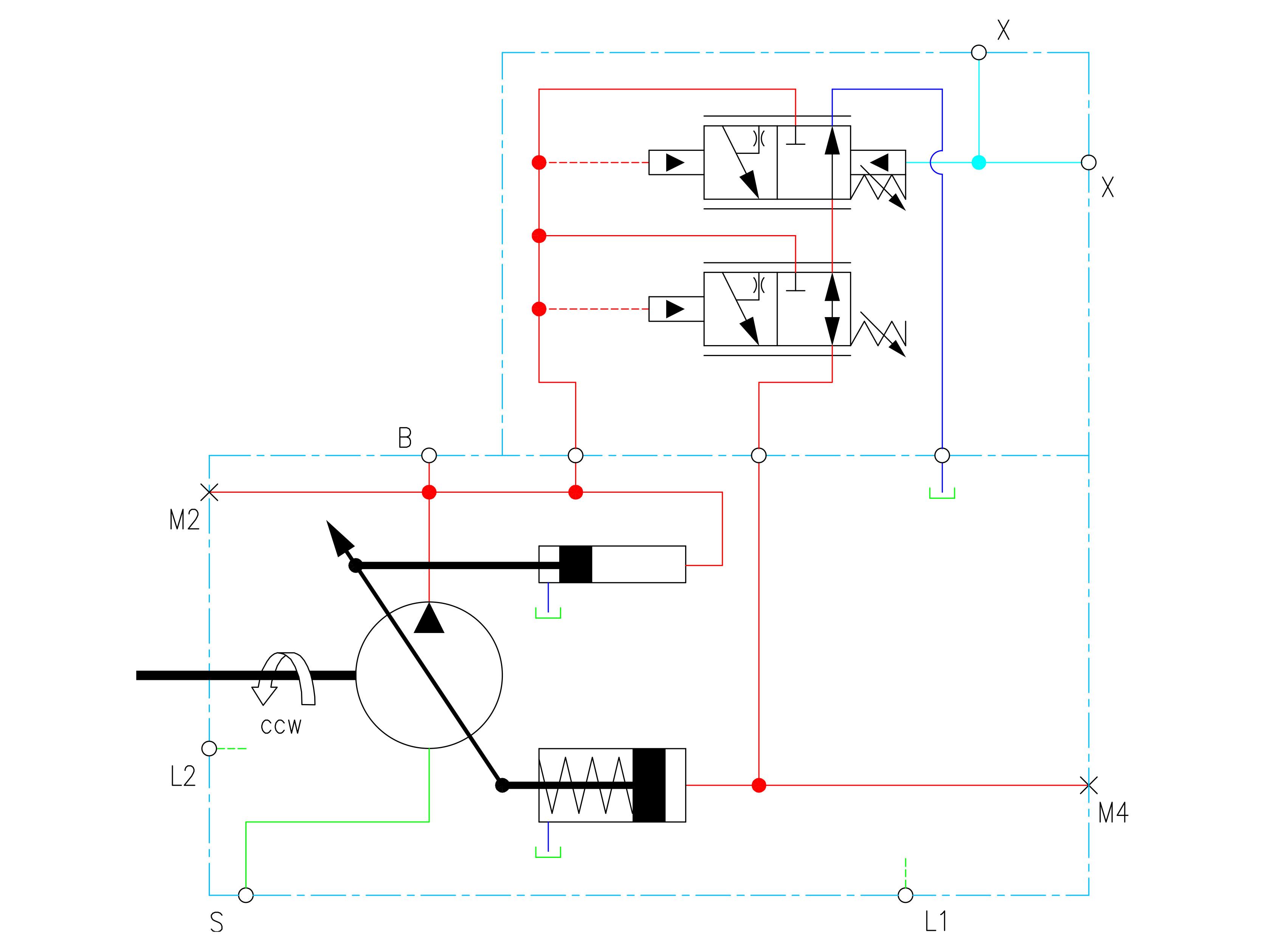

Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
Osanumero:
83002970
Pakkauskoko:
1 pcs
Pienin tilausmäärä on:
1 pcs
Antal monteringshål
4
Axel diameter
31,2 mm
Axel kod
S1
Axel spline
14T 12/24 SAE-C
Axeltyp
Spline
Axeltätning materiale
FKM/FPM (Viton®)
Bultcirkel
161.9 mm
Deplacement
74 cm3
Ekstra montering/endedæksel typ
C2
Fläns SAE/DIN
3000 PSI
Fläns bak
SAE-C 14T
Fläns ingång
2 "
Fläns utgång
1 "
Föroreningsgrad max.
22/18/13 - ISO 4406
Förträngningsbegränsar
Adjustable
Kont. rotation max.
2400 rpm
Kontrolltyp
BS
Modell
Frame F
Modell kod
FR-L-074B-BS-29-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN
Monteringsfläns
SAE-C4
Märke namn
Danfoss
Oljeviskositet rekommanderad
9 - 110 cSt
Portplacering
Side
Reces
127,0 mm
Rotation max. vid max. tryck
2400 rpm
Rotationshastighet max.
2800 rpm
Rotationshastighet min.
500 rpm
Rotationsriktning
Left (CCW)
Sensor typ
None
Temperatur intermittent max.
+104 °C
Temperatur max.
+82 °C
Temperatur min.
-40 °C
Tryck kontinuerlig max.
310 bar
Tryck max.
400 bar
Utv. Splinesantal
14
Package size
1 pcs
Barcode
334077
Gross weight
39,00 Kg
Net weight
39,00 Kg
Country of origin
Intrastat code
84135061
Danfoss S45 variabel piston pump for open circuit.
Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
