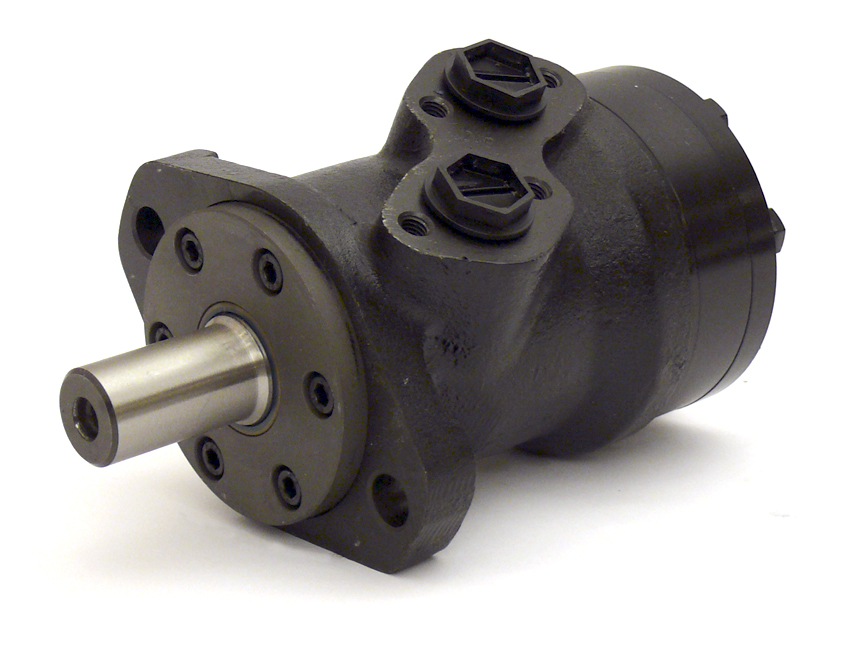

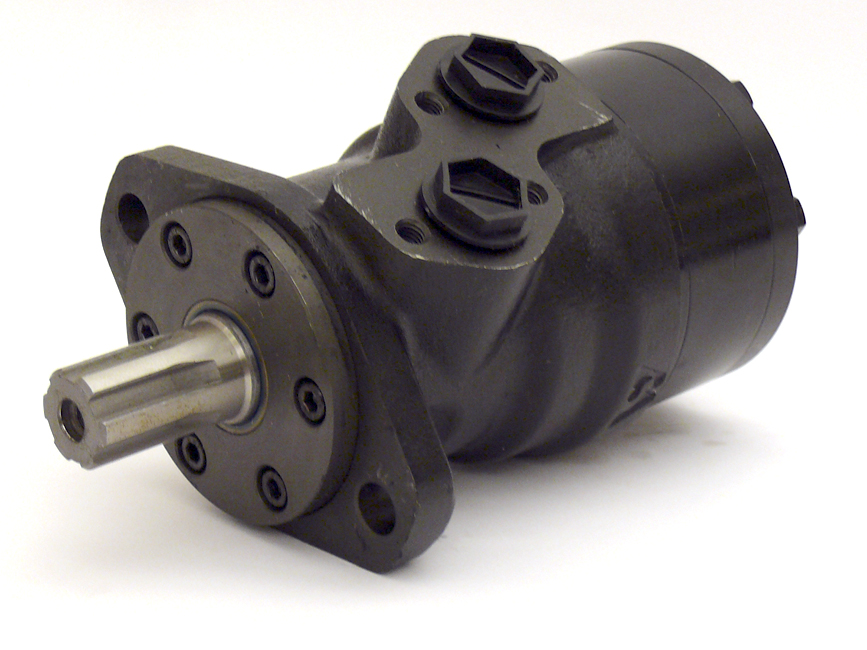

Orbital motors M+S MR series

Orbital motors M+S MR series

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Shaft diameter Shaft type Continuous power max.
MR100CDP MOTOR*****M+S 100CC CYL25 100 cm3 25 mm Cylindrical 13 kW
MR100CODP MOTOR*****M+S 100CC CYL25.4 100 cm3 25,4 mm Cylindrical 13 kW
MR100SHDP MOTOR*****M+S 100CC SPLINES 100 cm3 25,4 mm Spline 13 kW
MR125CBD Motor M+S 125cc cyl32 SAE-A 125 cm3 25 mm Cylindrical 12.5 kW
MR125CDP Motor M+S 125cc cyl25 SAE-A 125 cm3 25 mm Cylindrical 12.5 kW
MR125SHDP MOTOR*****M+S 125CC SPLINES 125 cm3 25,4 mm Spline 12.5 kW
MR160CBP Motor M+S 160cc cyl32 SAE-A 160 cm3 25 mm Cylindrical 11.5 kW
MR160CDP MOTOR*****M+S 160CC CYL25 160 cm3 25 mm Cylindrical 11.5 kW
MR160CODP MOTOR*****M+S 160CC CYL25.4 160 cm3 25,4 mm Cylindrical 11.5 kW
MR160SHDP MOTOR*M+S 160cc Splines SAE-A, 160 cm3 25,4 mm Spline 11.5 kW
MR200CBP Motor M+S 200cc cyl32 SAE-A
MR200CDP MOTOR*****M+S 200CC CYL25 200 cm3 25 mm Cylindrical 9 kW
MR200SHDP MOTOR*****M+S 200CC SPLINES 200 cm3 25,4 mm Spline 9 kW
MR250CDP Motor M+S 250cc cyl25 SAE-A 250 cm3 25 mm Cylindrical 8 kW
MR250SHDP MOTOR*****M+S 250CC SPLINES 250 cm3 25,4 mm Spline 8 kW
MR315CBDP Motor*****M+S 315cc cyl32 315 cm3 25 mm Cylindrical 5 kW
MR315CDP Motor****M+S 315cc cyl25 315 cm3 25 mm Cylindrical 5 kW
MR315CODP Motor M+S 315cc cyl25.4 SAE-A
MR315SHDP Motor ***** M+S 315cc Splines 315 cm3 25,4 mm Spline 5 kW
MR400CBDP Motor*****M+S 400cc Cyl32 400 cm3 32 mm Cylindrical 4.8 kW
MR400CDP MR400CDP 400 cm3 25 mm Cylindrical 4.8 kW
MR400SHDP Motor*****M+S 400cc Splines 400 cm3 25,4 mm Spline 4.8 kW
MR50CDP Motor*****M+S 50cc cyl25 50 cm3 25 mm Cylindrical 7 kW
MR80CDP Motor*****M+S 80cc cyl25 80 cm3 25 mm Cylindrical 12.5 kW
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Filtration degree
25
Oil viscocity recommended
20 - 75
Temperature max.
+82
Temperature min.
-40
