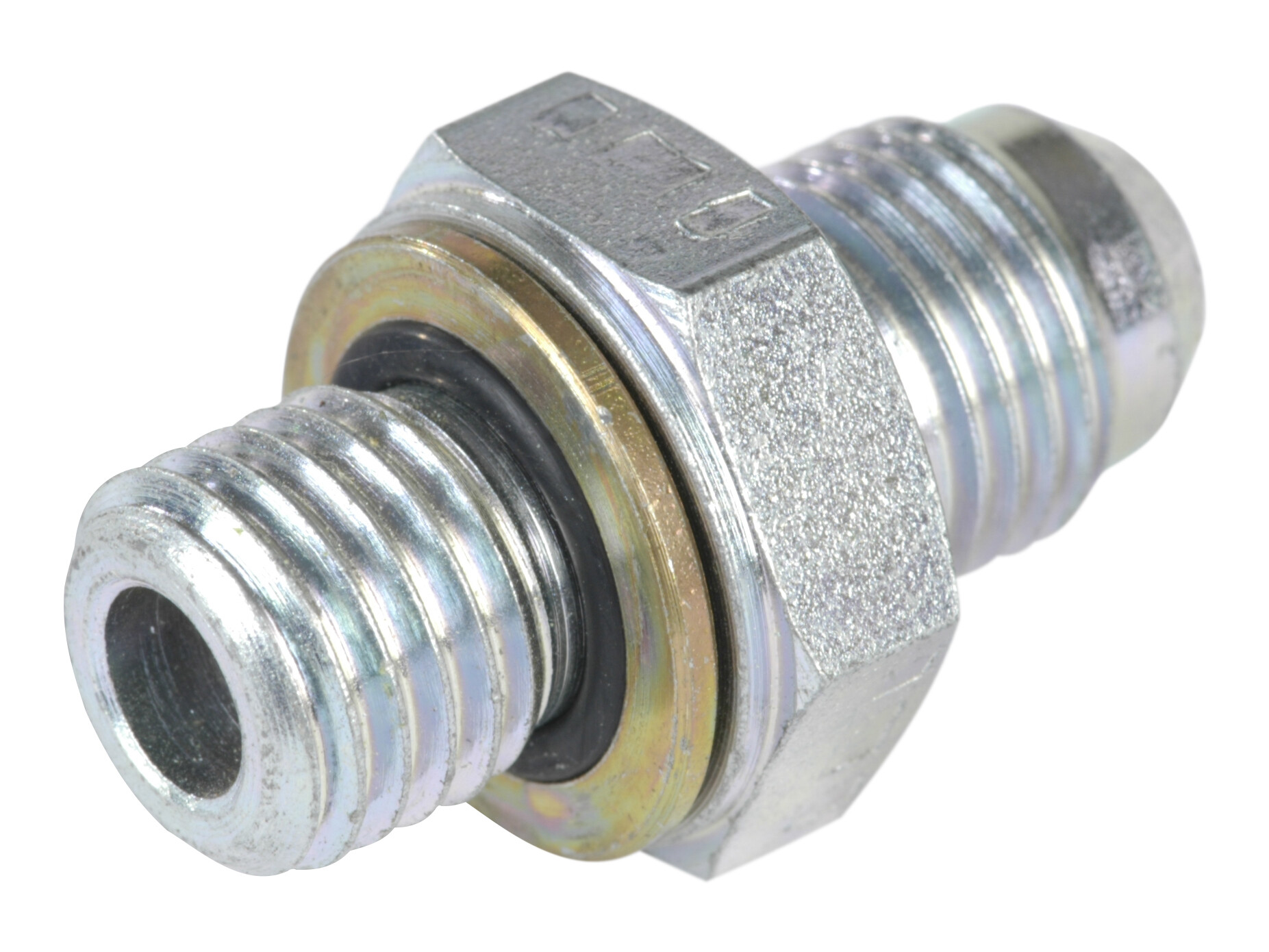

S240-08-12M adaptor MM
S240-08-12M adaptor MM
Partnumber:
JGEM-05-12
Package size:
1 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
8 mm
Dimension A
33 mm
Dimension B
14 mm
Dimension CH
19 mm
Dimension D
12 mm
Dimension F metric
M12x1,5
Dimension J
1/2-20 JIC
Dimension T
8 mm
Material
Steel
Pressure max.
416 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
1/2-20 JIC
Thread outer metric
M12x1,5
Package size
1 st
Barcode
129867
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
ITA
Intrastat code
73071110
S240-08-12M adaptor MM
