Cutting ring - ø06L

Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%

Partnumber:

DPR06LS

Package size:

100 st

Min. order quantity is:

1 st

Brand Name

Stauff

Diameter pipe

6 mm

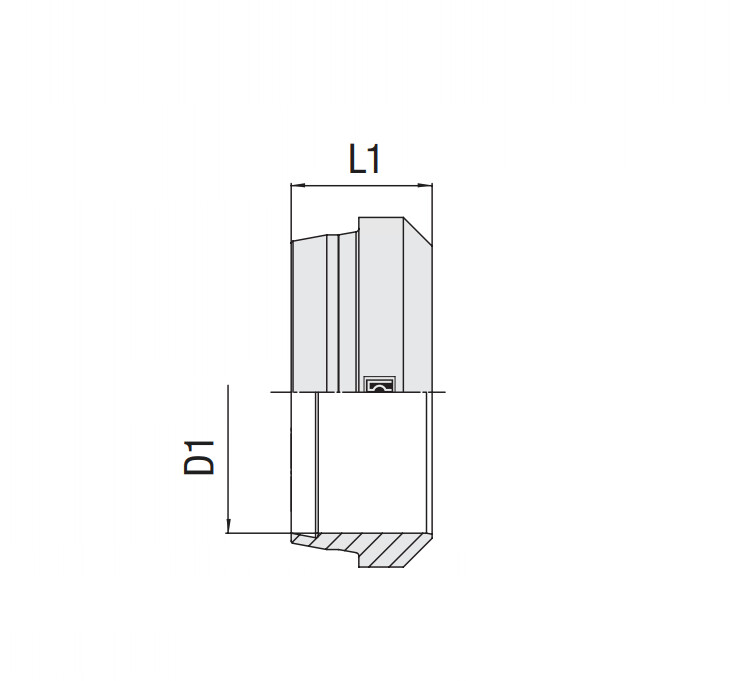

Dimension D1

6 mm

Dimension L1

9.5 mm

Material

Steel

Model code

FI-DS-06L/S-W3

Pressure max.

500 bar

REACH compliant

Yes

RoHs compliant

Yes

Safety factor

Series

L, S

Surface treatment

Zinc-Nickel plated

Temperature max.

+120 °C

Temperature min.

-40 °C

Package size

100 st

Barcode

128708

Gross weight

Net weight

Country of origin

DEU

Intrastat code

73071110

Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%

Note: Opening 3D files requires a program that supports the file format
