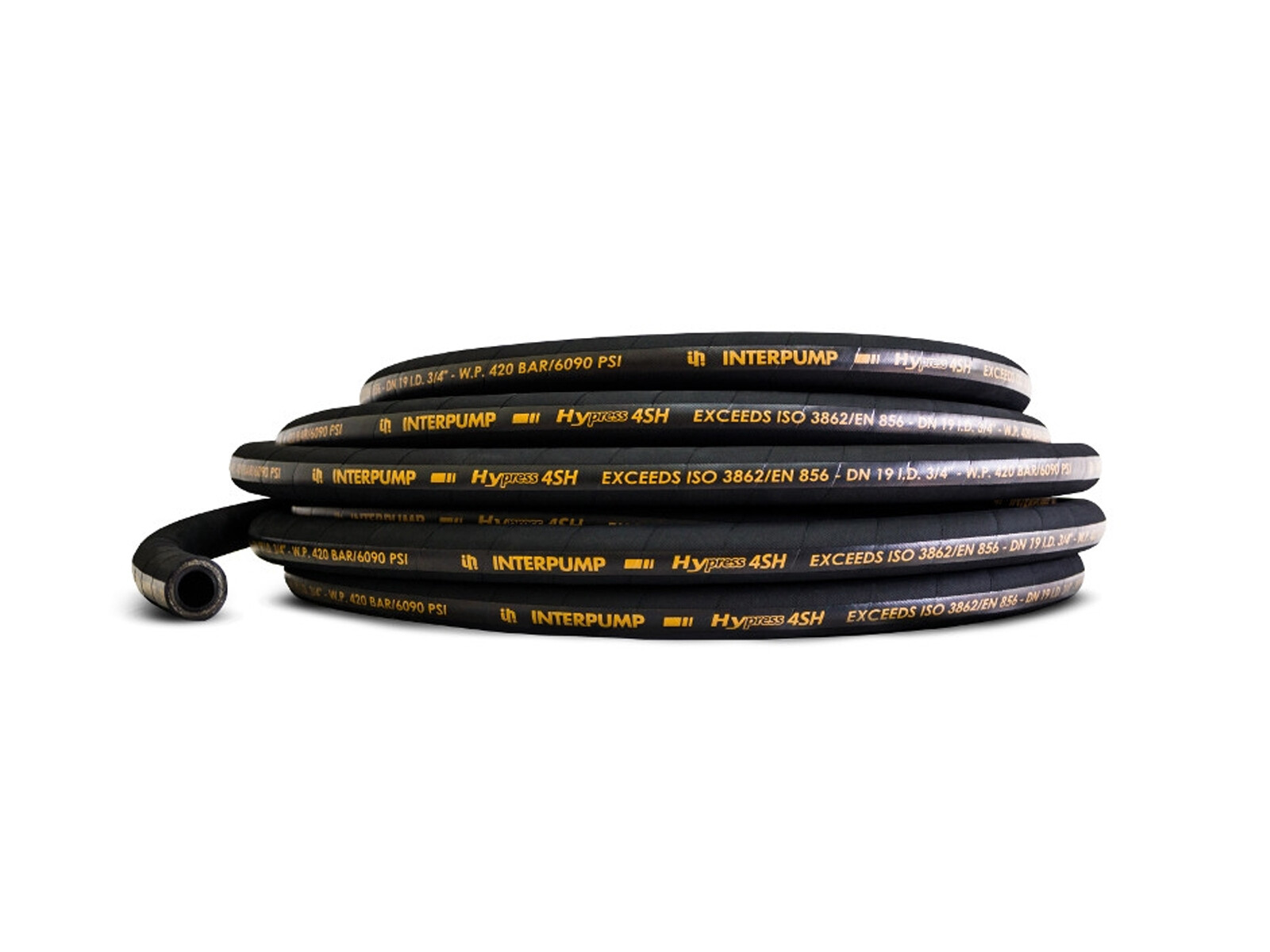

Hydraulslang 4SH 11/4

Varenummer:

4SH-20

Pakke str.:

1 m

Min. bestillingsenhed er:

1 m

Tilbehør (4)

Swaged Ferrule 4WS (no skive) ID1.1/4"

Partnumber: 0NI4-20

Ferrule 1.1/4" for 4SH

Partnumber: 4005-20-4SH

Presshylsa 4005-SY 1 1/4'', Syrafast

Partnumber: 4005-20-SY

Presshylsa BMC1 4SH 1.1/4''

Partnumber: BMC1-20

Specifications
Dimensions and shipping

Bend radius

400 mm

Brand Name

I.M.M Hydraulics

Diameter inner

31.8 mm

Diameter outer

45.8 mm

Flameresistant

Yes

Hose size

1.1/4 "

Hose type

4SH

Hoseapprovals

ABS, BV, CCS, DNV-GL, KR, LLOYD, MED, MSHA, NKK

Model code

TFDM4SHN20

Pressure burst min.

1400 bar

Pressure max.

350 bar

REACH compliant

Yes

RoHs compliant

Yes

Standard EN

EN 856 4SH

Standard ISO

ISO 3862 4SH

Temperature intermittent max.

+120 °C

Temperature max.

+100 °C

Temperature min.

-40 °C

Package size

1 m

Barcode

219979

Gross weight

1,377 Kg

Net weight

1,377 Kg

Country of origin

ita

Product information

Hydraulslang 4SH 11/4
