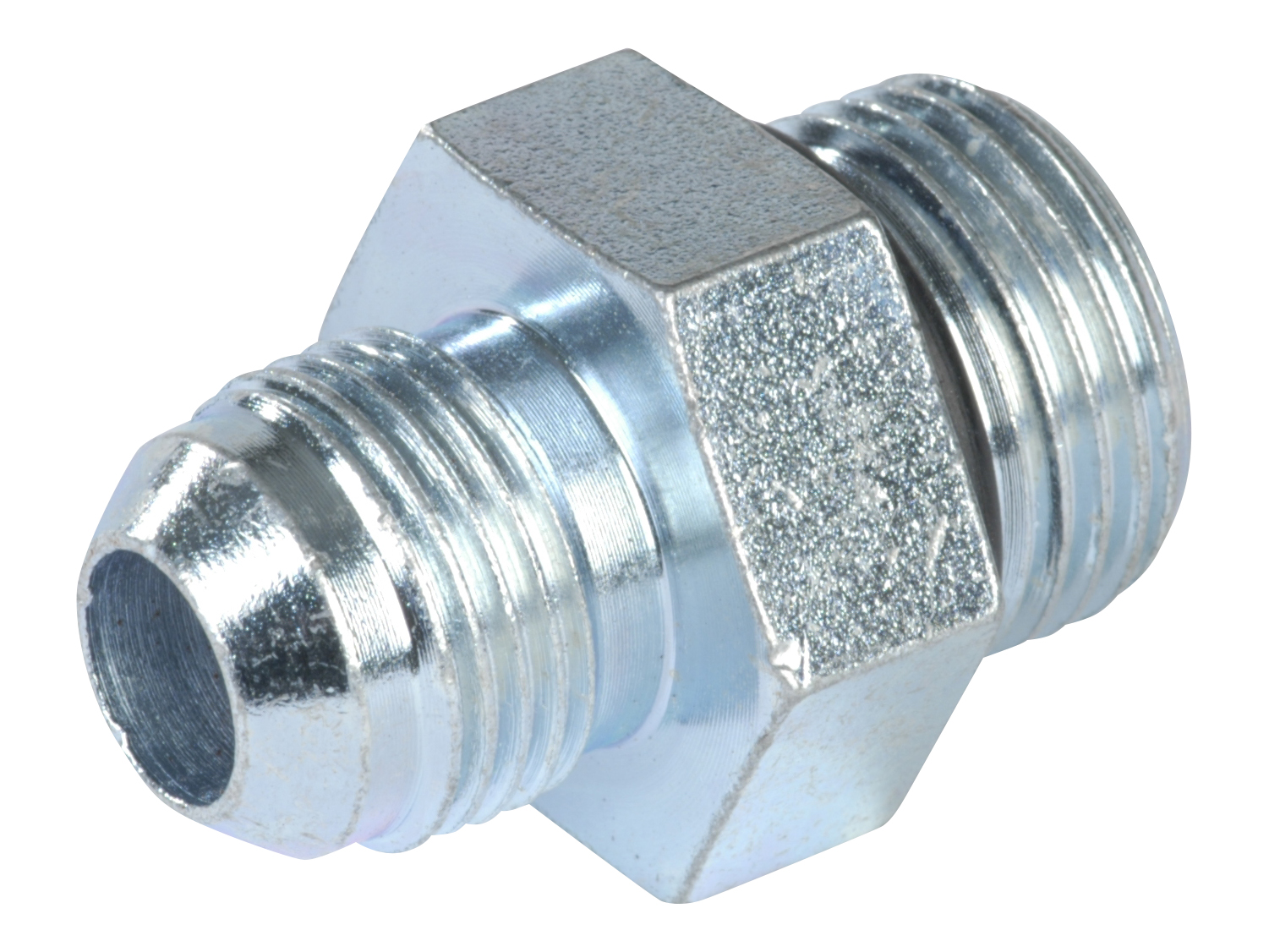

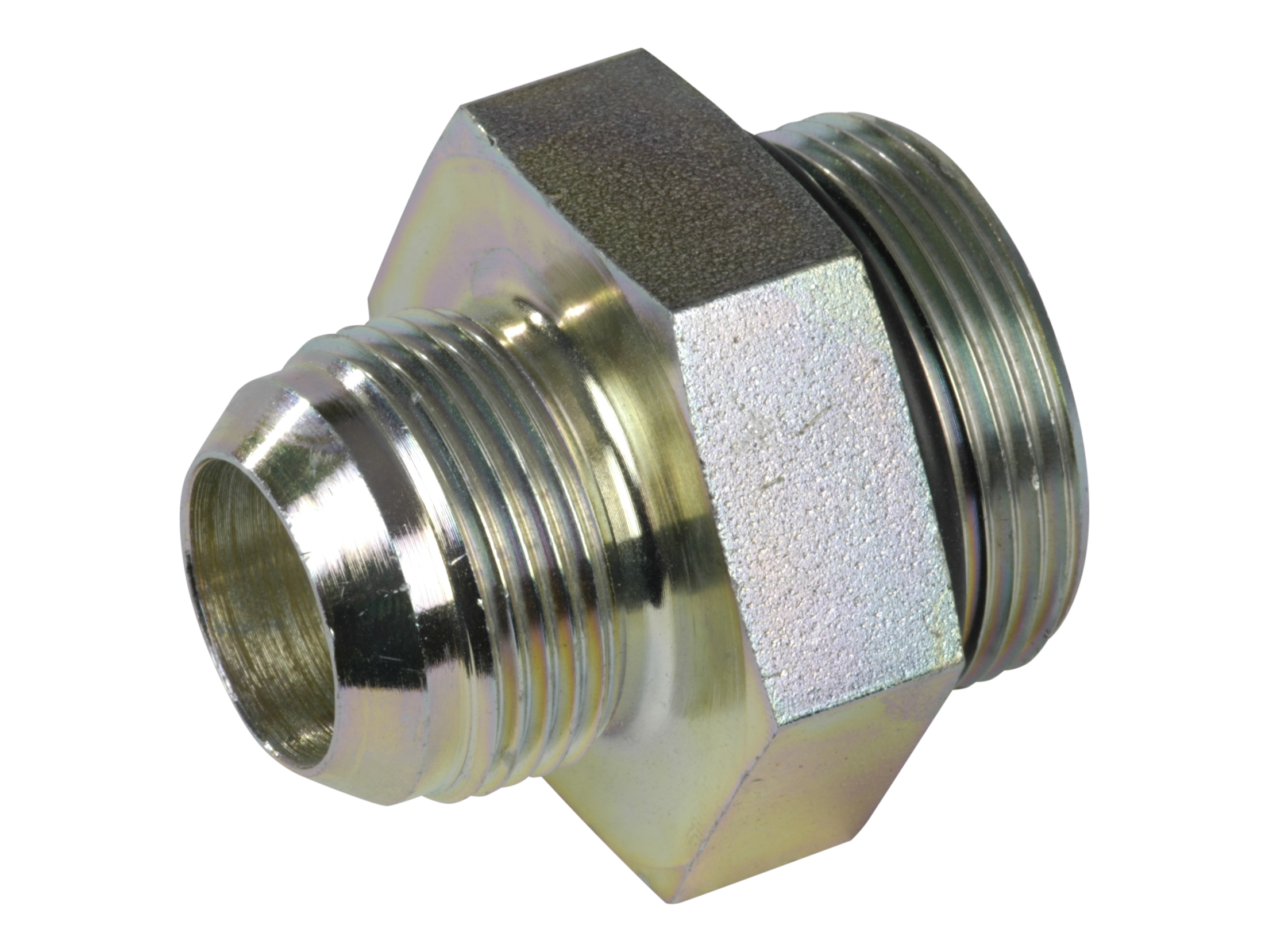

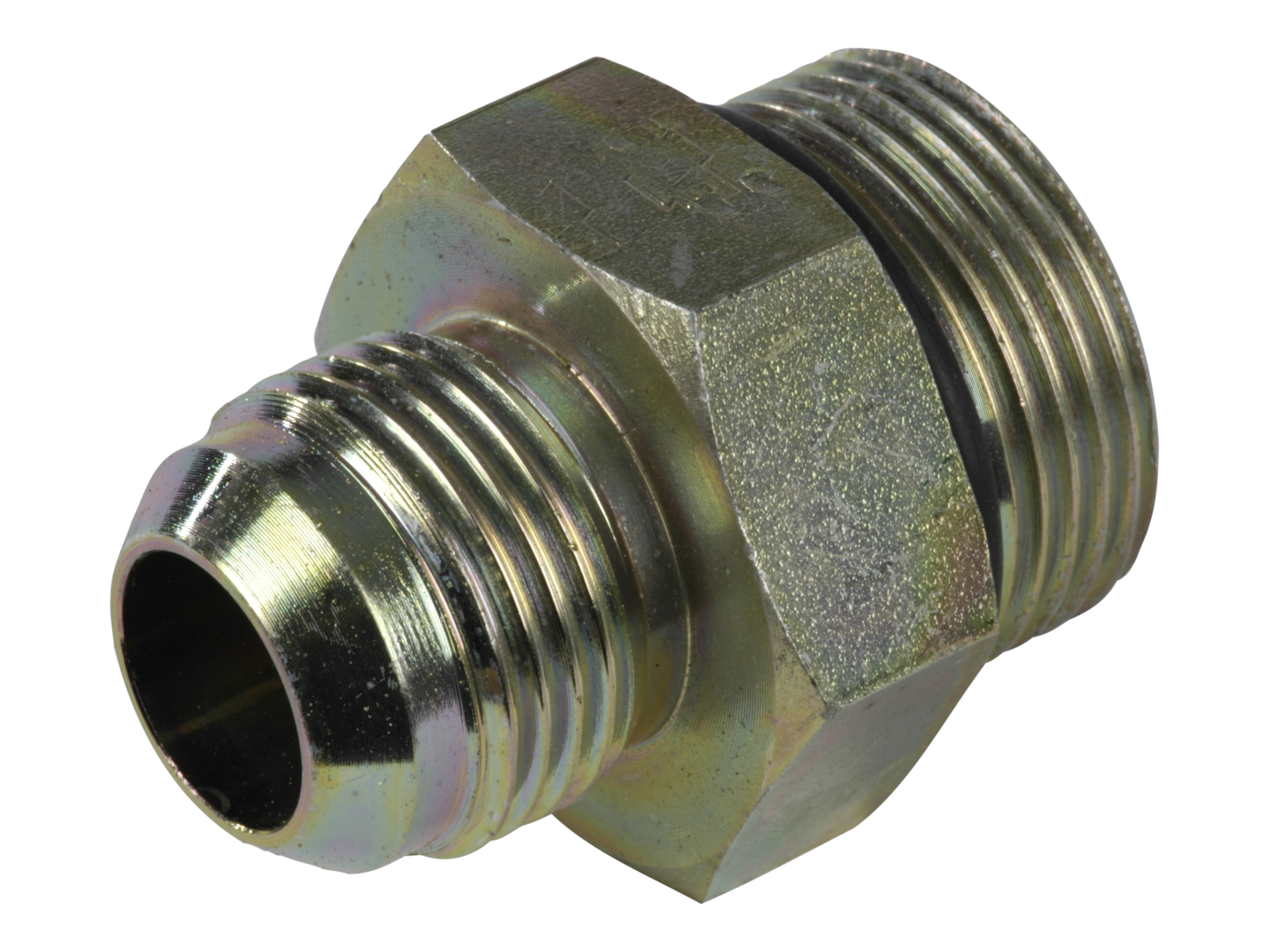

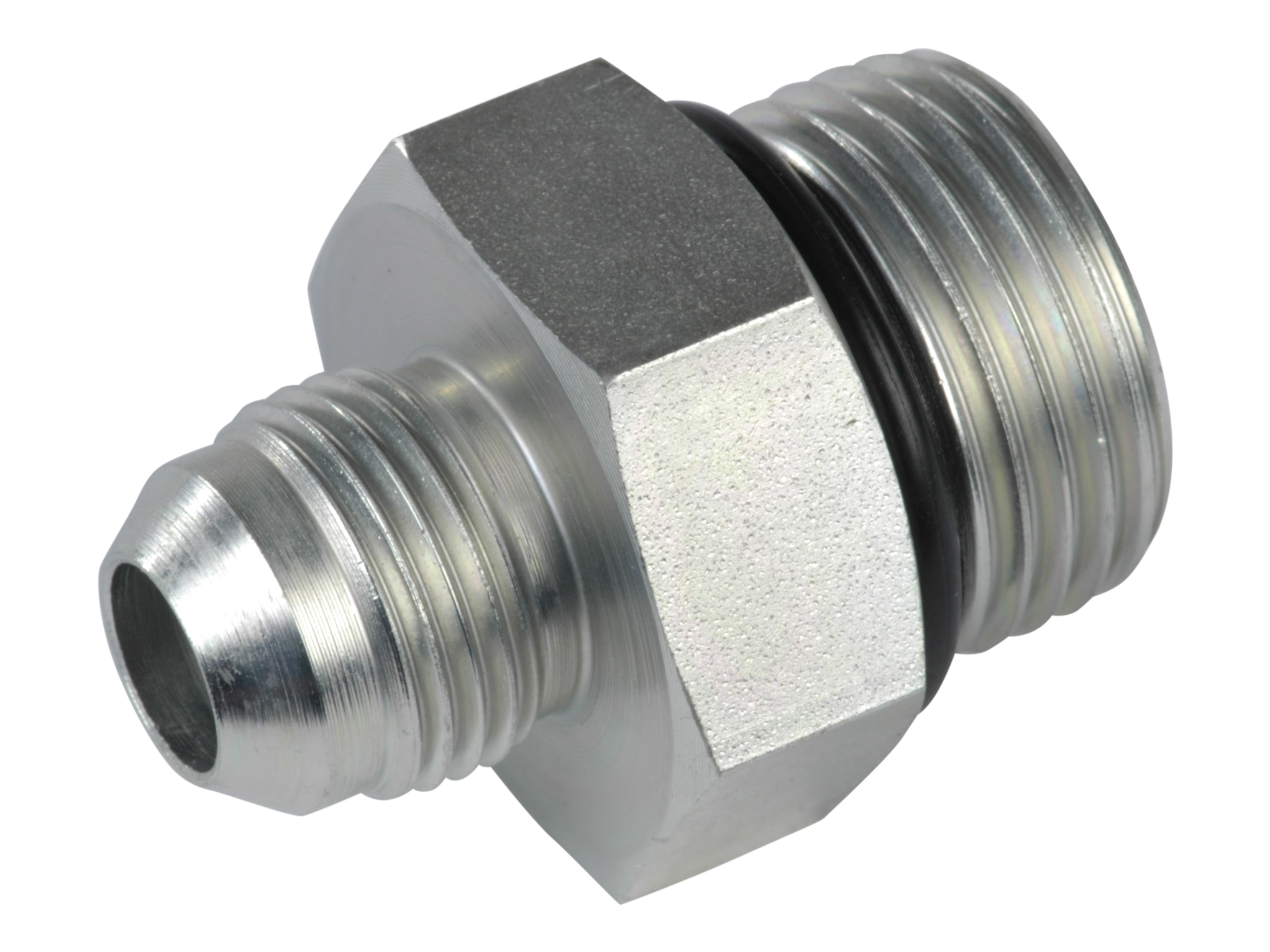

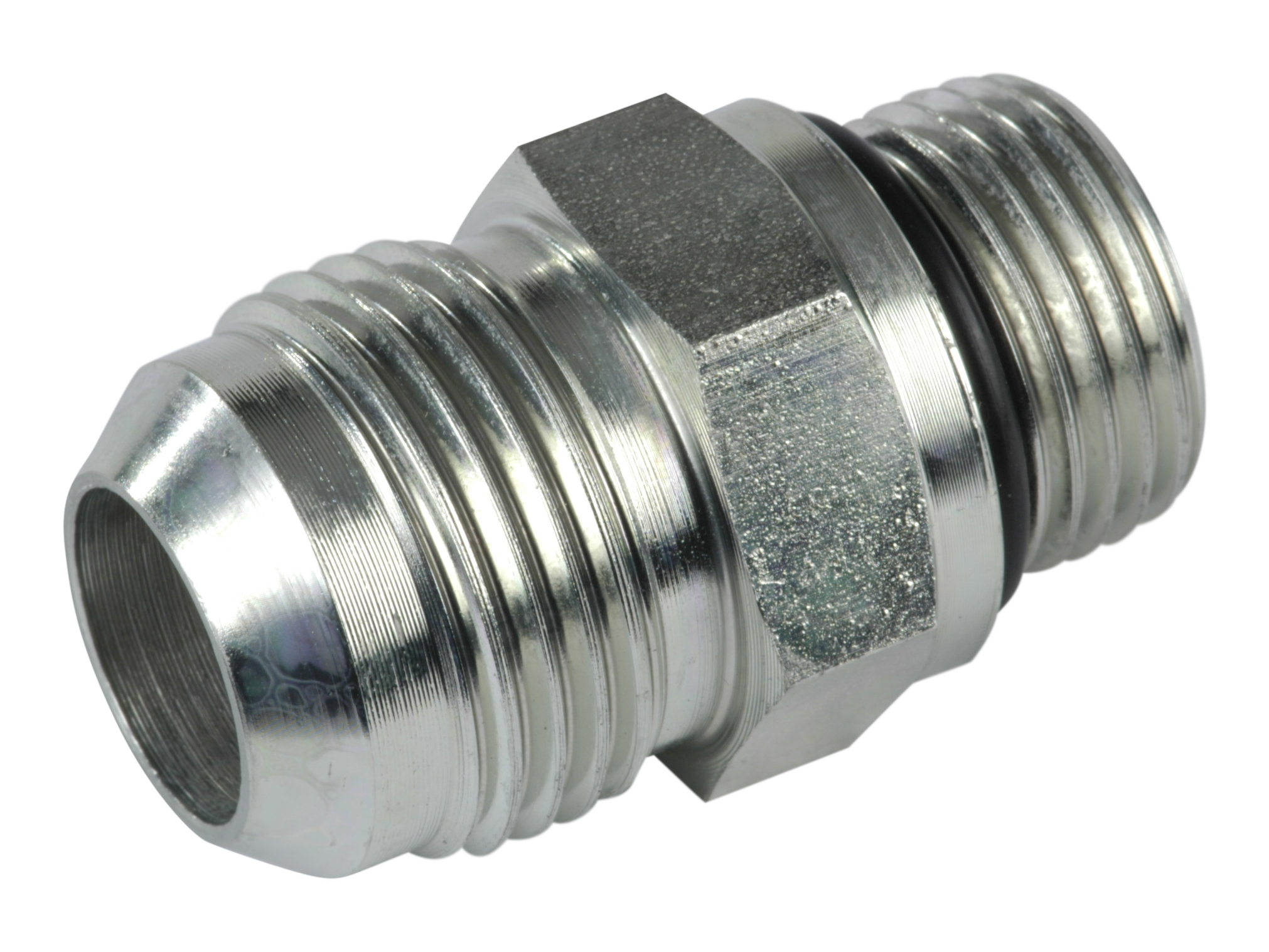

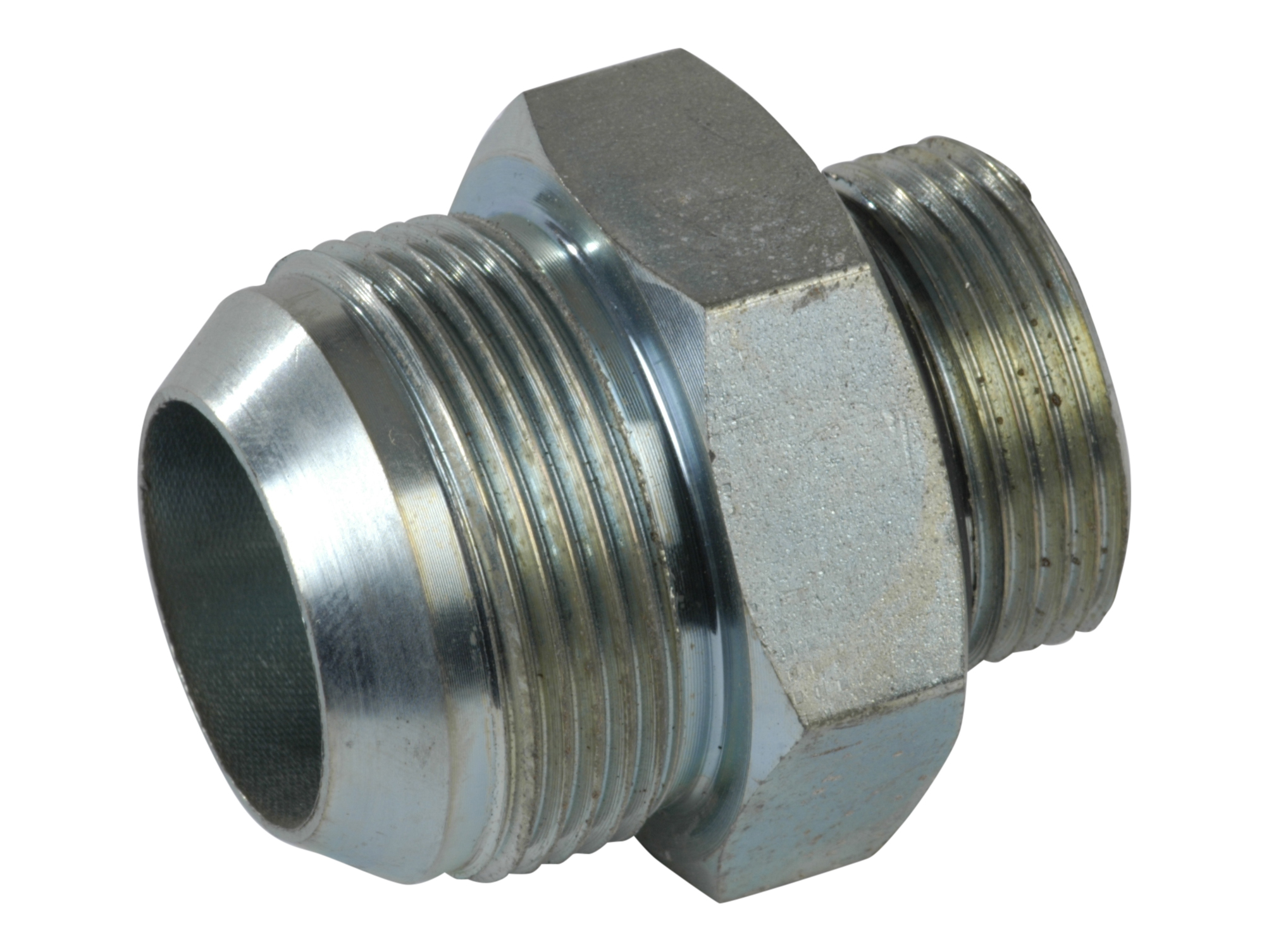

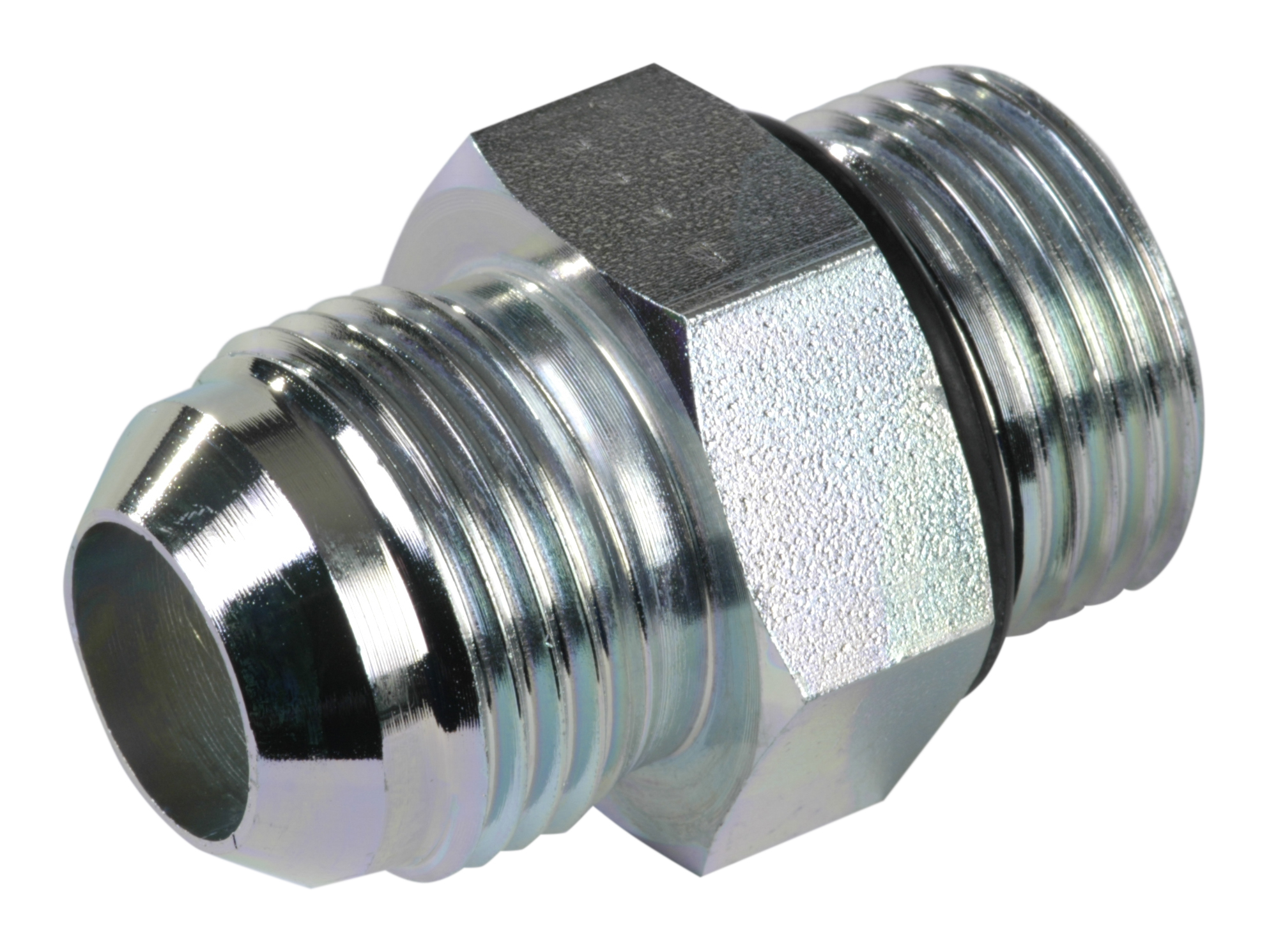

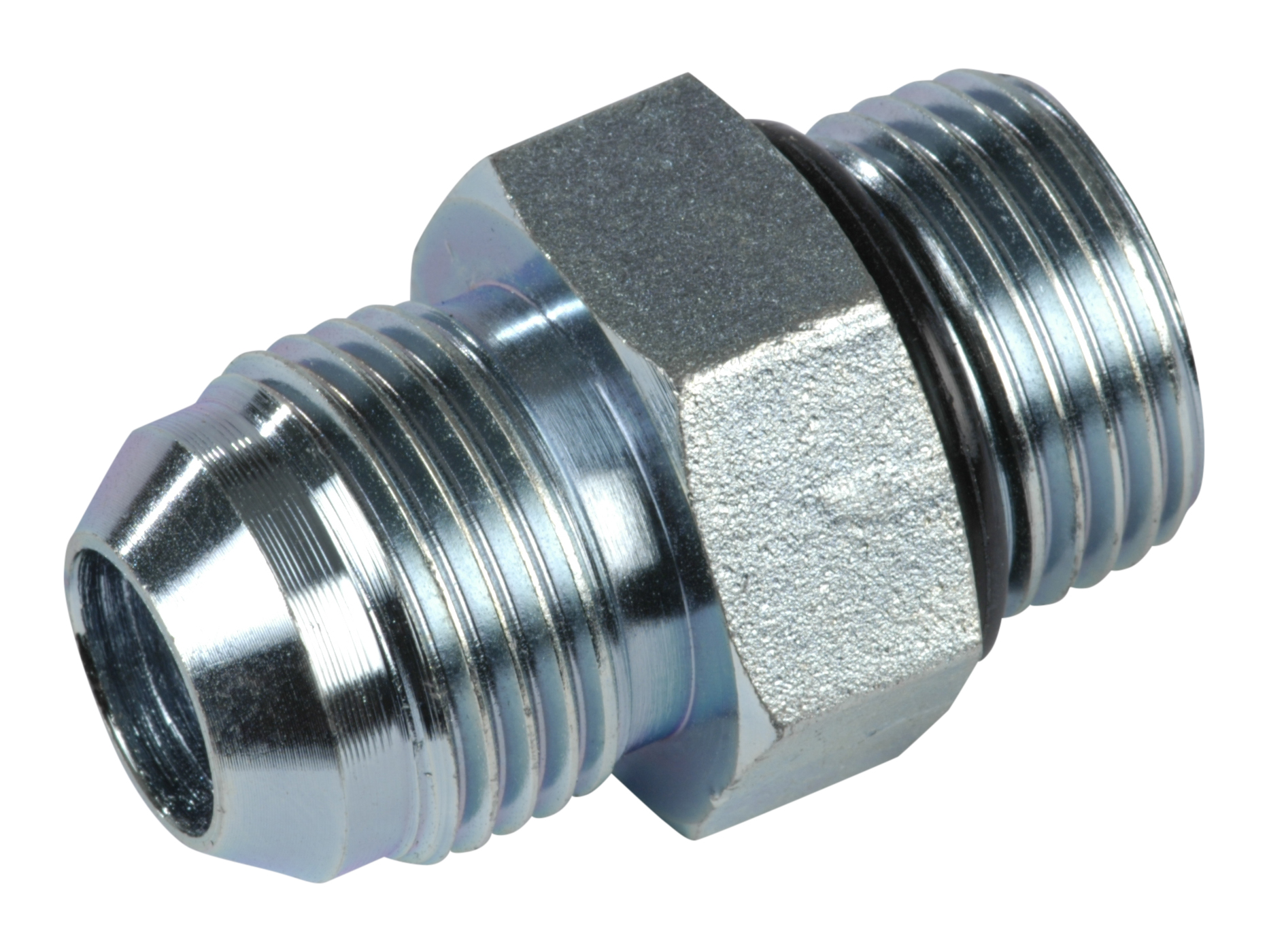

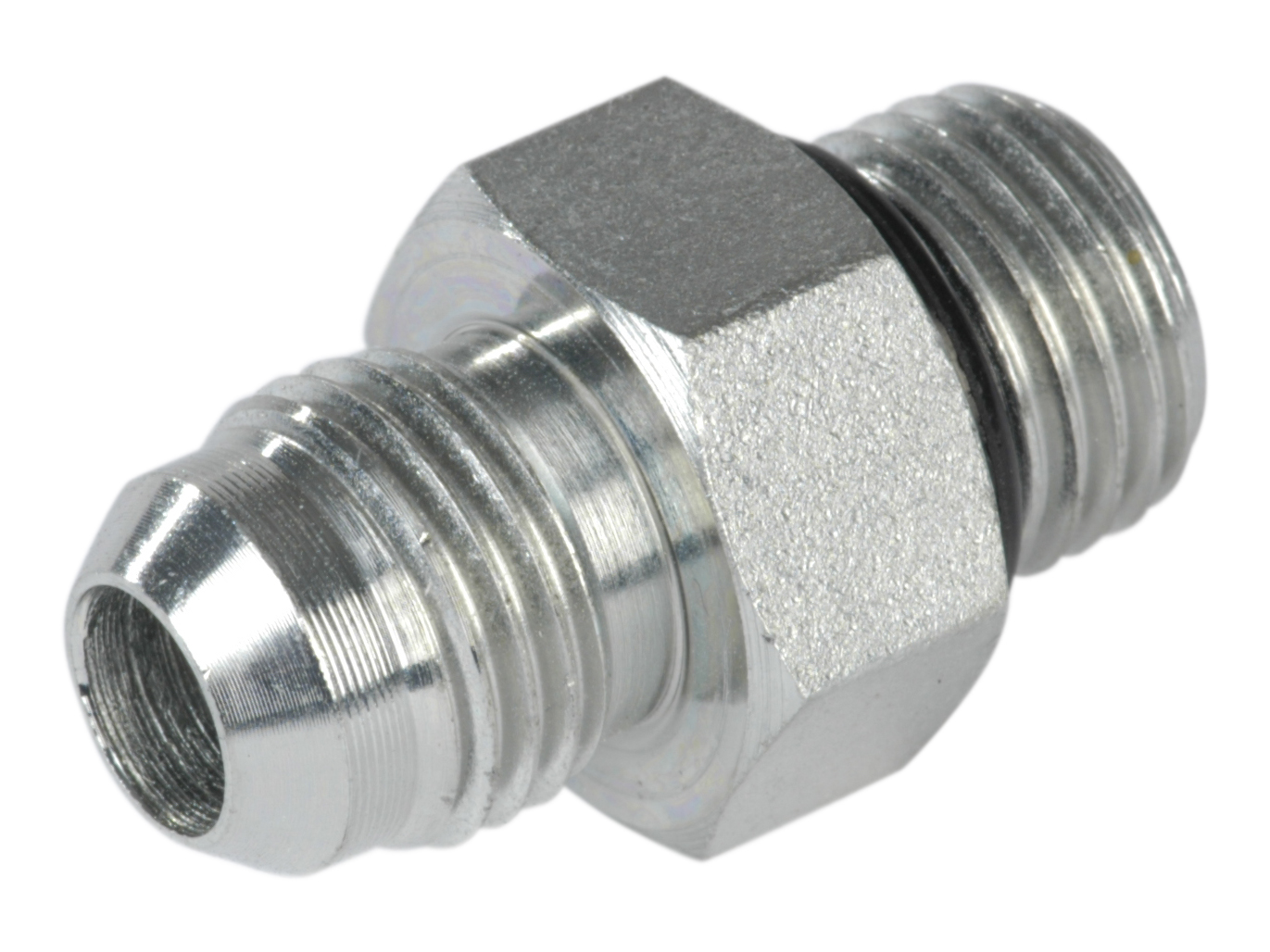

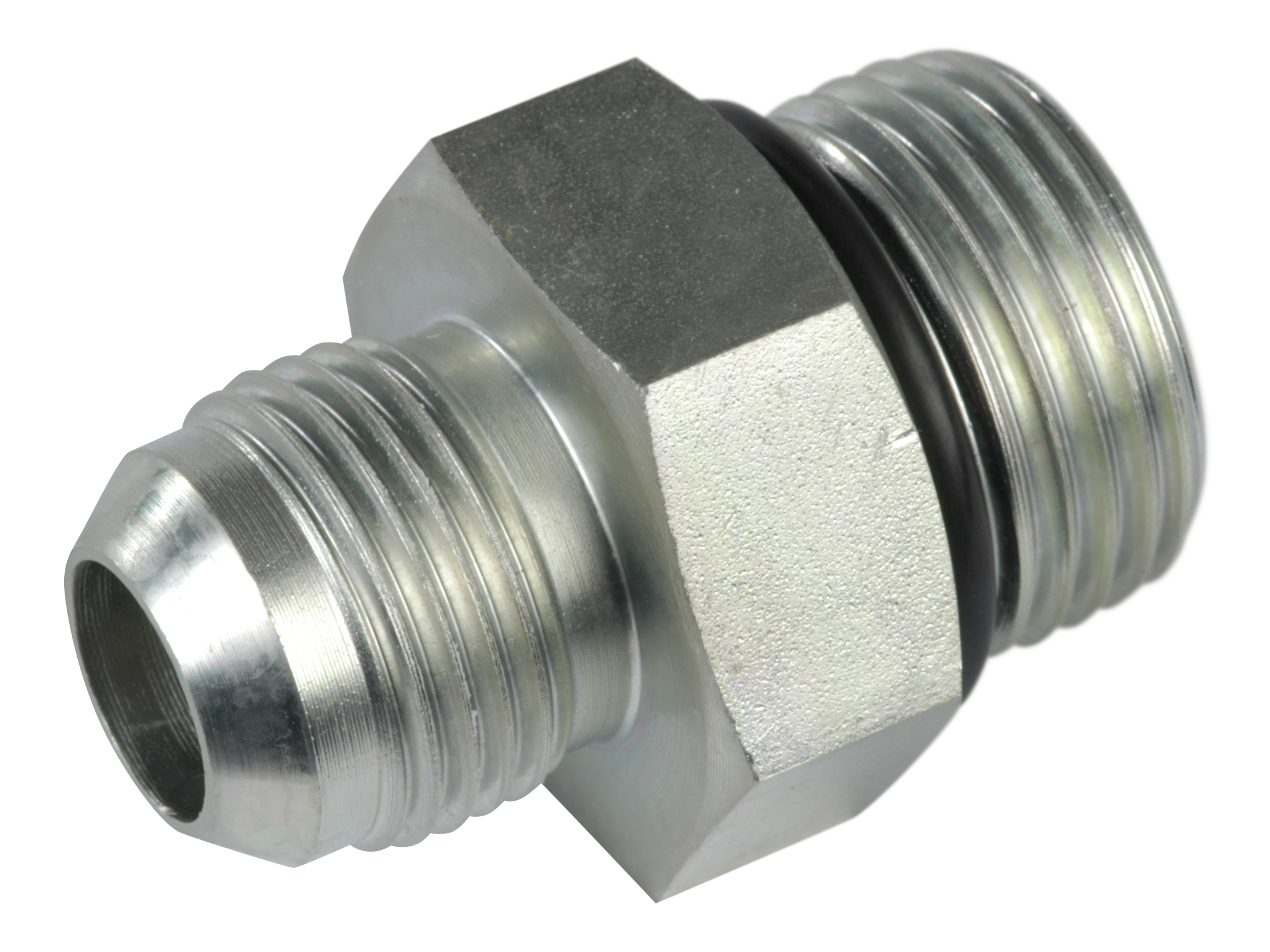

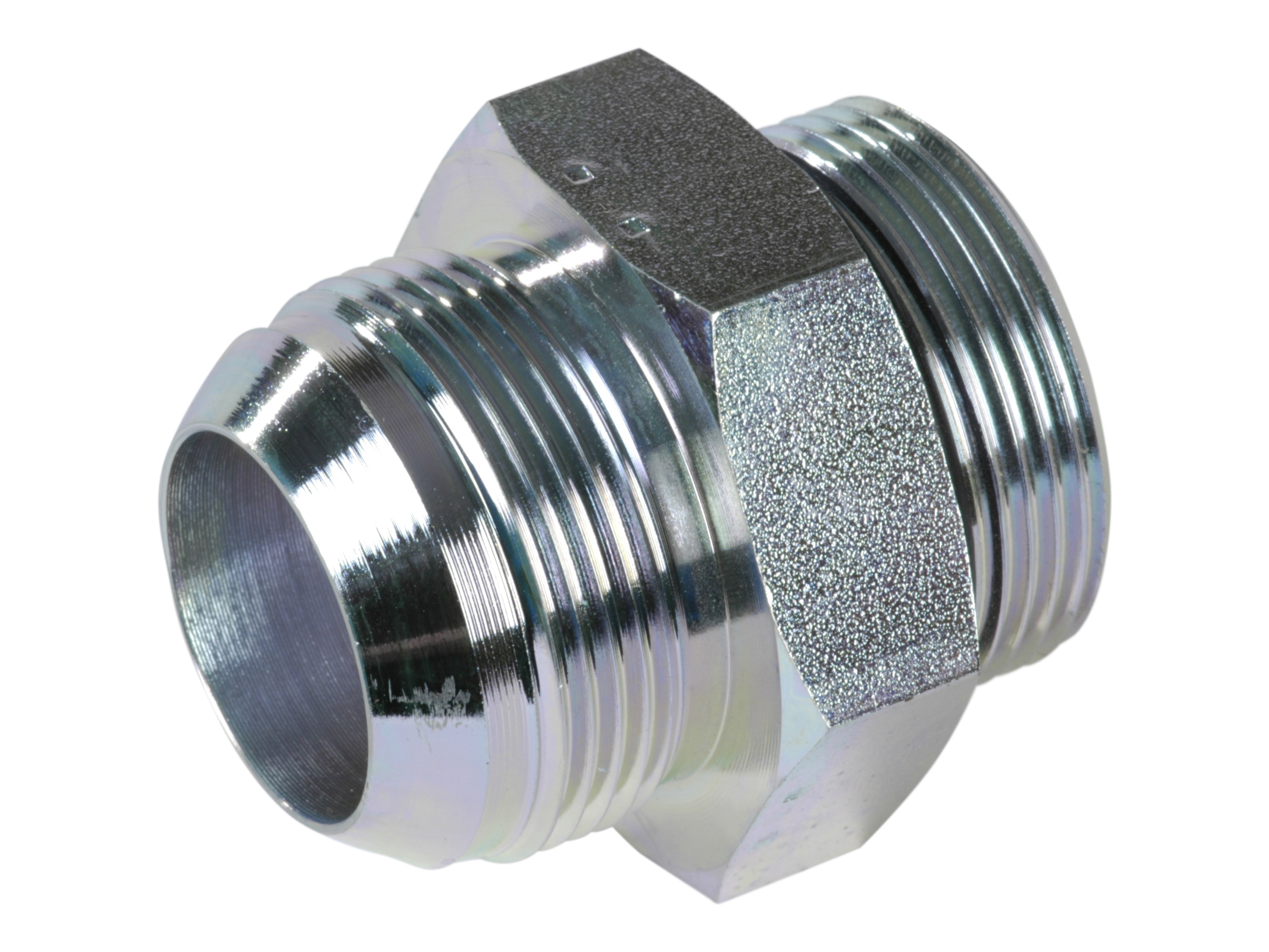

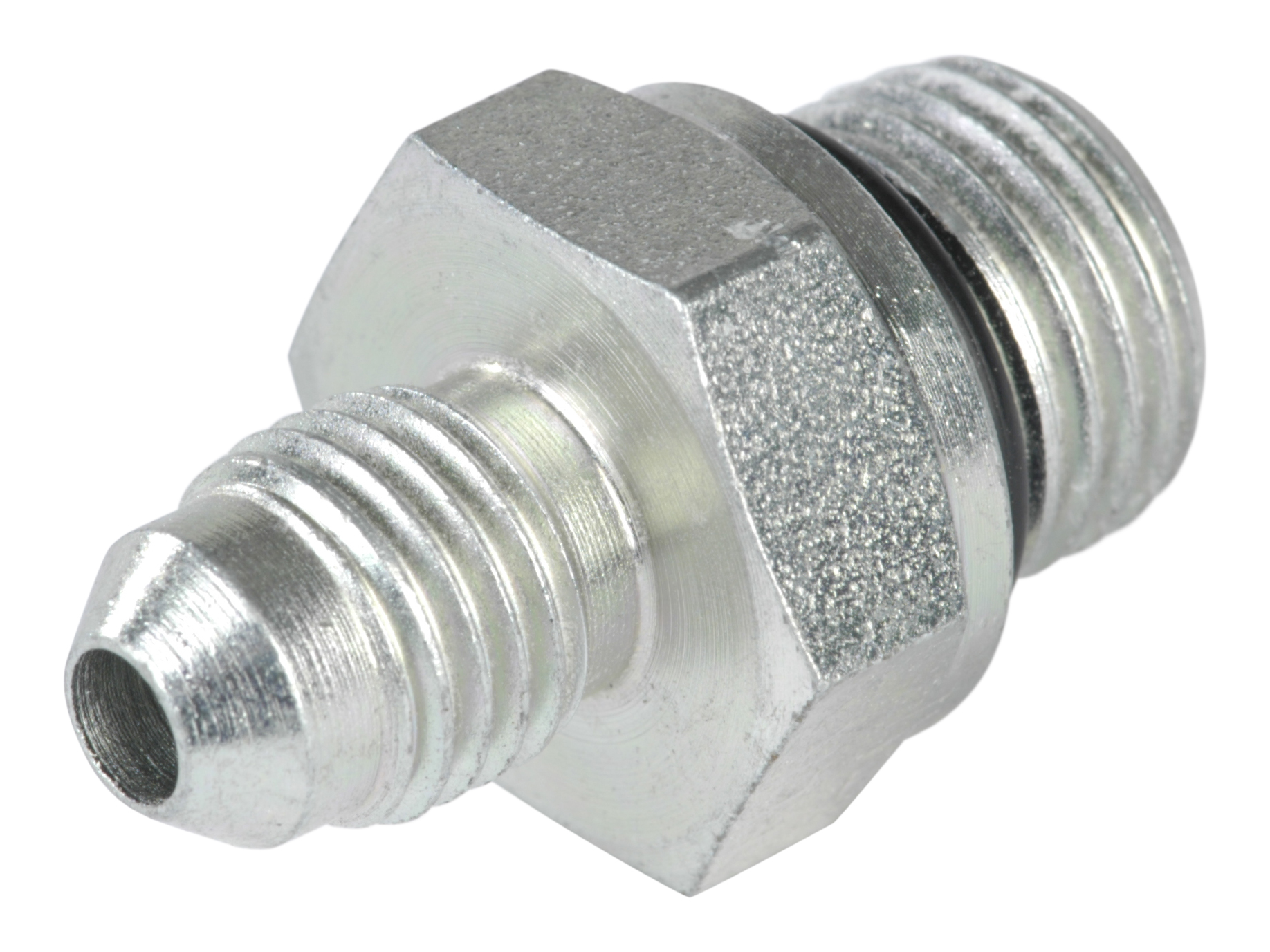

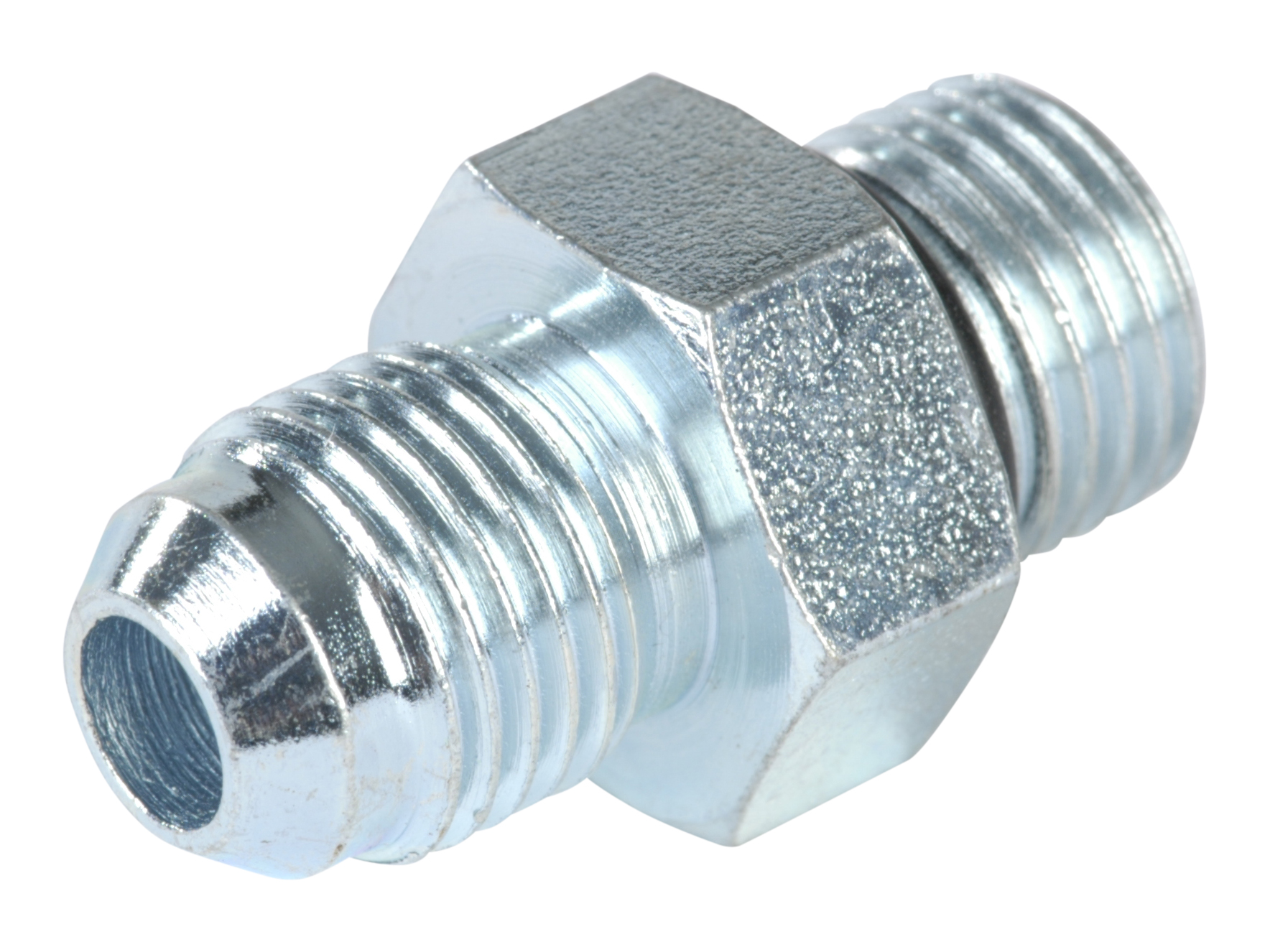

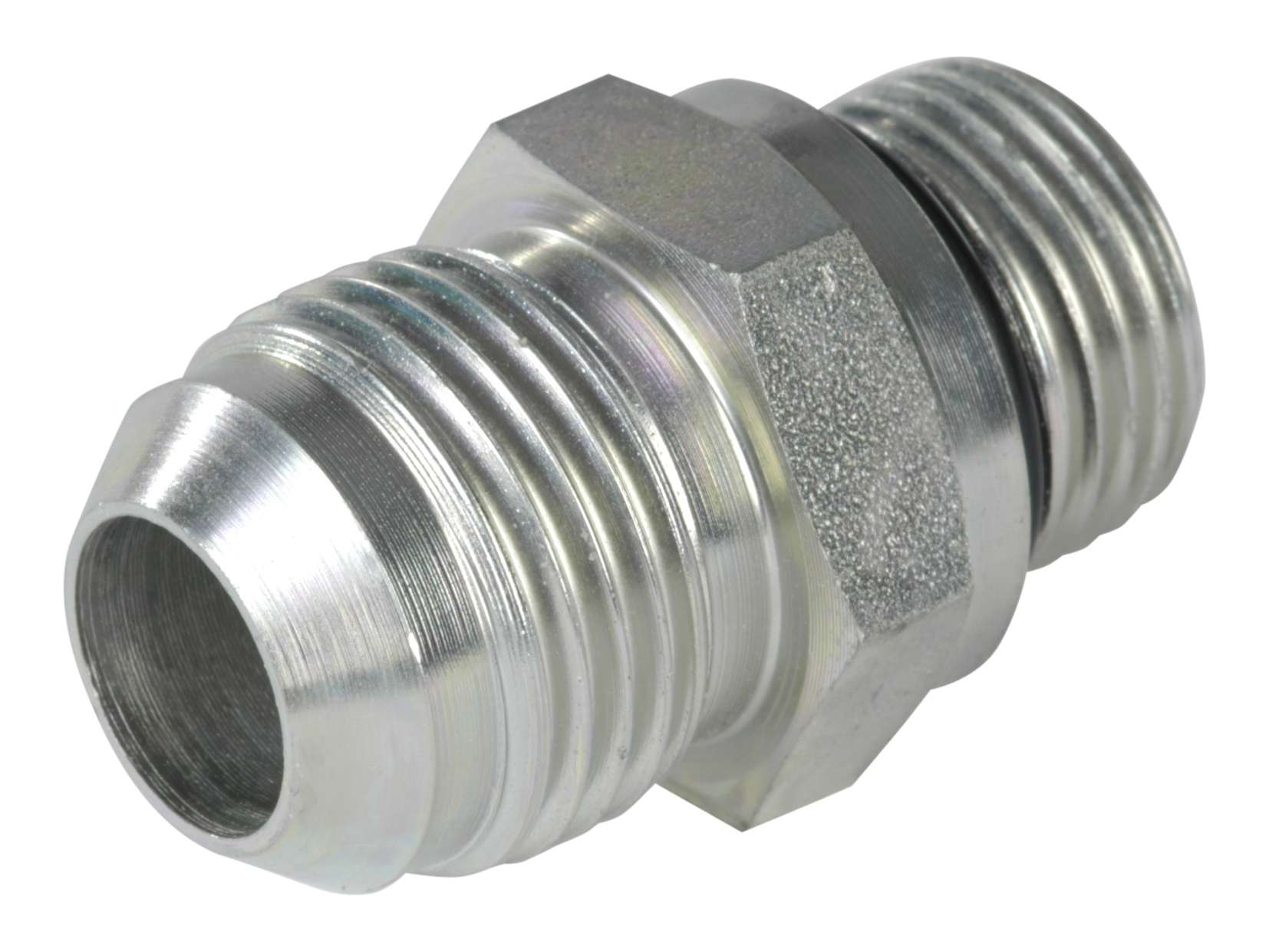

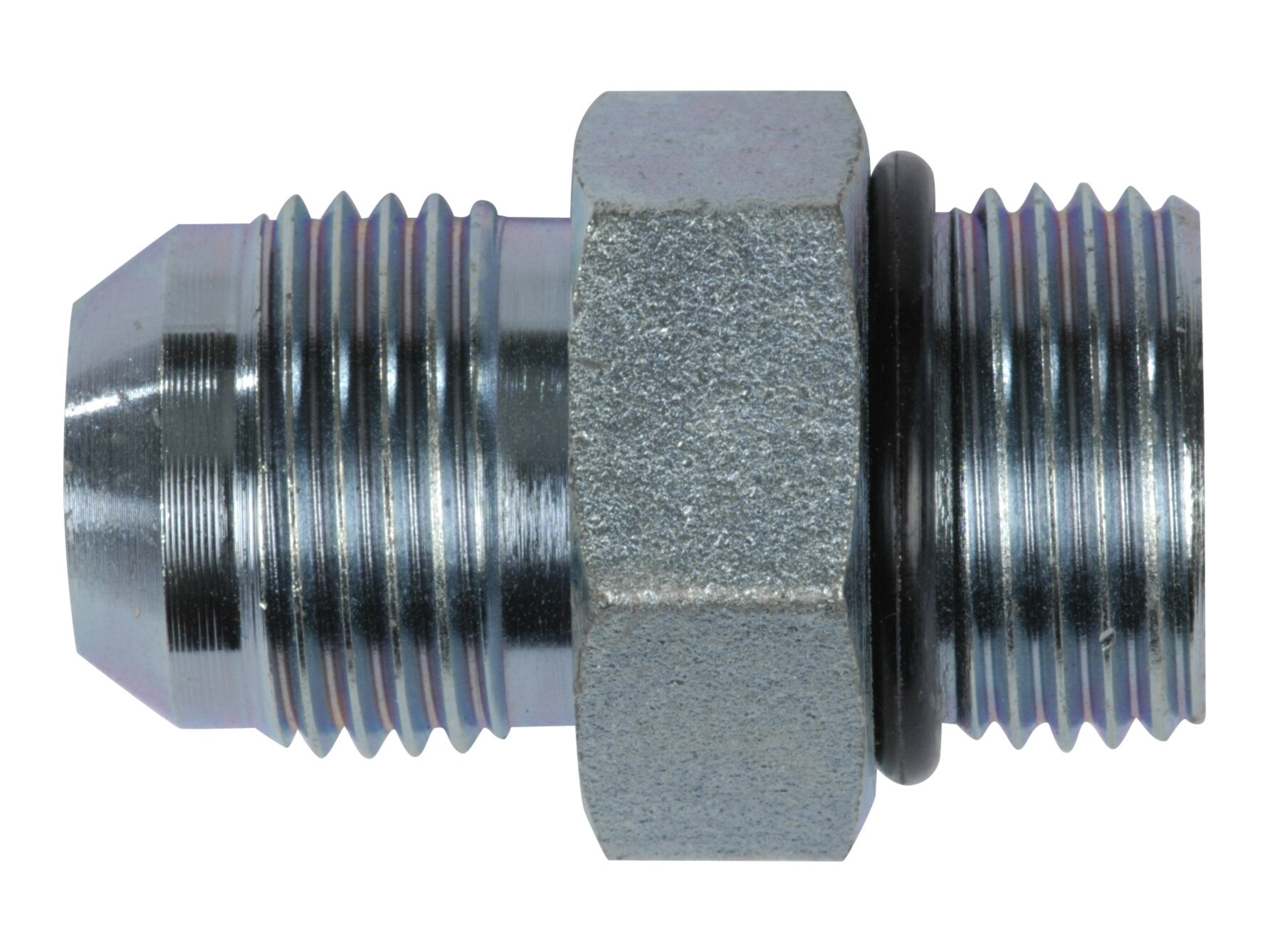

Adapter JIC male x UNF male - M-UNF / JGEU

Adapter JIC male x UNF male - M-UNF / JGEU

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Thread outer Pressure max.
M-06-1/2 S220-06-12U adaptor UNF 6 mm 7/16-20 JIC 1/2-20 UNF 450 bar
M-06-7/16 S220-06-11U adaptor UNF 6 mm 7/16-20 JIC 7/16-20 UNF 450 bar
M-06-9/16 S220-06-14U adaptor UNF 6 mm 7/16-20 JIC 9/16-18 UNF 450 bar
M-08-1/2 S220-08-12U adaptor UNF 8 mm 1/2-20 JIC 1/2-20 UNF 416 bar
M-10-3/4 S220-10-19U adaptor UNF NW22 10 mm 9/16-18 JIC 3/4-16 UNF 350 bar
M-10-7/16 S220-10-11U adaptor UNF 10 mm 9/16-18 JIC 7/16-20 UNF 350 bar
M-10-7/8 Adaptor 9/16-18 JIC male x 7/8-14 UNF male 10 mm 9/16-18 JIC 7/8-14 UNF 350 bar
M-10-9/16 S220-10-14U adaptor UNF 10 mm 9/16-18 JIC 9/16-18 UNF 350 bar
M-12-1.1/16 S220-12-27U adaptor UNF 12 mm 3/4-16 JIC 1.1/16-12 UNF 350 bar
M-12-3/4 S220-12-19U adaptor UNF NW22 12 mm 3/4-16 JIC 3/4-16 UNF 350 bar
M-12-7/8 S220-12-22U adaptor UNF 12 mm 3/4-16 JIC 7/8-14 UNF 350 bar
M-12-9/16 S220-12-14U adaptor UNF 12 mm 3/4-16 JIC 9/16-18 UNF 350 bar
M-16-1.1/16 S220-16-27U adaptor UNF 14-15-16 mm 7/8-14 JIC 1.1/16-12 UNF 350 bar
M-16-1.5/16 Adaptor, cyl. UNF ¤ 16 mm 7/8-14 JIC 1.5/16-12 UNF 350 bar
M-16-3/4-UNF S220-16-19U adaptor UNF 14-15-16 mm 7/8-14 JIC 3/4-16 UNF 350 bar
M-16-7/8 S220-16-22U adaptor UNF 14-15-16 mm 7/8-14 JIC 7/8-14 UNF 350 bar
M-20-1.1/16 S220-20-27U adaptor UNF 20 mm 1.1/16-12 JIC 1.1/16-12 UNF 300 bar
M-20-1.5/16 S220-20-33U adaptor UNF 20 mm 1.1/16-12 JIC 1.5/16-12 UNF 300 bar
M-20-3/4-UNF S220-20-19U adaptor UNF 20 mm 1.1/16-12 JIC 3/4-16 UNF 300 bar
M-20-7/8 S220-20-22U adaptor UNF 20 mm 1.1/16-12 JIC 7/8-14 UNF 300 bar
M-25-1.5/16 S220-25-33U adaptor UNF 25 mm 1.5/16-12 JIC 1.5/16-12 UNF 290 bar
M-25-1.5/8 S220-25-41U adaptor UNF 25 mm 1.5/16-12 JIC 1.5/8-12 UNF 290 bar
M-32-1.5/16 S220-30-33U adaptor UNF 32 mm 1.5/8-12 JIC 1.5/16-12 UNF 240 bar
M-32-1.5/8 S220-30-41U adaptor UNF 32 mm 1.5/8-12 JIC 1.5/8-12 UNF 240 bar
Angle
0
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
