S220-10-11U adaptor UNF
\ufeff
-

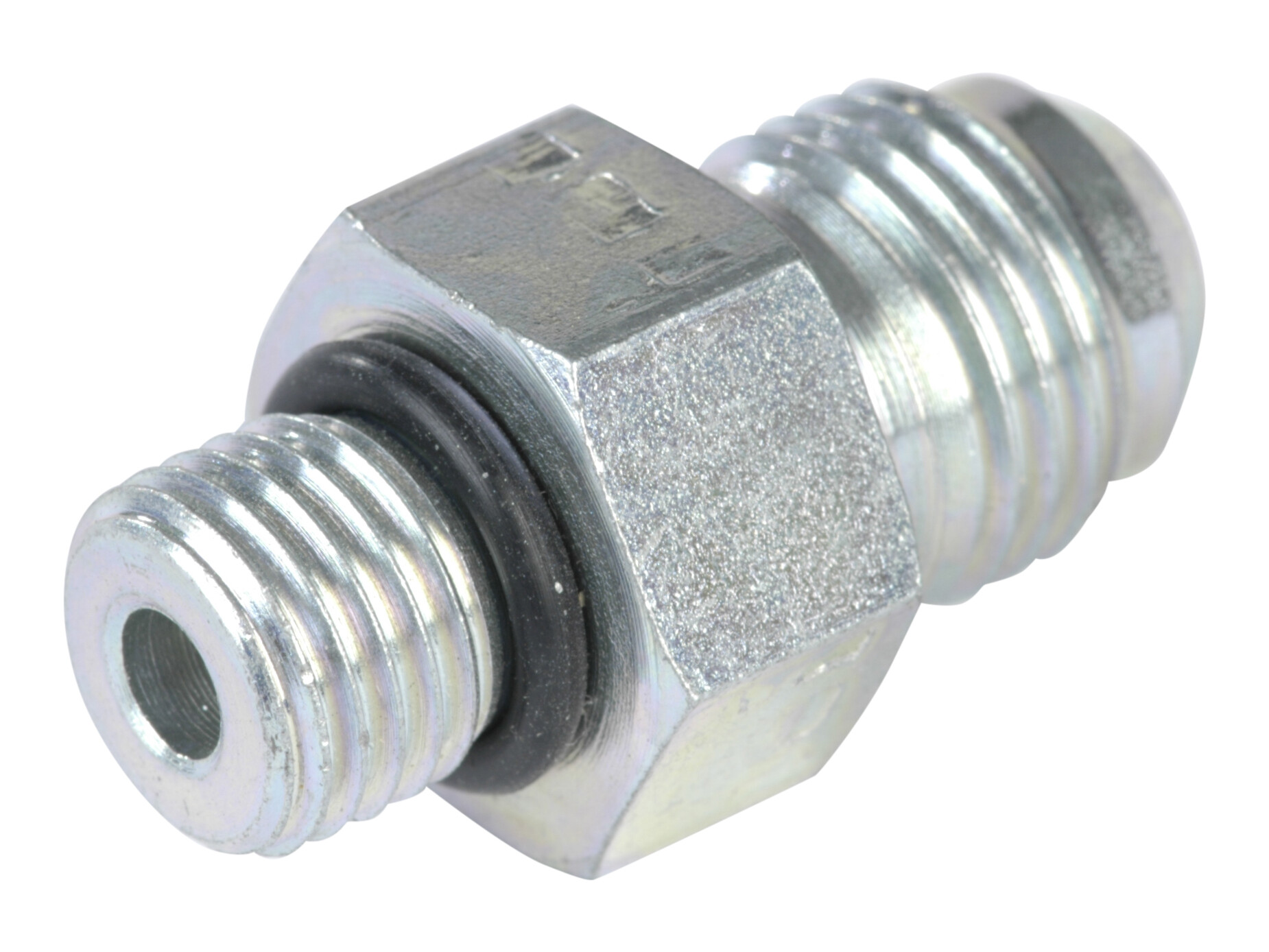

JIC 37° male straight basic connector
- Male thread SAE UNF-UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
Partnumber:
M-10-7/16
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
32,5 mm
B
14 mm
CH
16 mm
D
9 mm
Diameter rör
10 mm
Dimension F
7/16-20 UNF
F
7/16-20 UNF
Gänga utv.
9/16-18 JIC
Gänga utv.
7/16-20 UNF
J
9/16-18 JIC
Modell kod
SA102012/1011
Märke namn
FOR
Packningsmaterial
NBR
Rostbeständighet
1400 hours salt spray DIN EN ISO 9227
Standard ISO
ISO 11926
T
10 mm
Temperatur max.
+120 °C
Temperatur min.
-20 °C
Tillverkningsmaterial
Steel
Tryck max.
350 bar
Vinkel
0 °
Ytskiktbehandling
Electro-galvanized / White chromatized
Package size
0 pcs
Barcode
5704295845364
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° male straight basic connector
- Male thread SAE UNF-UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
Note: Opening 3D files requires a program that supports the file format
