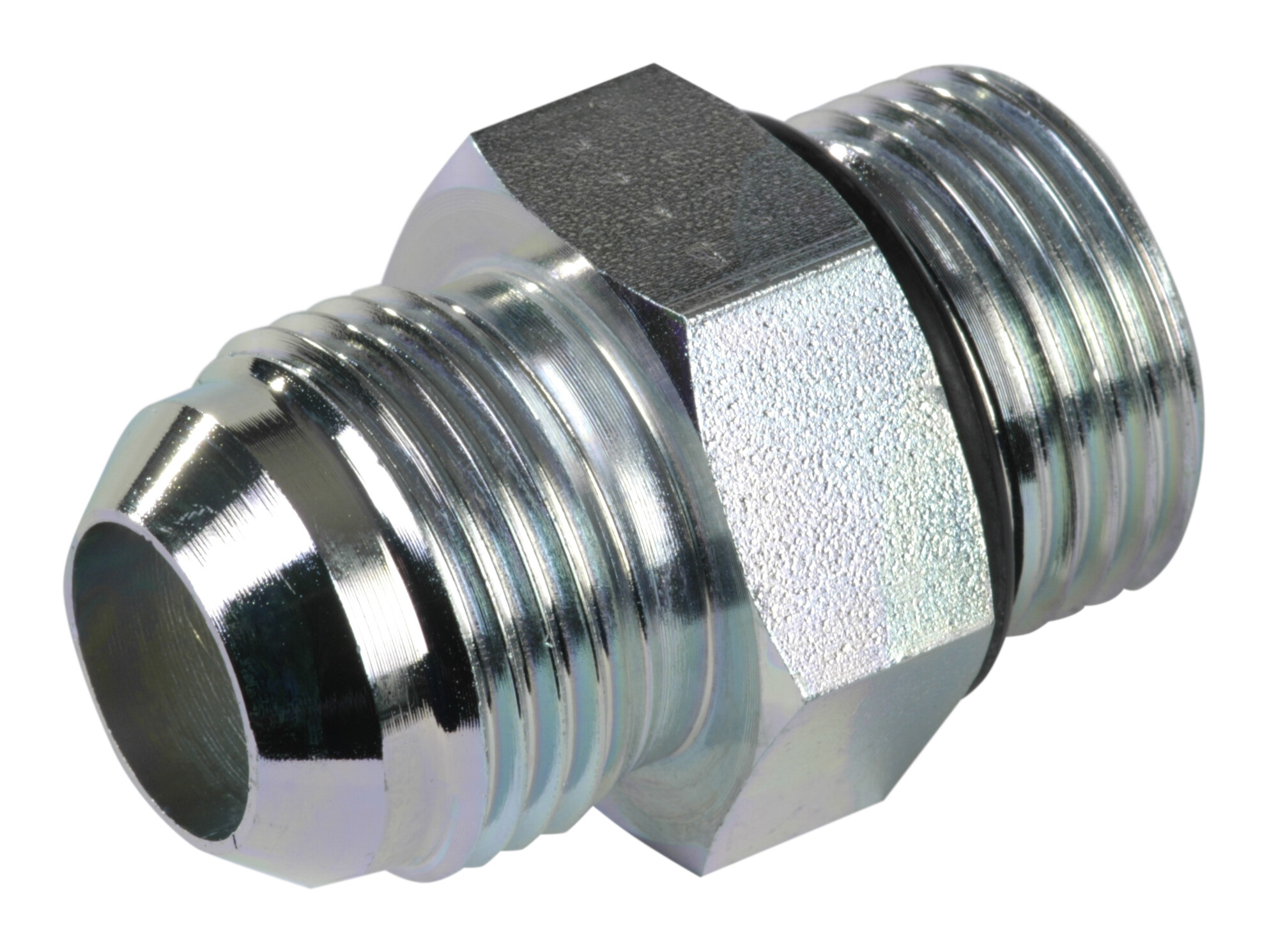

S220-20-27U adaptor UNF
\ufeff
-
JIC 37° male straight basic connector
- Male thread SAE UNF-UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
Artikelnummer:
M-20-1.1/16
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
A
50 mm
B
22 mm
CH
32 mm
D
15 mm
Diameter rør
20 mm
Dimension F
1.1/16-12 UNF
Gevind udvendig
1.1/16-12 JIC
Gevind udvendig
1.1/16-12 UNF
J
1.1/16-12 JIC
Korrosions resistens
1400 hours salt spray DIN EN ISO 9227
Materiale
Steel
Mærke navn
FOR
Overfladebehandling
Electro-galvanized / White chromatized
Pakningsmateriale
NBR
Standard ISO
ISO 11926
T
20 mm
Temperatur maks.
+120 °C
Temperatur min.
-20 °C
Tryk maks.
300 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704334394945
Gross weight
0,15 Kg
Net weight
0,15 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° male straight basic connector
- Male thread SAE UNF-UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
