SJU1721

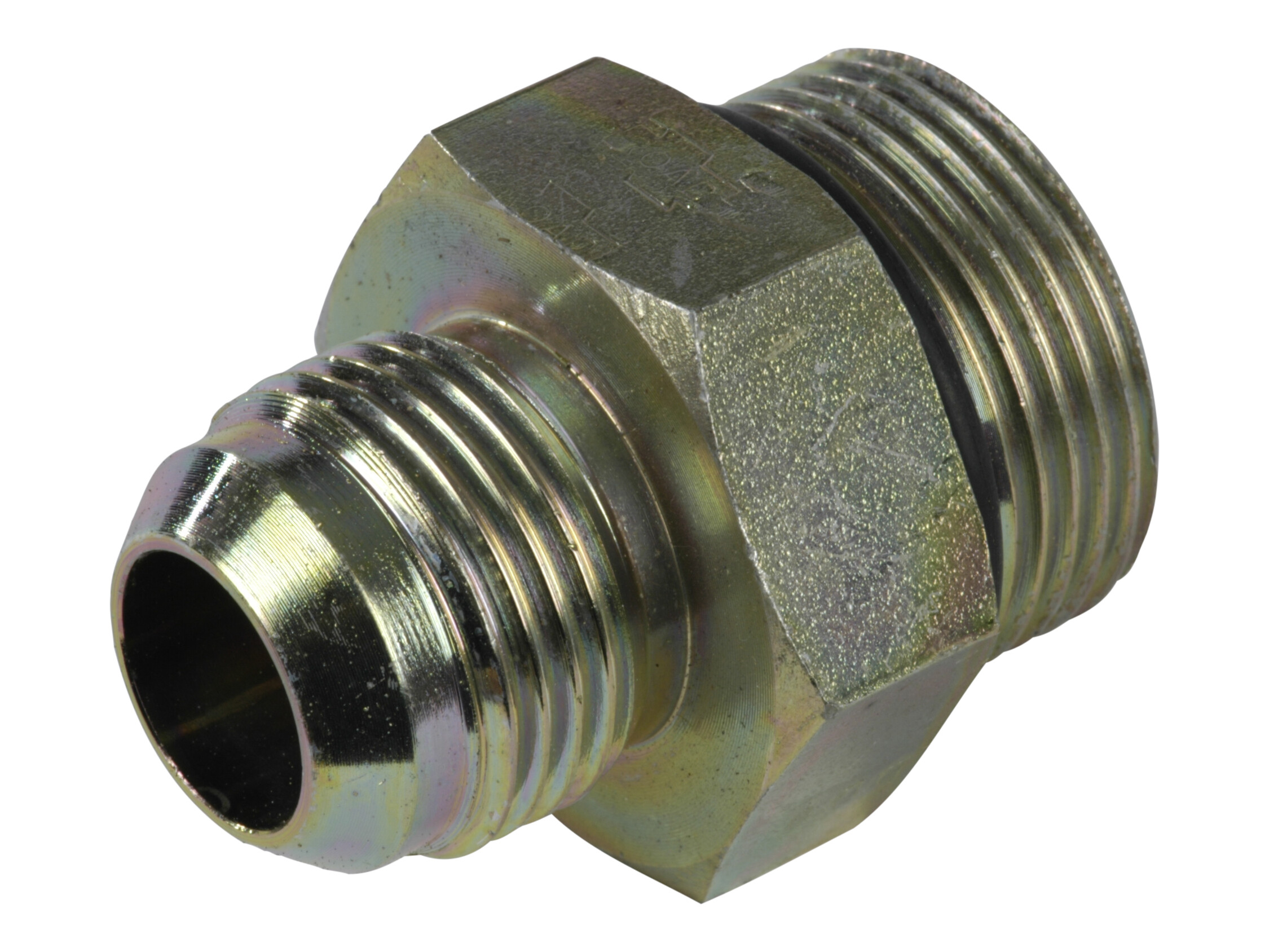

Indskruning 1.1/16-12 JIC udv x 1.5/16-12 UNF udv
Partnumber:
M-20-1.5/16
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
50,5 mm
Angle
0 °
B
22 mm
Brand Name
FOR
CH
38 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
15 mm
Diameter pipe
20 mm
Dimension F
1.5/16-12 UNF
J
1.1/16-12 JIC
Material
Steel
Pressure max.
300 bar
Surface treatment
Electro-galvanized / White chromatized
T
20 mm
Thread outer
1.1/16-12 JIC
Thread outer
1.5/16-12 UNF
Package size
0 pcs
Barcode
5704334394952
Gross weight
Kg
Net weight
0,228 Kg
Country of origin
ita
Intrastat code
73071110
Indskruning 1.1/16-12 JIC udv x 1.5/16-12 UNF udv
