S220-08-12U adaptor UNF
\ufeff
-

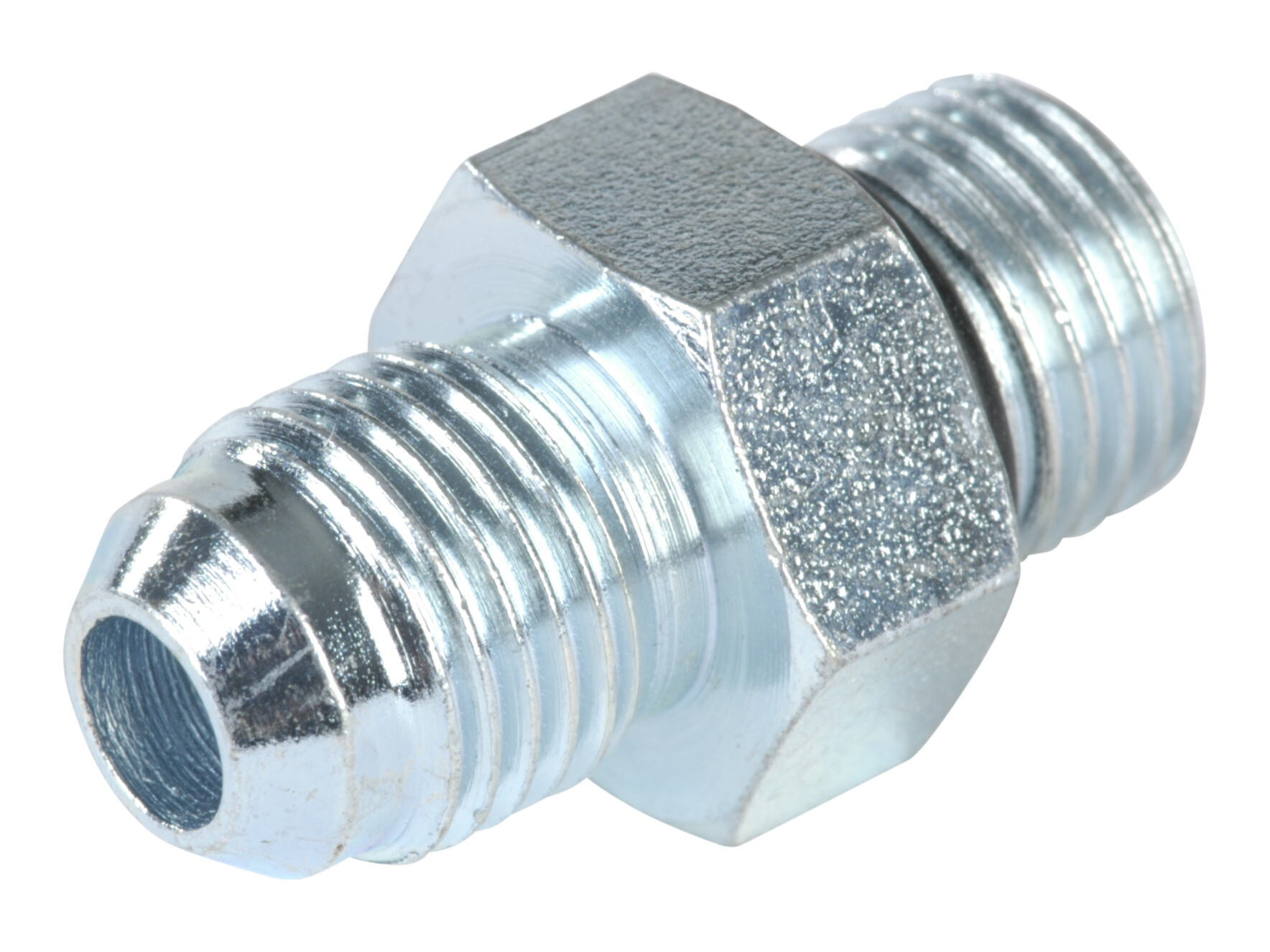

JIC 37° male straight basic connector
- Male thread SAE UNF-UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
Partnumber:
M-08-1/2
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
31 mm
Angle
0 °
B
14 mm
Brand Name
FOR
CH
16 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
9 mm
Diameter pipe
8 mm
Dimension F
1/2-20 UNF
F
1/2-20 UNF
J
1/2-20 JIC
Material
Steel
Model code
A102012/0812
Pressure max.
416 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
Electro-galvanized / White chromatized
T
8 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1/2-20 JIC
Thread outer
1/2-20 UNF
Package size
0 pcs
Barcode
5704334274599
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° male straight basic connector
- Male thread SAE UNF-UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
