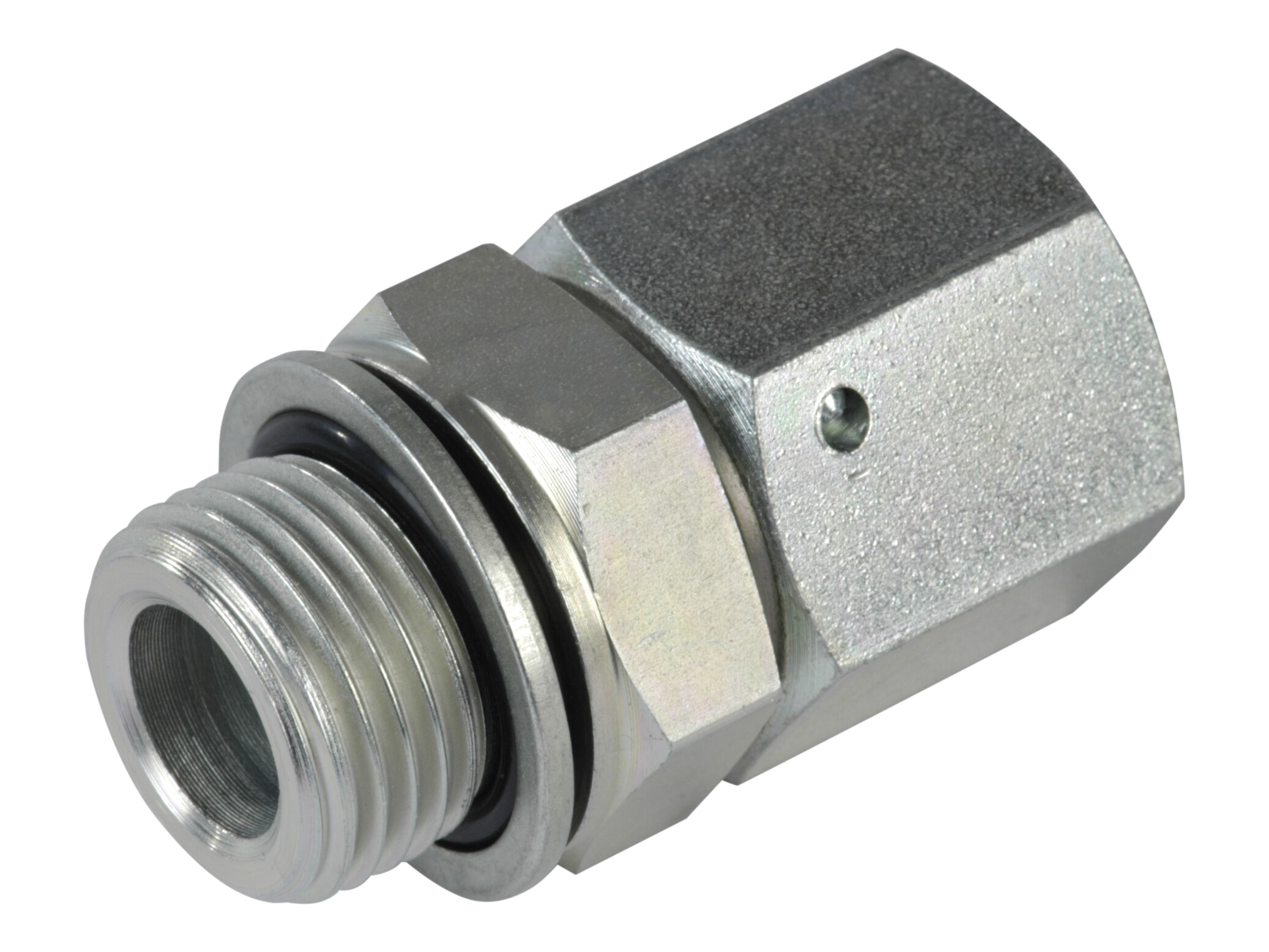

S180-16-21G adaptor with nut

Partnumber:

FG-16-1/2

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

16 mm

Dimension A

50.5 mm

Dimension B

26 mm

Dimension CH

27 mm

Dimension CH1

27 mm

Dimension D

12 mm

Dimension F

G 1/2 BSP

Dimension J

7/8-14 JIC

Dimension T

16 mm

Material

Steel

Pressure max.

350 bar

Surface treatment

Electro-galvanized / White chromatized

Thread inner

7/8-14 JIC

Thread outer

G 1/2 BSP

Package size

0 pcs

Barcode

5704334106395

Gross weight

0,14 Kg

Net weight

0,14 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S180-16-21G adaptor with nut

Note: Opening 3D files requires a program that supports the file format
