S230-38-42G adaptor BSP
\ufeff
-

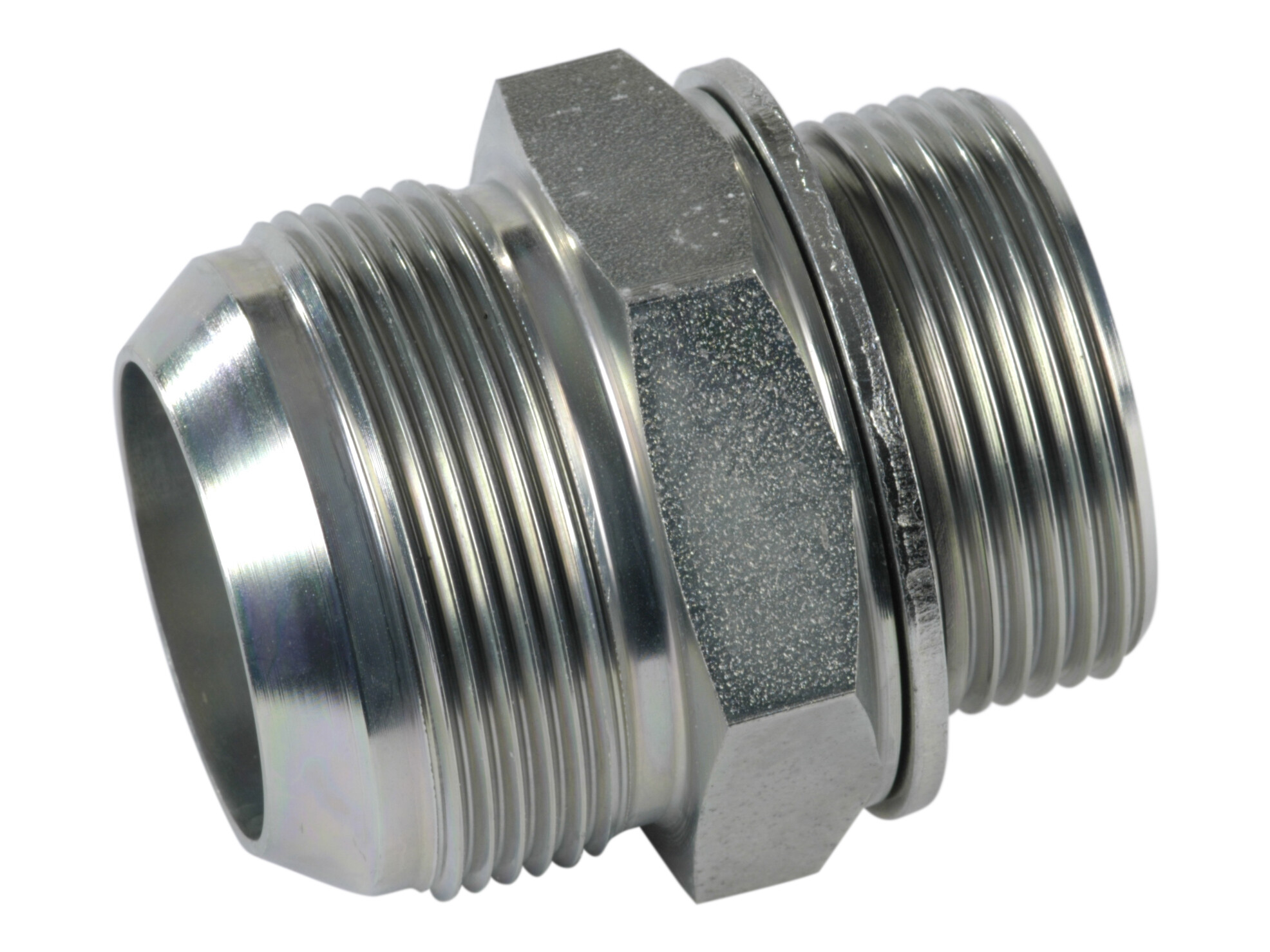

JIC 37° straight basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Artikelnummer:
M-38-1.1/4
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
A
61,5 mm
Angle
0 °
B
27,5 mm
Brand Name
FOR
CH
50 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
17,5 mm
Diameter pipe
38 mm
F
G 1.1/4 BSP
J
1.7/8-12 JIC
Material
Steel
Model code
A102023/3842
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
38 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread
G 1.1/4 BSP
Thread outer
1.7/8-12 JIC
Thread outer
G 1.1/4 BSP
Package size
0 pcs
Barcode
5704334395058
Gross weight
0,41 Kg
Net weight
0,41 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° straight basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
