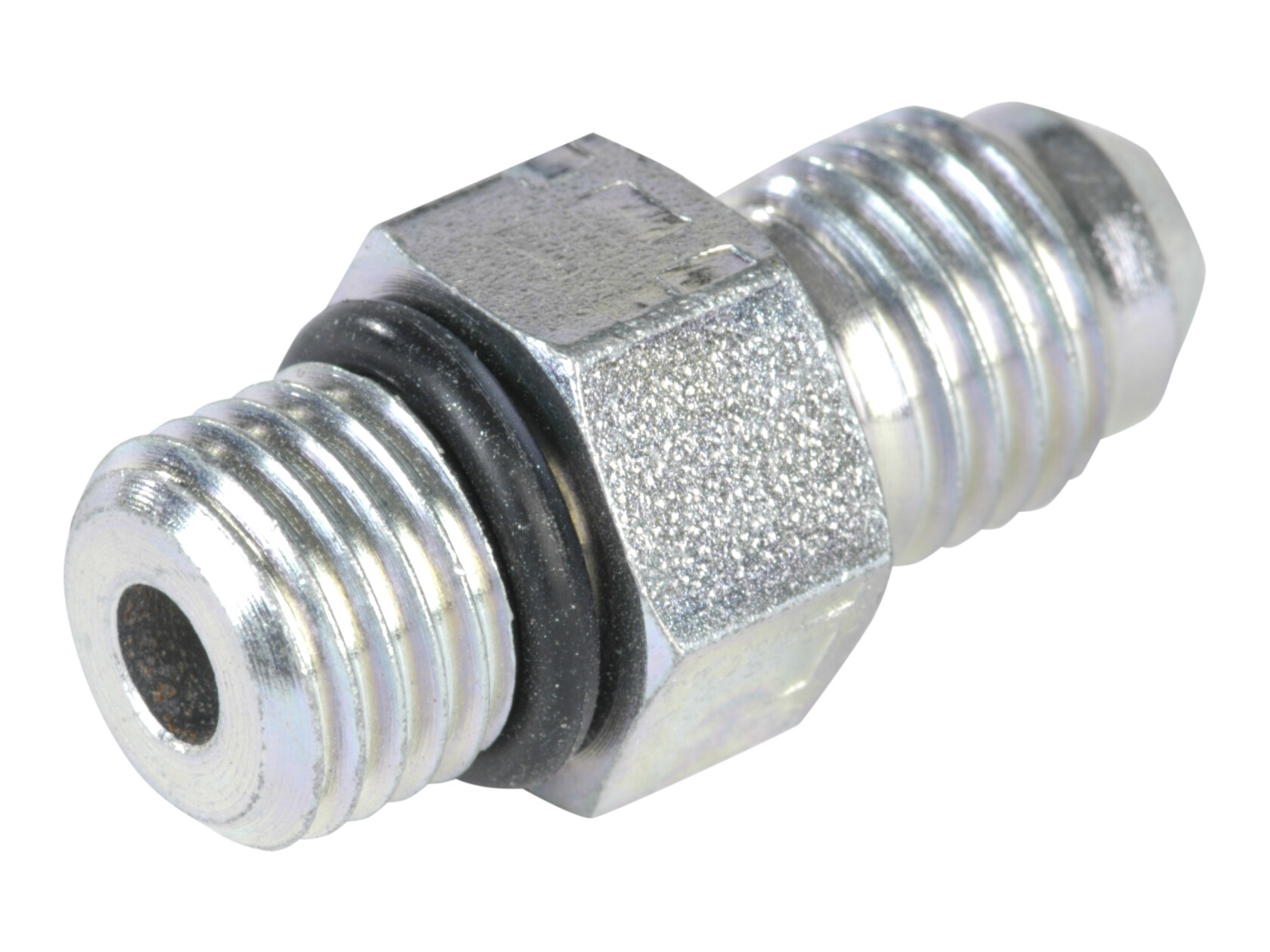

S220-06-11U adaptor UNF
S220-06-11U adaptor UNF
Partnumber:
M-06-7/16
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
6 mm
Dimension A
31 mm
Dimension B
14 mm
Dimension CH
14 mm
Dimension D
9 mm
Dimension F
7/16-20 UNF
Dimension J
7/16-20 JIC
Dimension T
6 mm
Material
Steel
Pressure max.
450 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
7/16-20 JIC
Thread outer
7/16-20 UNF
Package size
0 pcs
Barcode
5704334274575
Gross weight
0,02 Kg
Net weight
0,02 Kg
Country of origin
ITA
Intrastat code
73071110
S220-06-11U adaptor UNF
Note: Opening 3D files requires a program that supports the file format
