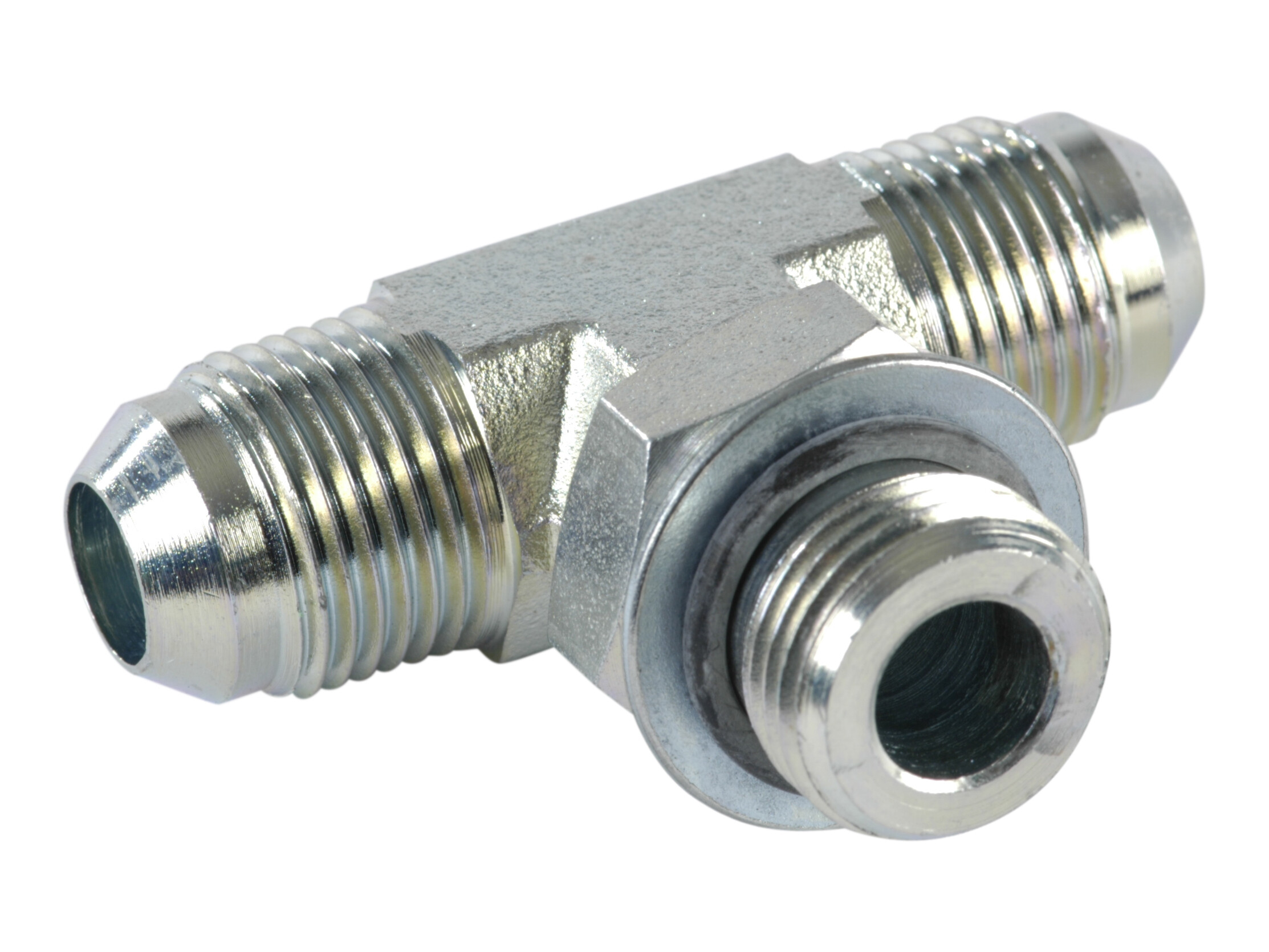

S585-12-19U Tee UNF
S585-12-19U Tee UNF
Partnumber:
TOL-12-3/4
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm
Dimension B
31.5 mm
Dimension B1
31.5 mm
Dimension C
36.5 mm
Dimension CH
22 mm
Dimension F
3/4-16 UNF
Dimension J
3/4-16 JIC
Dimension J1
3/4-16 JIC
Dimension T
12 mm
Dimension T1
12 mm
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
3/4-16 JIC
Thread outer
3/4-16 UNF
Package size
0 pcs
Barcode
5704334064343
Gross weight
0,14 Kg
Net weight
0,14 Kg
Country of origin
ITA
Intrastat code
73071110
S585-12-19U Tee UNF
Note: Opening 3D files requires a program that supports the file format
